AN82.60-P-0016-02EWA Retrofit Media Interface Wiring Harness

AN82.60-P-0016-02EWA Retrofit Media Interface Wiring Harness
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (512) COMAND APS with DVD changer

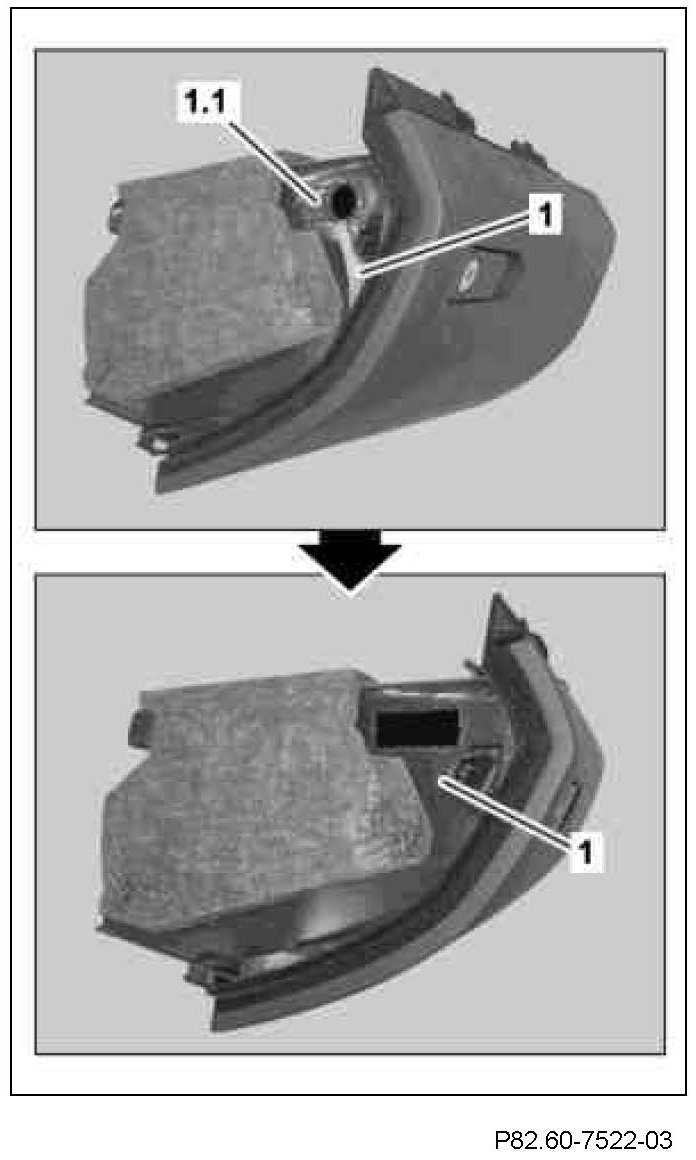

1 Carefully break cutout (1.1) out of glove box (1) along perforation. 2 Open lid of glove box (1).

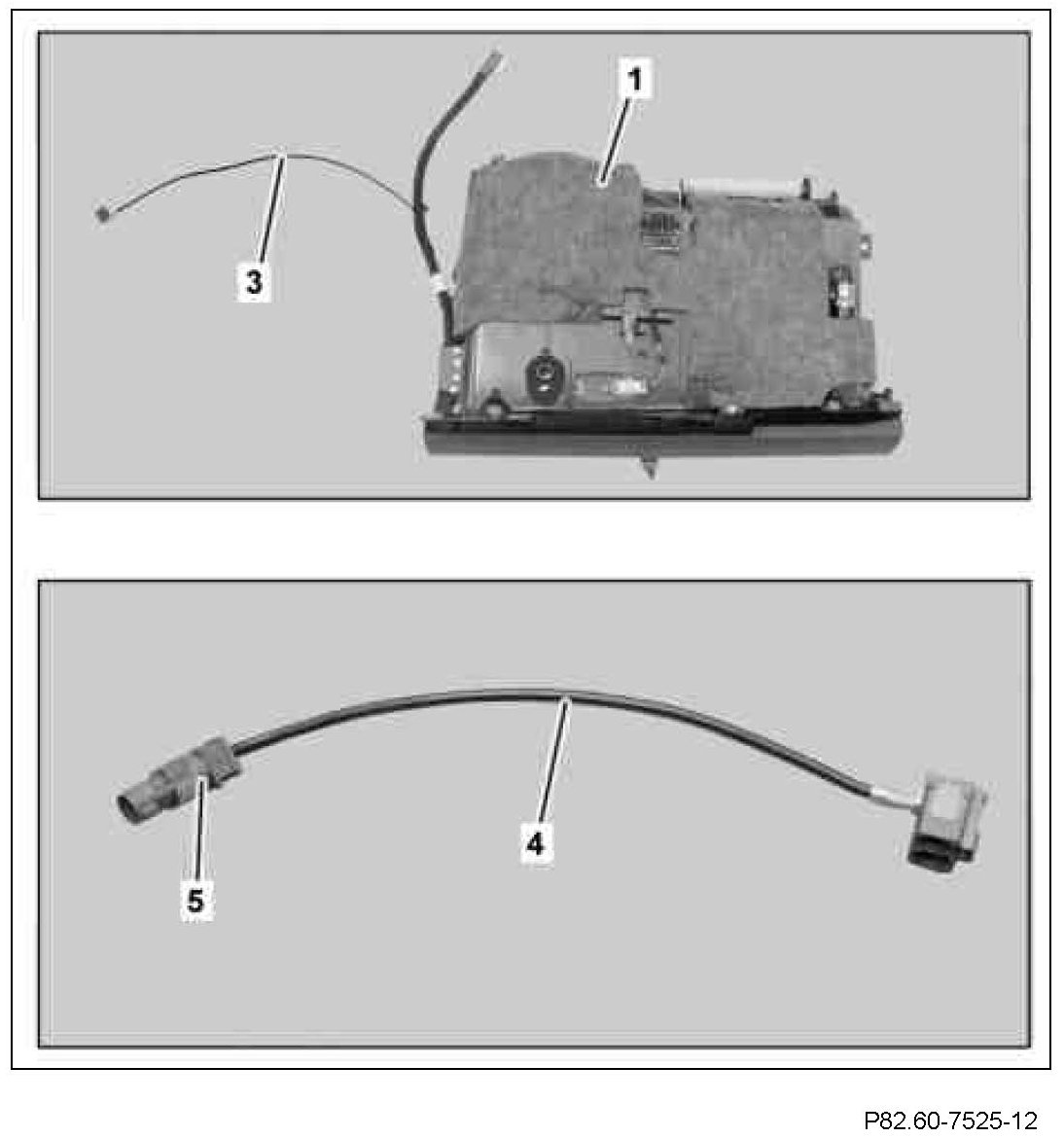

3 Route media interface wiring harness (2) and video signal wiring harness (3) from inside through opening in glove box (1).

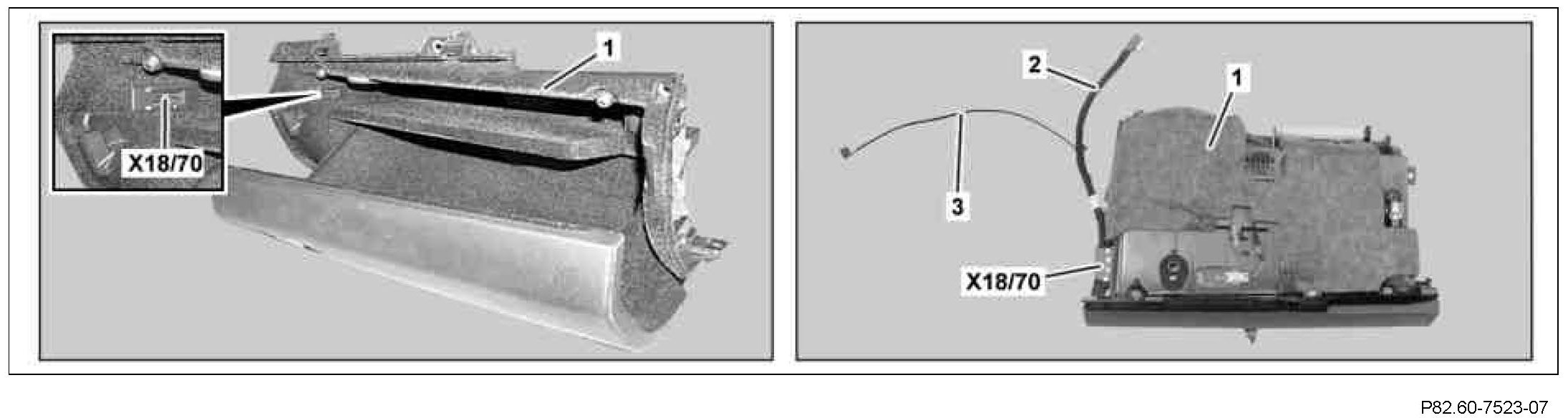

4 Clip media interface electrical connector (X18/70) into glove box (1).
5 Wrap felt tape around media interface wiring harness (2) and video signal wiring harness (3).

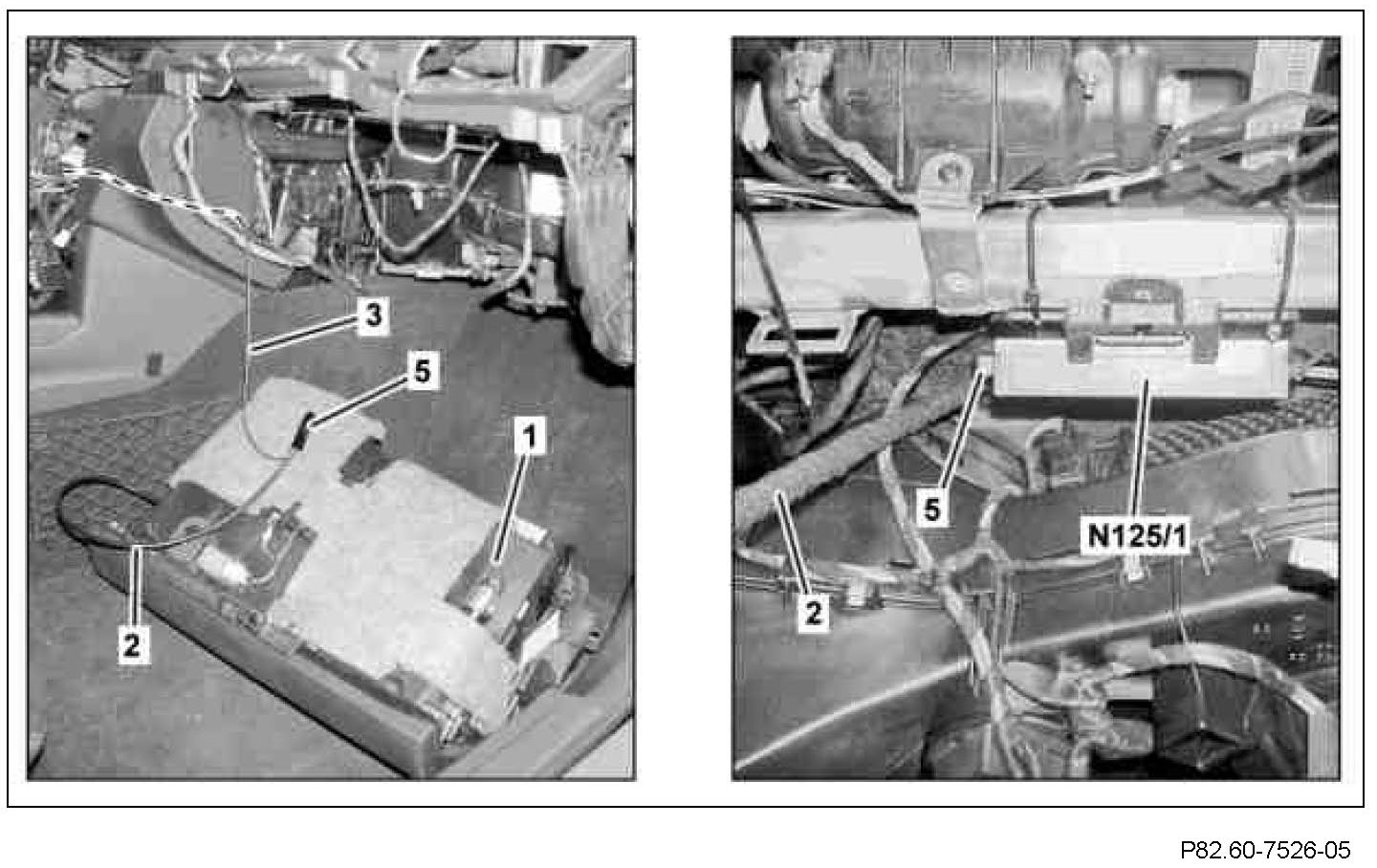

6 Connect coupling (5) of video signal adapter line (4) to video signal line (3).







7 Route video signal wiring harness (3) with video signal adapter line (4) along broken line into slot of COMAND controller unit.
8 Place glove box (1) in front passenger footwell and connect black coupling (5) of media interface wiring harness (2) to free slot of media interface control unit (N125/1).











Only perform the following operation steps on vehicles with code (610) Night View Assist.

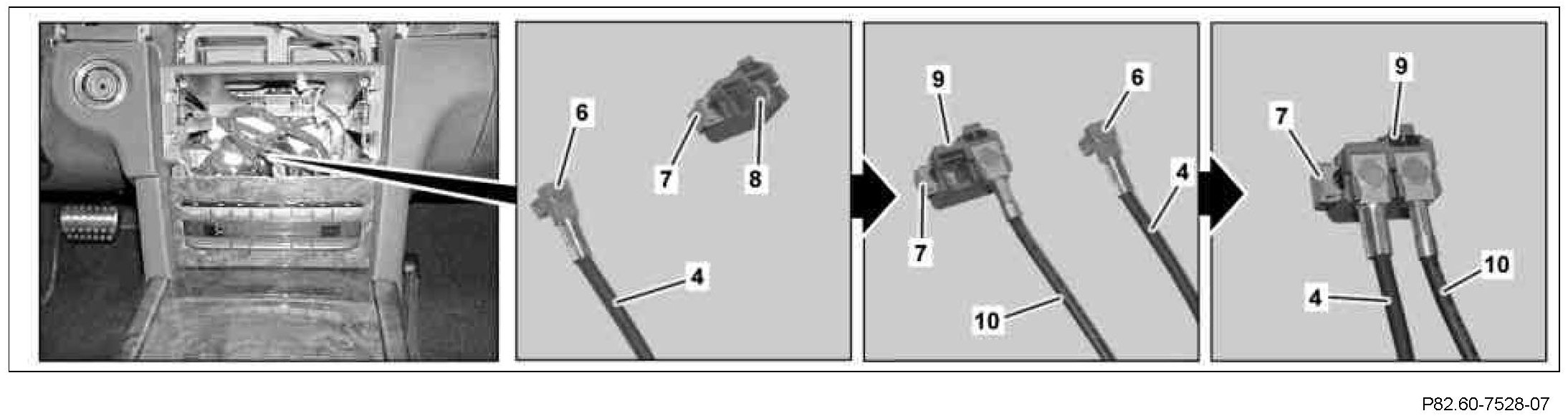

9 Open lock (7) of contact cavity 1 at green 1-pin housing (8) of video signal adapter line (4).
10 Remove coupling (6) of video signal adapter line (4) from contact cavity 1 of green 1-pin housing (8).

The green 1-pin housing (8) is no longer required.

11 Open lock (7) of contact cavity 1 at green 2-pin housing (9) of Night View Assist line (10).
12 Insert coupling (6) of video signal adapter line (4) in contact cavity 1 of green 2-pin housing (9) and engage lock (7).

The video signal adapter line (4) will be connected to the COMAND controller unit at a later point.
