AN82.60-P-0016-02EW Retrofit Media Interface Wiring Harness

AN82.60-P-0016-02EW Retrofit Media Interface Wiring Harness
- with CODE (510) Audio 20 with CD changer
- with CODE (525) MB Audio 50 APS radio
- with CODE (511) Audio 50 APS with DVD changer

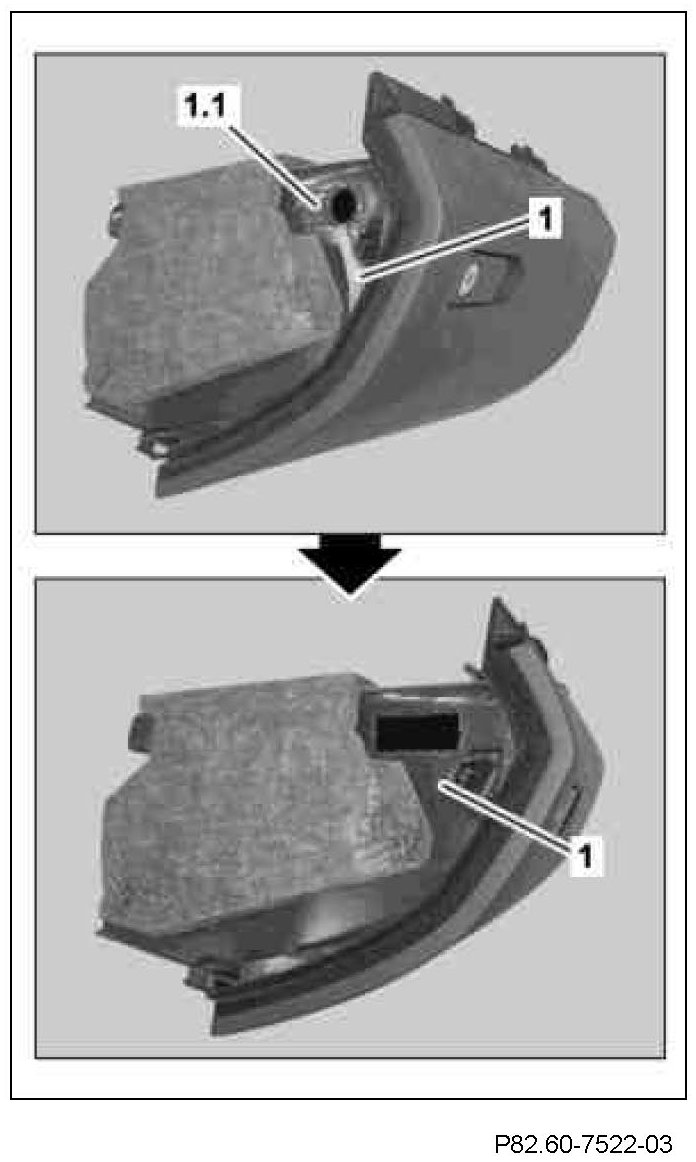

1 Carefully break cutout (1.1) out of glove box (1) along perforation.
2 Open lid of glove box (1).

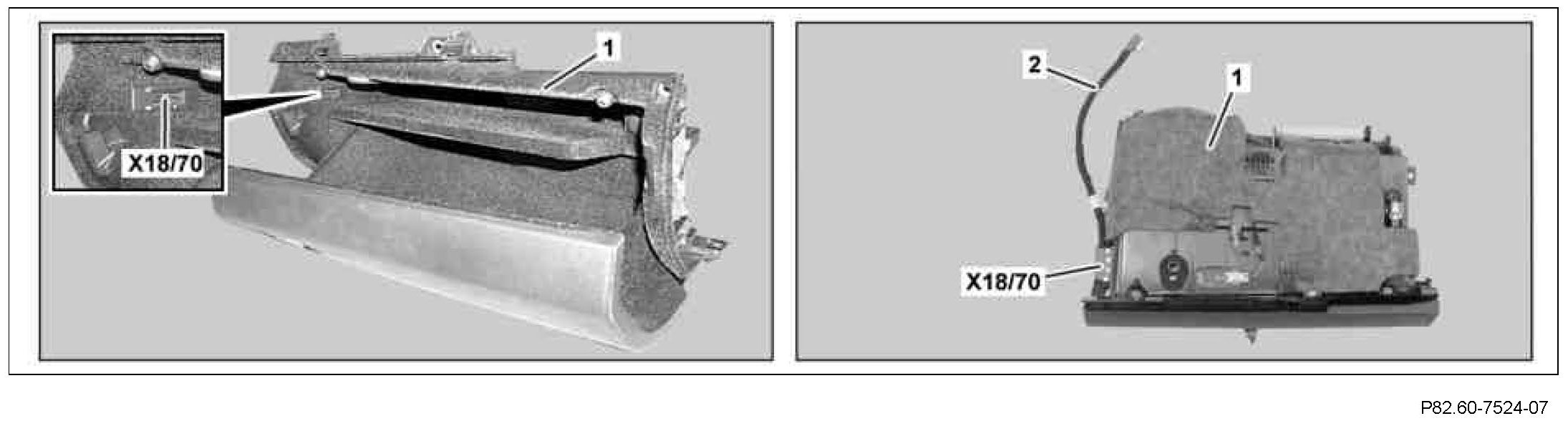

3 Route media interface wiring harness (2) from inside through opening in glove box (1).
4 Clip media interface electrical connector (X18/70) into glove box (1).
5 Wrap felt tape around media interface wiring harness (2).

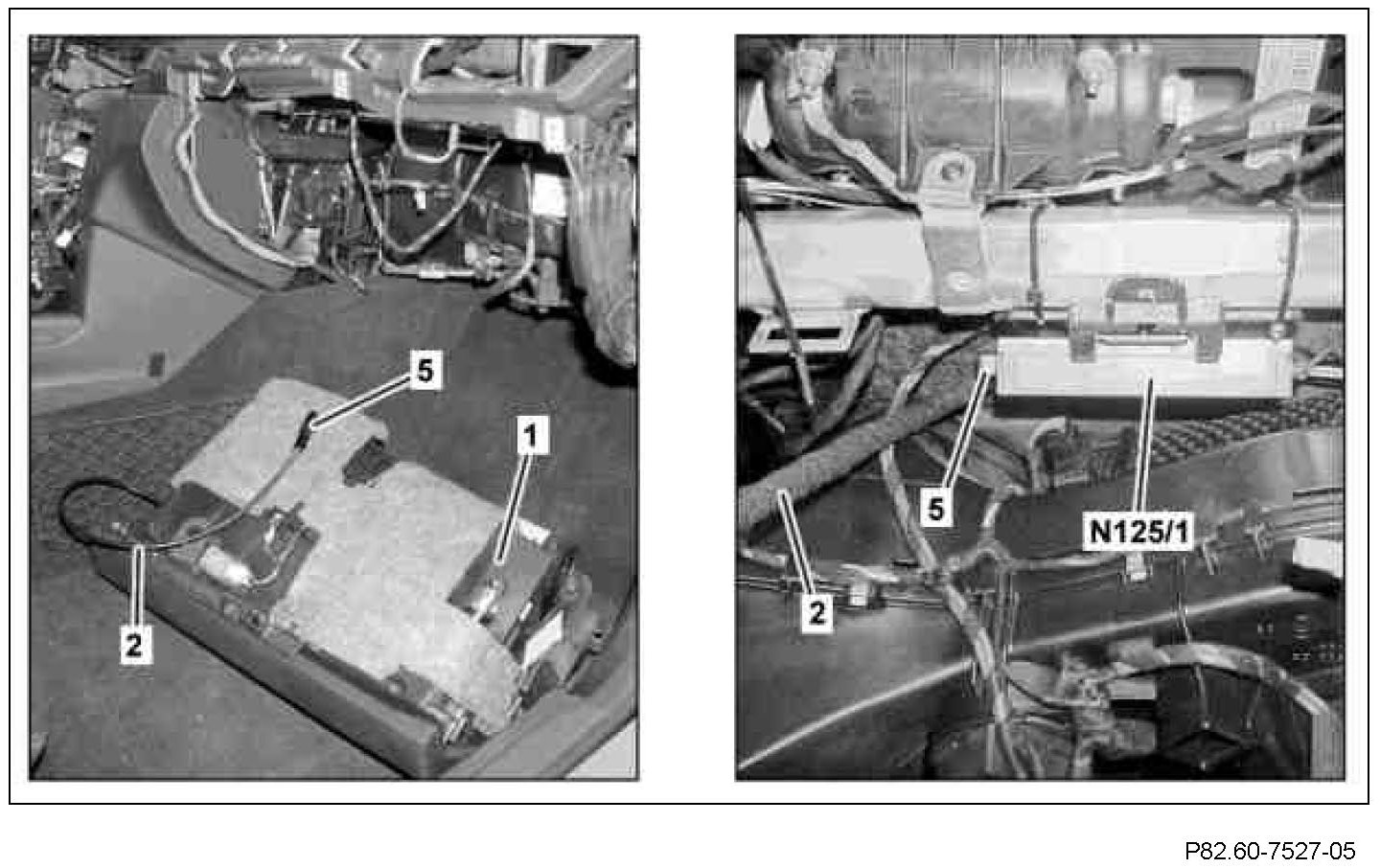

6 Place glove box (1) in front passenger footwell and connect black coupling (5) of media interface wiring harness (2) to free slot of media interface control unit (N125/1).
