AN82.60-P-0016-01EW Retrofit Media Interface Control Unit

AN82.60-P-0016-01EW Retrofit Media Interface Control Unit

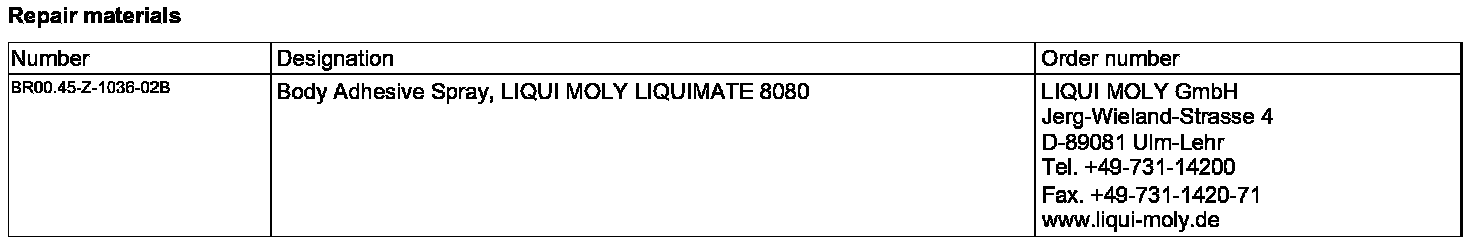

Repair Materials:

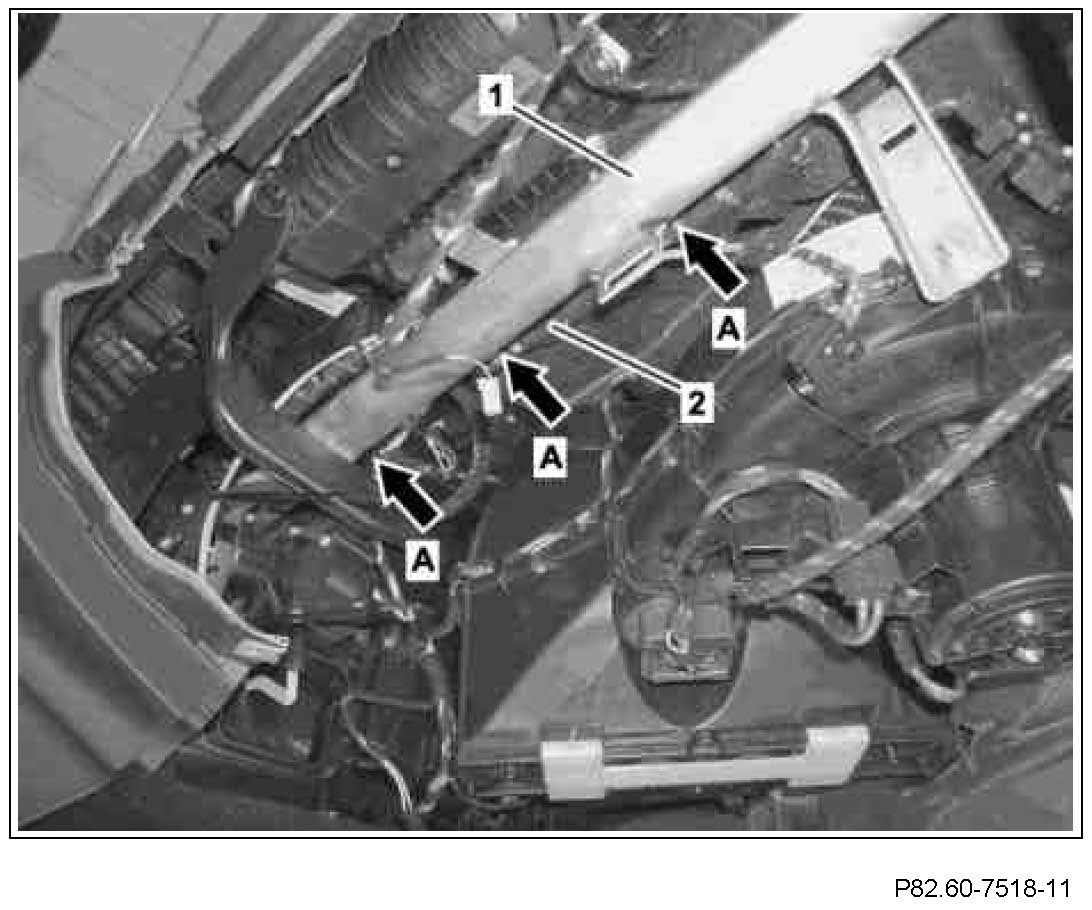

1 Disconnect bracket (arrows A) of vehicle wiring harness (2) at crossmember below instrument panel (1).







2 Apply spray adhesive to contact surfaces of bracket (3).

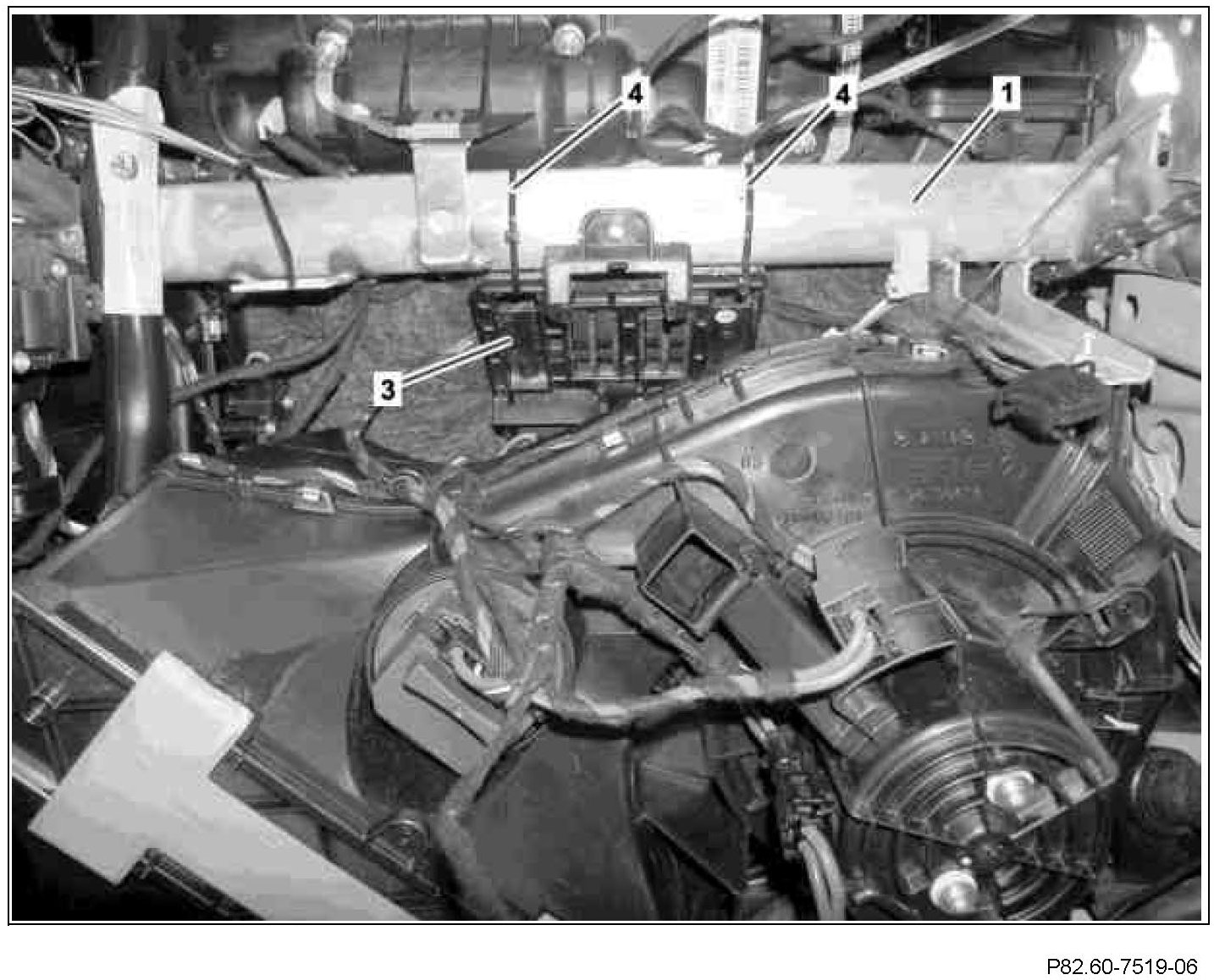

3 Position bracket (3) at crossmember below instrument panel (1) and fix in place using two cable ties (4).
4 Refasten previously detached brackets of vehicle wiring harness at crossmember below instrument panel (1).

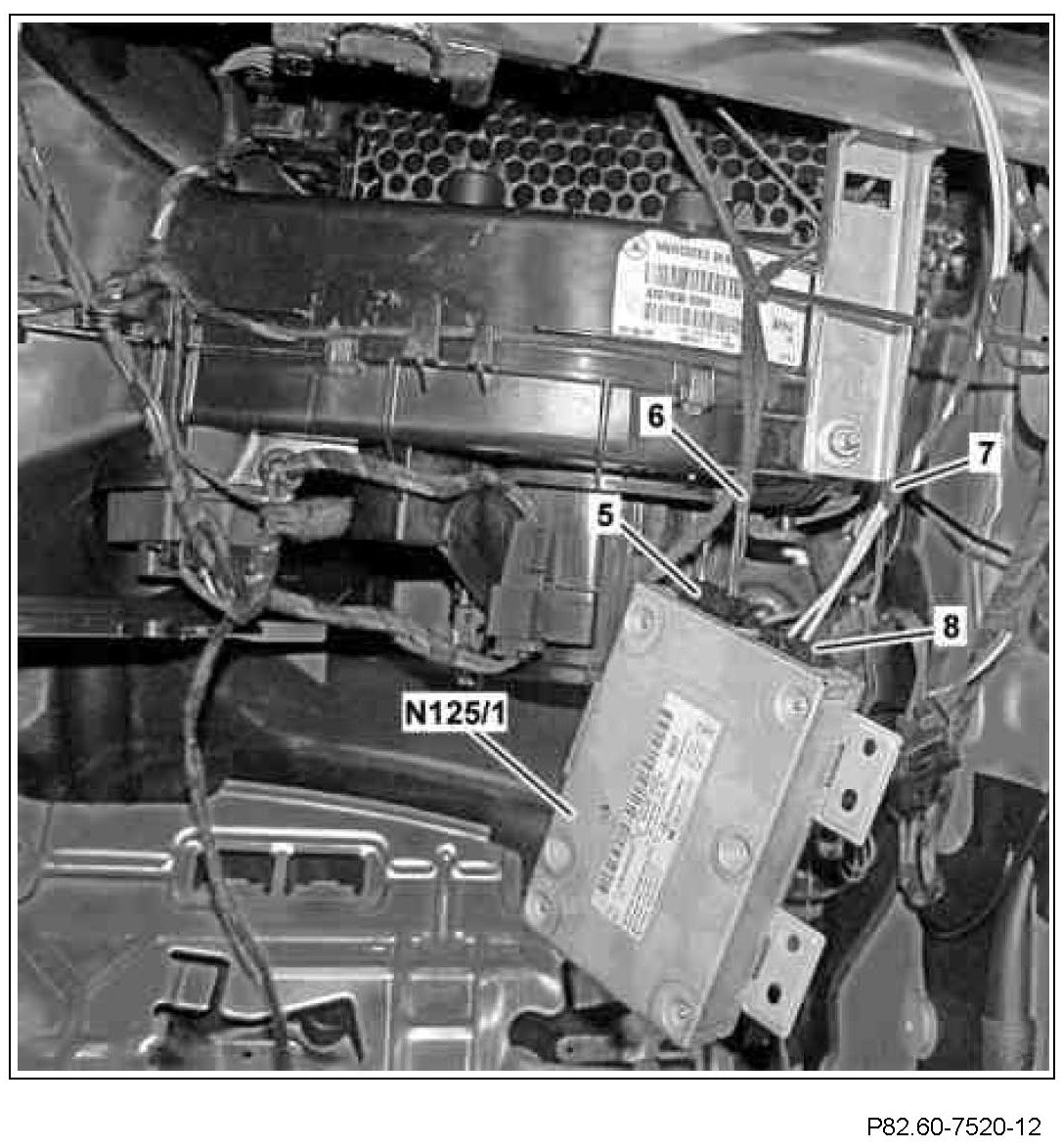

5 Connect black 3-pin coupling (5) of media interface control unit wiring harness (6) to media interface control unit (N125/1).
6 Connect black 2-pin coupling (8) of optical fiber wiring harness (7) to media interface control unit (N125/1).

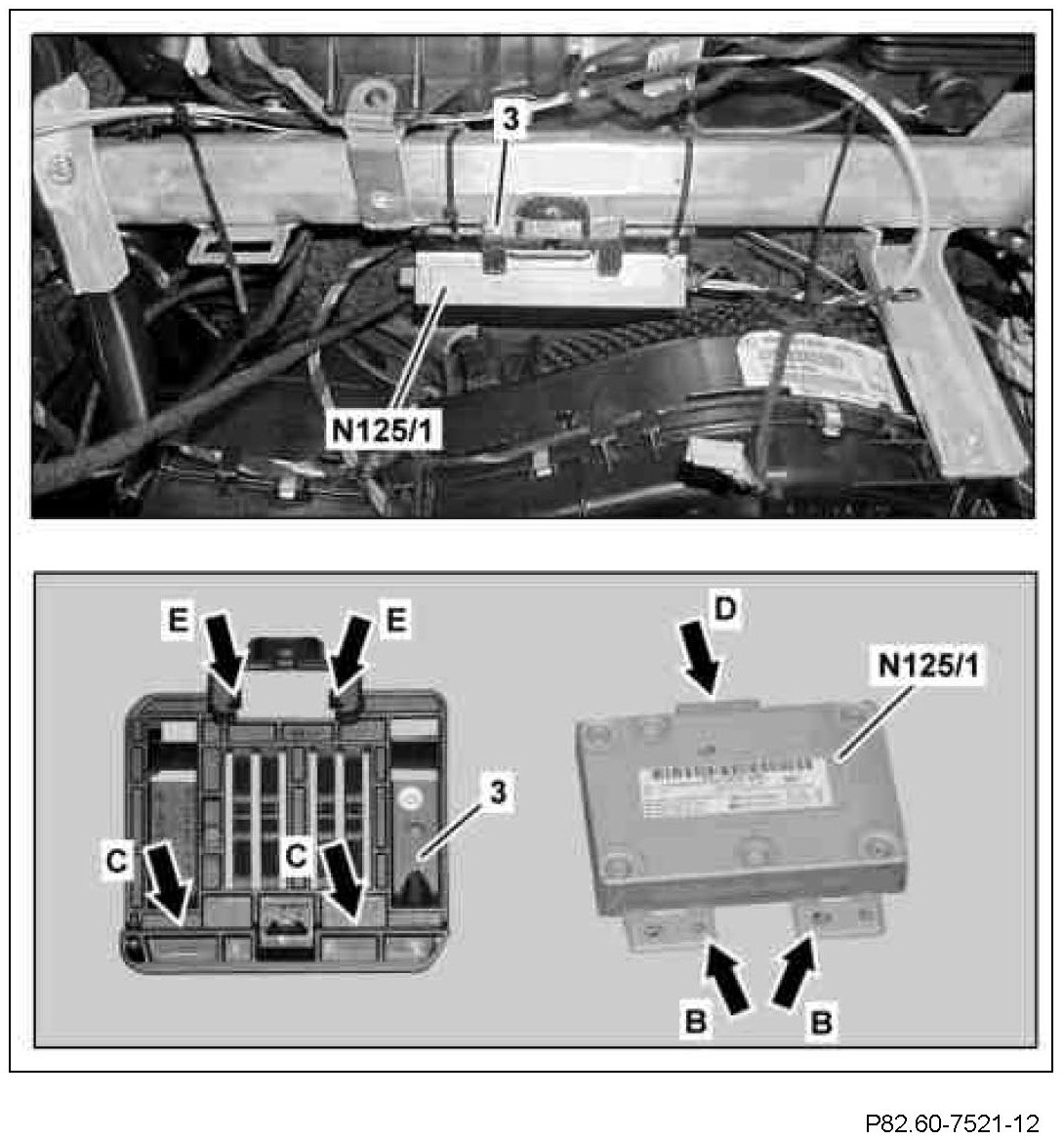

7 Insert shackles (arrows B) of media interface control unit (N125/1) in supports (arrows C) of bracket (3).
8 Position and clip in shackle (arrow D) of media interface control unit (N125/1) at catch hooks (arrows E) of bracket (3).
