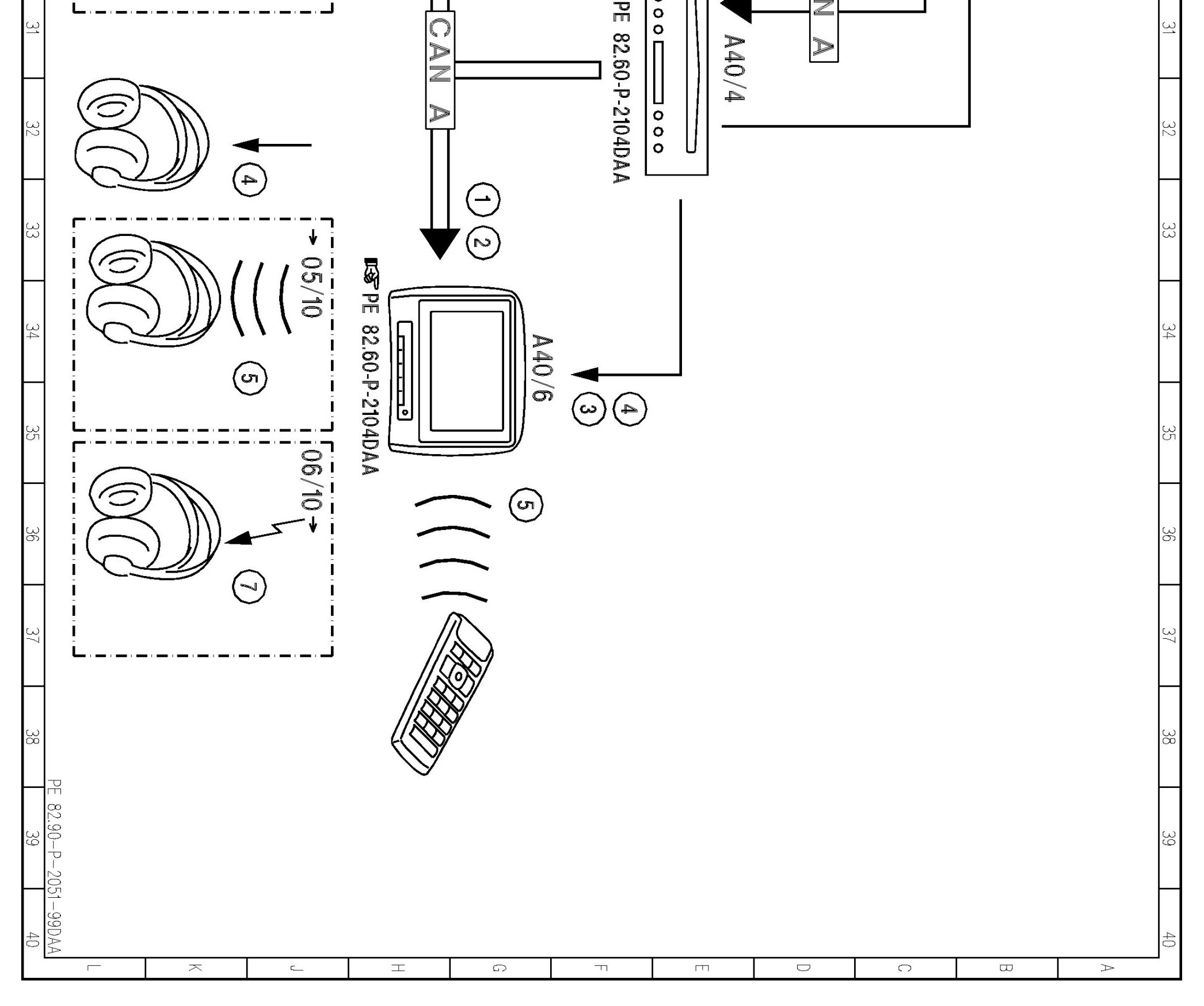

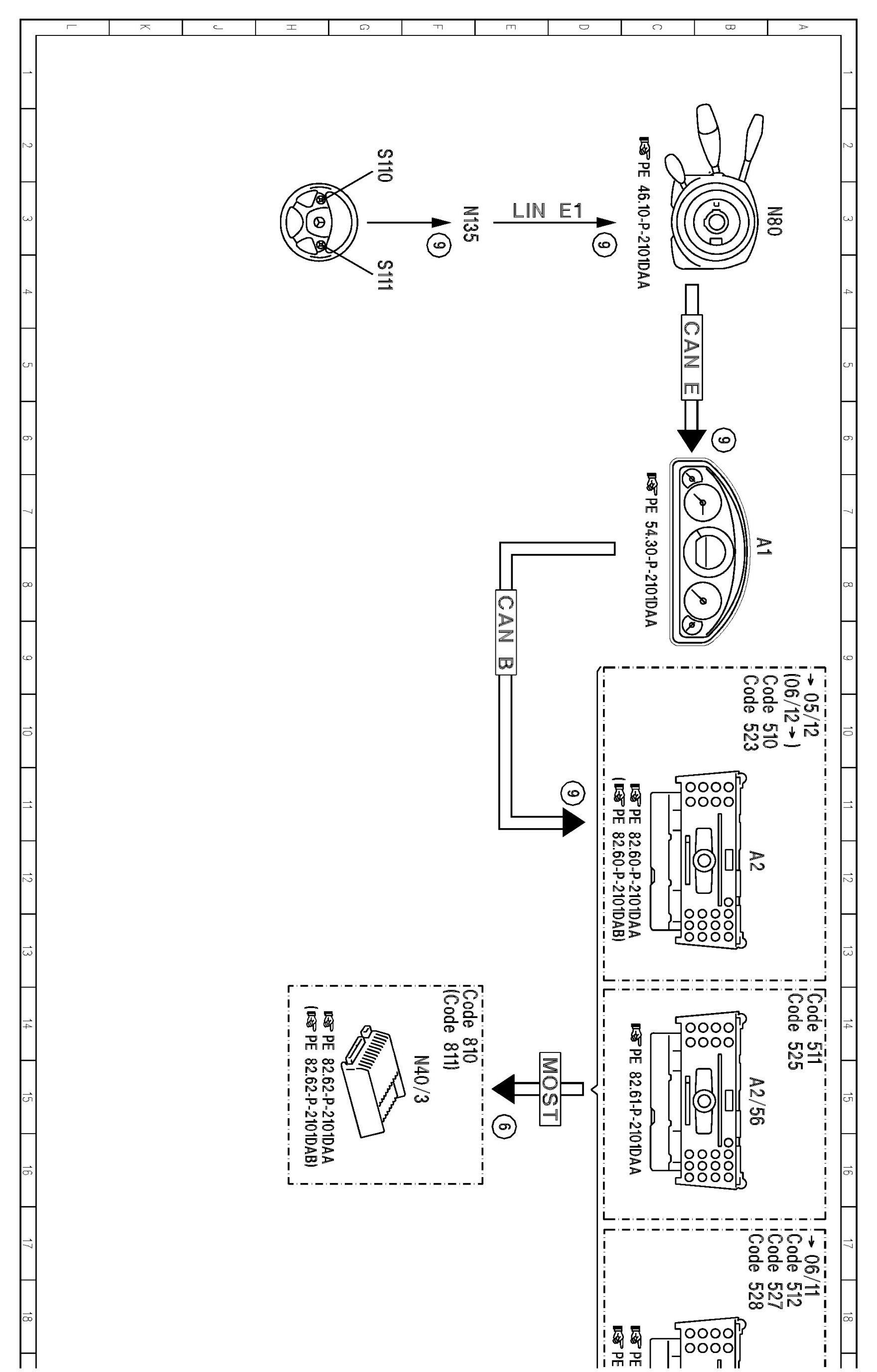

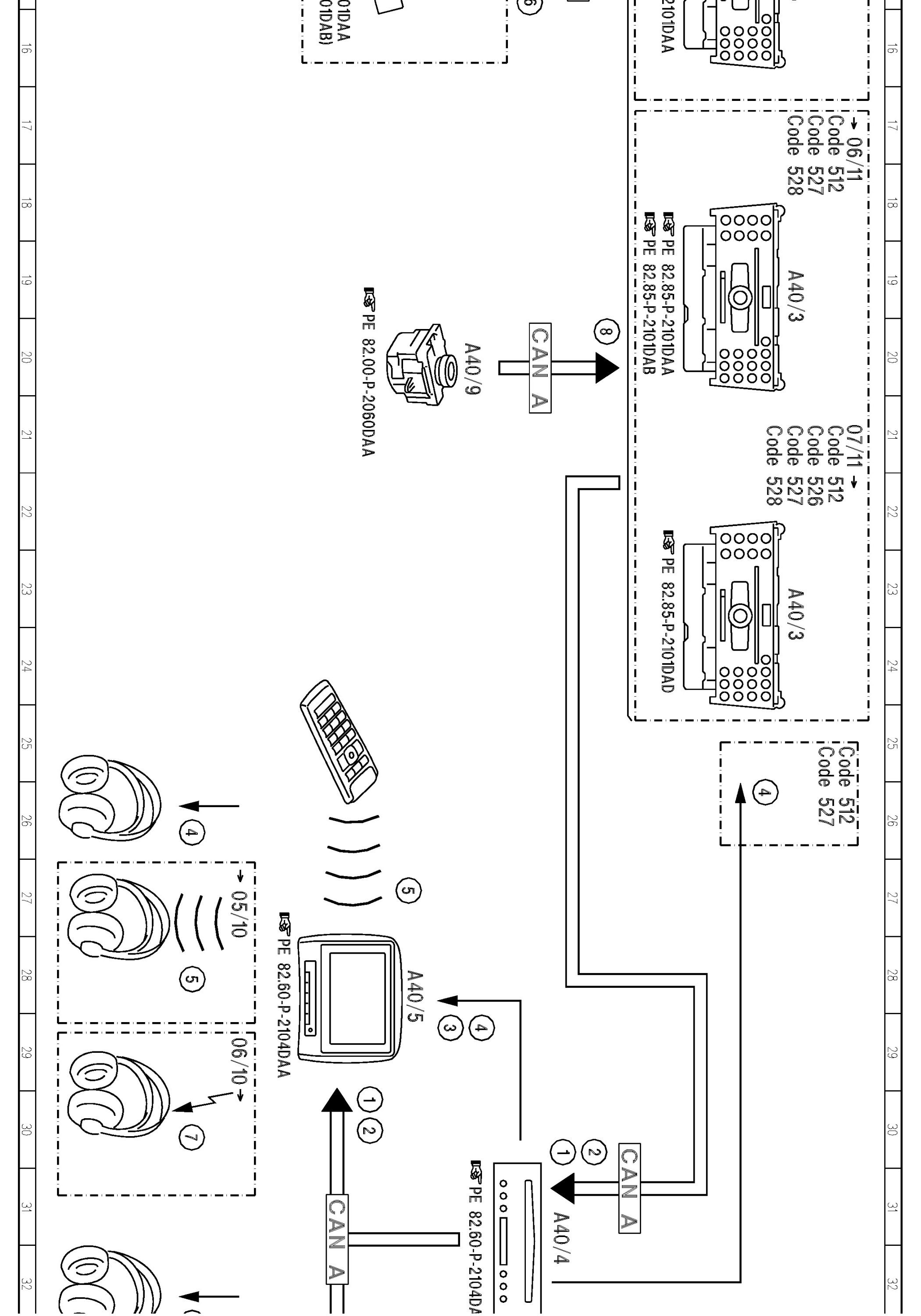

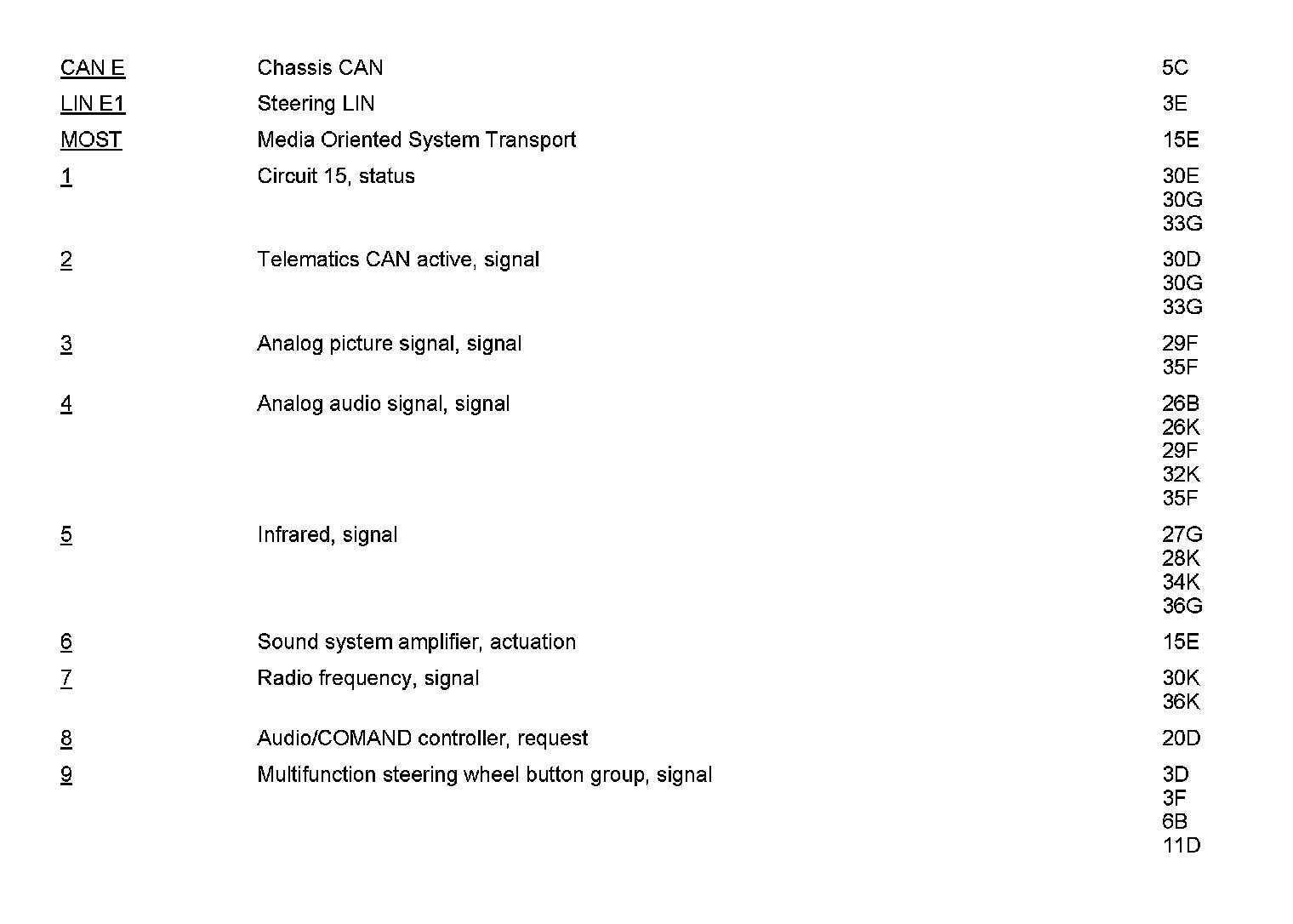

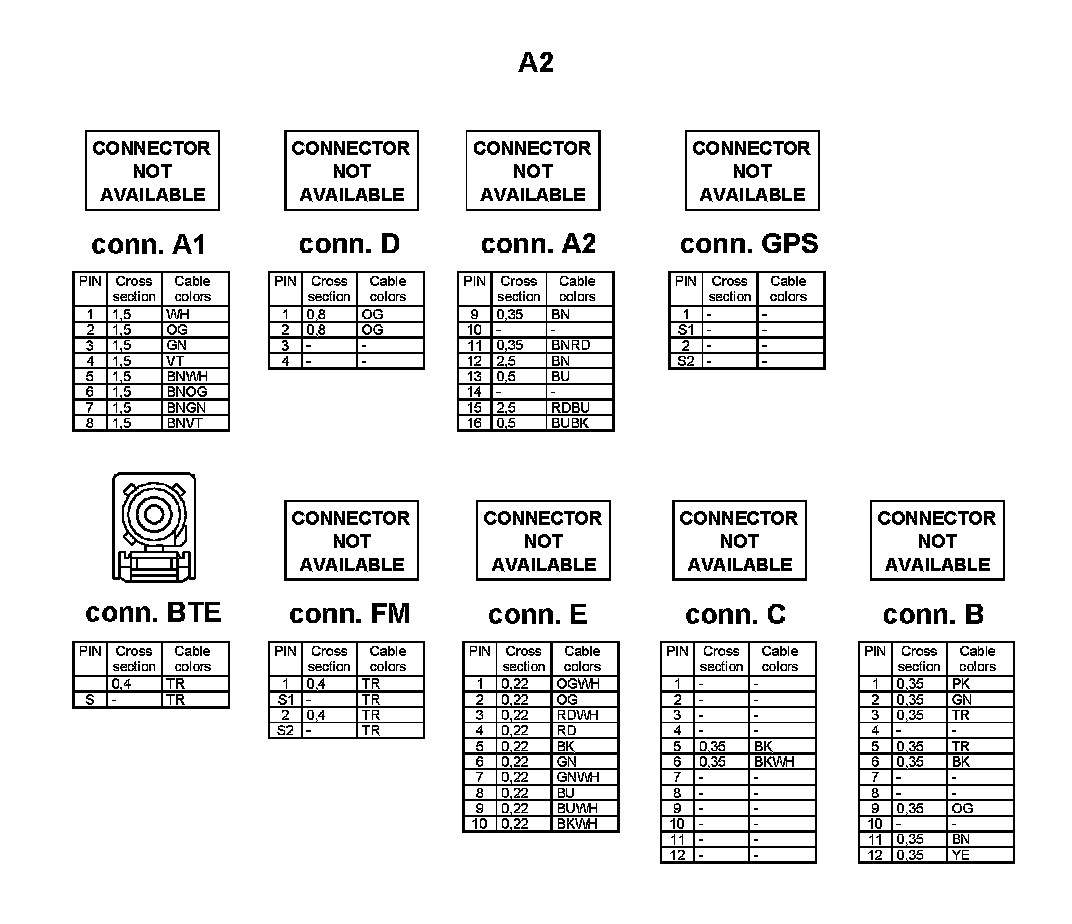

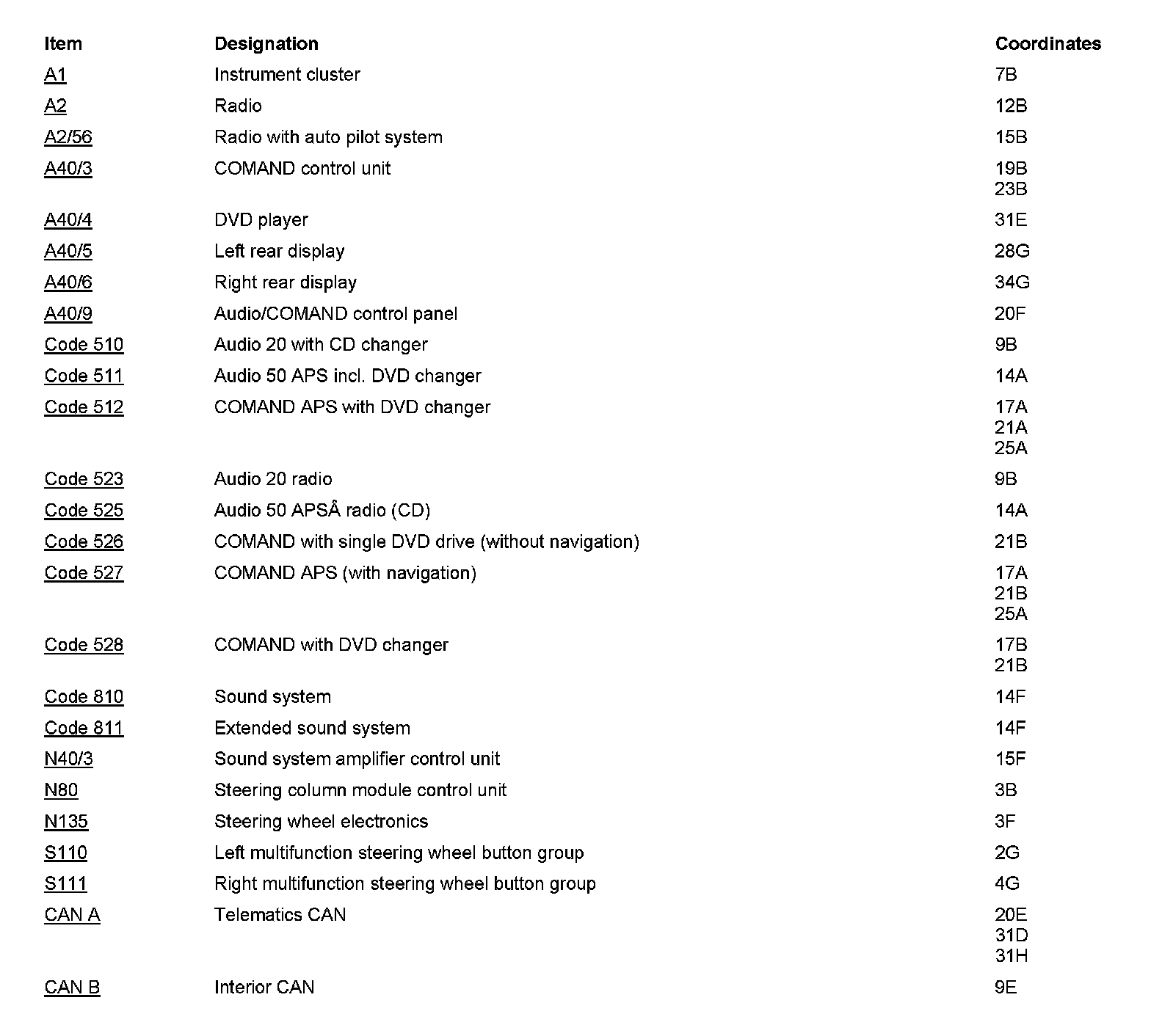

PE82.90-P-2051DAA Electrical Function Schematic For Rear Entertainment Disk Applications

PE82.90-P-2051DAA Electrical Function Schematic For Rear Entertainment Disk Applications
MODEL 212
- with CODE (864) Rear entertainment system


















































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
