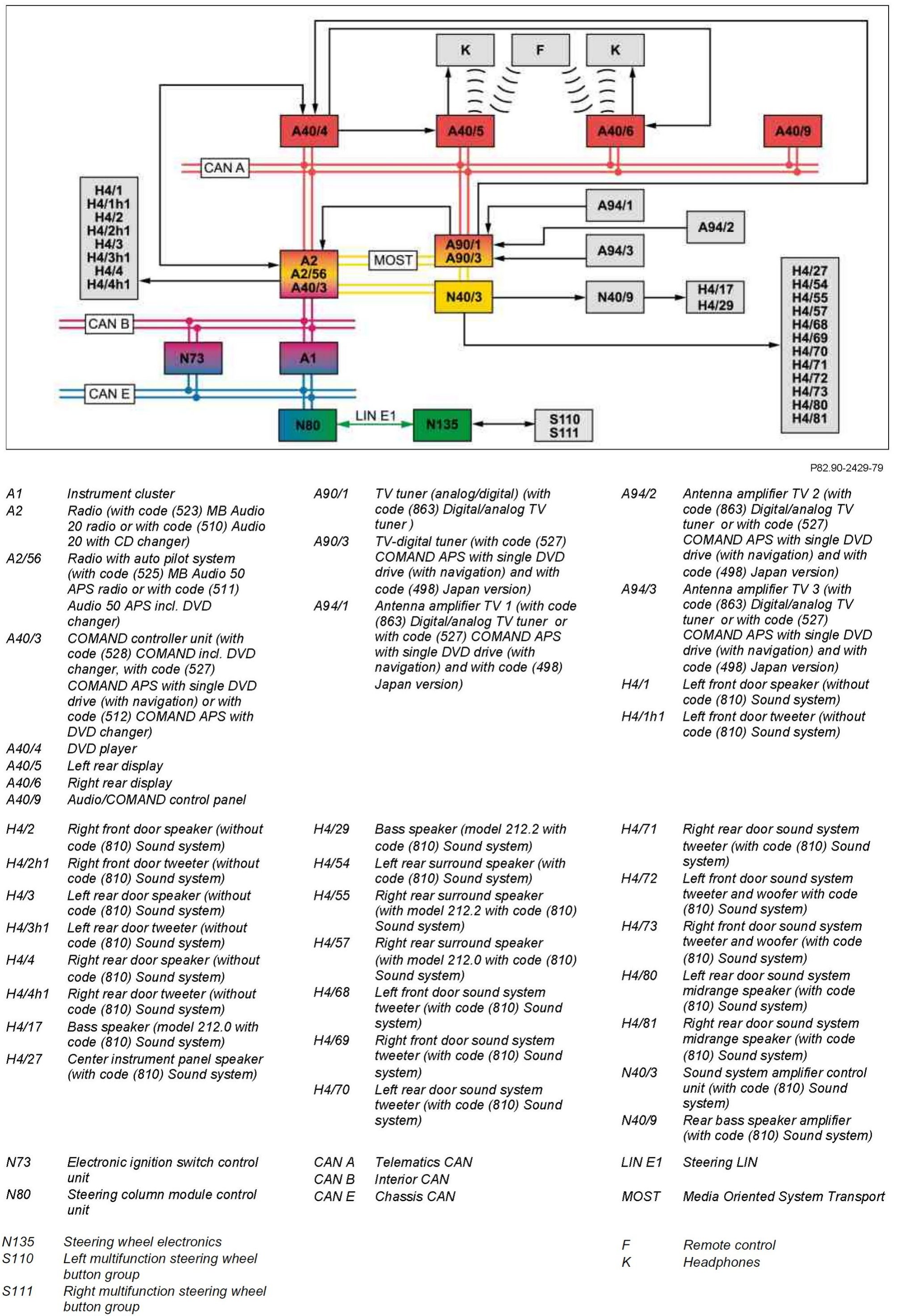

GF82.90-P-0002-03FL Rear Entertainment Block Diagram



GF82.90-P-0002-03FL Rear Entertainment Block Diagram
- with CODE (864) Rear entertainment system



Component Identification:
