Home >> Mercedes Benz >> 2011 >> E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Entertainment Systems >> DVD Player >> Service and Repair >> AR82.60-P-7505EW Remove/Install DVD Player

AR82.60-P-7505EW Remove/Install DVD Player



AR82.60-P-7505EW Remove/Install DVD Player
- with CODE (864) Rear entertainment system
- except CODE (224) Rear individual seat design

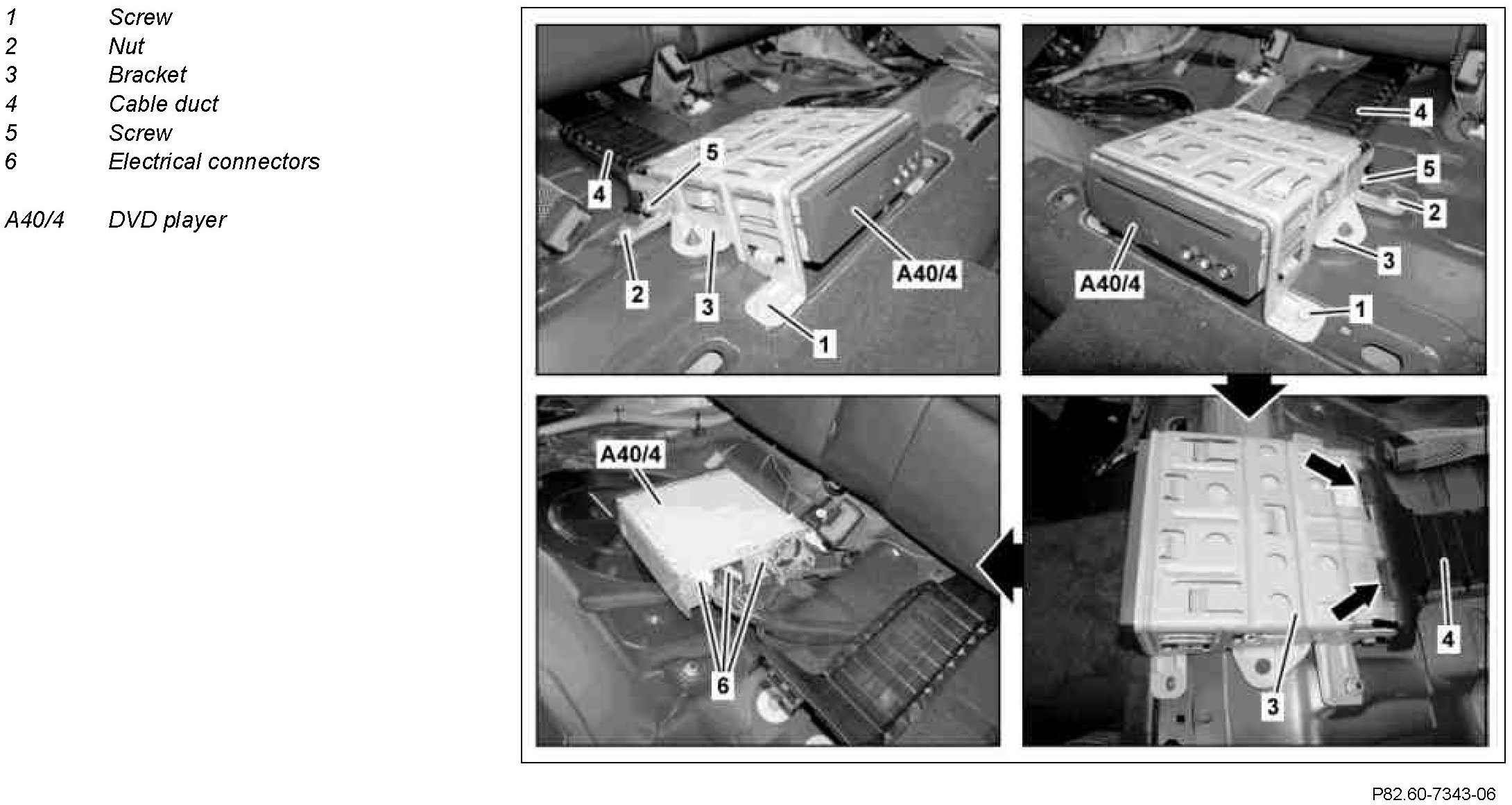

Component Identification:

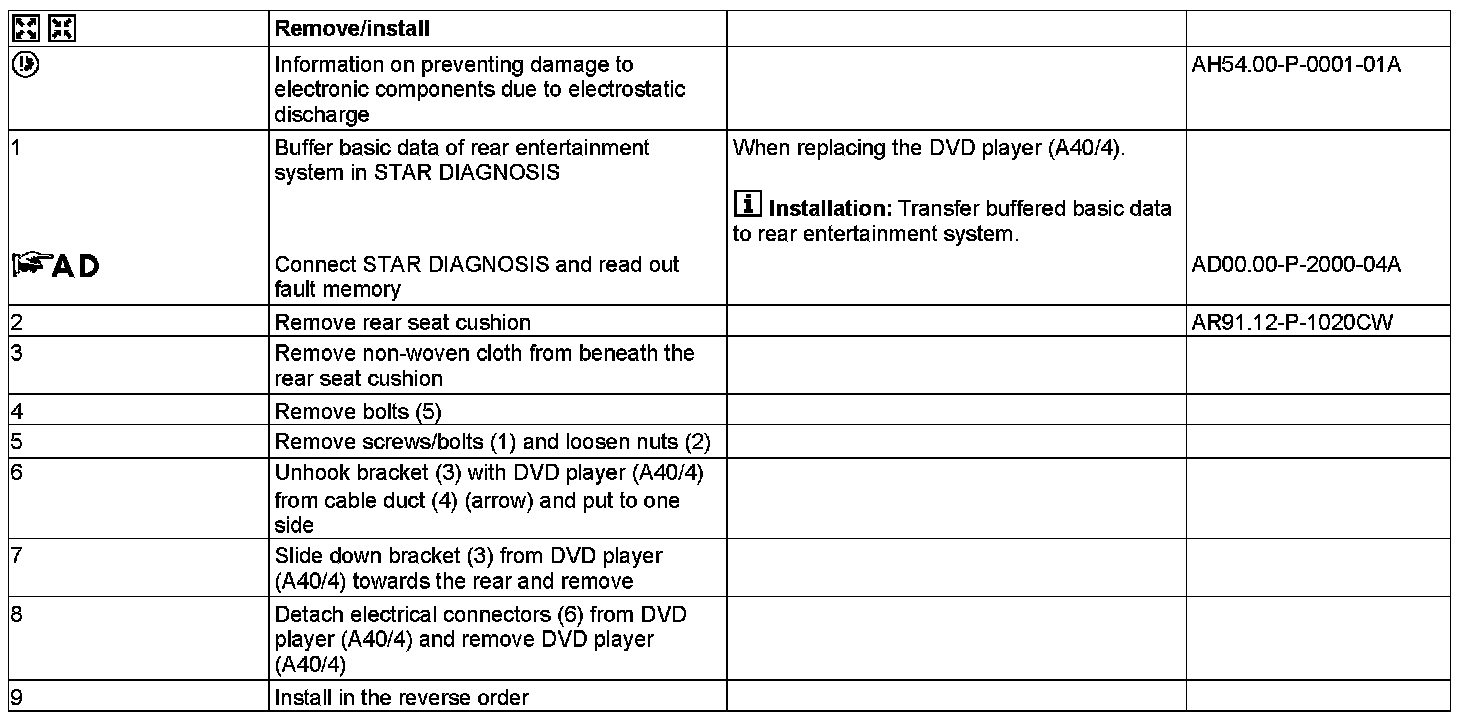

Steps 1 - 9:
