AR82.60-P-7505-01EW Remove/Install DVD Player Paneling

AR82.60-P-7505-01EW Remove/Install DVD Player Paneling
MODEL 212
- with CODE (864) Rear entertainment system
- except CODE (224) Rear individual seat design

Removing

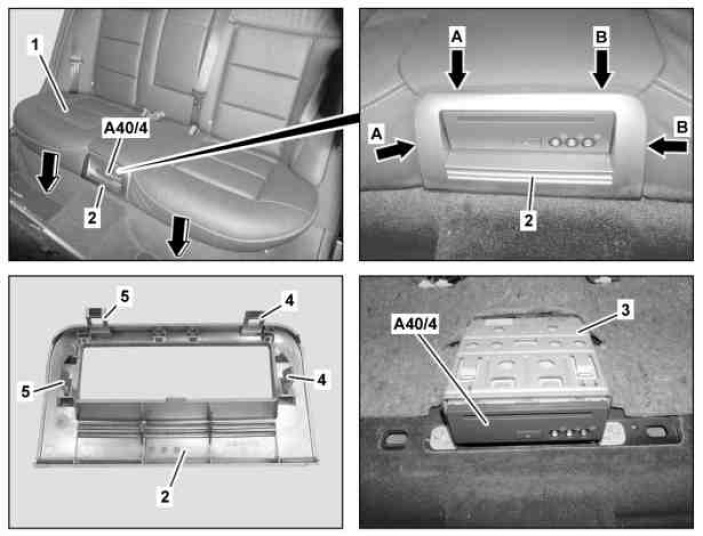

1 Carefully slide rear seat cushion (1) at right side to side, push padding in vicinity of DVD player (2) paneling to side and release catch hooks (4) of DVD player (2) paneling.
Ensure that the catch hooks (4) are not damaged, otherwise the DVD player (2) paneling must be replaced.
The catch hooks (4) are engaged in the carrier (3) of the DVD player (A40/4) (arrows A).
2 Carefully slide rear seat cushion (1) at left side to side, push padding in vicinity of DVD player (2) paneling to side and release catch hooks (5) of DVD player (2) paneling.
Ensure that the catch hooks (5) are not damaged, otherwise the DVD player (2) paneling must be replaced.
The catch hooks (5) are engaged in the carrier (3) of the DVD player (A40/4) (arrows B).
3 Remove DVD player (2) paneling evenly towards the front from the carrier (3) of the DVD player (A40/4).

Install
4 Engage rear seat cushion (1) in direction of arrow.
5 Slide DVD player (2) paneling evenly onto carrier (3) of DVD player (A40/4) and engage catch hooks (4, 5).
