AR54.65-P-0030EW Remove/Install Backup Camera
AR54.65-P-0030EW Remove/Install Backup Camera
AR54.65-P-0030EW Remove/install Backup
Camera
-
with CODE (218) Backup camera

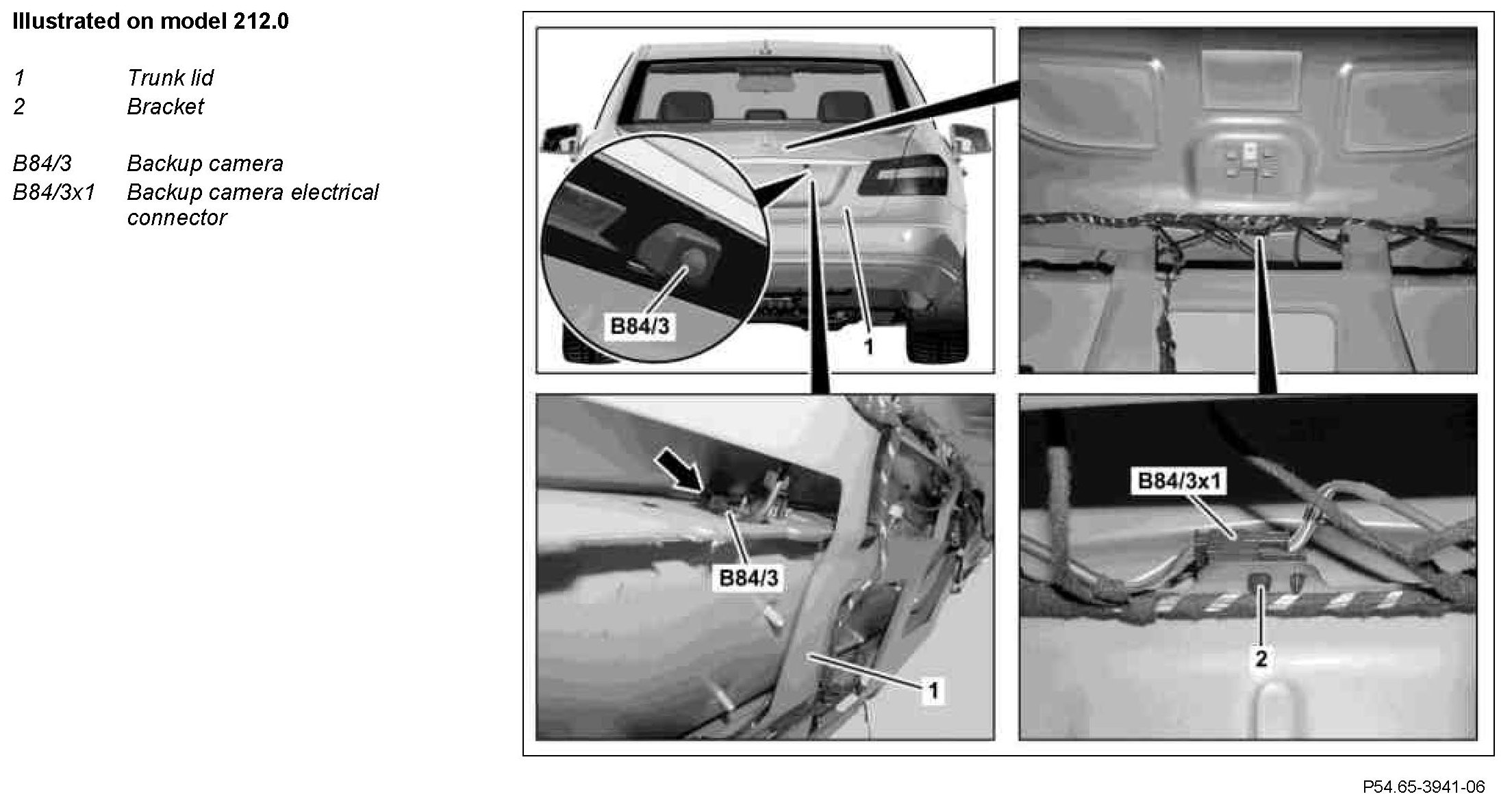

Component Identification:

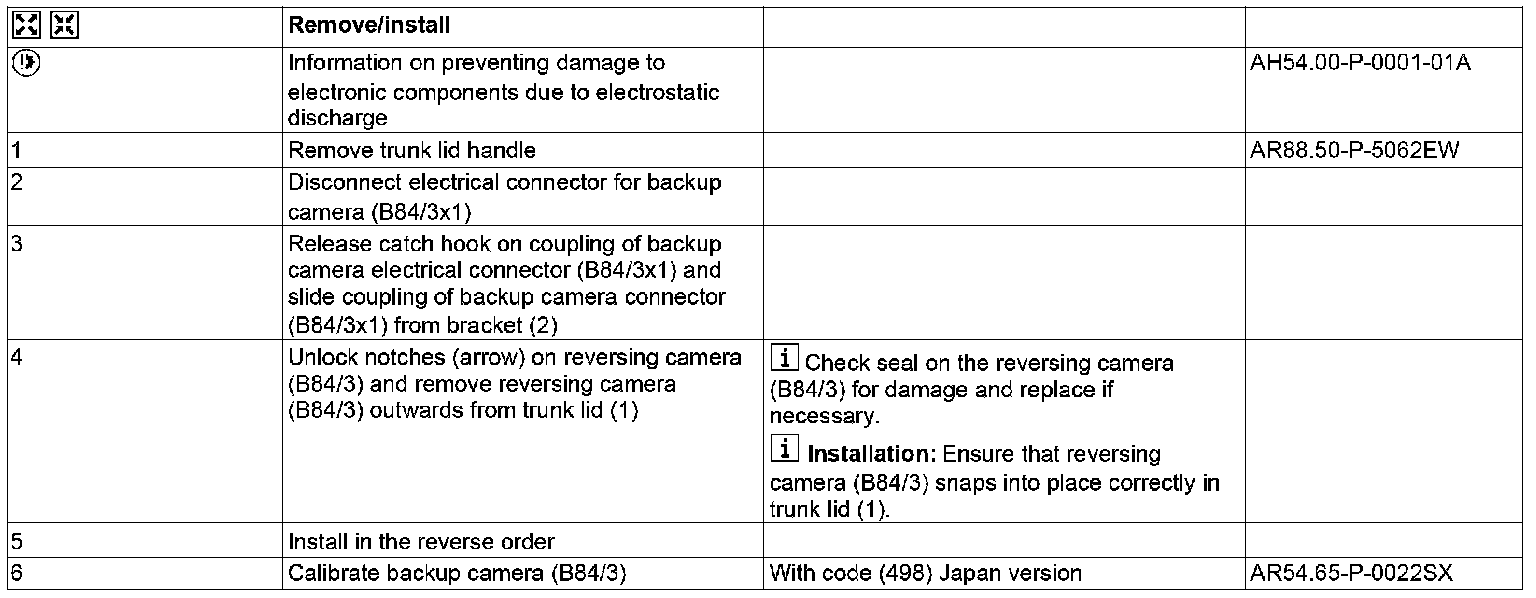

Steps 1-6:
