AN54.65-P-0030EW Retrofit Reversing Camera



AN54.65-P-0030EW Retrofit Reversing Camera
- with CODE (512) COMAND APS with DVD changer
- with CODE (527) COMAND APS with single DVD drive (with navigation)



Component Identification:

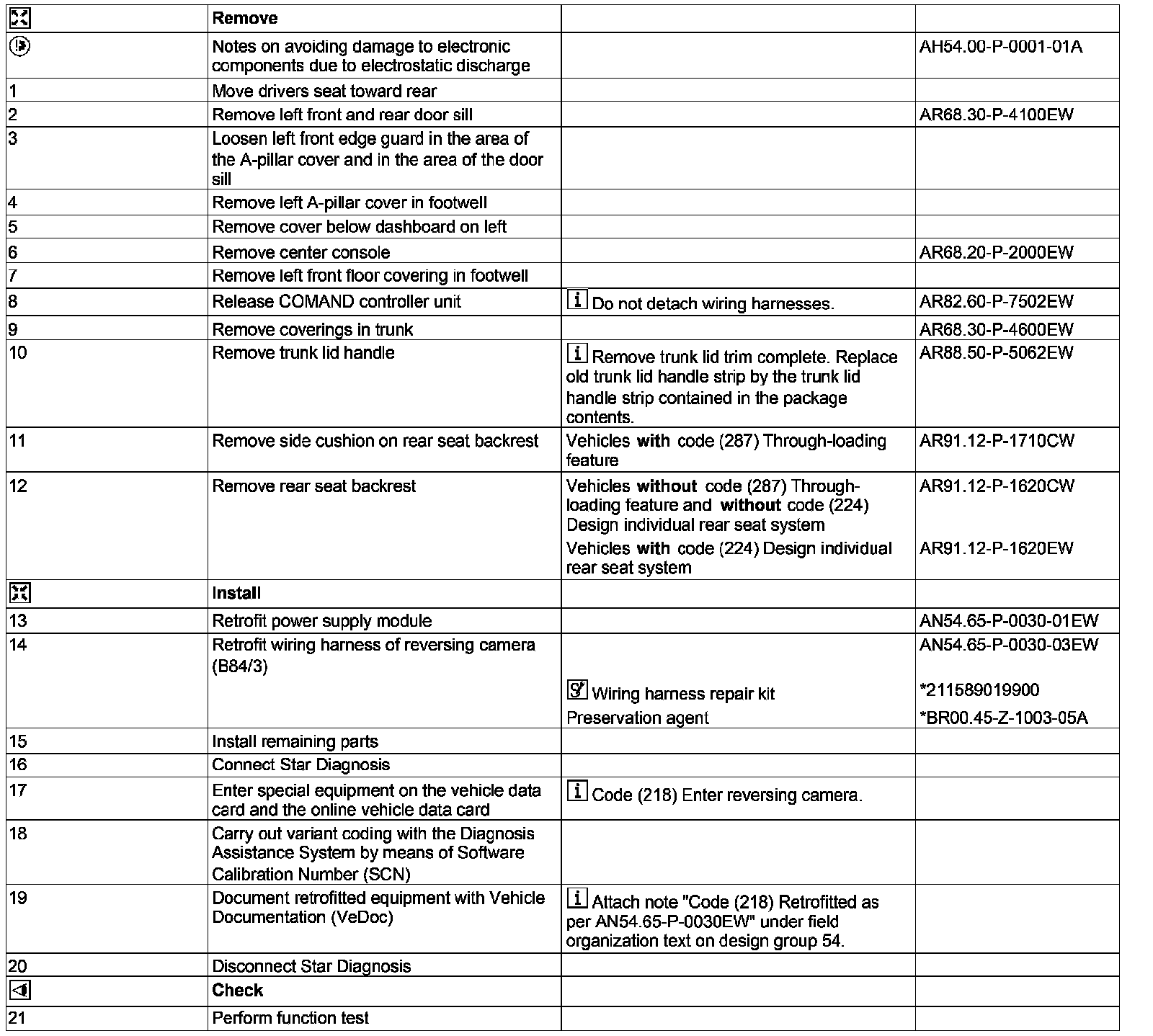

Steps 1-21:





Special Tools:

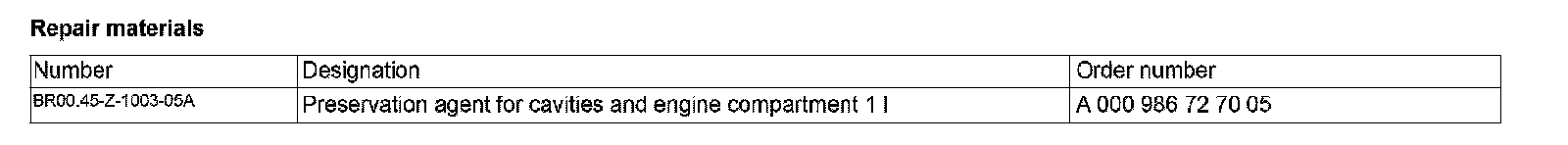

Repair Materials:

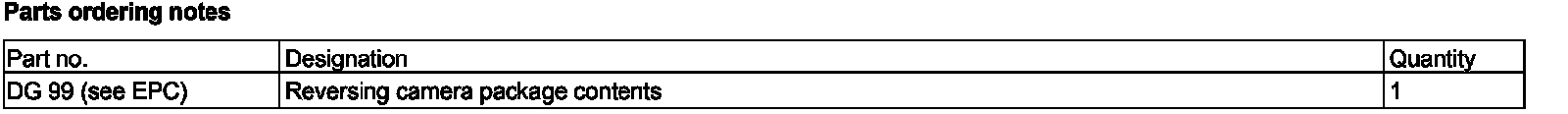

Parts Ordering Notes:
