GF54.65-P-5030FLJ Reversing Camera Control Unit Component Description

GF54.65-P-5030FLJ Reversing Camera Control Unit Component Description
- with CODE (218) Backup camera

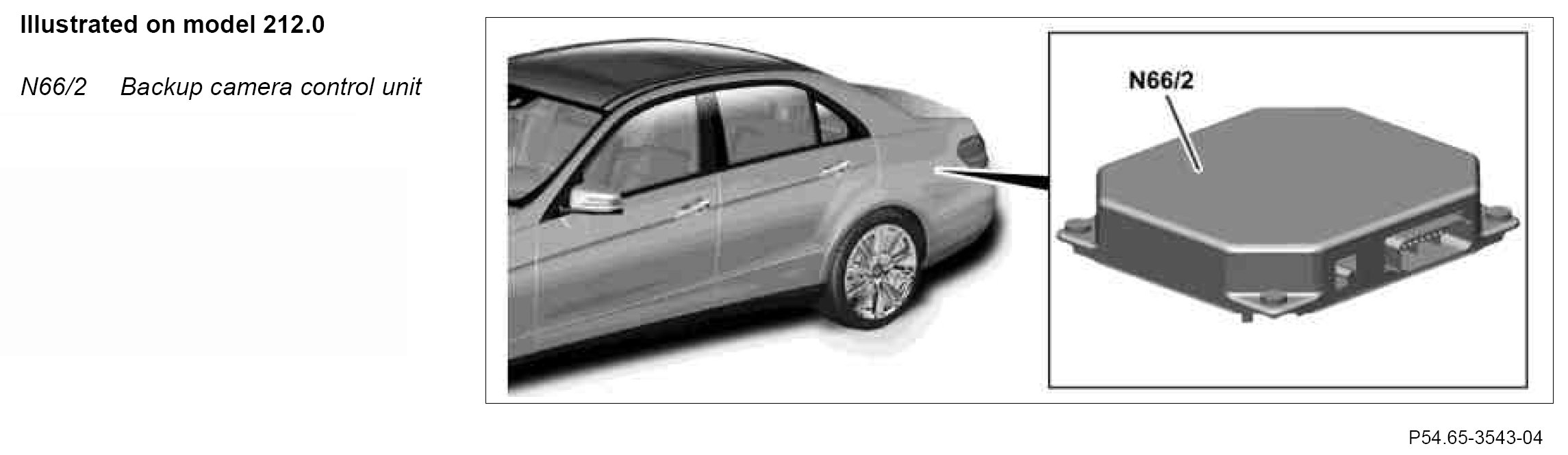

Component Identification:

Location
The backup camera control unit is located behind the trim on the left side of the luggage compartment.

Task
The reversing camera control unit has the following tasks:
^ Reading in of signals
^ Evaluation of input factors
^ Actuation of components

Reading in of signals
The input factors are read in with the following connections:
^ Direct line
^ Interior CAN (CAN B)

Direct line
The following signal is read in over a direct line:
- Reversing camera (B84/3) (Composite Video Baseband Signal (CVBS) signal)

Interior CAN
The signals are read in by the reversing camera control unit over the interior CAN.
The functions resulting therefrom are described in the corresponding function descriptions (see block diagram or function schematic).

Evaluation of input factors
The input factors that have been read in are evaluated by the integrated microprocessor and the affected components are then actuated.

Actuation of components
Components are actuated with the following line:
^ Direct line

Direct line
The following components are actuated via a direct line:
- Backup camera
- COMAND controller unit (A40/3) (CVBS signal)
