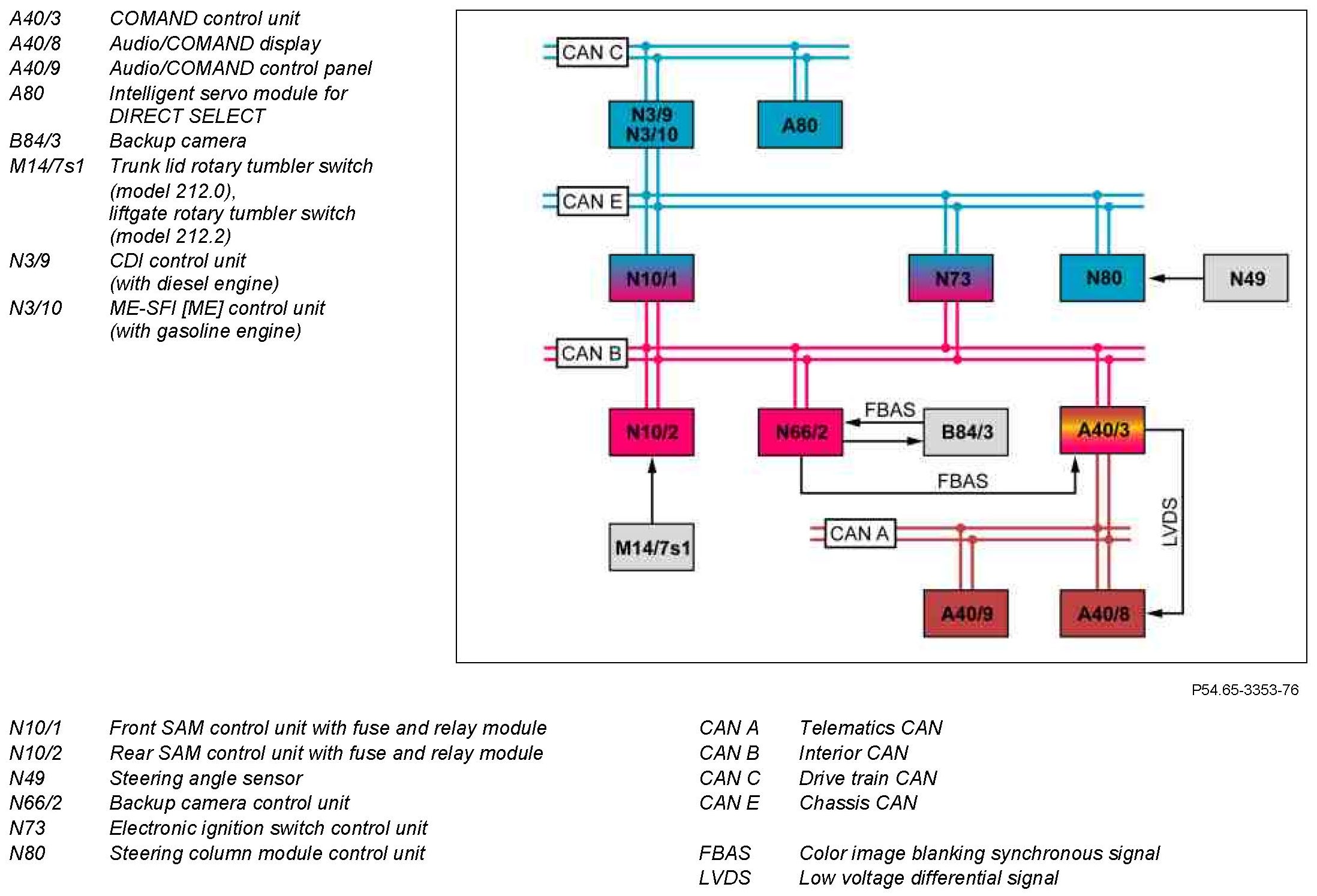

GF54.65-P-0005-02FLJ Reversing Camera (RFK), Block Diagram



GF54.65-P-0005-02FLJ Reversing Camera (RFK), Block Diagram
- with CODE (218) Backup camera
- with CODE (498) Japan version

Component Identification:
