Home >> Mercedes Benz >> 2011 >> E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Collision Avoidance and Parking Assist Systems >> Rear Vision Camera >> Description and Operation >> GF54.65-P-0005-01FLJ Reversing Camera (RFK) Location of Components

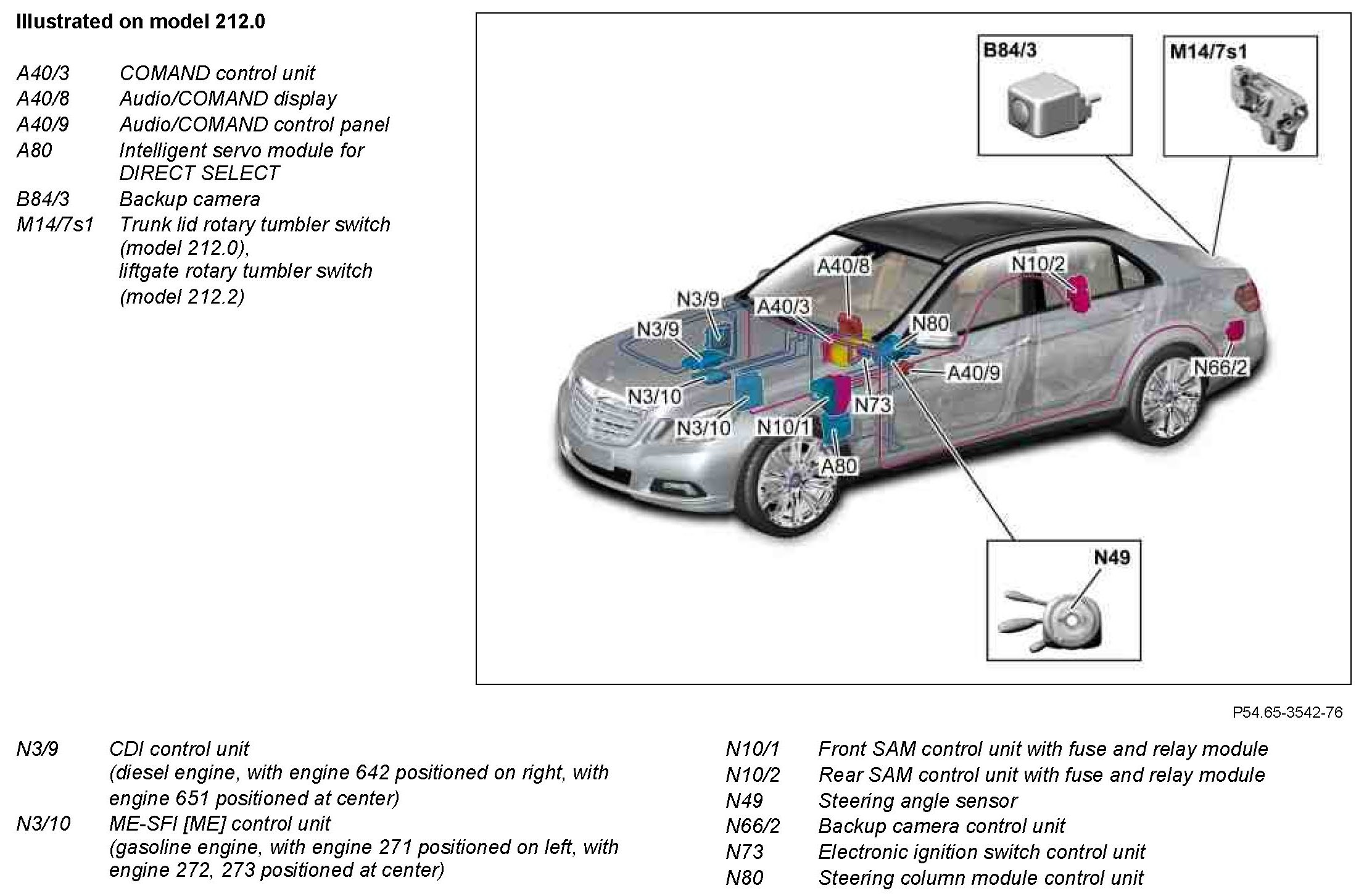

GF54.65-P-0005-01FLJ Reversing Camera (RFK) Location of Components



GF54.65-P-0005-01FLJ Reversing Camera (RFK) Location Of Components
- with CODE (218) Backup camera
- with CODE (498) Japan version

Component Identification:
