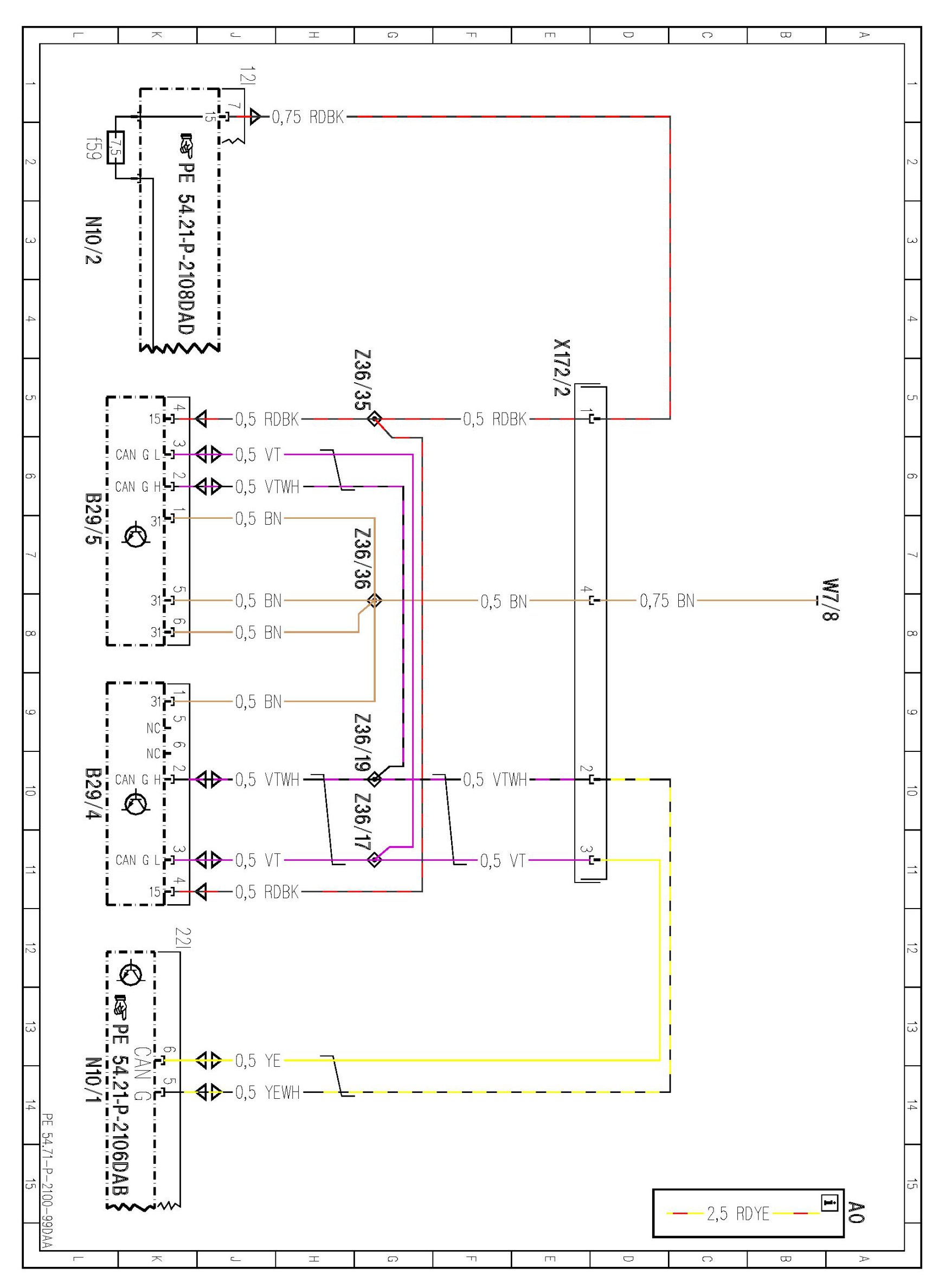

PE54.71-P-2100DAA Blind Spot Assist Wiring Diagram

PE54.71-P-2100DAA Blind Spot Assist Wiring Diagram
MODEL 212
- as of 06/01/10
- with CODE (234) Blind Spot Assist

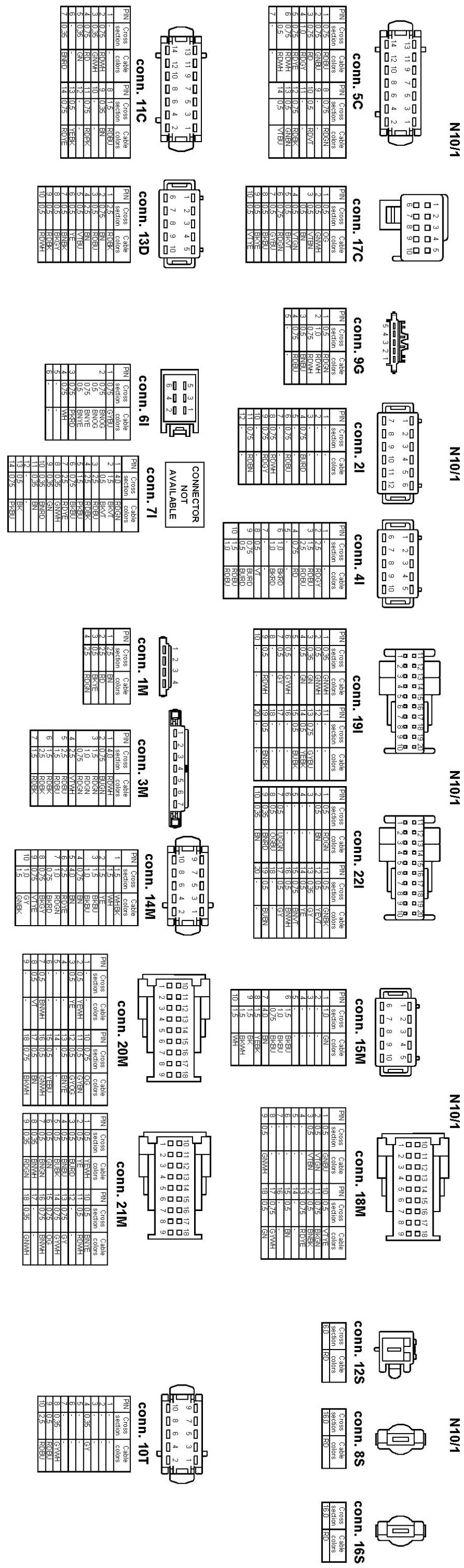

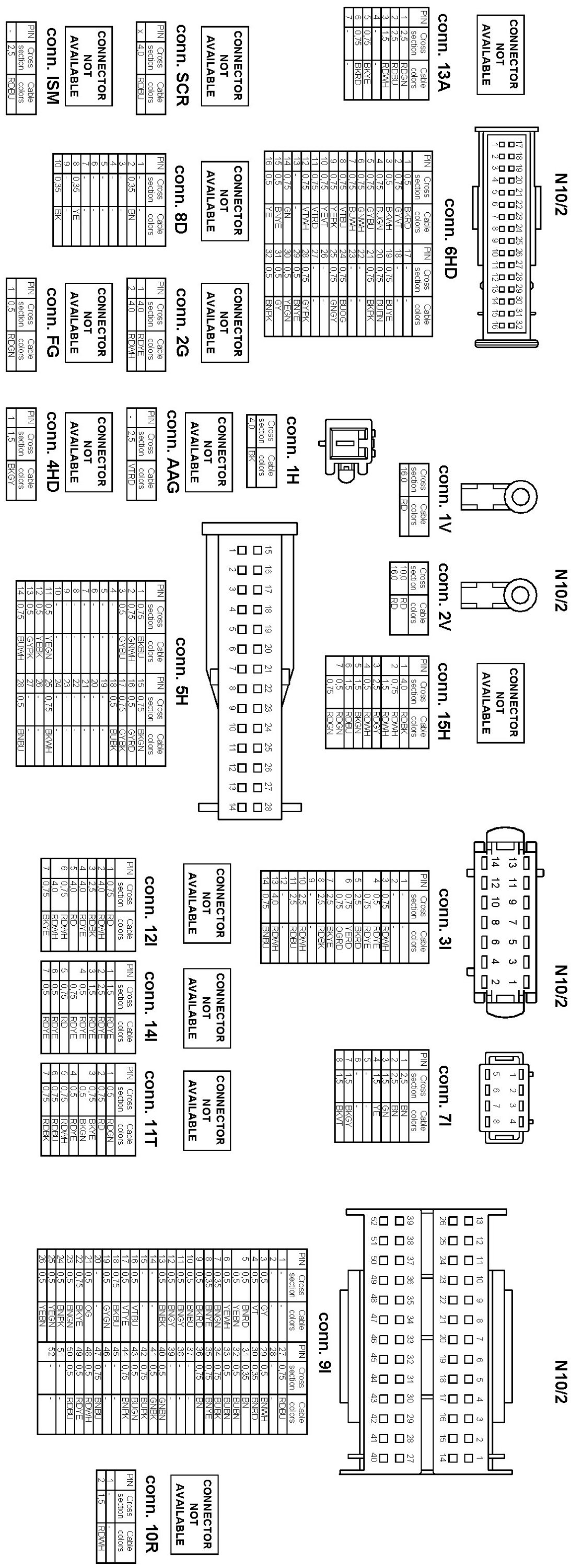

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
