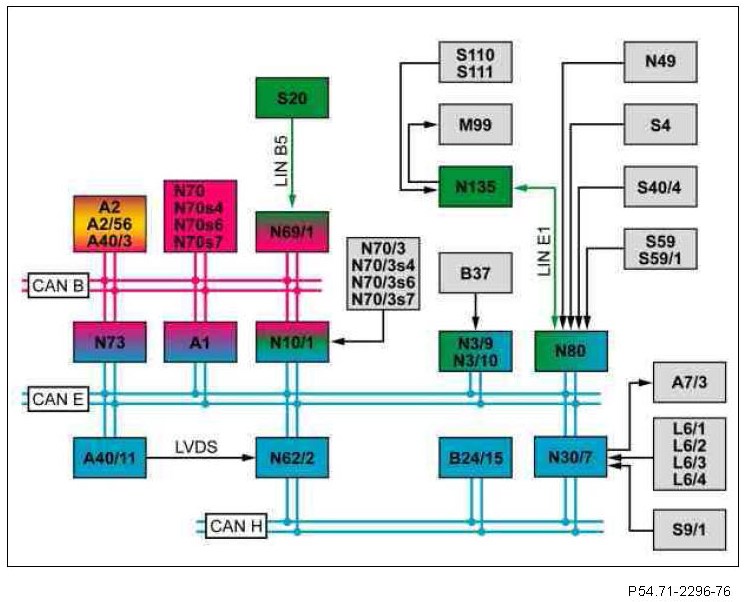

GF54.71-P-0004-02FL Active Lane Keeping Assist, Block Diagram
GF54.71-P-0004-02FL Active Lane Keeping Assist, Block Diagram
MODEL 212.0 /2
- with CODE (238) Active Lane Keeping Assist as of Model Year 2011 /AEJ 10
A1 Instrument cluster
A2 Radio (with code (510) Audio 20 with CD changer or code (523) MB Audio 20 radio)
A2/56 Radio with auto pilot system (with code (511) Audio 50 APS with DVD changer or code (525) MB Audio 50 APS radio)
A7/3 Traction system hydraulic unit
A40/3 COMAND controller unit (with code (512) COMAND APS with DVD changer or code (527) COMAND APS with single DVD drive (with navigation) or code (528) COMAND with DVD changer)
A40/11 Multifunction camera
B24/15 Yaw rate, lateral and longitudinal acceleration sensor
B37 Accelerator pedal sensor
L6/1 Left front axle speed sensor
L6/2 Right front axle speed sensor
L6/3 Left rear axle speed sensor
L6/4 Right rear axle speed sensor
M99 Steering wheel vibration motor
N3/9 CDI control unit (with diesel engine)
N3/10 ME-SFI [ME] control unit (with gasoline engine)
N10/1 Front SAM control unit with fuse and relay module
N30/7 Premium Electronic Stability Program control unit
N49 Steering wheel angle sensor
N62/2 Video and radar sensor system control unit
N69/1 Left front door control unit
N70 Overhead control panel control unit (with code (414) Power glass tilting/sliding sunroof)
N70s4 Front dome lamp switch (with code (414) Power glass tilting/sliding roof)
N70s6 Left front reading lamp switch (with code (414) Power glass tilting/sliding roof)
N70s7 Right front reading lamp switch (with code (414) Power glass tilting/sliding roof)
N70/3 Overhead control panel electronics (without code (414) Power glass tilting/sliding sunroof)
N70/3s4 Front dome lamp switch (without code (414) Power glass tilting/sliding roof)
N70/3s6 Left front reading lamp switch (without code (414) Power glass tilting/sliding roof)
N70/3s7 Right front reading lamp switch (without code (414) Power glass tilting/sliding roof)
N73 Electronic ignition switch control unit
N80 Steering column module control unit
N135 Steering wheel electronics
S4 Combination switch
S9/1 Stop lamp switch
S20 Driver-side power window and outside mirror adjustment switch group
S40/4 Cruise control lever
S59 Steering column adjustment switch (with code (275) Memory package (electrically adjustable front seats) without code (443) Steering wheel heater)
S59/1 Steering column adjustment and steering wheel heater switch (with code (275) Memory package (electrically adjustable front seats) and code (443) Steering wheel heater)
S110 Left multifunction steering wheel button group
S111 Right multifunction steering wheel button group
CAN B Interior CAN
CAN E Chassis CAN
CAN H Vehicle dynamics CAN
LIN B5 Left front door LIN
LIN E1 Steering LIN
LVDS Low voltage differential signal (LVDS)
