GF54.71-P-0003-02FL Blind Spot Assist, Location Of Components

GF54.71-P-0003-02FL Blind Spot Assist, Location Of Components
- MODEL 212.0 /2
- with CODE (234) Blind Spot Assist
- MODEL 212.0 /2
- with CODE (237) Active Blind Spot Assist as of Model Year 2011 /AEJ 10






Vehicle with code (234) Blind Spot Assist

A1 Instrument cluster
A2/56 Radio with auto pilot system (with code (511) Audio 50 APS with DVD changer or code (525) MB Audio 50 APS radio)
A28/11 Multifunction antenna
A40/3 COMAND controller unit (with code (512) COMAND APS incl. DVD changer or code (527) COMAND APS with single DVD drive (with navigation))
B29/4 Left rear bumper intelligent radar sensor (as of 1.6.10)
B29/5 Right rear bumper intelligent radar sensor (as of 1.6.10)
N62/1 Radar sensors control unit (up to 31.5.10)
N69/1 Left front door control unit
B29/6 Left rear bumper radar sensor (up to 31.5.10)
B29/7 Right rear bumper radar sensor (up to 31.5.10)
L6/1 Left front axle speed sensor
L6/2 Right front axle speed sensor
L6/3 Left rear axle speed sensor
L6/4 Right rear axle speed sensor
M21/1e2 Left Blind Spot Assist readiness and warning indicator
M21/2e2 Right Blind Spot Assist readiness and warning indicator
N69/2 Right front door control unit
N73 Electronic ignition switch control unit
N3/9 CDI control unit (diesel engine, with engine 642 positioned on right, with engine 651 positioned at center)
N3/10 ME-SFI [ME] control unit (gasoline engine, with engine 156 located on right, with engine 271, 276 located on left, with engine 157, 272, 273, 278 located in center)
N10/1 Front SAM control unit with fuse and relay module
N30/4 Electronic Stability Program control unit (without code (233) DISTRONIC PLUS, except model 212.074/077/274/277)
N30/7 Premium Electronic Stability Program control unit (with code (233) DISTRONIC PLUS or model 212.074/077/274/277)
N80 Steering column module control unit
S4 Combination switch

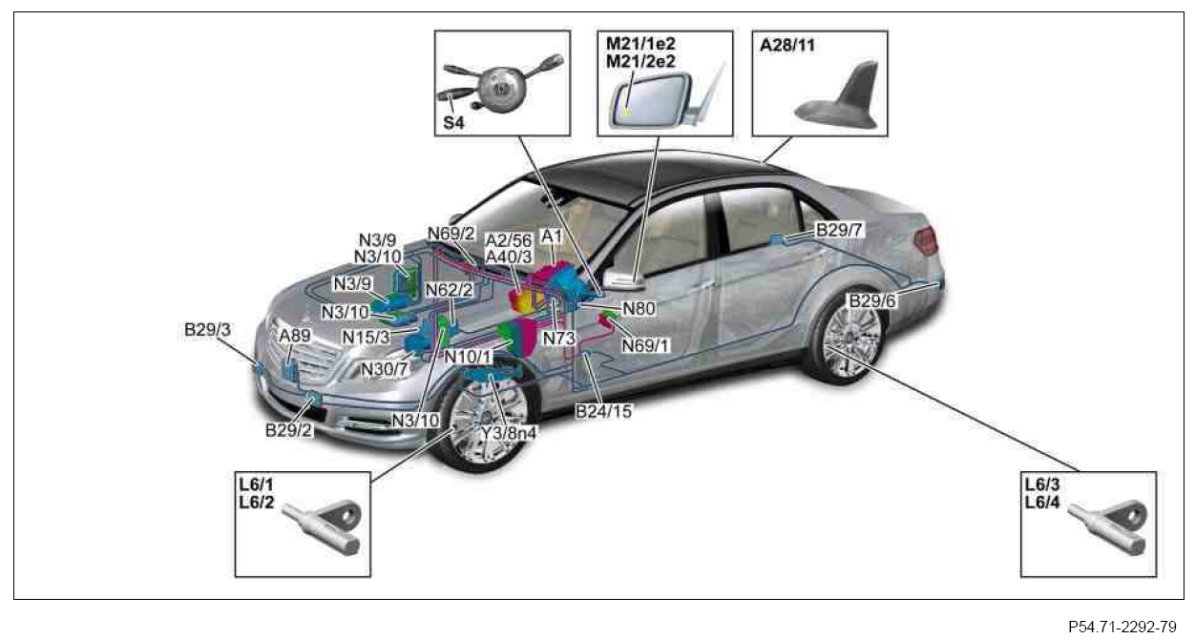

Vehicle as of 1.6.10 with code (237) Active Blind Spot Assist

A1 Instrument cluster
A2/56 Radio with auto pilot system (with code (511) Audio 50 APS with DVD changer or code (525) MB Audio 50 APS radio)
A28/11 Multifunction antenna
A40/3 COMAND controller unit (with code (512) COMAND APS incl. DVD changer or code (527) COMAND APS with single DVD drive (with navigation))
A89 DISTRONIC electric controller unit
B29/2 DISTRONIC sensor (DTR) / left front bumper
B29/3 DISTRONIC sensor (DTR) / right front bumper
N73 Electronic ignition switch control unit
B29/6 Left rear bumper radar sensor
B29/7 Right rear bumper radar sensor
B24/15 Yaw rate, lateral and longitudinal acceleration sensor
L6/1 Left front axle speed sensor
L6/2 Right front axle speed sensor
L6/3 Left rear axle speed sensor
L6/4 Right rear axle speed sensor
M21/1e2 Left Blind Spot Assist readiness and warning indicator
M21/2e2 Right readiness and Blind Spot Assist warning lamp
N80 Steering column module control unit
S4 Combination switch
N3/9 CDI control unit (diesel engine, with engine 642 positioned on right, with engine 651 positioned at center)
N3/10 ME-SFI [ME] control unit (gasoline engine, with engine 156 located on right, with engine 271, 276 located on left, with engine 157, 272, 273, 278 located in center)
N10/1 Front SAM control unit with fuse and relay module
N15/3 Electronic transmission control control unit (transmission 722.6)
N30/7 Premium Electronic Stability Program control unit
N62/2 Video and radar sensor system control unit
N69/1 Left front door control unit
N69/2 Right front door control unit
Y3/8n4 Fully integrated transmissioncontrol unit (transmission 722.9)
