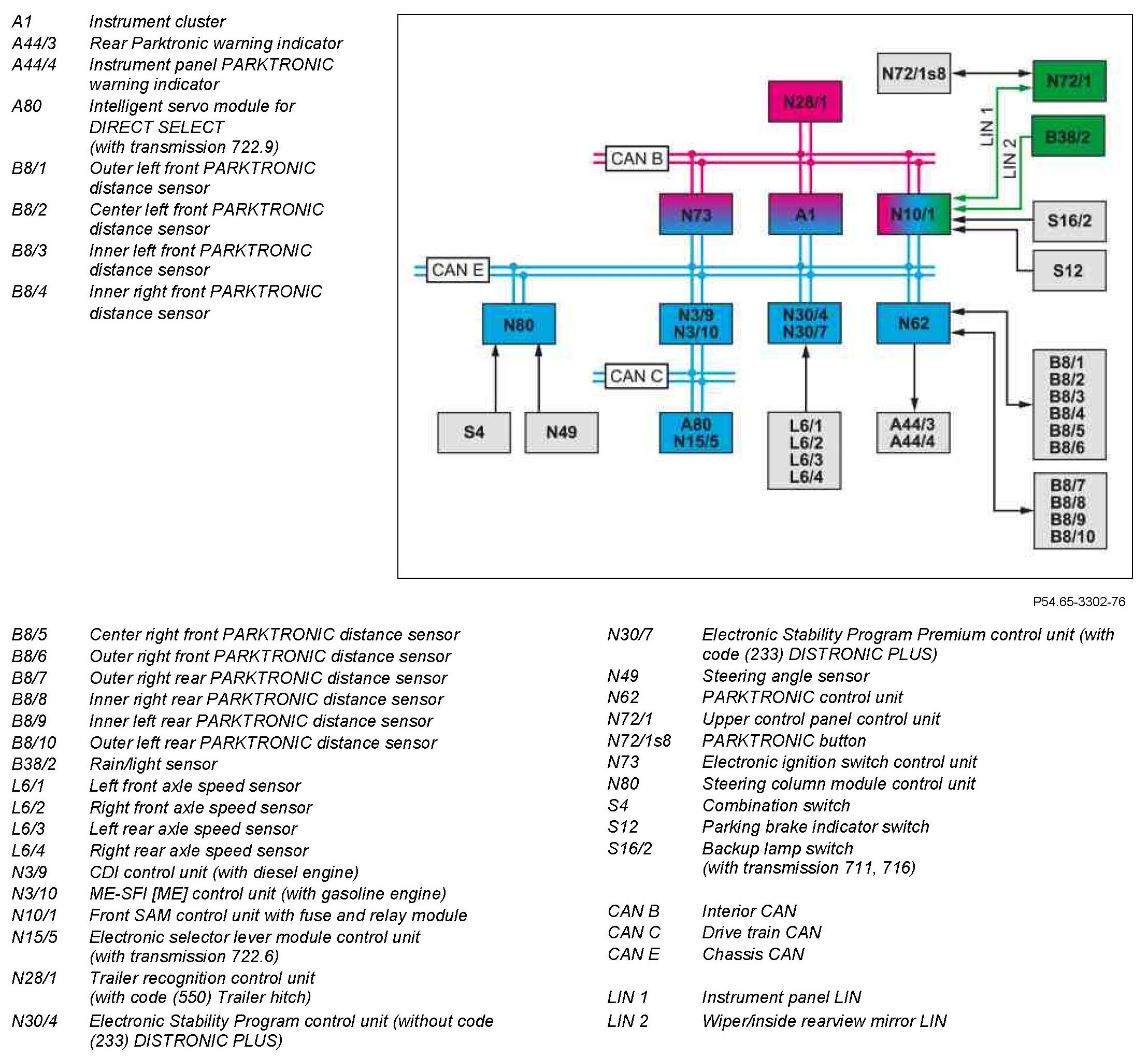

GF54.65-P-0006-02FL Parking System, Block Diagram



GF54.65-P-0006-02FL Parking System, Block Diagram
- with CODE (230) Advanced Parking Guidance
- with CODE (220) PARKTRONIC



Component Identification:
