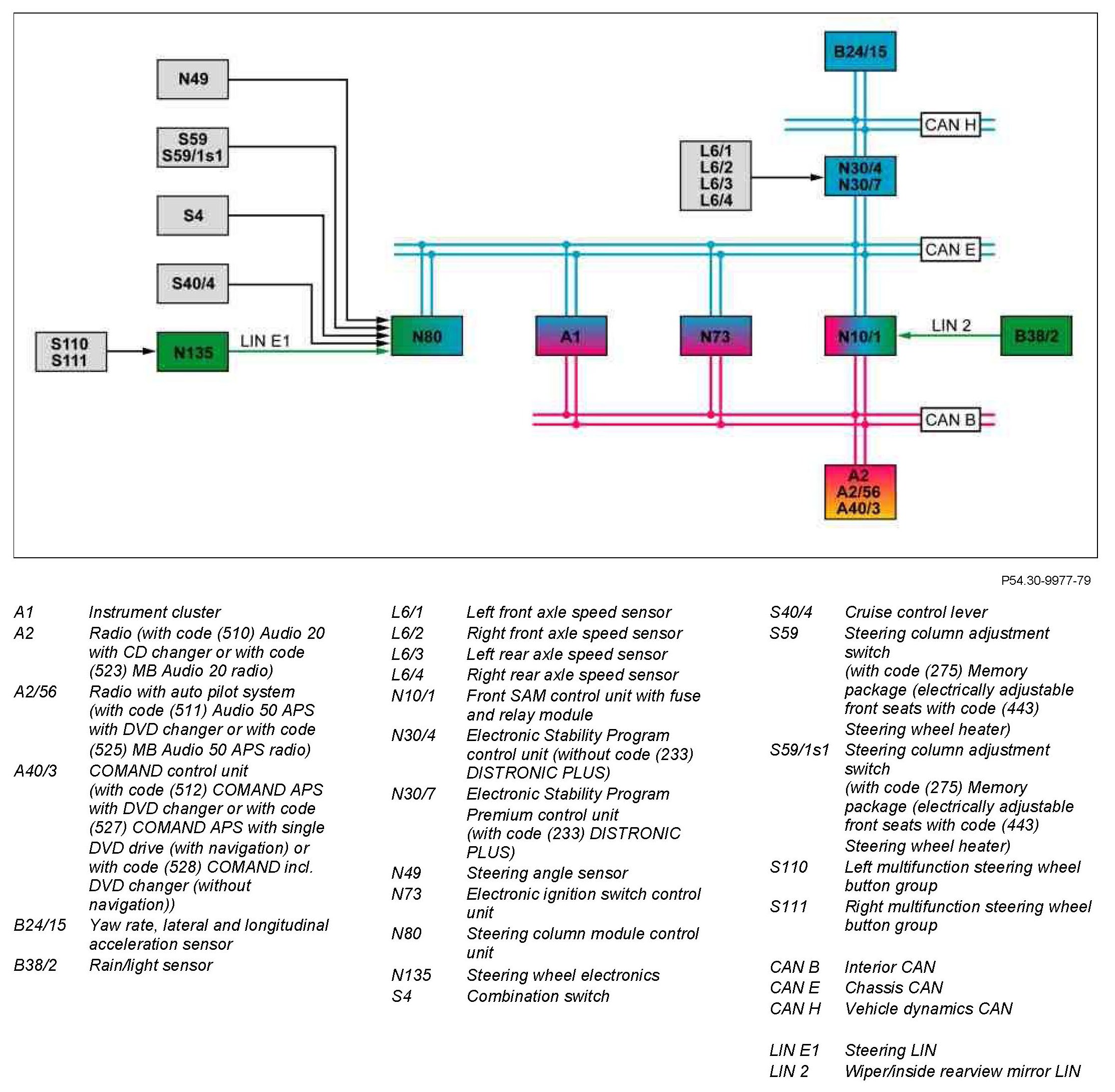

GF54.30-P-0009-03FL Attention Assist, Block Diagram
GF54.30-P-0009-03FL Attention Assist, Block Diagram
GF54.30-P-0009-03FL Attention Assist, Block Diagram
Component Identification:
