AN82.71-P-1000-12EW Route Radio Data Transmission Wiring Harness

AN82.71-P-1000-12EW Route Radio Data Transmission Wiring Harness
- MODEL 212.0## 1#

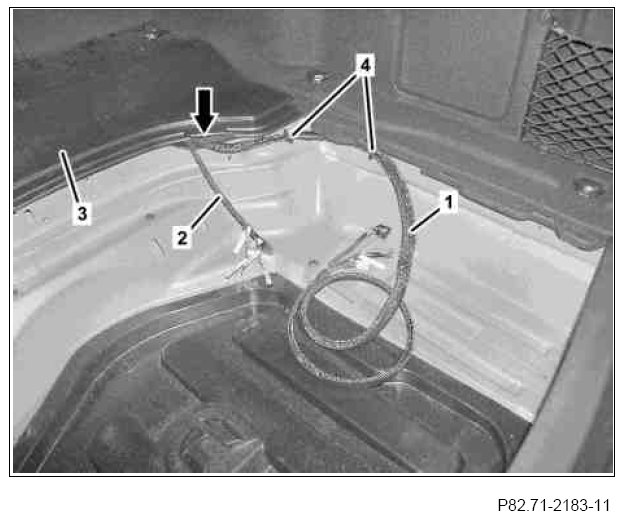

1 Route two-way radio wiring harness (1) from cutout (arrow) of panel (3) laterally along spare wheel well and fix in place using cable ties (4) at threaded pins of body.
2 Place radio data transmission wiring harness (2) in spare wheel well.
3 Fix two-way radio wiring harness (1) and radio data transmission wiring harness (2) in place against clattering with fabric adhesive tape.
