AN82.71-P-1000-10EW Retrofit Taxi Two-Way Radio Microphone

AN82.71-P-1000-10EW Retrofit Taxi Two-way Radio Microphone
- MODEL 212.0## 1#

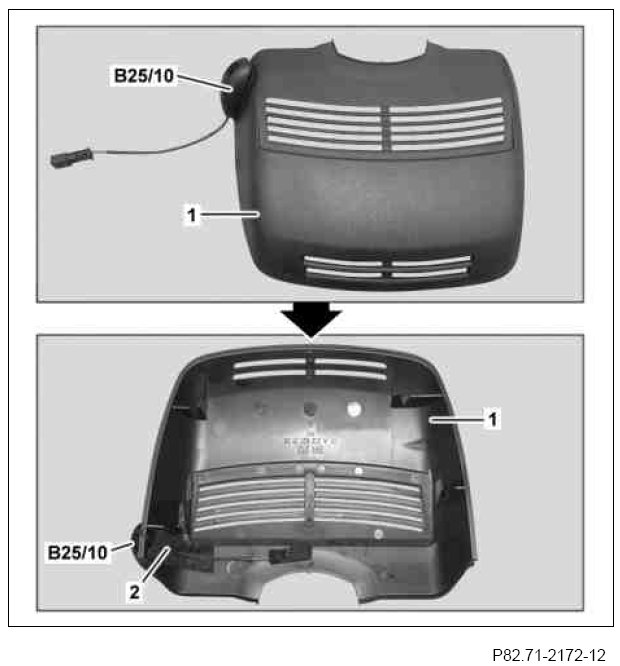

1 Stick taxi two-way radio microphone (B25/10), as shown, at top left onto rain/light sensor paneling (1).
The area to be glued on the rain/light sensor panel (1) must be free of dust and grease.

2 Fasten wiring harness for taxi two-way radio microphone (B25/10), as shown, using felt tape (2) behind the rain/light sensor paneling (1).

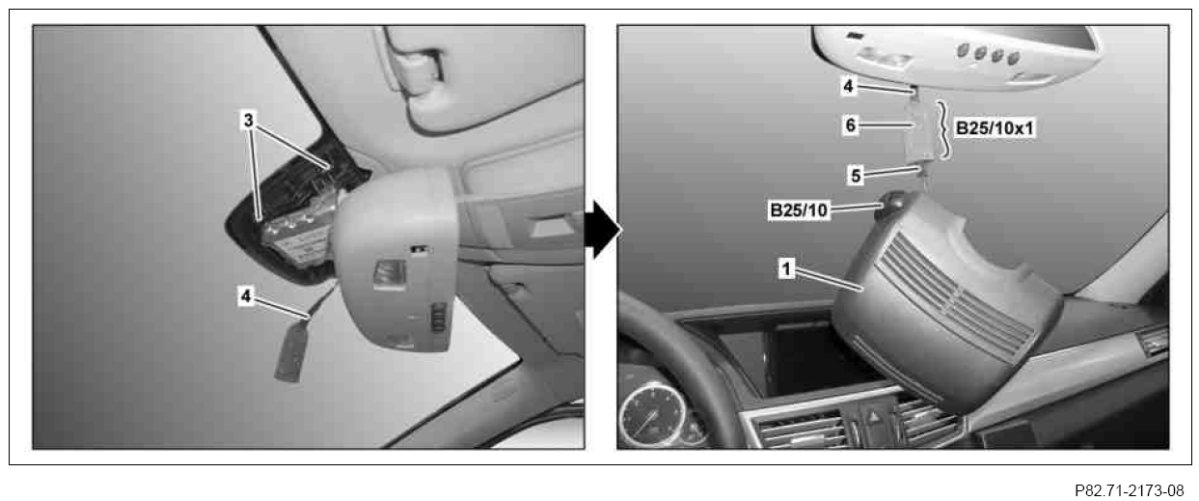

3 Join black 2-pin coupling (5) of taxi two-way radio microphone (B25/10) and black 2-pin connector of taxi/rental vehicle wiring harness (4) and thereby form the taxi two-way radio microphone electrical connector (B25/10x1).
4 Position foam material (6) above taxi two-way radio microphone electrical connector (B25/10x1).
5 Place wiring harness into rain/light sensor paneling (1) and clip rain/light sensor paneling (1) into holders (3).

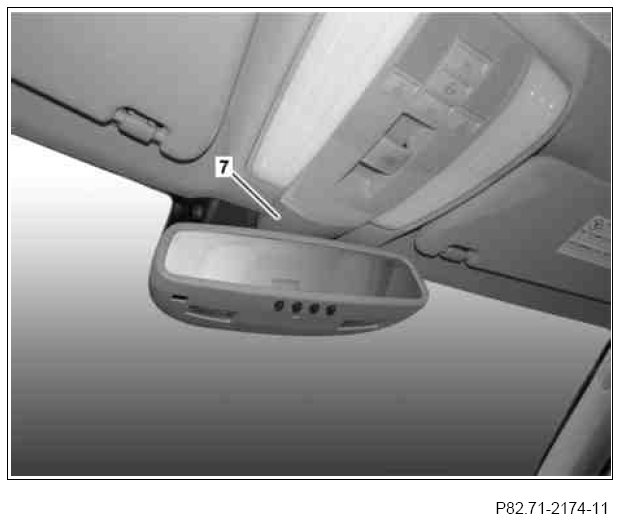

6 Clip in mirror base cover (7).
