AN82.71-P-1000-01EW Retrofit Wiring Harness For Two-Way Radio

AN82.71-P-1000-01EW Retrofit Wiring Harness For Two-way Radio
- MODEL 212.0## 1#






1 Connect blue two-way radio antenna plug (1) of multifunction antenna to blue two-way radio antenna coupling (2) of two-way radio antenna line (4).
The length of the two-way radio antenna line (4) is 2751 mm.

2 Slide foam-material padding (3) over the blue two-way radio antenna plug (1) and the blue two-way radio antenna coupling (2).

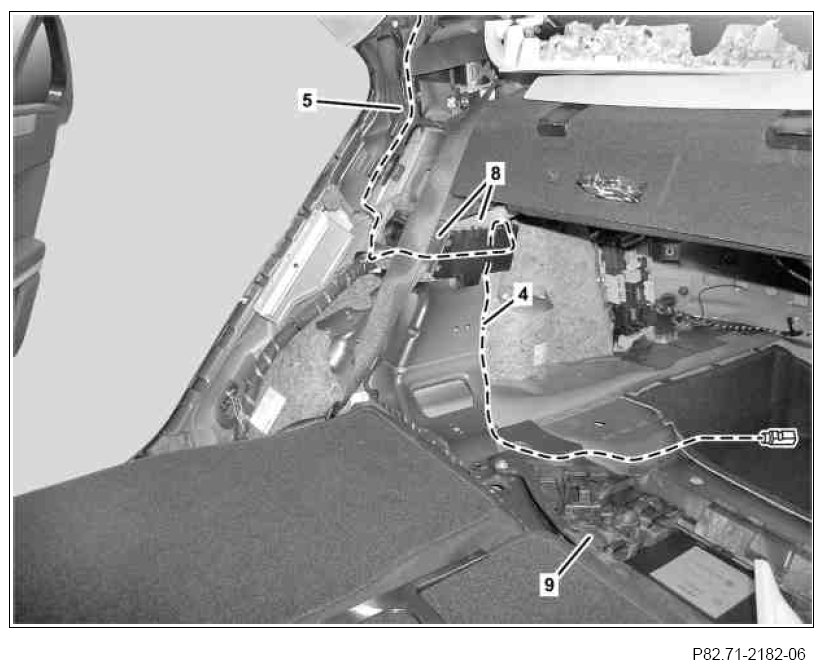

3 Route two-way radio antenna line (4) along the broken line into the cable duct (5) of the top right C-pillar.
4 Route two-way radio antenna line (4), as shown, further along the C-pillar and downwards.

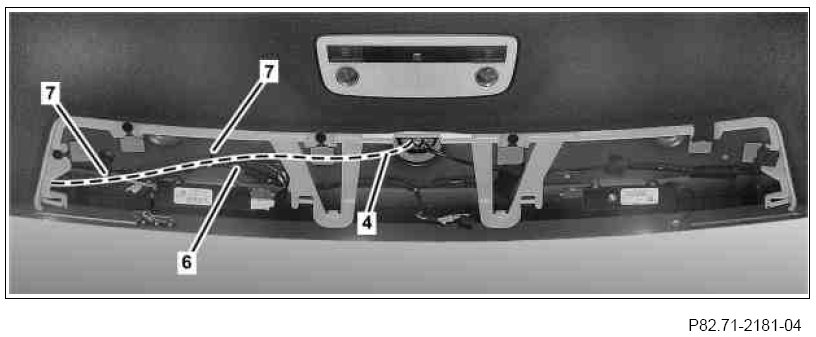

5 Fix two-way radio antenna line (4) using cable ties (7) to vehicle wiring harness (6).






6 Open covers (8) on right wheel arch cable duct.
7 Route two-way radio antenna line (4) along the vehicle wiring harness from the cable duct (5) of the top right Cpillar into the right wheel arch cable duct.
8 Route two-way radio antenna line (4) from right wheel arch cable duct to the carrier plate (9) and on into the spare wheel well.
9 Fasten two-way radio antenna line (4) using cable tie to vehicle wiring harness.
10 Close covers (8) on right wheel arch cable duct.
