AR82.70-P-8919EC Remove/Install Contact Plate For Cell Phone Holder (UPCI (UHI)) In the Armrest



AR82.70-P-8919EC Remove/Install Contact Plate For Cell Phone Holder (UPCI [UHI]) In The Armrest
- with CODE (386) Comfort telephony

- Model 212
- except CODE (279) Electronic gear selector

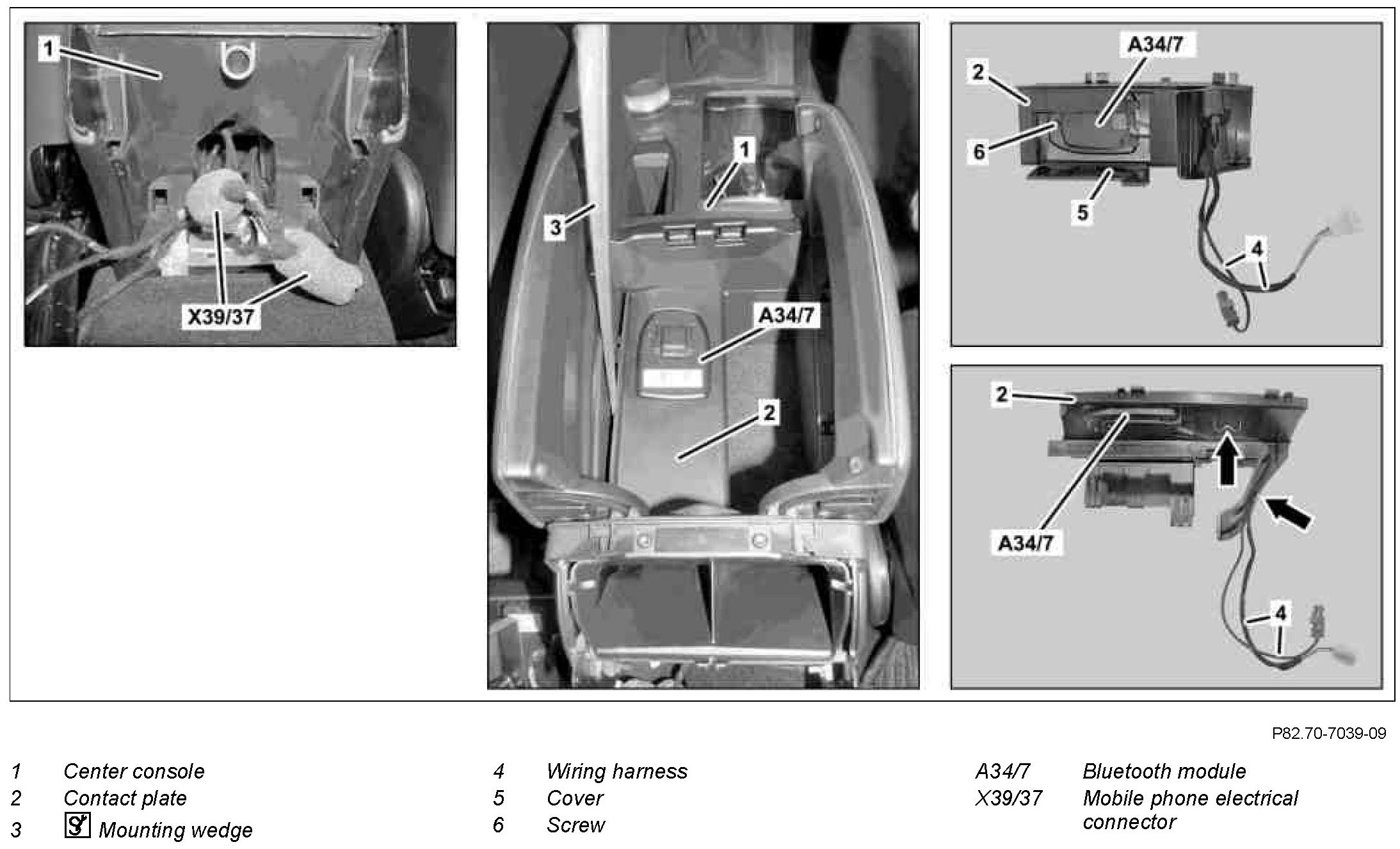

Component Identification:

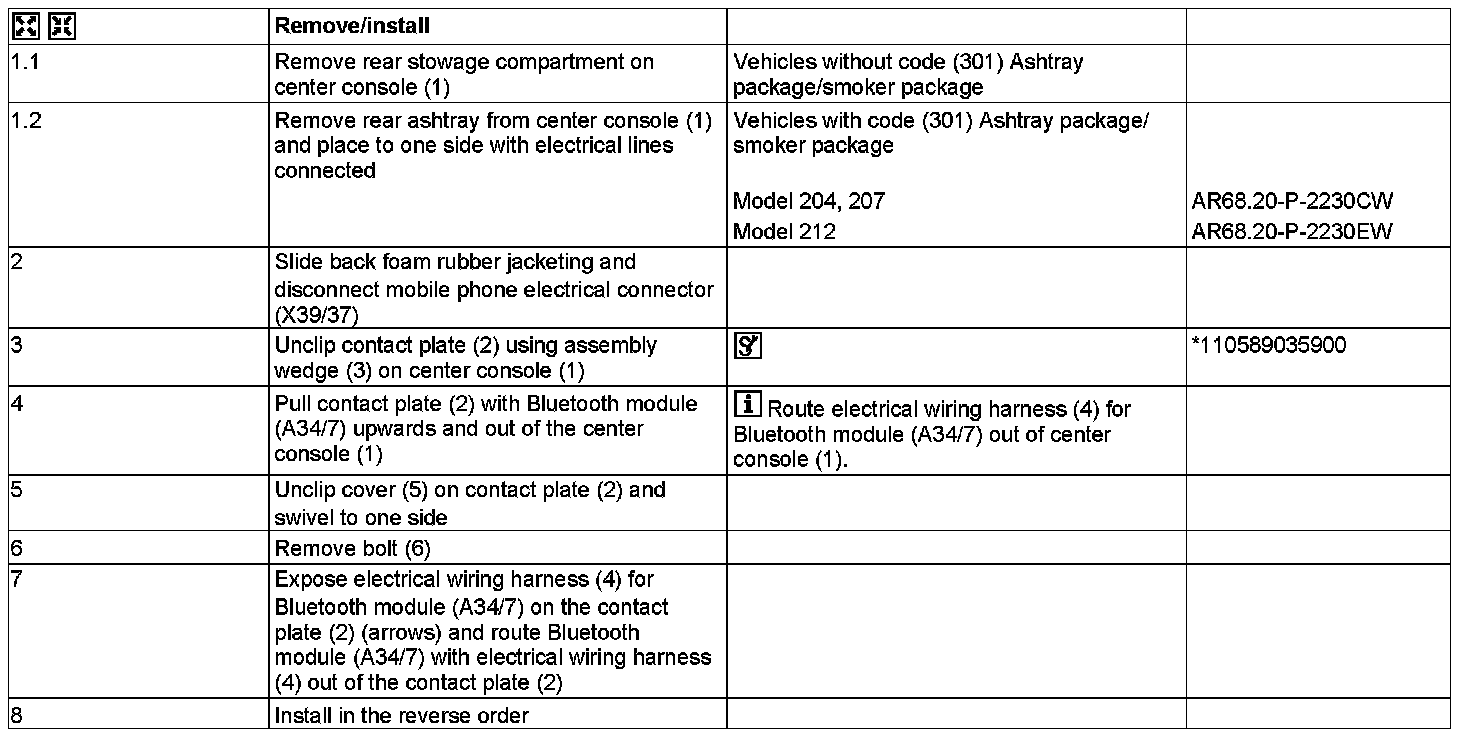

Steps 1.1 - 8:

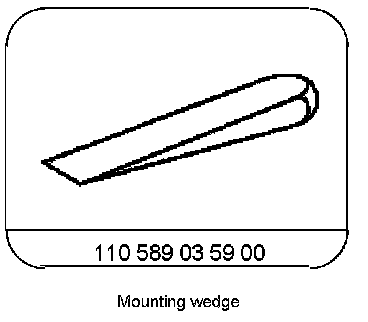

Special Tools:
