AZ82.85-P-0004-05EW Retrofit Universal Media Interface Connecting Cable

AZ82.85-P-0004-05EW Retrofit Universal Media Interface Connecting Cable

1 Open lid of glove box (22).

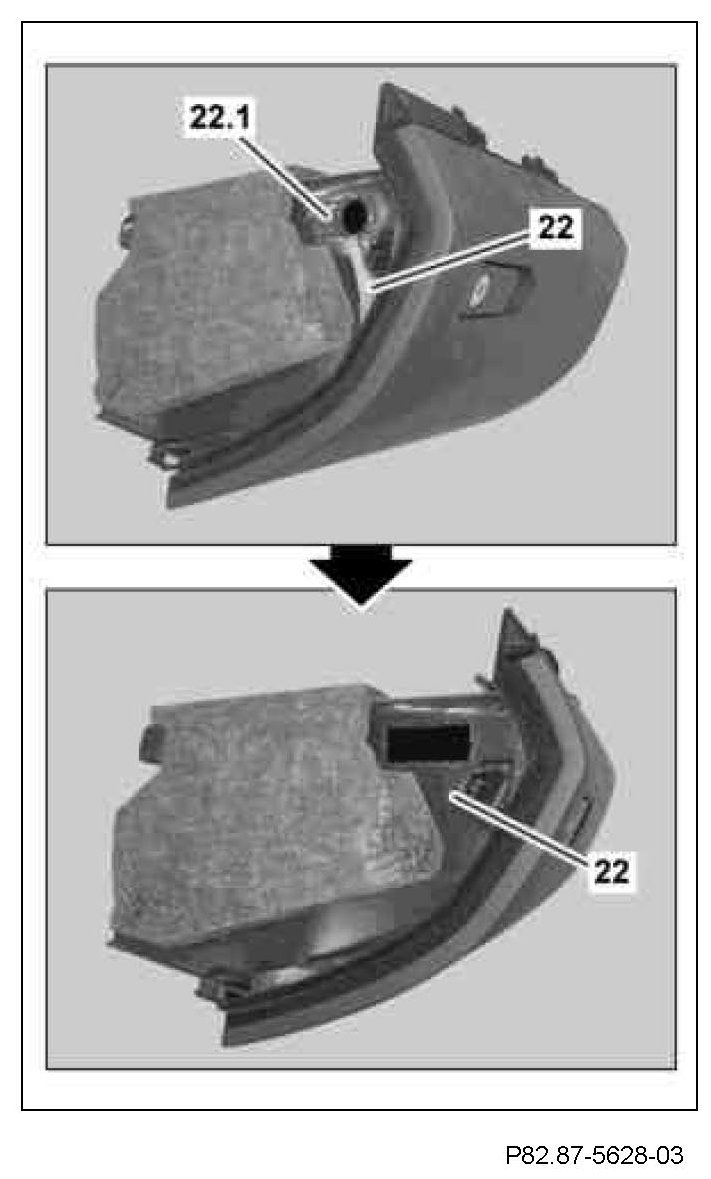

2 Carefully break cutout (22.1) along the perforation out of the glove box (22).

Only on vehicles without code (518) Media interface.







3 Wrap felt tape around Universal Media Interface connecting cable (2) behind covering (2.3).
4 Route Universal Media Interface connecting cable (2) from inside through the opening in the glove box (22) and clip in covering (2.3) of Universal Media Interface connecting cable (2) from inside into glove box (22).
