AZ82.70-P-0014-01EW Retrofit Bluetooth Module Wiring Harness Bracket

AZ82.70-P-0014-01EW Retrofit Bluetooth Module Wiring Harness Bracket
- with CODE (386) Comfort telephony
- with CODE (279) Electronic gear selector



Connection scheme

Component Identification:

1 Install back connector (3) on Bluetooth module wiring harness bracket (2) on Bluetooth module (A34/7).
2 Install violet connector (4) on Bluetooth module wiring harness bracket (2) on violet connector (5) on Bluetooth module wiring harness (12).
3 Route Bluetooth module wiring harness bracket (2) through opening in center console to installation position of rear air vents.

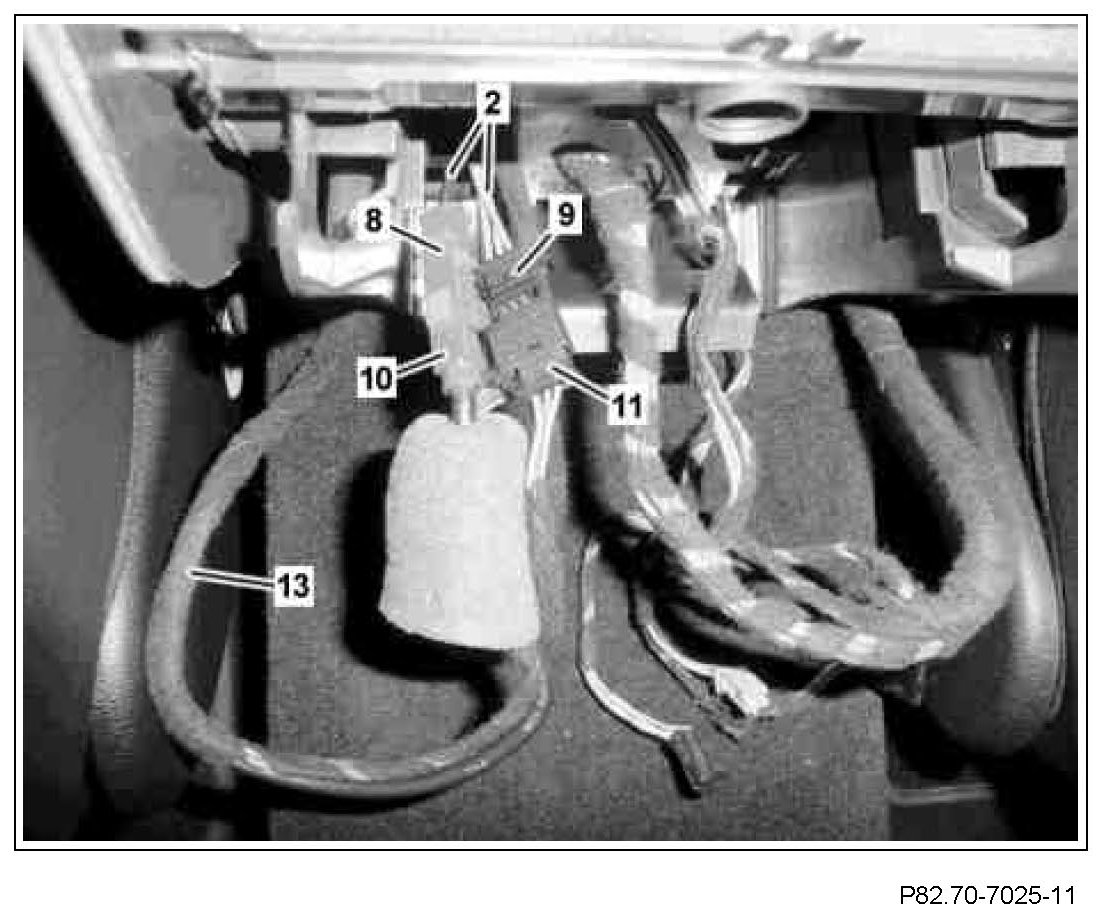

4 Connect violet connector (8) on Bluetooth module wiring harness bracket (2) to violet connector (10) with vehicle wiring harness (13).
5 Connect black connector (9) on Bluetooth module wiring harness bracket (2) with black connector (11) on vehicle wiring harness (13).







6 Insert Bluetooth module (A34/7) into Bluetooth module bracket (1) and tighten with bolt (16).
7 Tie back violet connector (4), Bluetooth module wiring harness bracket (2) and violet connector (5) in Bluetooth module (1) and fix in place with felt tape.
