Home >> Mercedes Benz >> 2011 >> E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Cellular Phone >> Service and Repair >> Procedures >> AZ82.70-P-0013EW Retrofit iPhone Kit

AZ82.70-P-0013EW Retrofit iPhone Kit



AZ82.70-P-0013EW Retrofit iPhone Kit
- with CODE (518) Media interface
- with CODE (386) Preinstallation for telephone "Cell phone", UPCI [UHI] system
- except CODE (494) USA version
- except CODE (498) Japan version

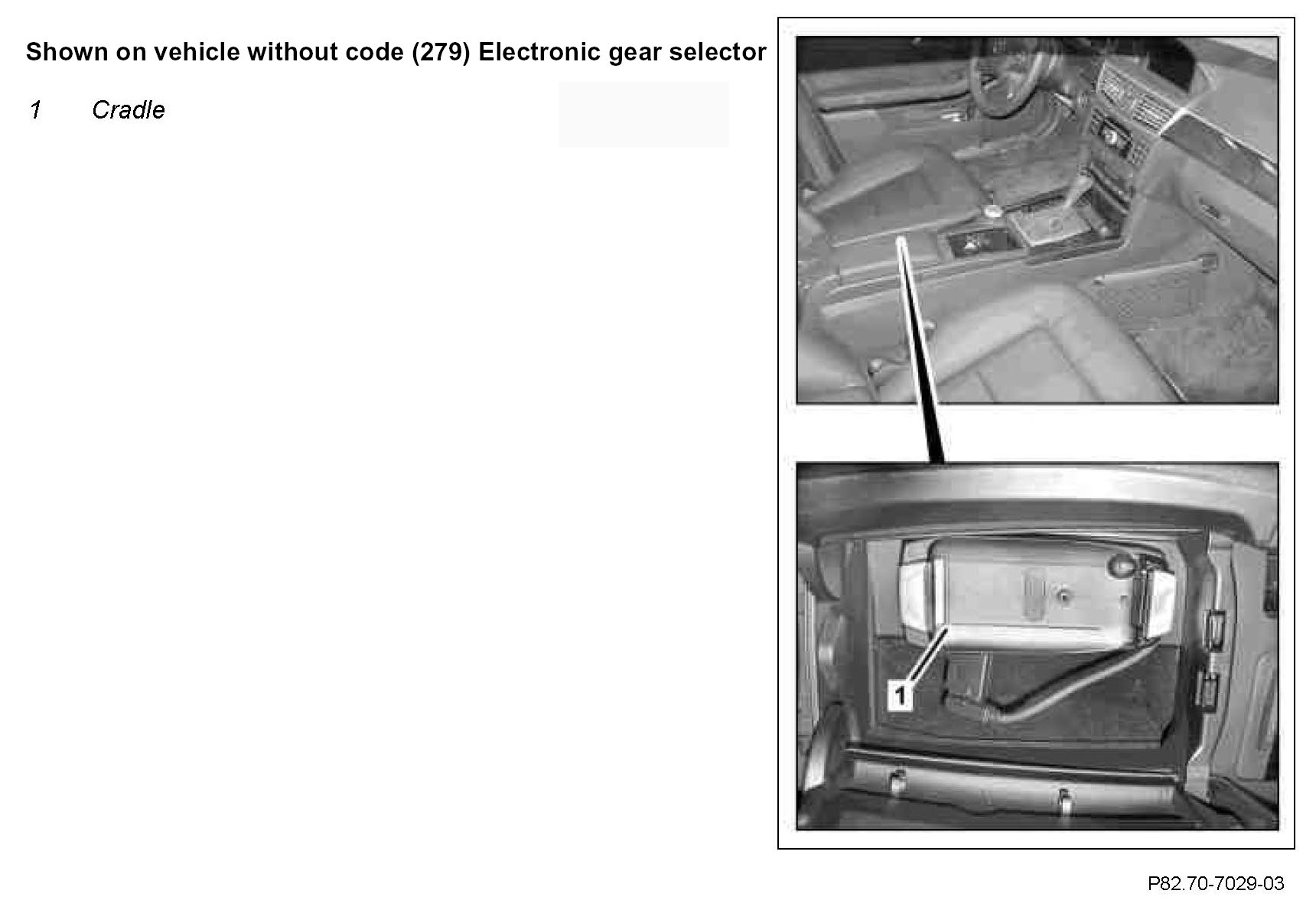

Component Identification:

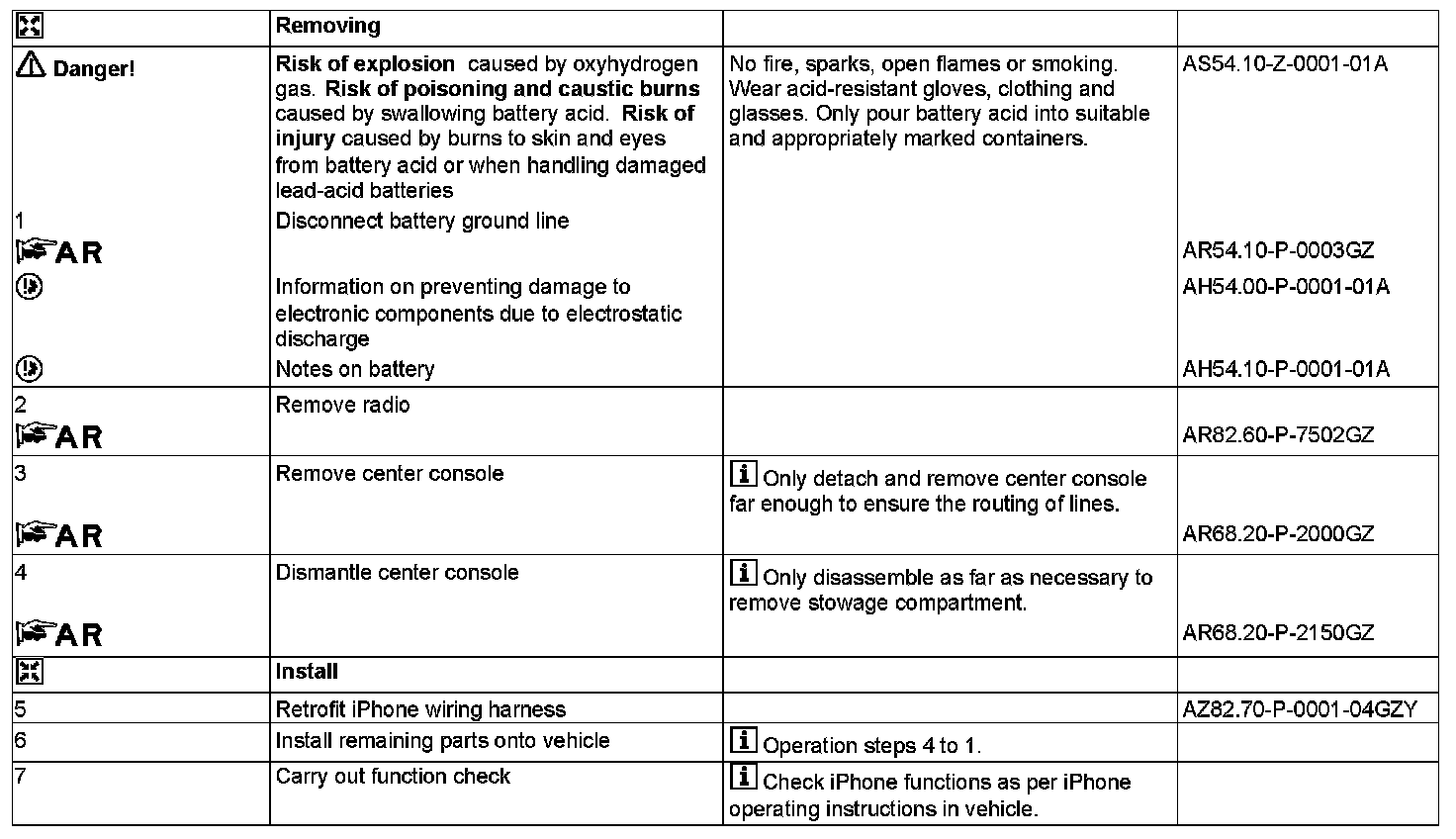

Steps 1 - 7:

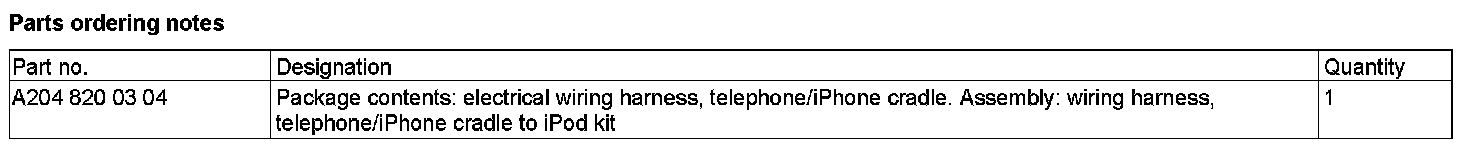

Parts Ordering Notes:
