AN82.70-P-0008-01EWD Retrofit Comfort Telephony Wiring Harness

AN82.70-P-0008-01EWD Retrofit Comfort Telephony Wiring Harness
- MODEL 212.0## (except 212.077) 1# as of 1.6.10 as of Model Year 2011 in center console

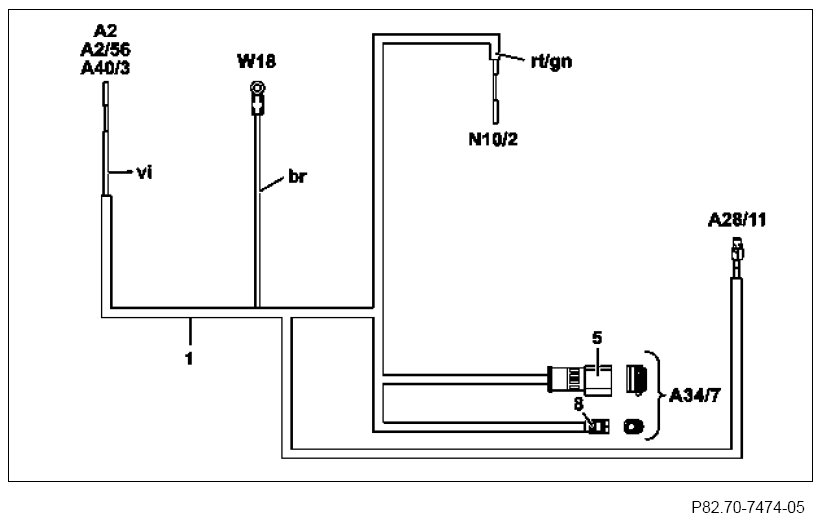

Connection scheme






1 Comfort telephony wiring harness
5 White 4-pin connector
8 Violet antenna line connector
A2 Radio (with code (523) MB Audio 20 radio or code (510) Audio 20 with CD changer)
A2/56 Radio with auto pilot system (with code (525) MB Audio 50 APS radio or code (511) Audio 50 APS with DVD changer)
A28/11 Multifunction antenna
A34/7 Bluetooth module
A40/3 COMAND controller unit (with code (527) COMAND APS with single DVD drive (with navigation) or code (512) COMAND APS with DVD changer)
N10/2 Rear SAM control unit with fuse and relay module
W18 Left front seat crossmember ground point
br Brown line
rt/gn Red/green line
vi Violet line

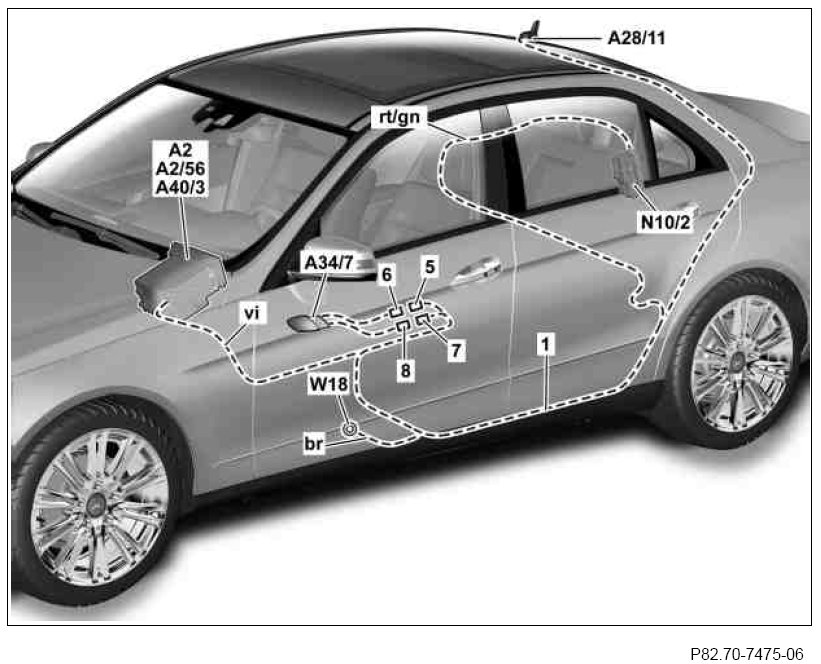

Routing diagram






1 Comfort telephony wiring harness
5 White 4-pin connector
6 White 4-pin plug
7 Violet antenna line plug
8 Violet antenna line connector
A2 Radio (with code (523) MB Audio 20 radio or code (510) Audio 20 with CD changer)
A28/11 Multifunction antenna
A2/56 Radio with auto pilot system (with code (525) MB Audio 50 APS radio or code (511) Audio 50 APS with DVD changer)
A34/7 Bluetooth module
A40/3 COMAND controller unit (with code (527) COMAND APS with single DVD drive (with navigation) or code (512) COMAND APS with DVD changer)
N10/2 Rear SAM control unit with fuse and relay module
W18 Left front seat crossmember ground point
br Brown line
rt/gn Red/green line
vi Violet line

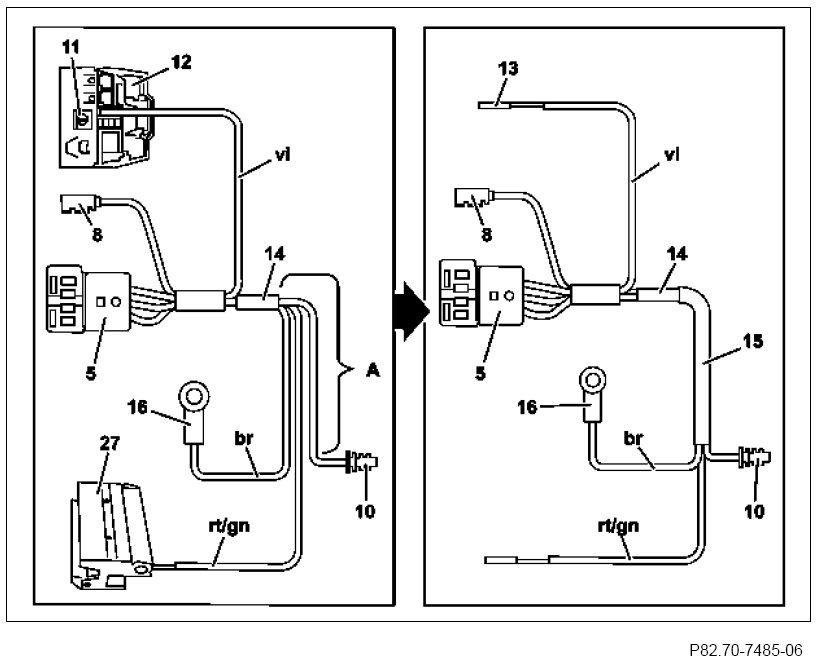

1 Release lock (11) on black 44-pin connector (12) and remove contact spring (13) of violet line (vi) from contact cavity "13" of black 44-pin connector (12).
The black 44-pin connector (12) is a discontinued part.

2 Wrap felt tape (15) around comfort telephony wiring harness in area (A) to a length of approx. 960 mm starting from the insulation tape (14).
3 Detach green 7-pin fuse carrier (27) from red/green line (rt/gn).

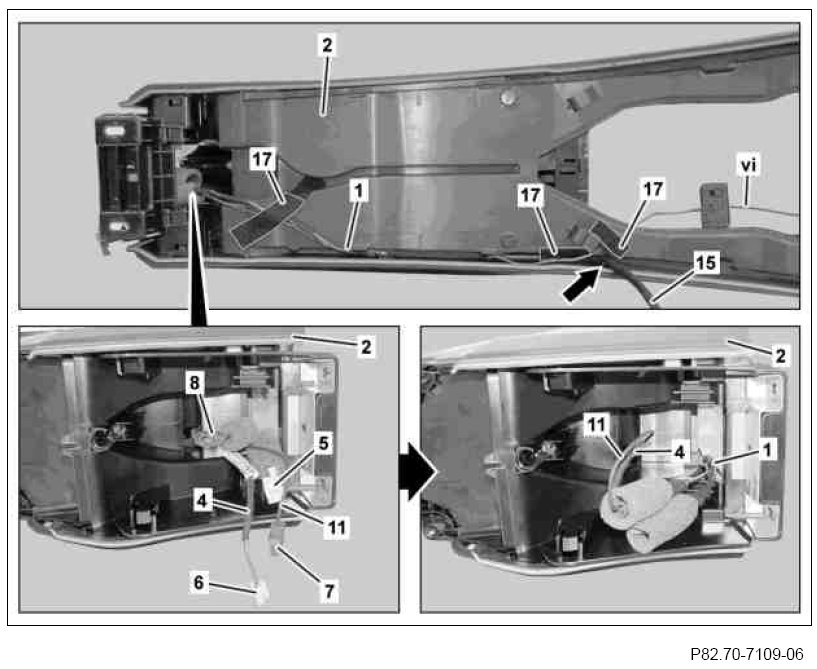

4 Route comfort telephony wiring harness (1) in removed center console (2), as shown, and fix in place using felt strips (17). Guide violet line (vi) into cutout for gearshift lever.
Note the position at which the comfort telephony wiring harness (1) is routed out (arrow).

5 Connect white 4-pin connector (6) of adapter line (4) to white 4-pin connector (5) of comfort telephony wiring harness (1).
6 Connect violet antenna line connector (7) to violet antenna line connector (8) of comfort telephony wiring harness (1).
