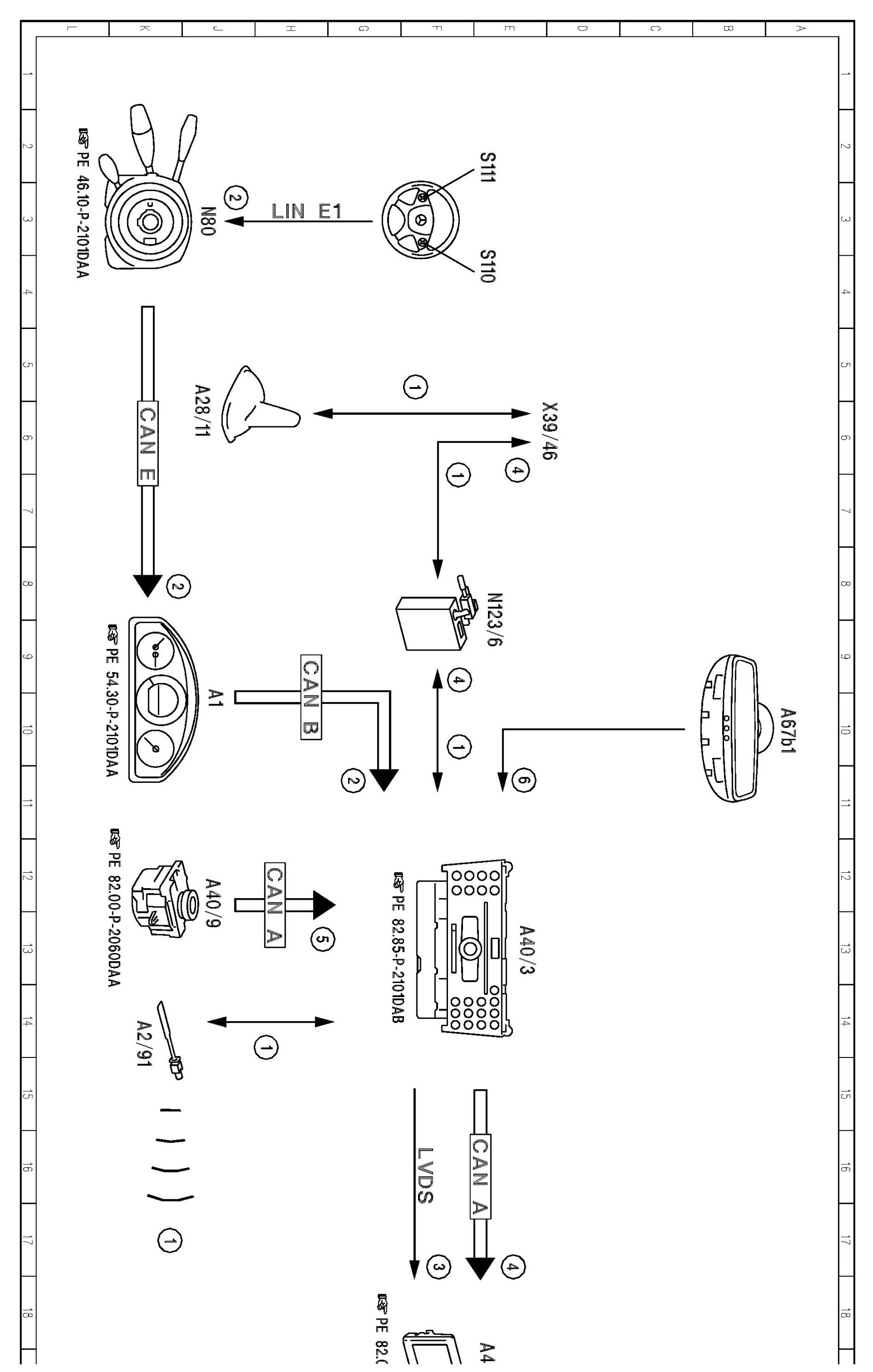

PE82.70-P-2051DAB Electrical Function Schematic For Cellular Phone

PE82.70-P-2051DAB Electrical Function Schematic For Cellular Phone
MODEL 212
- with CODE (498) Japan version
- up to model year 2011 /YoM 10










































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
