GF82.70-P-2018FL Accept Call and Reject Call With the Mobile Phone System, Function



GF82.70-P-2018FL Accept Call And Reject Call With The Mobile Phone System, Function
- except CODE (498) Japan version

Function requirements
^ Circuit 30g or circuit 15R ON
^ One mobile phone network is available in sufficient strength and quality
^ Mobile phone system operating error-free
^ Mobile phone and "audio unit" switched on
^ Compatible mobile phone inserted into mobile phone cradle (A34/15) which is connected to the Bluetooth module (A34/7), or Bluetooth-compatible mobile phone in the vehicle and authorized at the "audio equipment" (basic telephony)
^ Correct Personal Identification Number (PIN) entered, if set on the mobile phone
^ Activated Subscriber identification module (SIM) card inserted into mobile phone (not for "CDMA network" in the USA)

Depending on the equipment installed one of the following control units will be installed, hereafter referred to as the "audio unit":
- Radio (A2) (with code (523) MB Audio 20 radio or with code (510) Audio 20 with CD changer)
- Radio with auto pilot system (A2/56) (with code (525) MB Audio 50 APS radio or with code (511) Audio 50 APS with DVD changer)
- COMAND controller unit (A40/3) (with code (528) COMAND APS with DVD changer, with code (527) COMAND APS with single DVD drive (with navigation) or with code (512) COMAND APS with DVD changer)

For a Bluetooth-compatible mobile phone which is authorized on the audio unit to be operated in the vehicle, the mobile phone must support Hands Free Profile (HFP) 1.0 or 1.5. More information under:
- www.mercedes-benz-mobile.com

General
The mobile phone can be used by the user to initiate or terminate a telephone call to another person in the mobile phone system network or the fixed-line network.
The "Accept call and reject call with the mobile phone system" function consists of the following subfunctions:
^ Function sequence, call signal
^ Accept call function sequence using mobile phone buttons
^ Accept call function sequence over telephone buttons or keypad on audio equipment
^ Accept call function sequence over Audio/COMAND control panel (A40/9)
^ Accept call function sequence over left multifunction steering wheel button group (S110) and right multifunction steering wheel button group (S111)
^ Accept call function sequence via voice control system (VCS [SBS]), with code (511) Audio 50 APS with DVD changer, with code (527) COMAND APS with single DVD drive (with navigation) or with code (512) COMAND APS with DVD changer)
^ Function sequence, telephone call in handsfree mode
^ Reject call function sequence using mobile phone buttons
^ Reject call function sequence over telephone buttons or keypad on audio equipment
^ Reject call function sequence over Audio/COMAND control panel
^ Reject call function sequence over multifunction steering wheel button groups

A call is accepted and rejected via:
- Buttons on the mobile phone
- Telephone buttons or keypad on the audio equipment
- Audio/COMAND control panel
- Multifunction steering wheel button groups
- Voice control for VCS [SBS] (accept call only) (with code (511) Audio 50 APS with DVD changer, with code (527) COMAND APS with single DVD drive (with navigation) or with code (512) COMAND APS with DVD changer)

Function sequence, call signal
The mobile phone receives a call signal via the following route:
- Multifunction antenna (A28/11)
- Direct line
- Mobile phone and stationary heater radio remote control antenna splitter (A2/53) (with code (386) Comfort telephony and code (228) Stationary heater)
- Direct line
- E-net compensator (A28/3) (with code (386) Comfort telephony and code (228) Stationary heater)
- Direct line
- Cradle (with code (386) Comfort telephony)

Information about the caller is displayed on the mobile phone's screen. The display on the mobile phone's screen is forwarded internally. At the same time, the call signal is forwarded to the audio equipment via the following route:
- Cradle (with code (386) Comfort telephony)
- Bluetooth module (with code (386) Comfort telephony)
- Bluetooth antenna (A2/91)
- Direct line

The audio equipment in vehicles with code (810) Sound system sends the call tone by means of audio signals to the sound system amplifier control unit (N40/3) via the Media Oriented System Transport (MOST).

From there, the ring tone is transmitted via direct lines to the following speakers:
- Center dashboard speaker (H4/27)
- Left rear surround speaker (H4/54)
- Right rear surround speaker (H4/55) (with model 212.2)
- Right rear surround speaker (H4/57) (with model 212.0)
- Left front door sound system tweeter (H4/68)
- Right front door sound system tweeter (H4/69)
- Left rear door sound system tweeter (H4/70)
- Right rear door sound system tweeter (H4/71)
- Left front door sound system midrange and bass speakers (H4/72)
- Right front door sound system midrange and bass speakers (H4/73)
- Left rear door sound system midrange speaker (H4/80)
- Right rear door sound system midrange speaker (H4/81)

For the bass speaker (H4/17) (model 212.0) or for the bass speaker (H4/29) (model 212.2), the audio signal is routed from the audio equipment to the sound system amplifier control unit via MOST and from there to the bass speaker via the rear bass speaker amplifier (N40/9) using direct lines.

On vehicles without code (810) Sound system, the audio signal is output directly by the audio equipment to the following speakers:
- Left front door speaker (H4/1)
- Left front door tweeter (H4/1h1)
- Right front door speaker (H4/2)
- Right front door tweeter (H4/2h1)
- Left rear door speaker (H4/3)
- Left rear door tweeter (H4/3h1)
- Right rear door speaker (H4/4)
- Right rear door tweeter (H4/4h1)

At the same time, the audio equipment mutes the currently active audio source (e.g. in radio mode) (MUTE). This takes place internally in the "audio unit".
The caller ID is displayed on the Audio/COMAND display (A40/8) by the audio equipment via a low voltage differential signal (LVDS) line.
The call identification is also shown in the instrument cluster (A1) via the interior CAN (CAN B).

With basic telephony, the mobile phone receives the call signal via the mobile phone antenna. The call signal is then forwarded to the "audio unit" in the following way:
- Mobile phone antenna
- Bluetooth antenna
- Direct line

Function sequence, accept call using mobile phone buttons
Pressing the "Accept call" button on the mobile phone serves to accept the call in handsfree mode. The control signals from the buttons on the mobile phone are processed internally.

Accept call function sequence over telephone buttons or keypad on audio equipment
Pressing the "Accept call" button on the "audio equipment" serves to accept the call in handsfree mode. The control signals from the buttons on the audio equipment are processed internally and forwarded to the mobile phone via the following route:
- Direct line
- Bluetooth antenna
- Bluetooth module (with code (386) Comfort telephony)
- Cradle (with code (386) Comfort telephony)

Communication with the basic telephony takes place between the "audio unit" and the mobile phone in the following way:
- Direct line
- Bluetooth antenna
- Mobile phone antenna

Accept call function sequence over Audio/COMAND control panel
Through the call signal, the caller ID is displayed on the Audio/ COMAND display by the audio equipment via an LVDS line. Selecting the "Accept call" function using the Audio/COMAND control panel serves to accept the call in handsfree mode. The control signals from the Audio/COMAND control panel are forwarded via the telematics CAN (CAN A) to the "audio equipment".

The control signals are then forwarded to the mobile phone via the following route:
- Direct line
- Bluetooth antenna
- Bluetooth module (with code (386) Comfort telephony)
- Cradle (with code (386) Comfort telephony) Communication with the basic telephony takes place between the "audio unit" and the mobile phone in the following way:
- Direct line
- Bluetooth antenna
- Mobile phone antenna

Accept call function sequence over multifunction steering wheel button groups
The call is accepted in handsfree mode by pressing the accept/ terminate phone call button (S111s3) in the corresponding panel.

The control signal from the accept and terminate phone call button is forwarded to the "audio equipment" via the following components:
- Direct line
- Steering wheel electronics (N135)
- Steering LIN (LIN E1)
- Steering column module control unit (N80)
- Chassis CAN (CAN E)
- Instrument cluster
- Interior CAN

The control signals are sent from the audio equipment to the mobile phone via the following route:
- Direct line
- Bluetooth antenna
- Bluetooth module (with code (386) Comfort telephony)
- Cradle (with code (386) Comfort telephony)

The display in the instrument cluster is conducted by the "audio unit" via interior CAN.

Communication with the basic telephony takes place between the "audio unit" and the mobile phone in the following way:
- Direct line
- Bluetooth antenna
- Mobile phone antenna

Accept call function sequence via VCS [SBS] (with code (511) Audio 50 APS with DVD changer, with code (527) COMAND APS with single DVD drive (with navigation) or with code (512) COMAND APS with DVD changer)
Pressing the voice control system ON button (S111s4) of the right multifunction steering wheel button group activates the voice control of the voice control system. The control signal from the VCS [SBS] on button is forwarded to the "audio unit" via the following components:
- Direct line
- Steering wheel electronics
- Steering LIN
- Steering column module control unit
- Chassis CAN
- Instrument cluster
- Interior CAN

A signal tone is emitted after the voice control system has been activated.
The signal tone is transmitted from the audio equipment to the sound system amplifier control unit via MOST.

From there, the signal tone is transmitted by means of an audio signal to the following speakers via direct lines:
- Center instrument panel speaker
- Left rear surround speaker
- Right rear surround speaker
- Left front door sound system tweeter
- Right front door sound system tweeter
- Left rear door sound system tweeter
- Right rear door sound system tweeter
- Left front door sound system midrange and bass speakers
- Right front door sound system midrange and bass speakers
- Left rear door sound system midrange speaker
- Right rear door sound system midrange speaker

For the bass speaker, the audio signal is transmitted from the audio equipment to the sound system amplifier control unit via MOST and from there to the bass speaker via the rear bass speaker amplifier using direct lines.

On vehicles without code (810) Sound system, the audio signal is output directly by the audio equipment to the following speakers:
- Left front door speaker
- Left front door tweeter
- Right front door speaker
- Right front door tweeter
- Left rear door speaker
- Left rear door tweeter
- Right rear door speaker
- Right rear door tweeter

The call is only accepted with the corresponding voice command. The voice commands are registered by the hands-free system microphone (A67b1) and forwarded to the audio equipment via a direct line. The voice commands are then forwarded to the mobile phone via the following route:
- Direct line
- Bluetooth antenna
- Bluetooth module (with code (386) Comfort telephony)
- Cradle (with code (386) Comfort telephony)

The individual voice commands are listed in the "Linguatronic operator's manual".

Function sequence, telephone call in handsfree mode
After the call has been accepted, the mobile phone receives or transmits the mobile phone signals via the following route:
- Multifunction antenna (with code (386) Comfort telephony)
- Direct line
- Mobile phone and stationary heater radio remote control antenna splitter (with code (386) Comfort telephony and code (228) Stationary heater)
- Direct line
- E-net compensator (with code (386) Comfort telephony and code (228) Stationary heater)
- Direct line
- Cradle (with code (386) Comfort telephony)

The voice input in hands-free mode (except "private mode") is picked up by the hands-free system microphone and forwarded to the audio equipment via a direct line. The voice commands are then forwarded to the mobile phone via the following route:
- Direct line
- Bluetooth antenna
- Bluetooth module (with code (386) Comfort telephony)
- Cradle (with code (386) Comfort telephony)

The voice output (except "Private Mode") in vehicles with code (810) Sound system takes place by means of audio signals from the audio equipment to the sound system amplifier control unit via MOST.

From there, the audio signal is transmitted to the following speakers over direct lines:
- Center instrument panel speaker
- Left rear surround speaker
- Right rear surround speaker
- Left front door sound system tweeter
- Right front door sound system tweeter
- Left rear door sound system tweeter
- Right rear door sound system tweeter
- Left front door sound system midrange and bass speakers
- Right front door sound system midrange and bass speakers
- Left rear door sound system midrange speaker
- Right rear door sound system midrange speaker

For the bass speaker, the audio signals are transmitted from the audio equipment to the sound system amplifier control unit via MOST and from there to the bass speaker via the rear bass speaker amplifier using direct lines.

On vehicles without code (810) Sound system, the audio signals are output directly by the audio equipment to the following speakers:
- Left front door speaker
- Left front door tweeter
- Right front door speaker
- Right front door tweeter
- Left rear door speaker
- Left rear door tweeter
- Right rear door speaker
- Right rear door tweeter

For basic telephony, the mobile phone receives or transmits the mobile phone signals via the following route:
- Mobile phone antenna
- Bluetooth antenna
- Discrete line

For basic telephony, the audio equipment transmits or receives the voice signals and the mobile phone signals via the following route:
- Direct line
- Bluetooth antenna
- Mobile phone Bluetooth antenna

In general, the telephone connection is established in handsfree mode for basic telephony and for comfort telephony after accepting the call.
With comfort telephony, if the mobile phone is taken out of the cradle after placing the phone connection in hands-free mode and thus disconnected from the "audio unit", then the phone call is conducted in "private mode".
With comfort telephony, if the mobile phone is inserted into the cradle again during an ongoing phone call, the phone call is conducted again in handsfree mode.

Function sequence, reject call using mobile phone buttons
Pressing the "End call" button on the mobile phone rejects the call. The control signals from the buttons on the mobile phone are processed internally by the mobile phone.

Reject call function sequence over telephone buttons or keypad on audio equipment
Pressing the "End" button on the "audio equipment" rejects the call. The control signals from the telephone buttons or the keypad on the audio equipment are processed internally and forwarded to the mobile phone via the following route:
- Direct line
- Bluetooth antenna
- Bluetooth module (with code (386) Comfort telephony)
- Cradle (with code (386) Comfort telephony)

Communication with the basic telephony takes place between the "audio unit" and the mobile phone in the following way:
- Direct line
- Bluetooth antenna
- Mobile phone Bluetooth antenna

Reject call function sequence over Audio/COMAND control panel
Through the call signal, the caller ID is displayed on the Audio/ COMAND display by the audio equipment via an LVDS line. By selecting the "Reject" function the call is then rejected. The control signals from the Audio/COMAND control panel are forwarded to the "audio equipment" via the telematics CAN. The control signals are then forwarded to the mobile phone via the following route:
- Direct line
- Bluetooth antenna
- Bluetooth module
- Cradle

Communication with the basic telephony takes place between the "audio unit" and the mobile phone in the following way:
- Direct line
- Bluetooth antenna
- Mobile phone Bluetooth antenna

Reject call function sequence over multifunction steering wheel button groups
Pressing the accept/terminate phone call button in the corresponding subfield rejects the call. The control signals of the multifunction steering wheel button groups are forwarded to the "audio unit" via the following components:
- Direct line
- Steering wheel electronics
- Steering LIN
- Steering column module control unit
- Chassis CAN
- Instrument cluster
- Interior CAN

The control signals are sent from the audio equipment to the mobile phone via the following route:
- Direct line
- Bluetooth antenna
- Bluetooth module

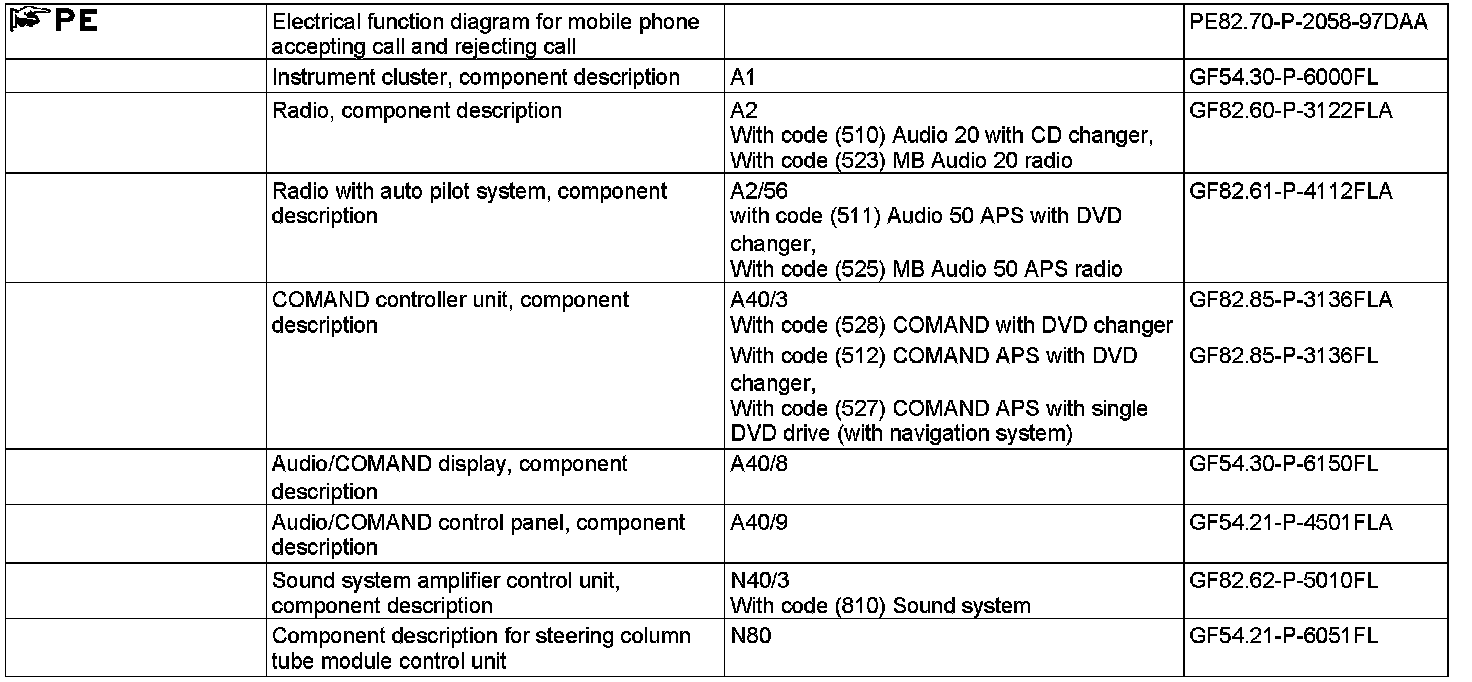

- Cradle
