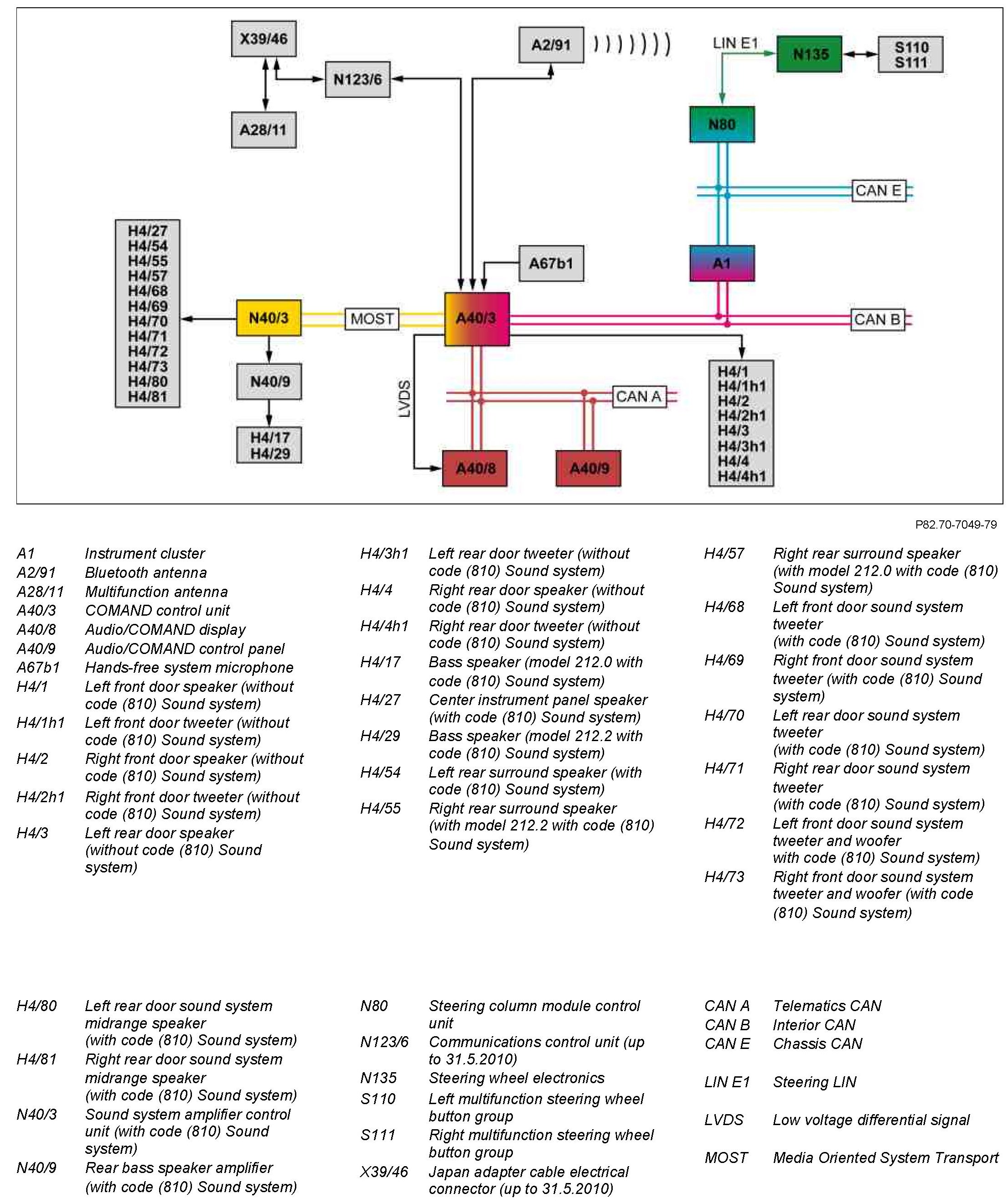

GF82.70-P-0007-02FLJ Mobile Phone System, Block Diagram



GF82.70-P-0007-02FLJ Mobile Phone System, Block Diagram
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (498) Japan version



Component Identification:
