AR82.62-P-8000CY Remove/Install Keyless-Go Antenna

AR82.62-P-8000CY Remove/Install Keyless-Go Antenna
- with CODE (889) Keyless-Go
- rear door

Component Identification:

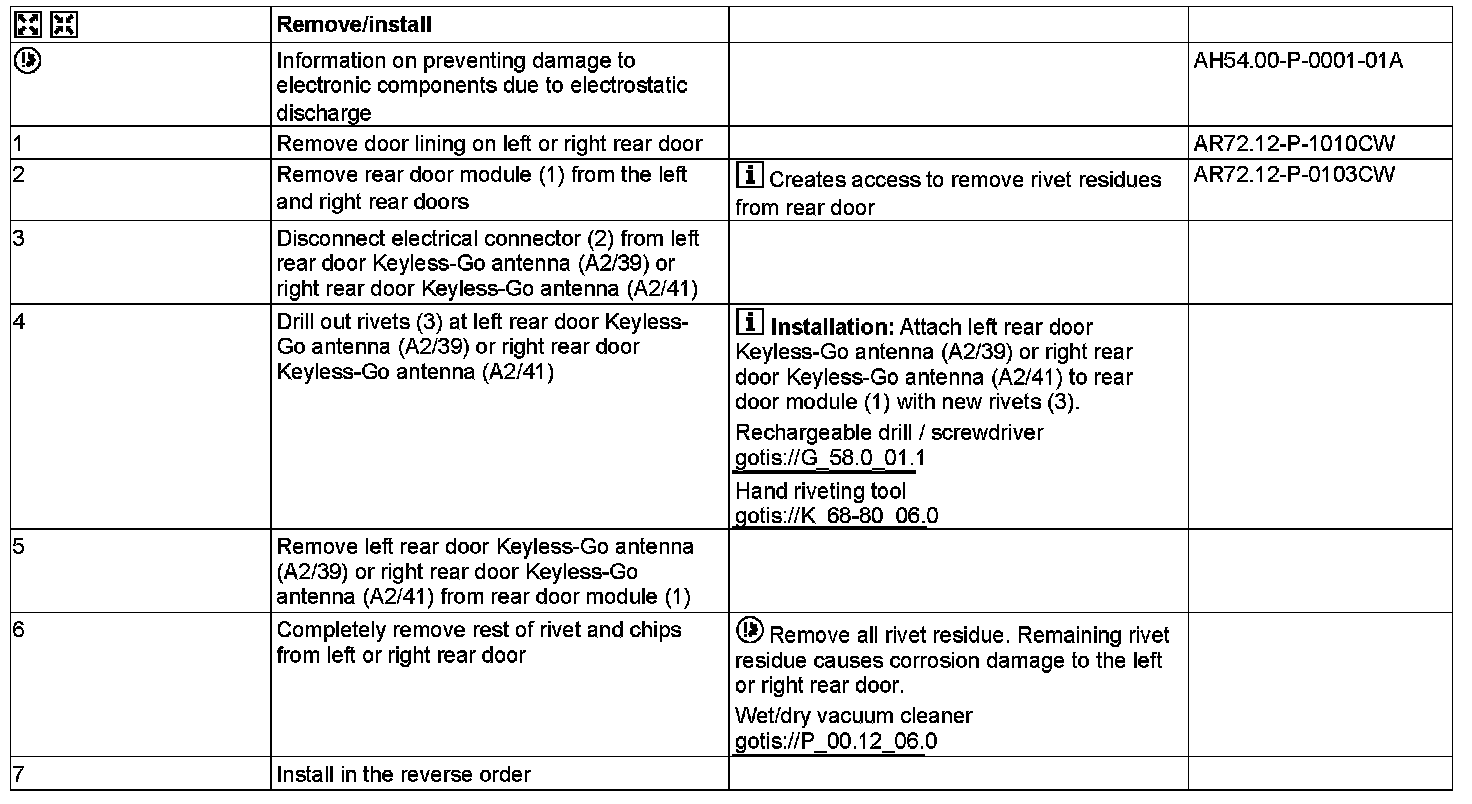

Steps 1 - 7:
