GF80.61-P-0005FL Keyless Go, Function

GF80.61-P-0005FL Keyless Go, Function
- with CODE (889) Keyless Go


Keyless-Go (KG), general
The Keyless-Go system allows access to the vehicle and starting the vehicle engine without using the transmitter key (A8/1). It is sufficient to just carry the transmitter key

Operation of the central locking (CL) via the transmitter key remains possible parallel to the Keyless Go functions.

The KG system comprises the following partial functions:
^ Function sequence for position definition of transmitter key

Further partial functions are described in separate documents:
^ Locking/unlocking, function
^ Engine start-stop, function

The anti-theft alarm system (ATA) (with code (551) anti-theft alarm system (ATA)) functions in the same manner as when locking/unlocking the CL with the transmitter key.

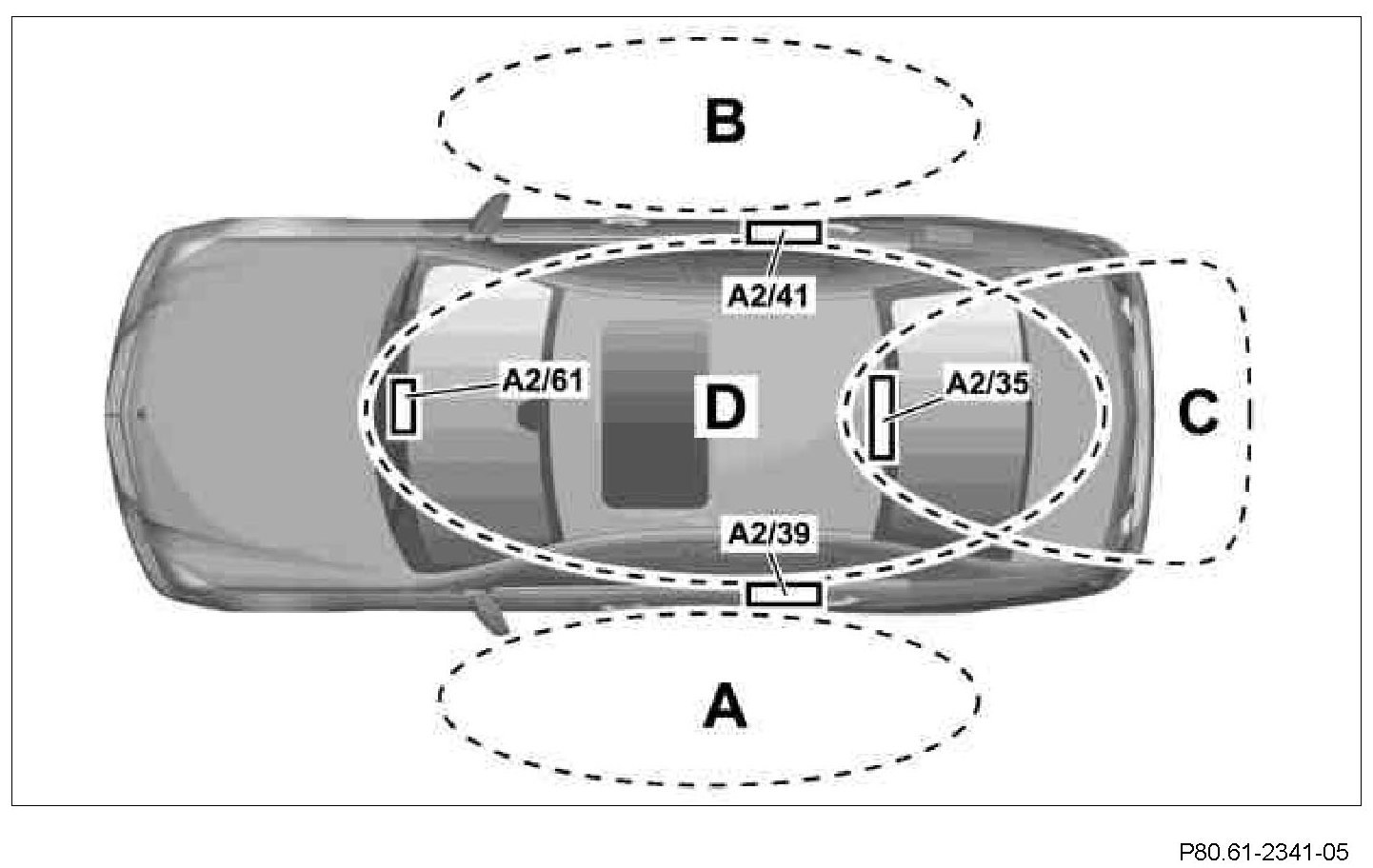

Function sequence for position definition of transmitter key (Shown on model 212.0)
A position determination of the transmitter key is required for the individual functions. By activating the following components, the transmitter key can determine the area (A, B, C or D) in which it is located.

- Trunk Keyless-Go antenna (A2/35)
- Left rear door KEYLESS GO antenna(A2/39)
- Right rear door KEYLESS GO antenna(A2/41)
- interior Keyless-Go antenna (A2/61)







The determined position is transmitted by the transmitter key via radio signal. The FM 1, AM, ZV and KEYLESS-GO antenna amplifier (A2/18) edits the signal and relays it to the KEYLESS-GO control unit (N69/5).
