Home >> Mercedes Benz >> 2011 >> E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antenna >> Service and Repair >> Removal and Replacement >> AR82.62-P-7200EW Remove/Install Blocking Circuit of Rear Window Antenna

AR82.62-P-7200EW Remove/Install Blocking Circuit of Rear Window Antenna



AR82.62-P-7200EW Remove/Install Blocking Circuit Of Rear Window Antenna

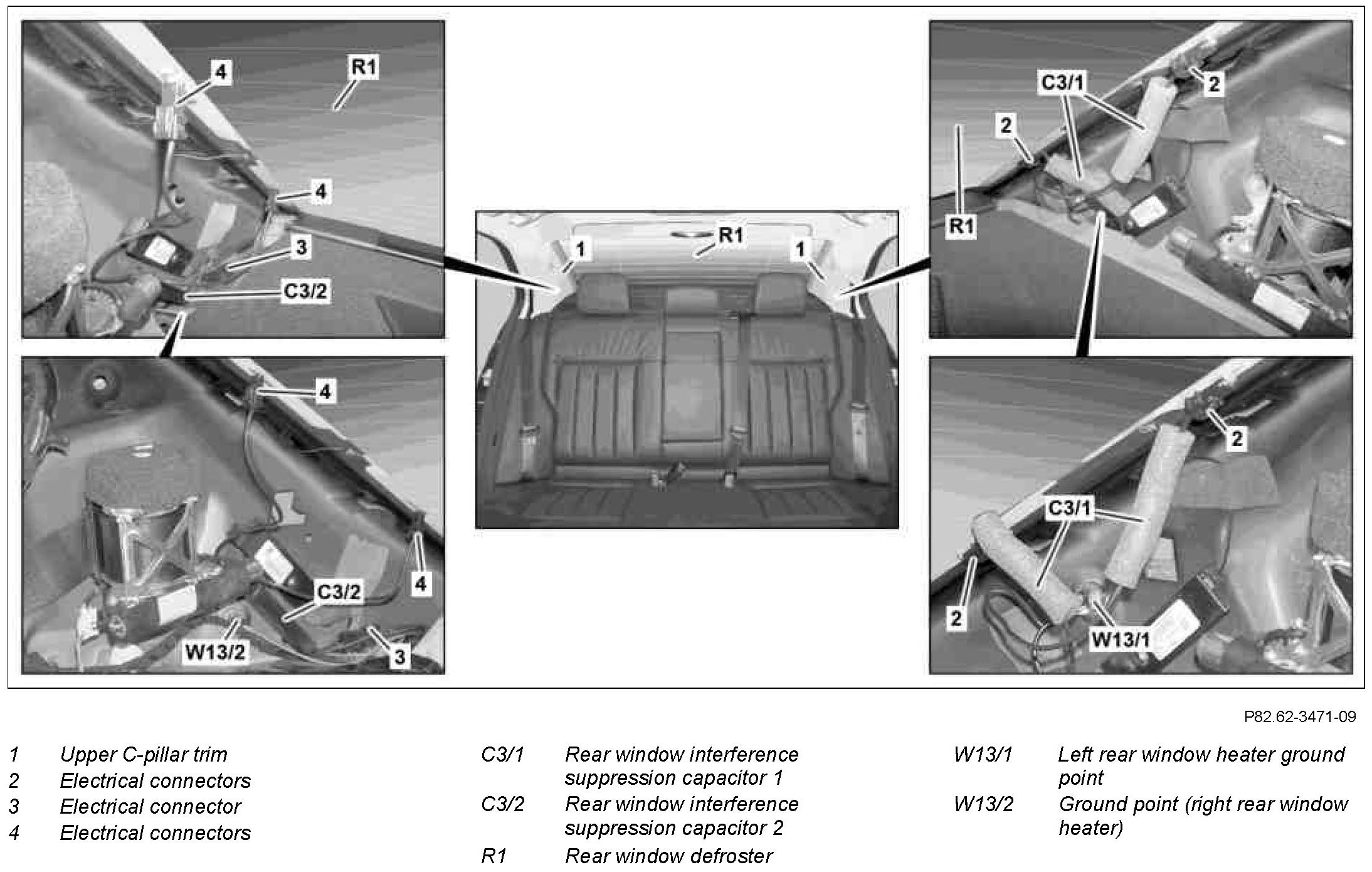

Component Identification:

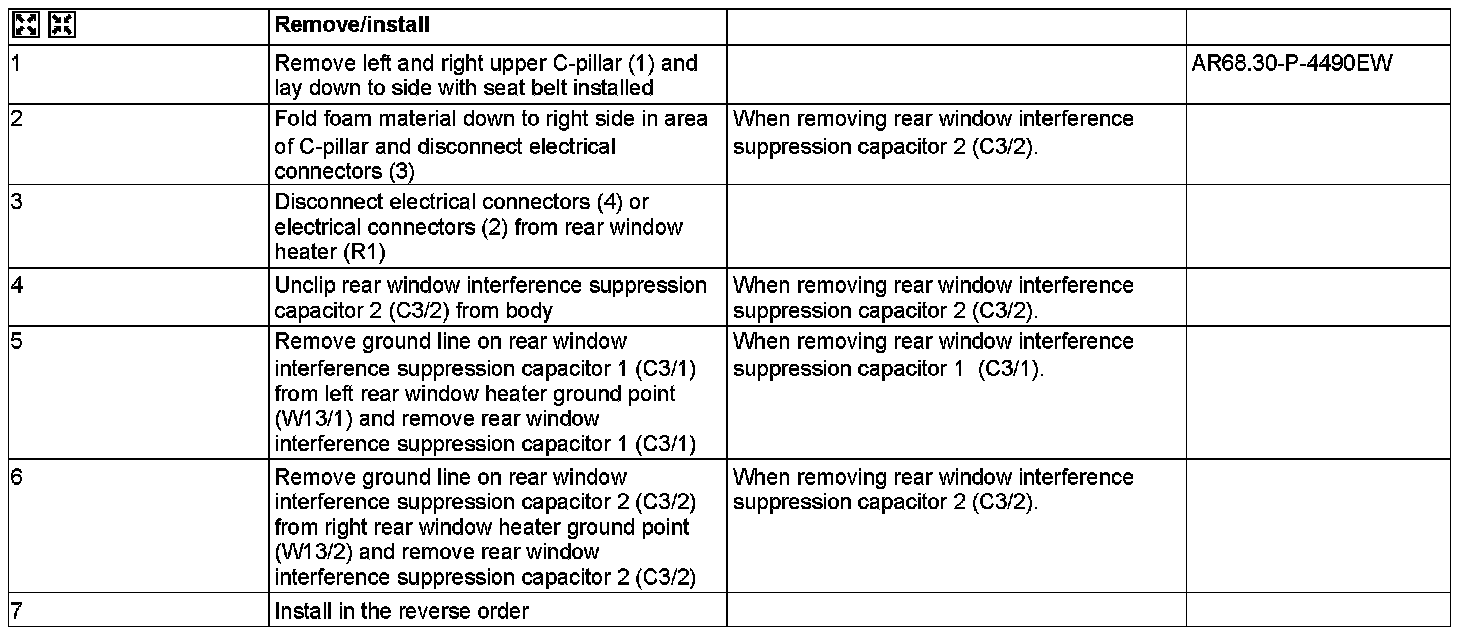

Steps 1 - 7:
