AN82.62-P-0001-04EWD Retrofit Antenna Line

AN82.62-P-0001-04EWD Retrofit Antenna Line
- MODEL 212.0## 1#
- with CODE (228) Stationary heater Telefon-Signal

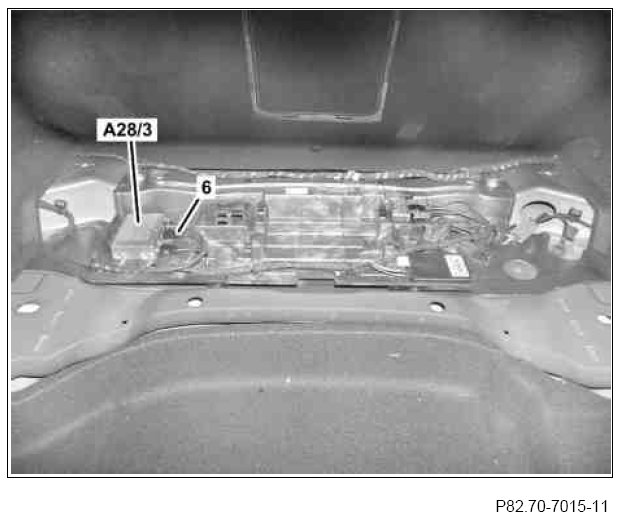

1 Detach black antenna line coupling for mobile radio antenna amplifier / compensator (6) from mobile radio antenna amplifier / compensator (A28/3).

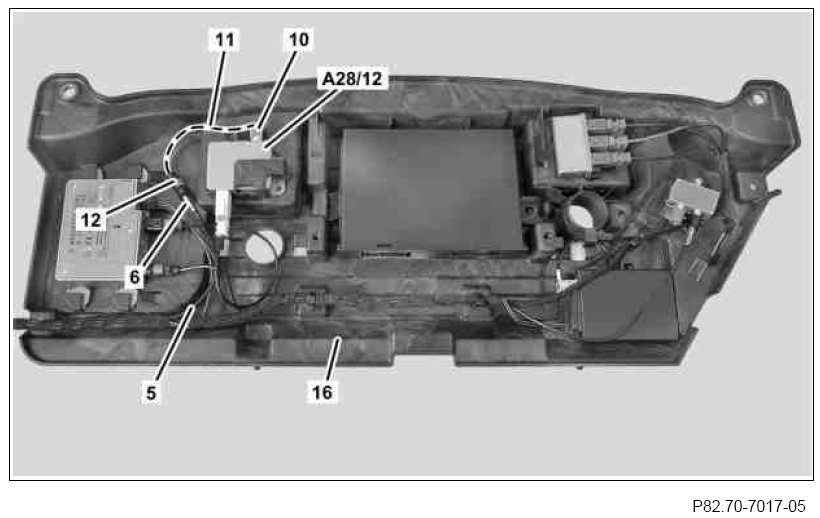

2 Connect black adapter line connector for antenna splitter (12) of antenna splitter adapter line (11) with previously disconnected black antenna line coupling for the antenna amplifier / compensator for the mobile radio (6).
The black antenna line coupling for mobile radio antenna amplifier / compensator (6) was previously connected to the mobile radio antenna amplifier / compensator.

3 Connect white adapter line coupling for antenna splitter (10) of antenna splitter adapter line (11), as shown, to right connection on taxi telephone antenna splitter (A28/12).
4 Fix antenna splitter adapter line (11) using cable tie to carrier plate (16).






5 Clip taxi telephone antenna splitter (A28/12) into the carrier plate (16).
6 Connect black adapter line coupling for mobile radio antenna amplifier / compensator (15) of adapter line for mobile radio antenna amplifier / compensator (8) to mobile radio antenna amplifier / compensator (A28/3).
7 Connect white adapter line coupling for mobile radio antenna amplifier / compensator (9) of adapter line for mobile radio antenna amplifier / compensator (8) to the taxi telephone antenna splitter (A28/12).
8 Fix adapter line for mobile radio antenna amplifier / compensator (8) using cable tie to carrier plate (16).

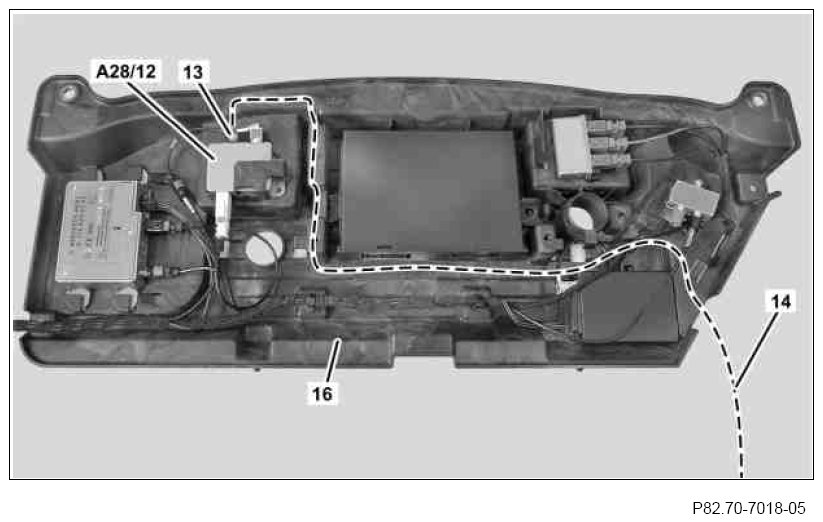

9 Connect coupling for telephone antenna line for spare wheel well (13) of telephone antenna line in spare wheel well (14), as shown, to left connection for taxi telephone antenna splitter (A28/12).
The length of the telephone antenna line in spare wheel well (14) is 2665 mm.

10 Fix telephone antenna line in spare wheel well (14) using cable tie to carrier plate (16).
11 Route telephone antenna line in spare wheel well (14) into spare wheel well.
