AN82.62-P-0001-04EWC Retrofit Antenna Line

AN82.62-P-0001-04EWC Retrofit Antenna Line
- MODEL 212.0## 1#
- except CODE (228) Stationary heater
- with CODE (386) Comfort telephony Telefon-Signal

If the code (938) Preinstallation for hands-free two-way radio for vehicles without code (228) Stationary heater and with code (386) Comfort telephony is retrofitted, then the comfort telephony can no longer be used because the antenna signal for the comfort telephony is used for the preinstallation of the hands-free two-way radio.

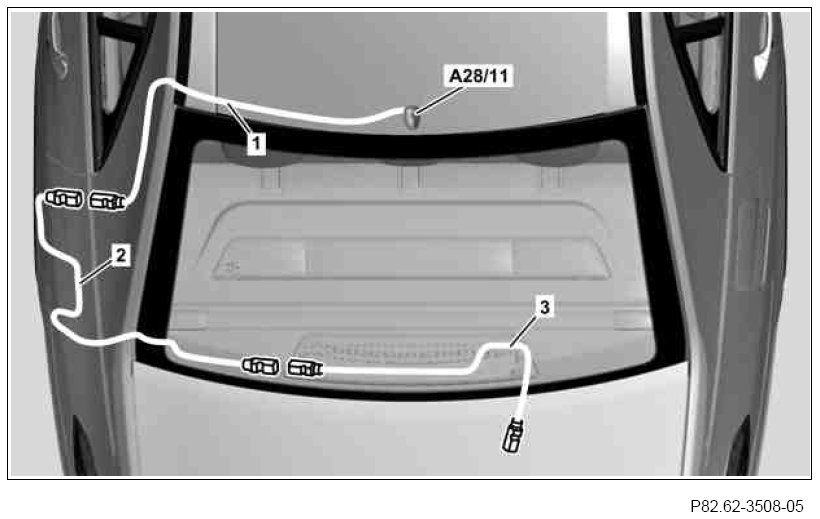

Routing diagram






1 Telephone antenna line (multifunction antenna)
2 Telephone antenna line extension (length 2265 mm)
3 Telephone antenna line (spare wheel well, length 2665 mm)
A28/11 Multifunction antenna






1 Connect black coupling of 2265 mm long telephone antenna line extension (2) to black telephone antenna line connector (6) of previously routed telephone antenna line (1).

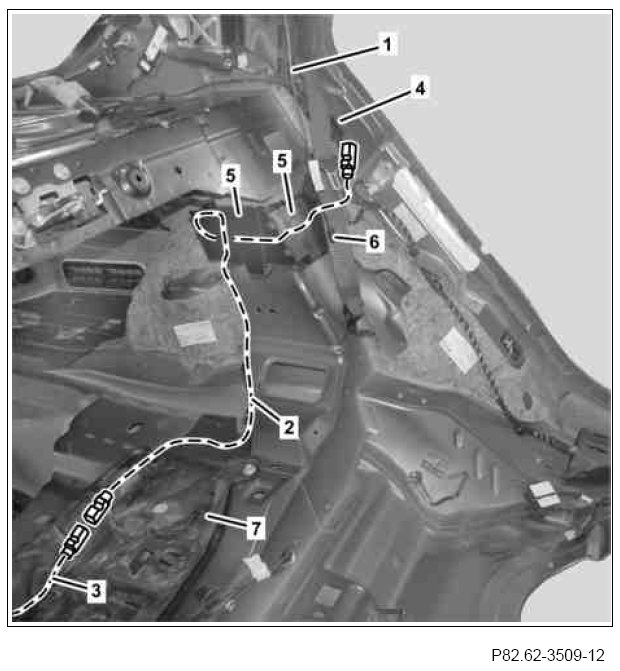

2 Open covers (5) on left wheel arch cable duct.
3 Route telephone antenna line extension (2) along the vehicle wiring harness into the left wheel arch cable duct.
4 Route telephone antenna line extension (2) from left wheel arch cable duct to the carrier plate (7).
5 Connect the 2665 mm long telephone antenna line (3) to telephone antenna line extension (2).
6 Fix telephone antenna line extension (2) using cable tie onto vehicle wiring harness.
7 Close coverings (5) on left wheel arch cable duct and cable duct on top left C-pillar (4).

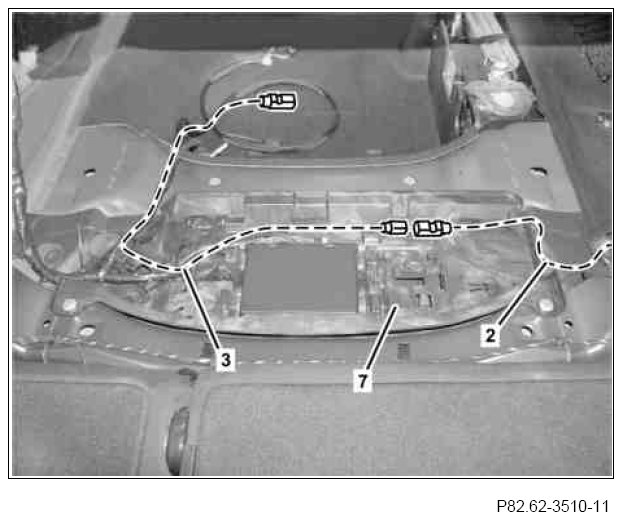

8 Route telephone antenna line (3) from telephone antenna line extension (2), as shown, into the spare wheel well.
9 Fix telephone antenna line (3) using cable tie onto carrier plate (7).
