AR82.70-P-8952EW Remove/Install Antenna Cover

AR82.70-P-8952EW Remove/Install Antenna Cover
MODEL 212.0 /2 as of model year 2011
MODEL 166, 172.4, 218

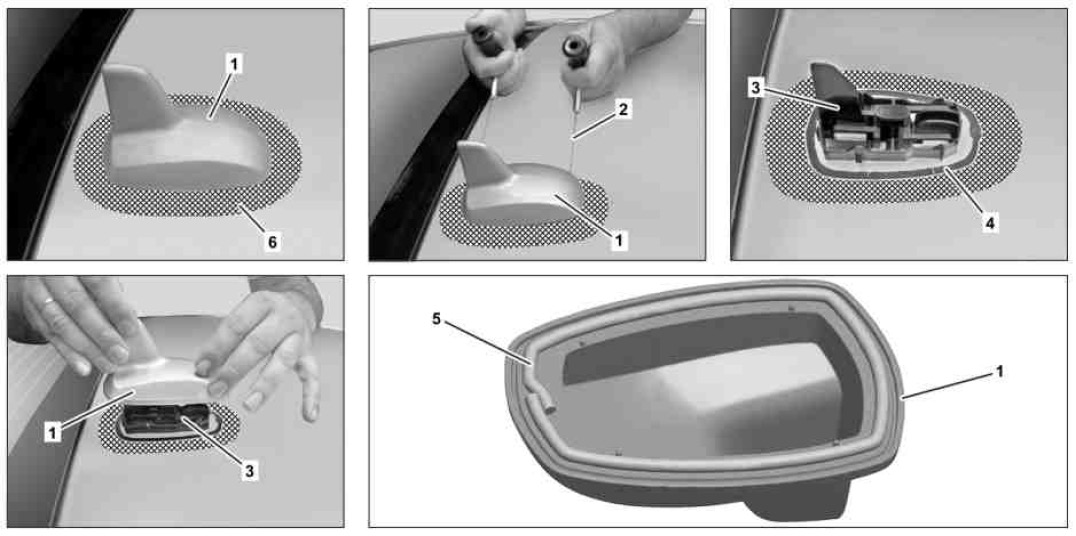

Shown on model 218 with multifunction antenna mock-up
1 Cover
2 Cutting wire
3 Multifunction antenna mock-up
4 Remaining adhesive
5 Adhesive bead
6 Masking tape








000 589 86 63 00
Intermediate piece
