E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Antenna
>>
Antenna, Phone
>>
Service and Repair
>>
Removal and Replacement
>>
AR82.70-P-8951EW Remove/Install Antenna
AR82.70-P-8951EW Remove/Install Antenna
AR82.70-P-8951EW Remove/Install Antenna

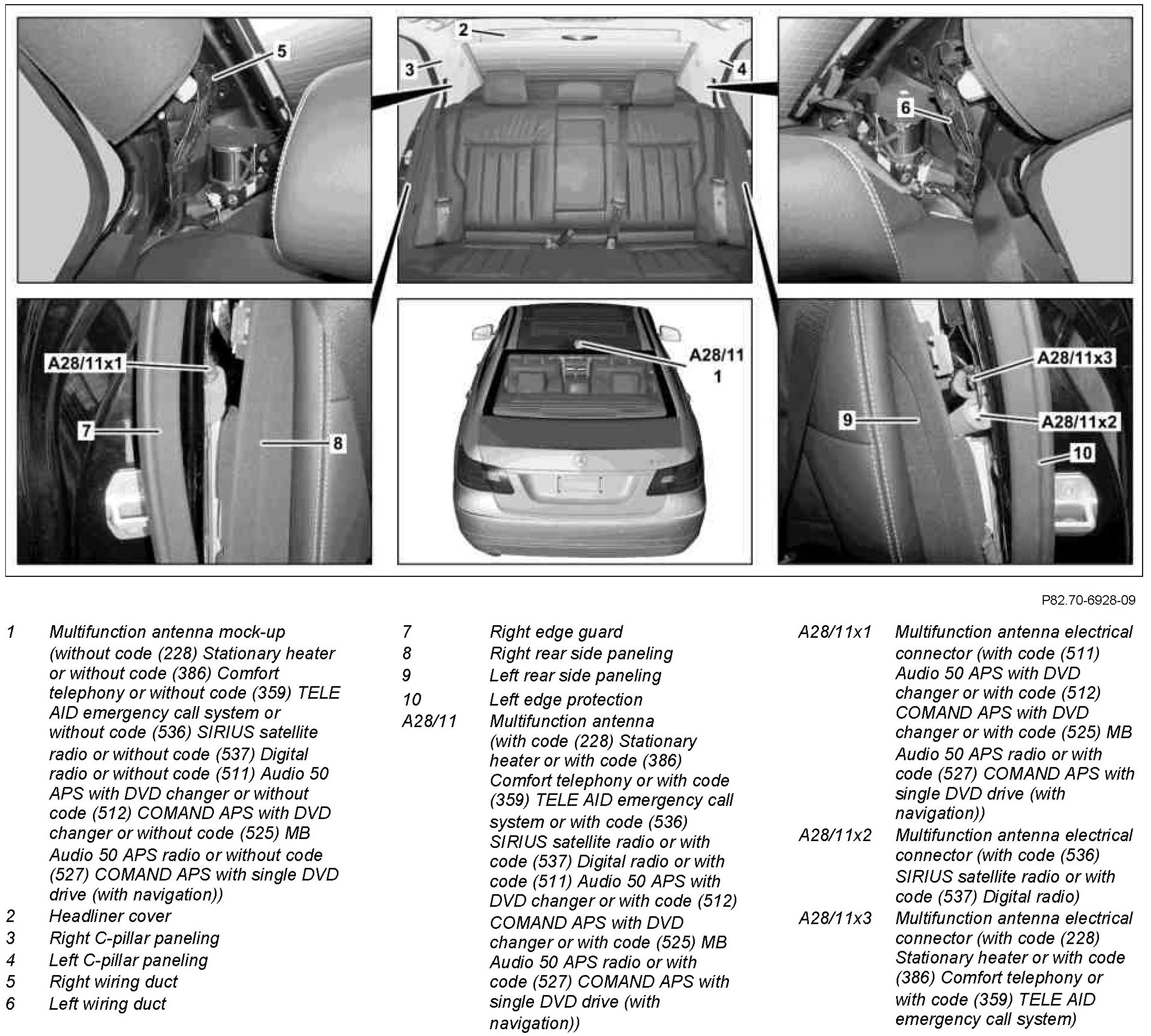

Component Identification:
Component Identification:

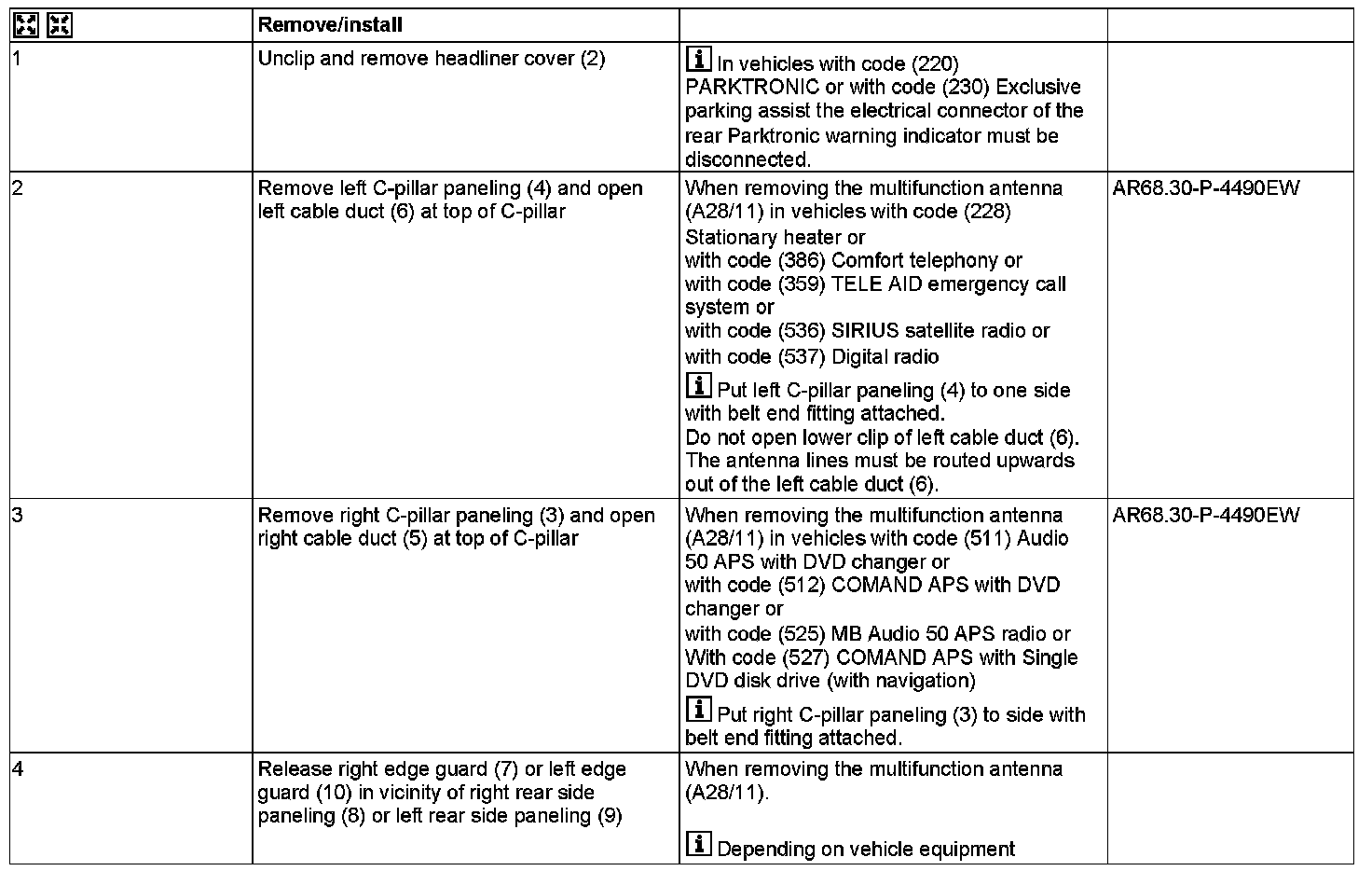

Steps 1 - 4:

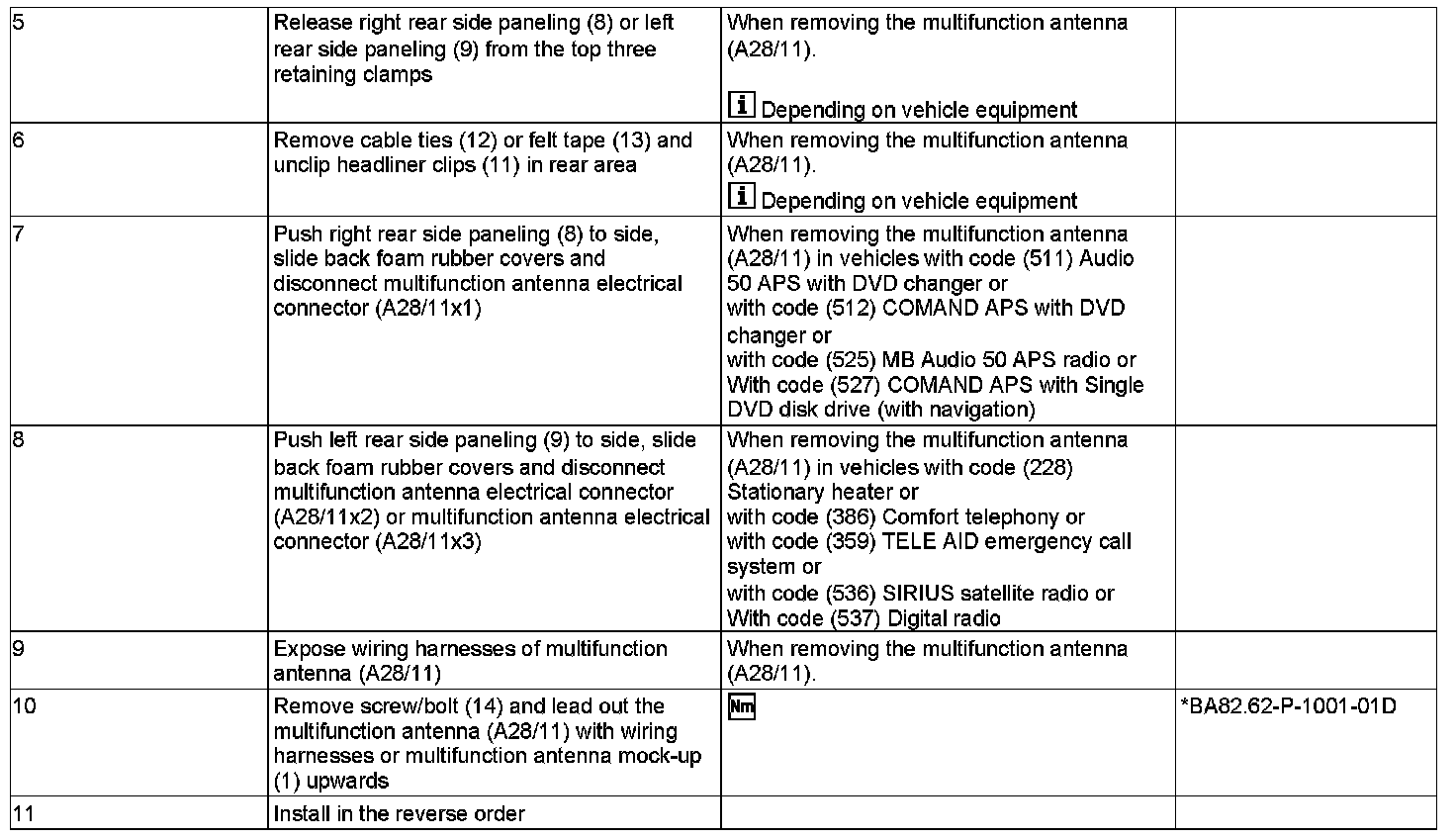

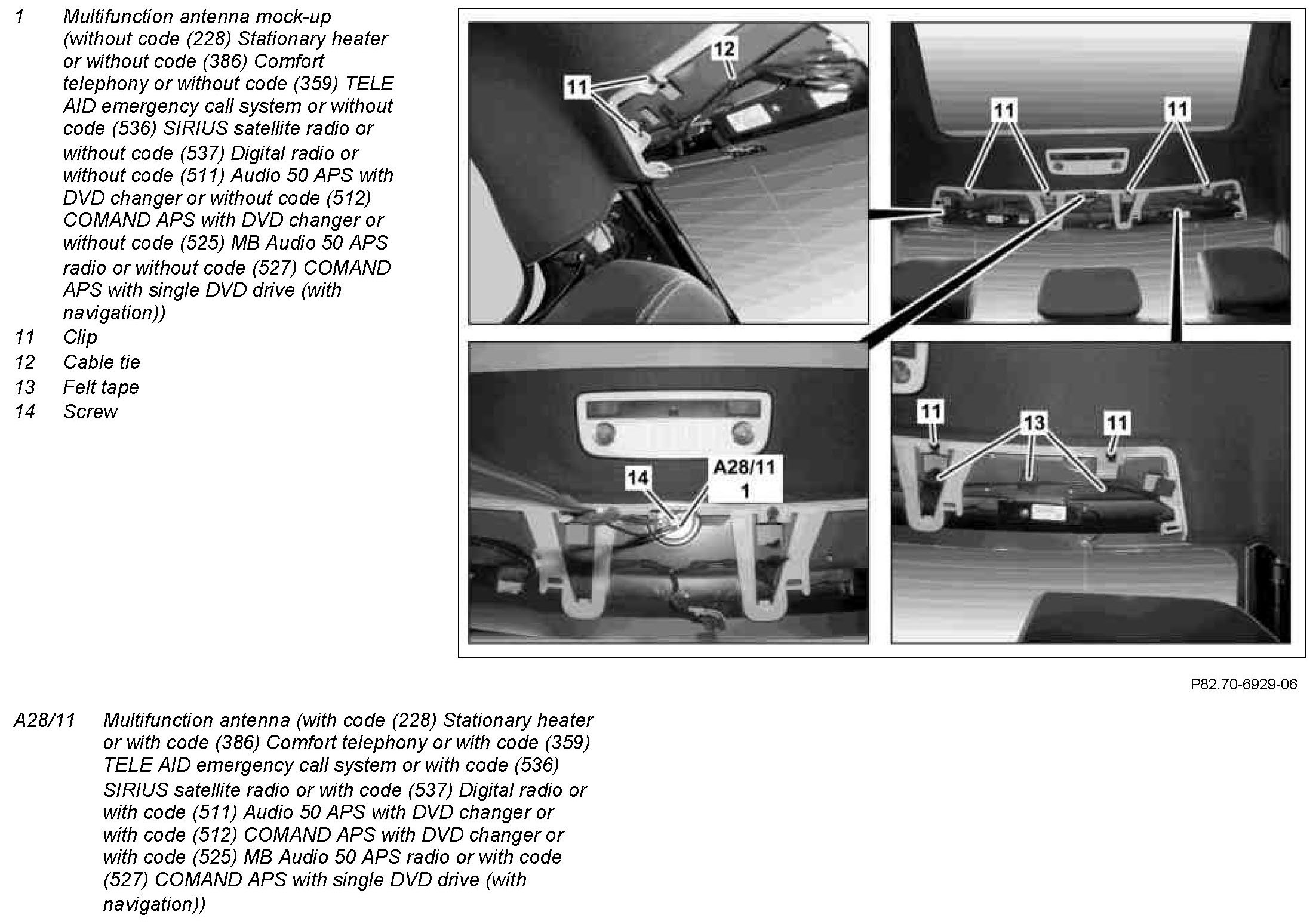

Steps 5 - 11:

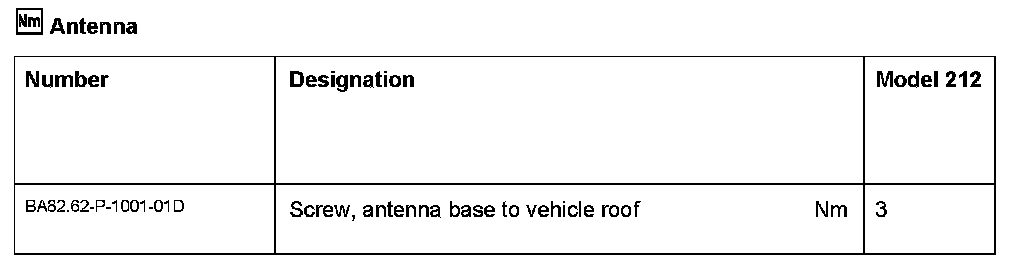

Antenna:
