AR82.70-P-8951EL Remove/Install Antenna

AR82.70-P-8951EL Remove/Install Antenna
MODEL 212.0 /2 as of model year 2011
- with CODE (228) Stationary heater
- with CODE (359) TELEAID emergency call system
- with CODE (386) Comfort telephony
- with CODE (511) Audio 50 APS with DVD changer
- with CODE (512) COMAND APS with DVD changer
- with CODE (525) MB Audio 50 APS radio
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (528) HIGH Class USA
- with CODE (536) SIRIUS satellite radio
MODEL 218
- with CODE (228) Stationary heater
- with CODE (359) TELEAID emergency call system
- with CODE (386) Comfort telephony
- with CODE (511) Audio 50 APS with DVD changer
- with CODE (512) COMAND APS with DVD changer
- with CODE (525) MB Audio 50 APS radio
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (528) HIGH Class USA
- with CODE (536) SIRIUS satellite radio

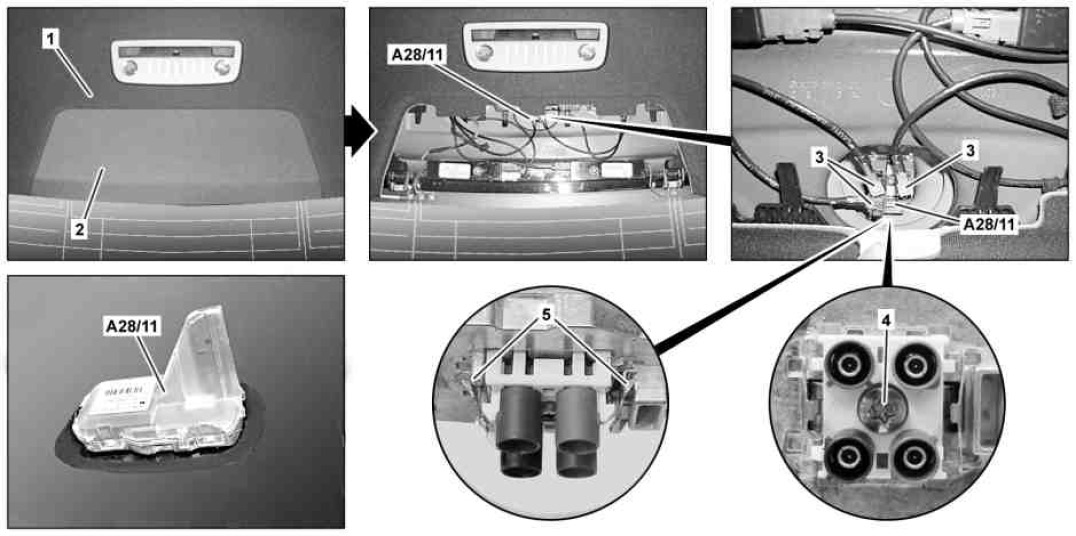

Shown on model 218
1 Headliner
2 Headliner cover
3 Electrical connector
4 Screw
5 Retaining clip
A28/11 Multifunction antenna
