AN82.85-P-0005-01EW Install Additional Fan For Comand

AN82.85-P-0005-01EW Install Additional Fan For COMAND

Component Identification:

1 Press steering column tube (5) to one side and position COMAND fan motor (M4/13) at the supports at the air conditioner housing (6).
2 Tighten bolts (7).
3 Clip in bracket (10) of COMAND fan motor wiring harness (11) at air conditioner housing (6) (arrow).

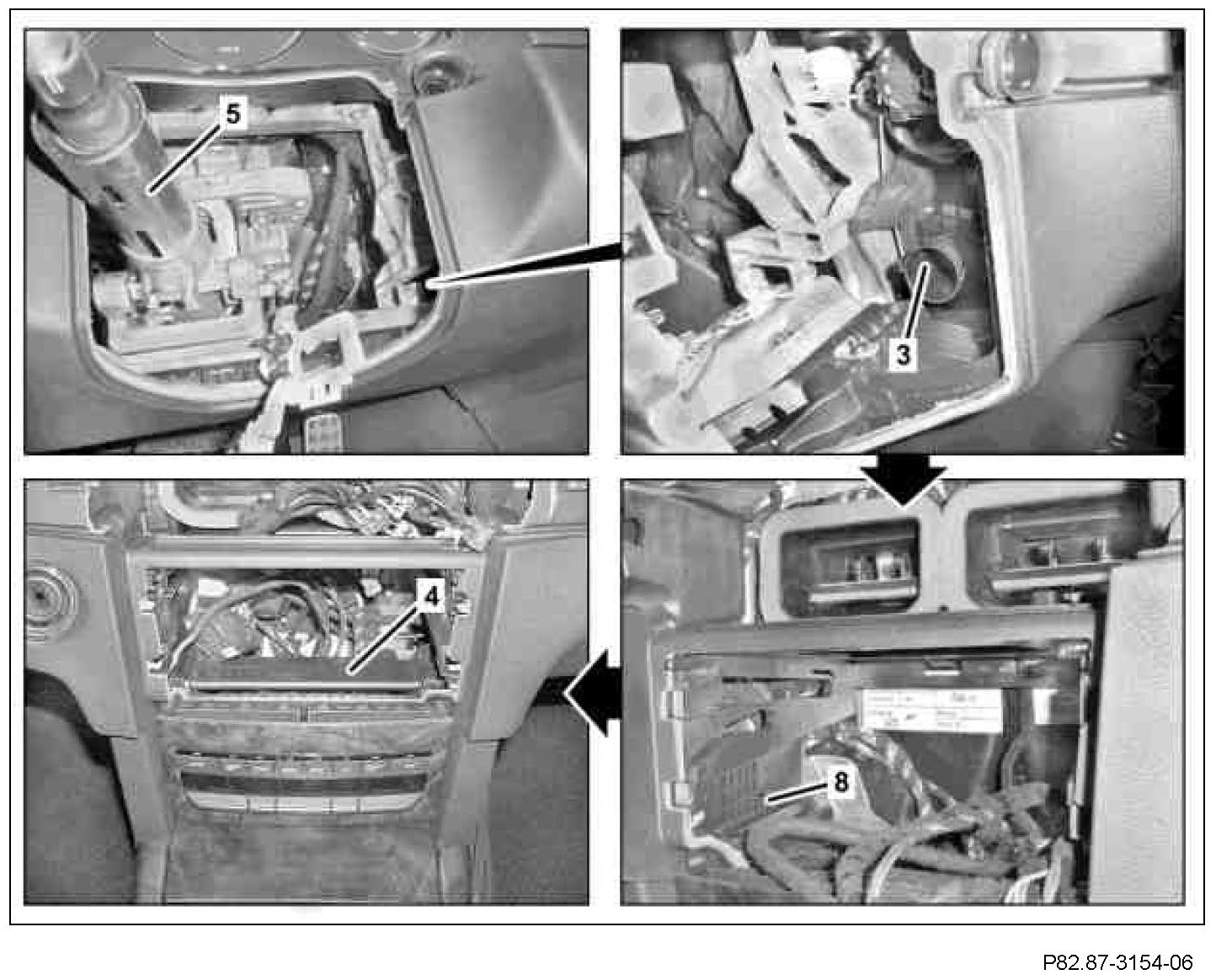

4 Press steering column tube (5) to one side and insert air exhaust duct (3) through the opening in the instrument panel into the slot of the COMAND controller unit.

In the process, the catch hook (8) at the air exhaust duct (3) must be clipped into the slot of the COMAND controller unit.

5 Counterhold air exhaust duct (3) through the opening in the instrument panel and mount air exhaust duct (4) onto air exhaust duct (3).

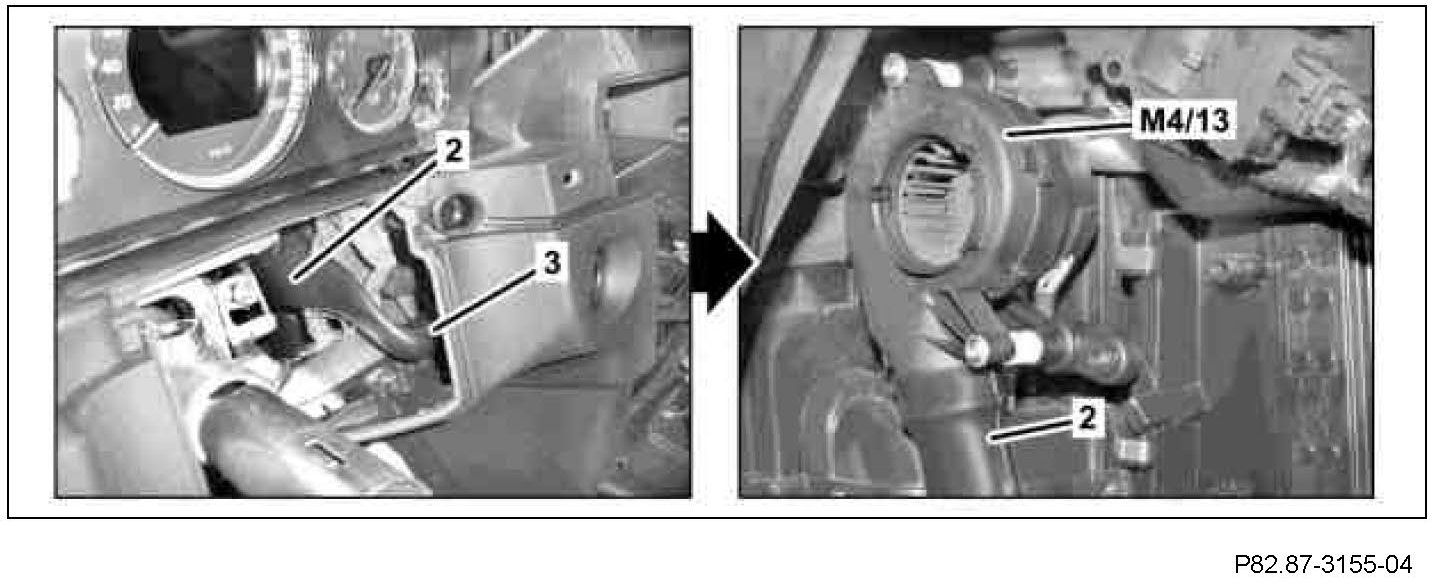

6 Mount air exhaust duct (2) through the opening in the instrument panel onto the air exhaust duct (3).
7 Mount air exhaust duct (2) onto COMAND fan motor (M4/13).

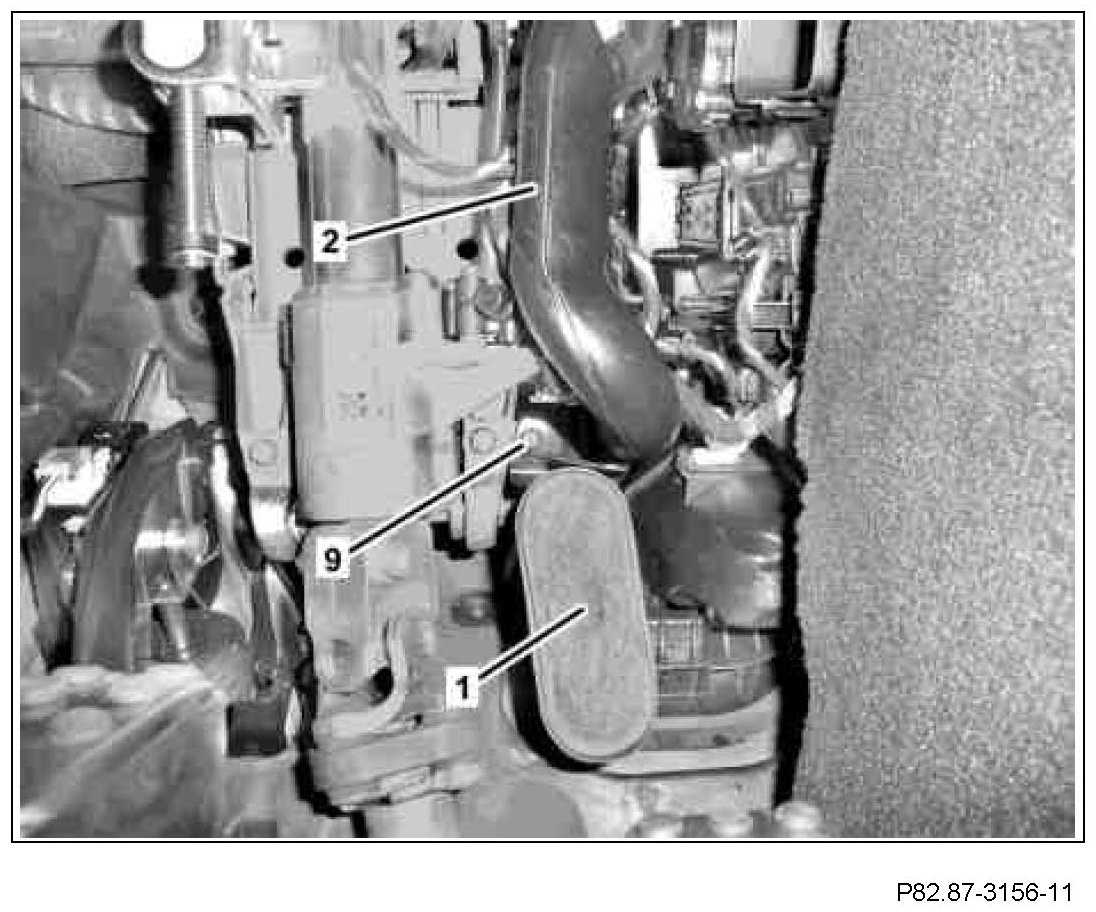

8 Set air exhaust duct (1) on COMAND fan motor and lock it.
9 Tighten air exhaust duct (1) and air exhaust duct (2) with screw/bolt (9).
