AN82.85-P-0003EW Retrofit Comand With APS Navigation System

AN82.85-P-0003EW Retrofit COMAND With APS Navigation System
MODEL 212.0## /2## (except 212.077 /277) 1#
- with CODE (523) MB Audio 20 radio
- with CODE (510) Audio 20 with CD changer
- with CODE (525) MB Audio 50 APS radio
- with CODE (511) Audio 50 APS with DVD changer
- except CODE (512) COMAND APS with DVD changer
- except CODE (494) USA version
- except CODE (498) Japan version

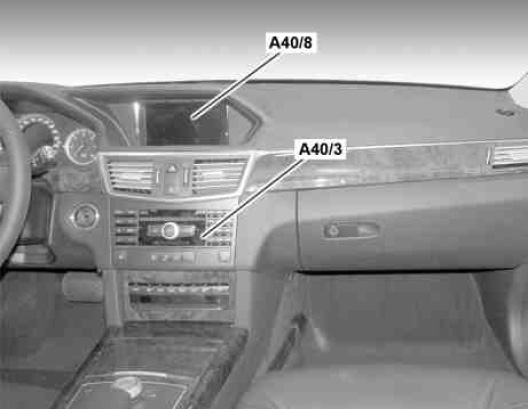

A40/3 COMAND control unit
A40/8 Audio/COMAND display

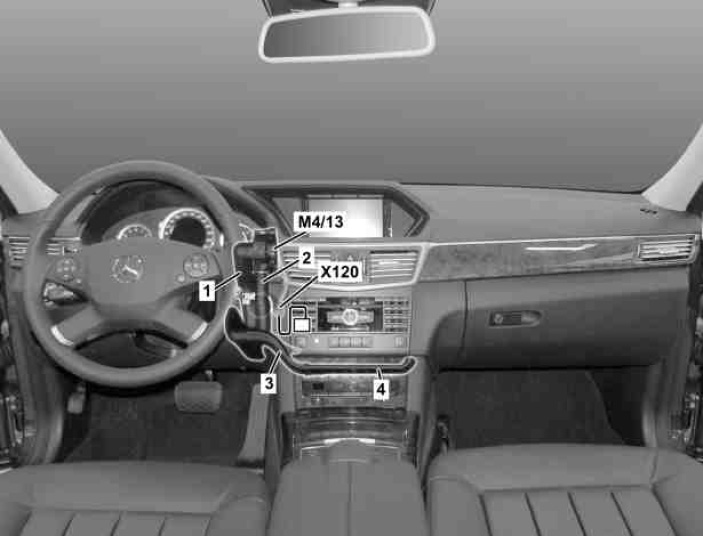

1 Air intake duct
2 Air exhaust duct
3 Air exhaust duct
4 Air exhaust duct
M4/13 COMAND fan motor
X120 Radio fan electrical connector

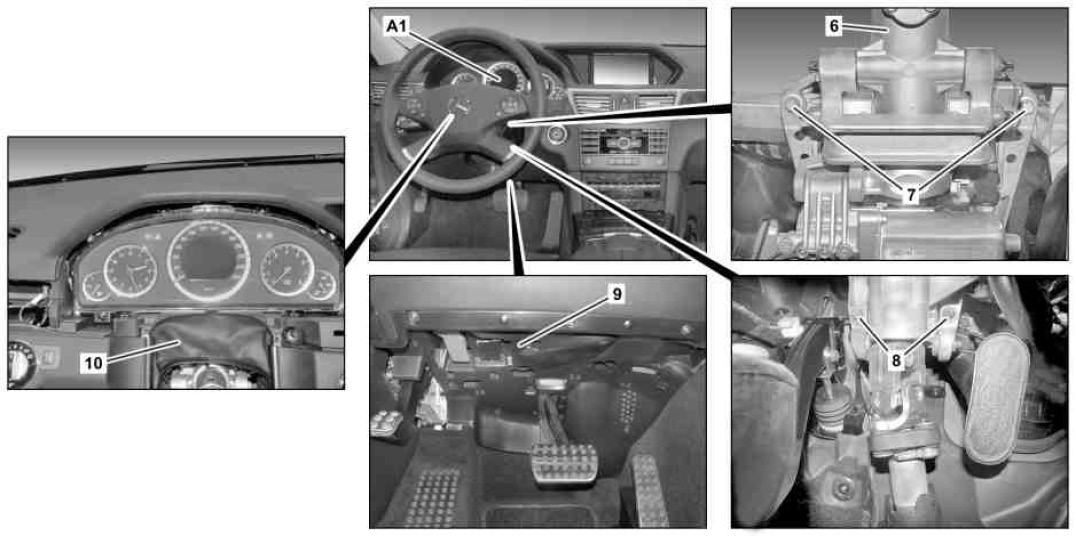

6 Jacket tube
7 Bolts
8 Bolts
9 Cover below dashboard on left
10 Steering column sleeve
A1 Instrument cluster
