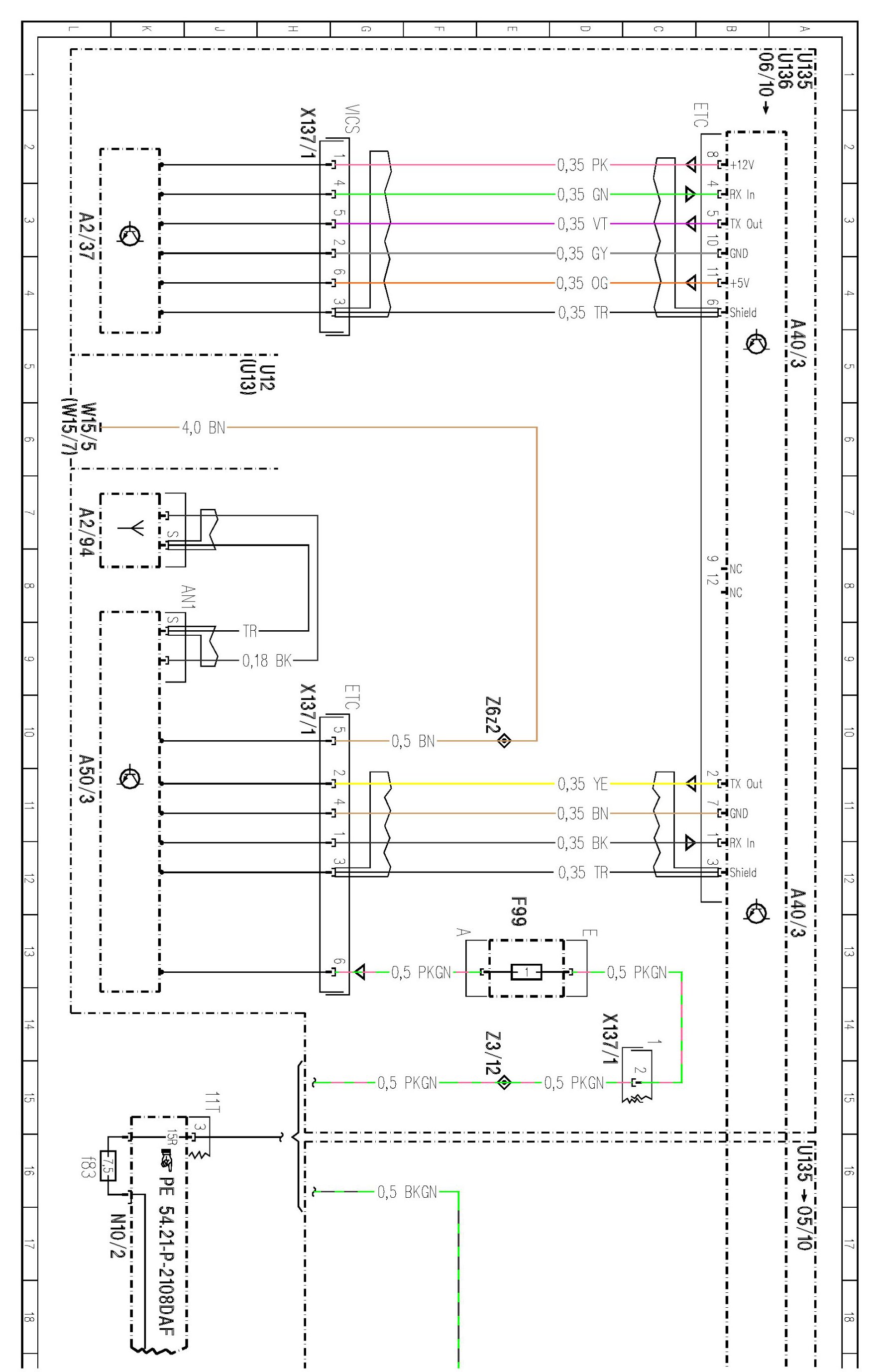

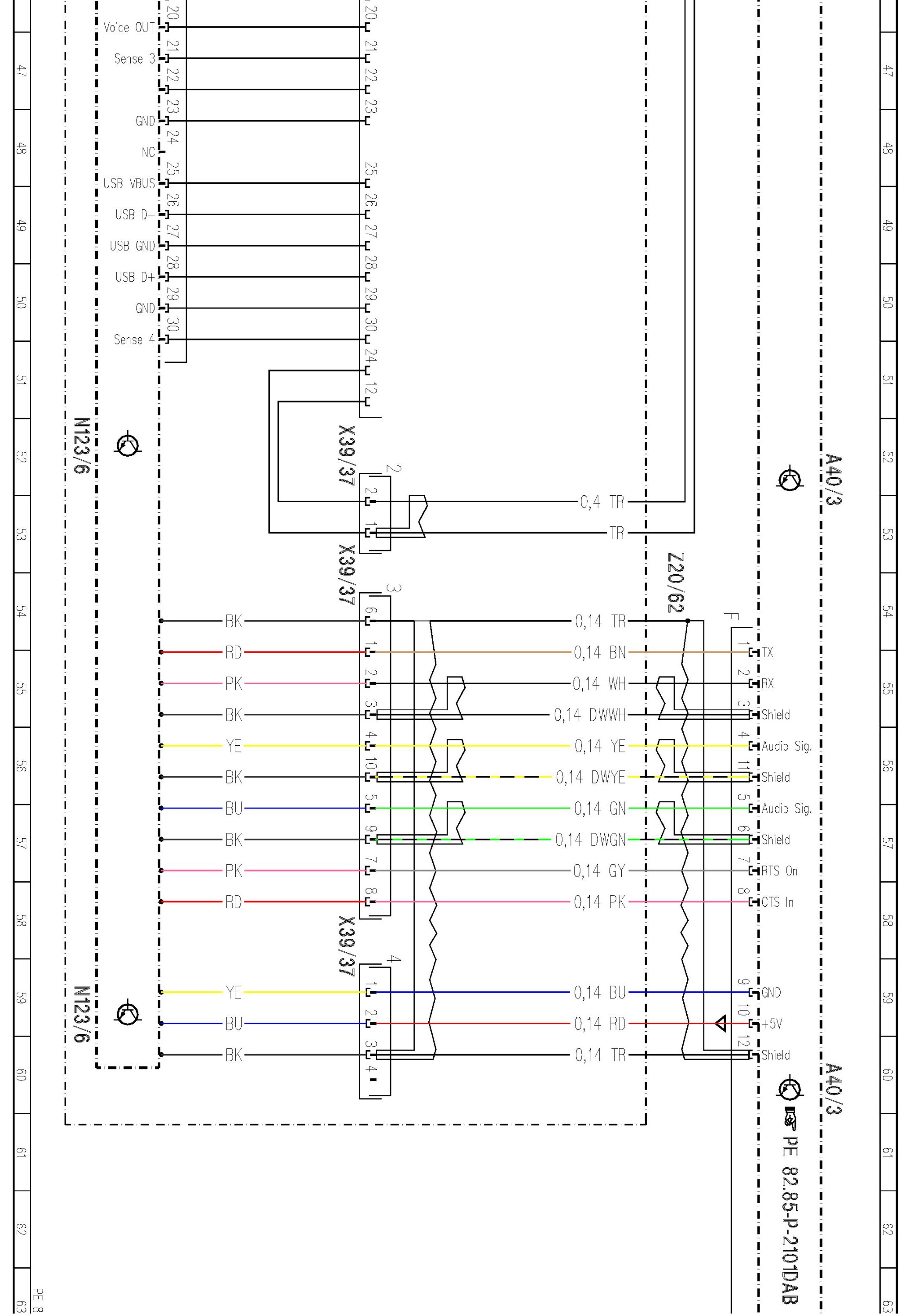

PE82.85-P-2101DAC Cockpit Management And Data System (COMAND) Control Unit Wiring Diagram

PE82.85-P-2101DAC Cockpit Management And Data System (COMAND) Control Unit Wiring Diagram
MODEL 212
- up to 06/30/11
- with CODE (498) Japan version

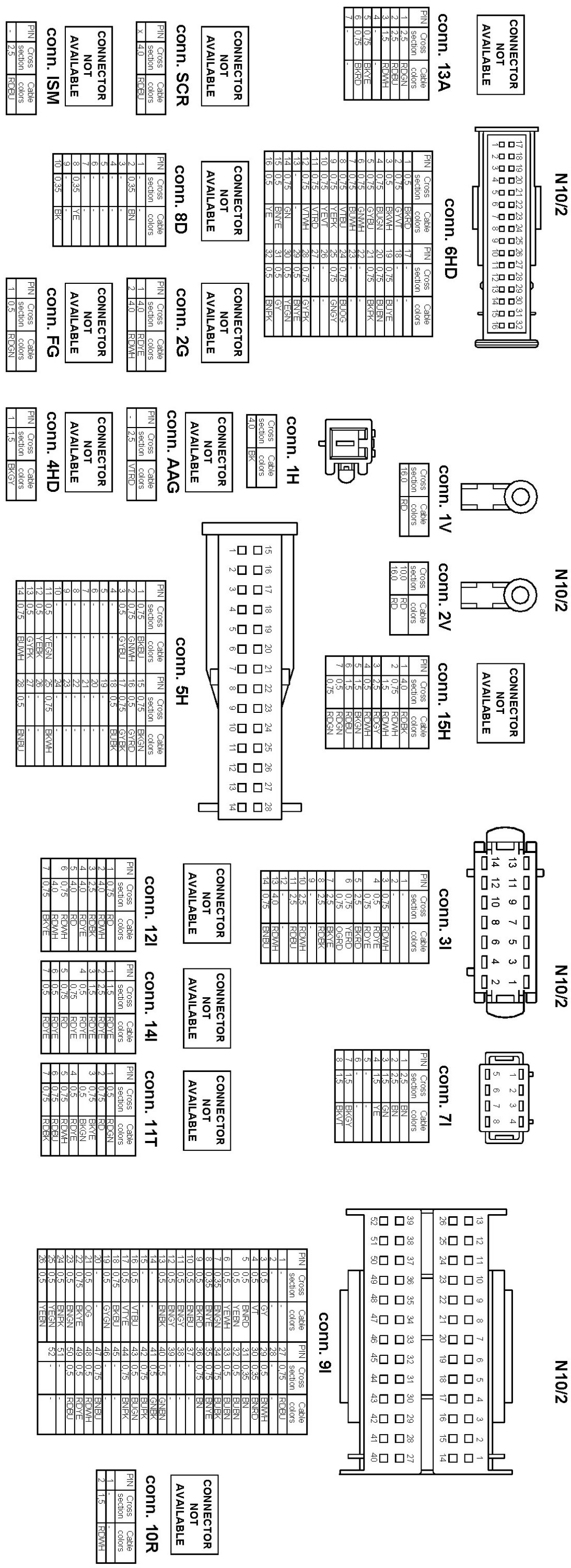

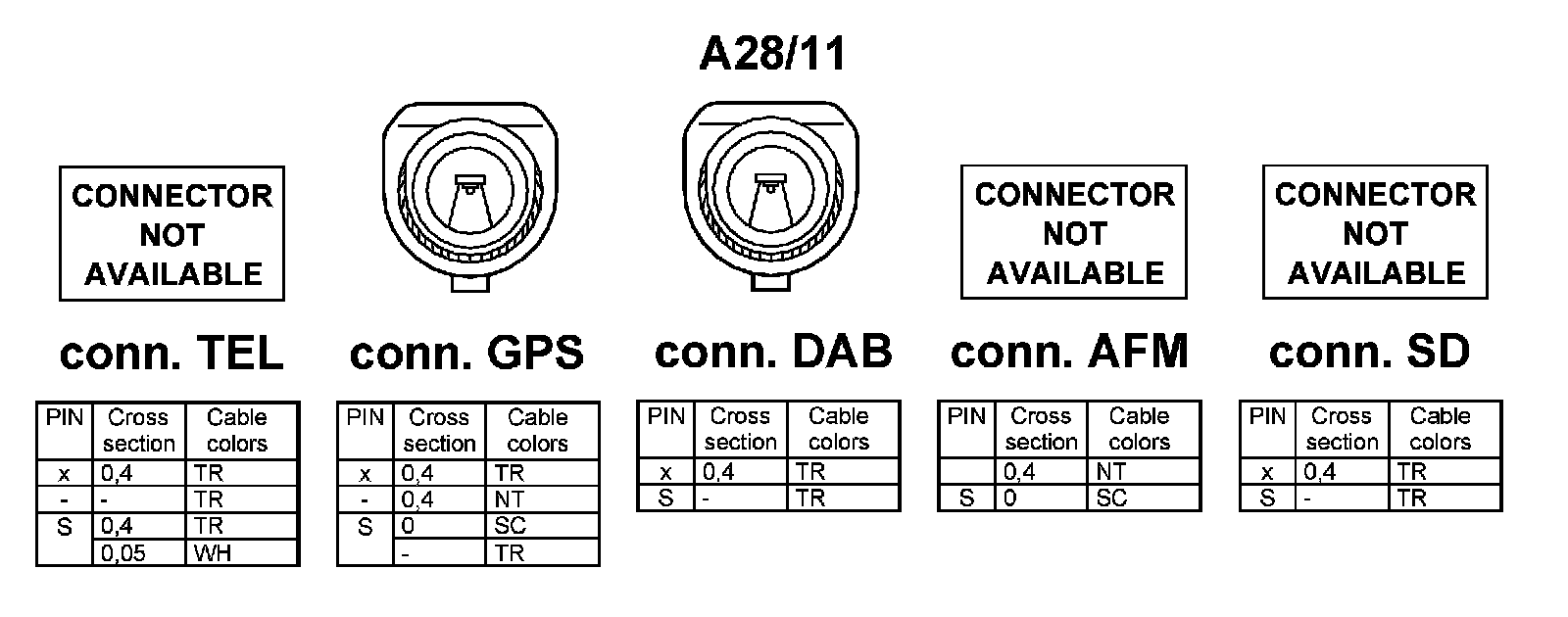

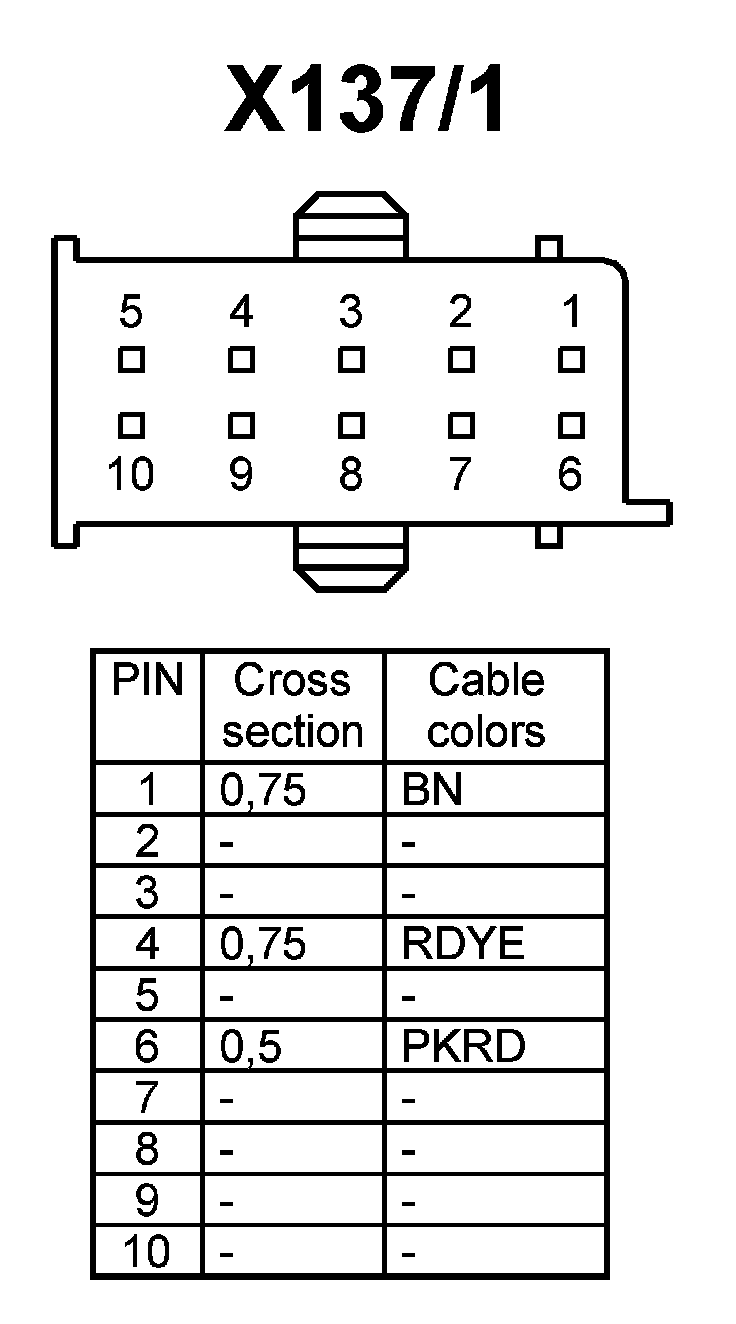

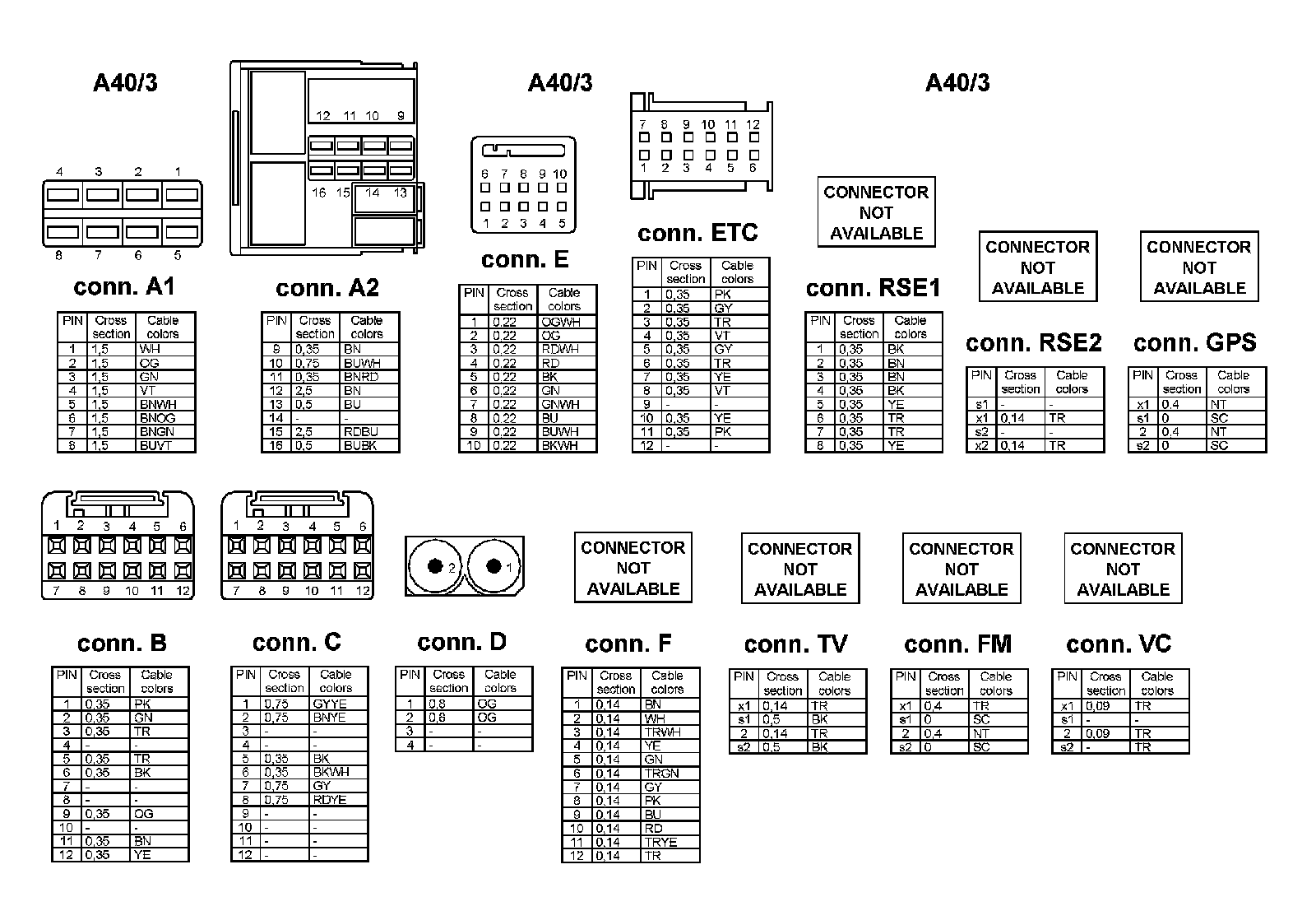

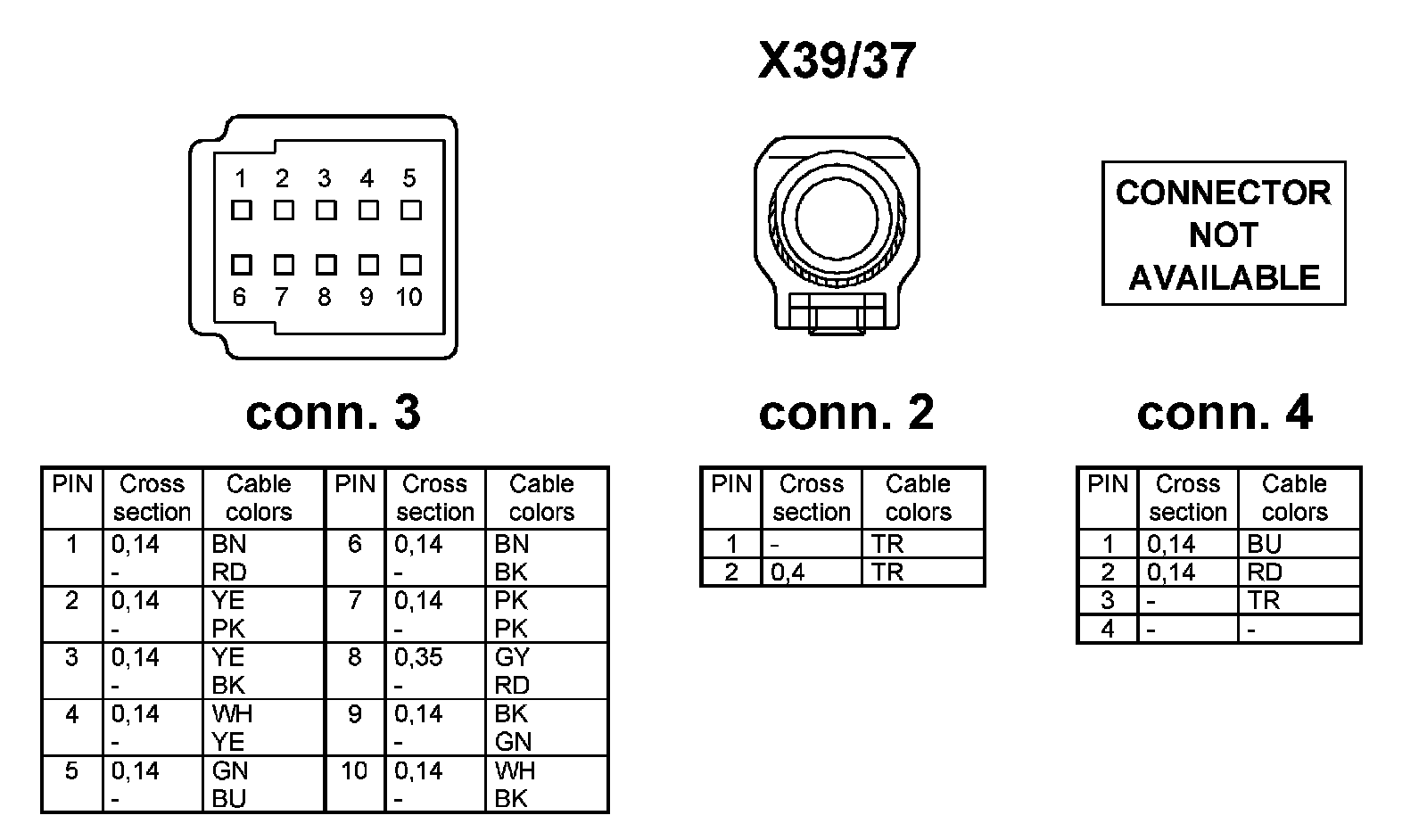

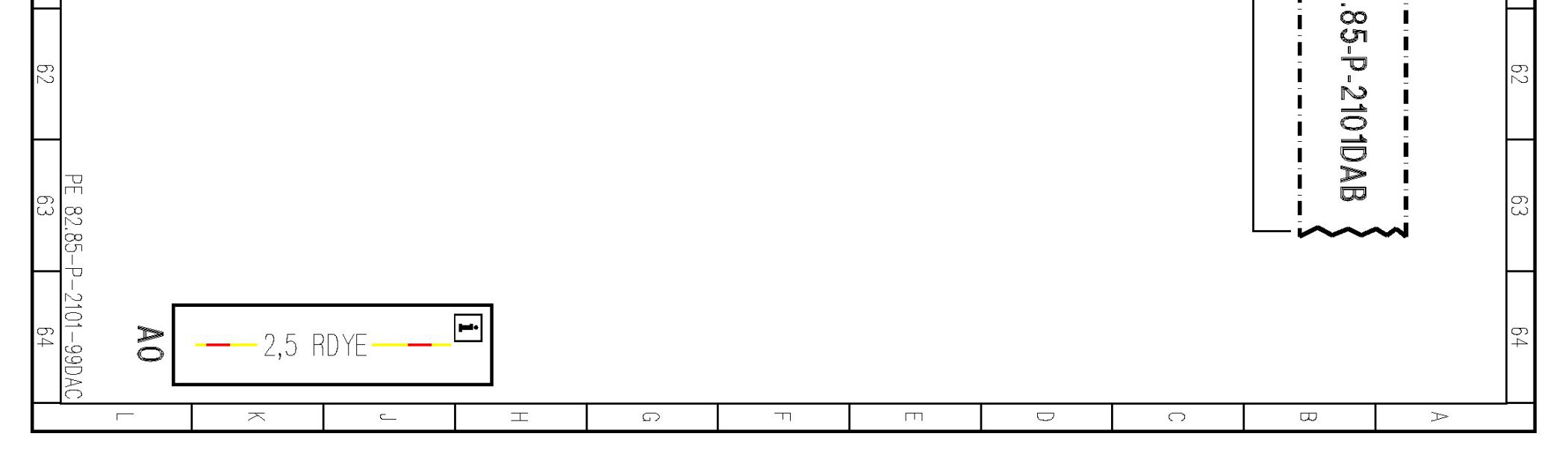

- Control unit A40/3, Sheet 2

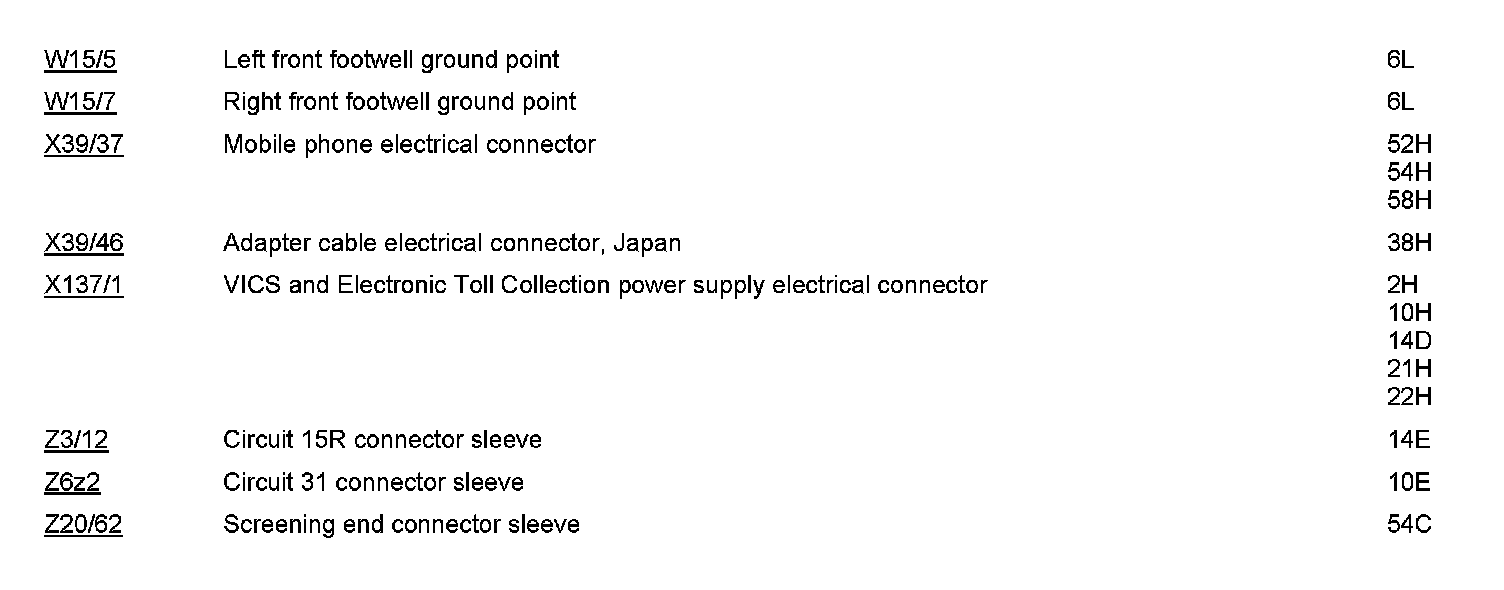

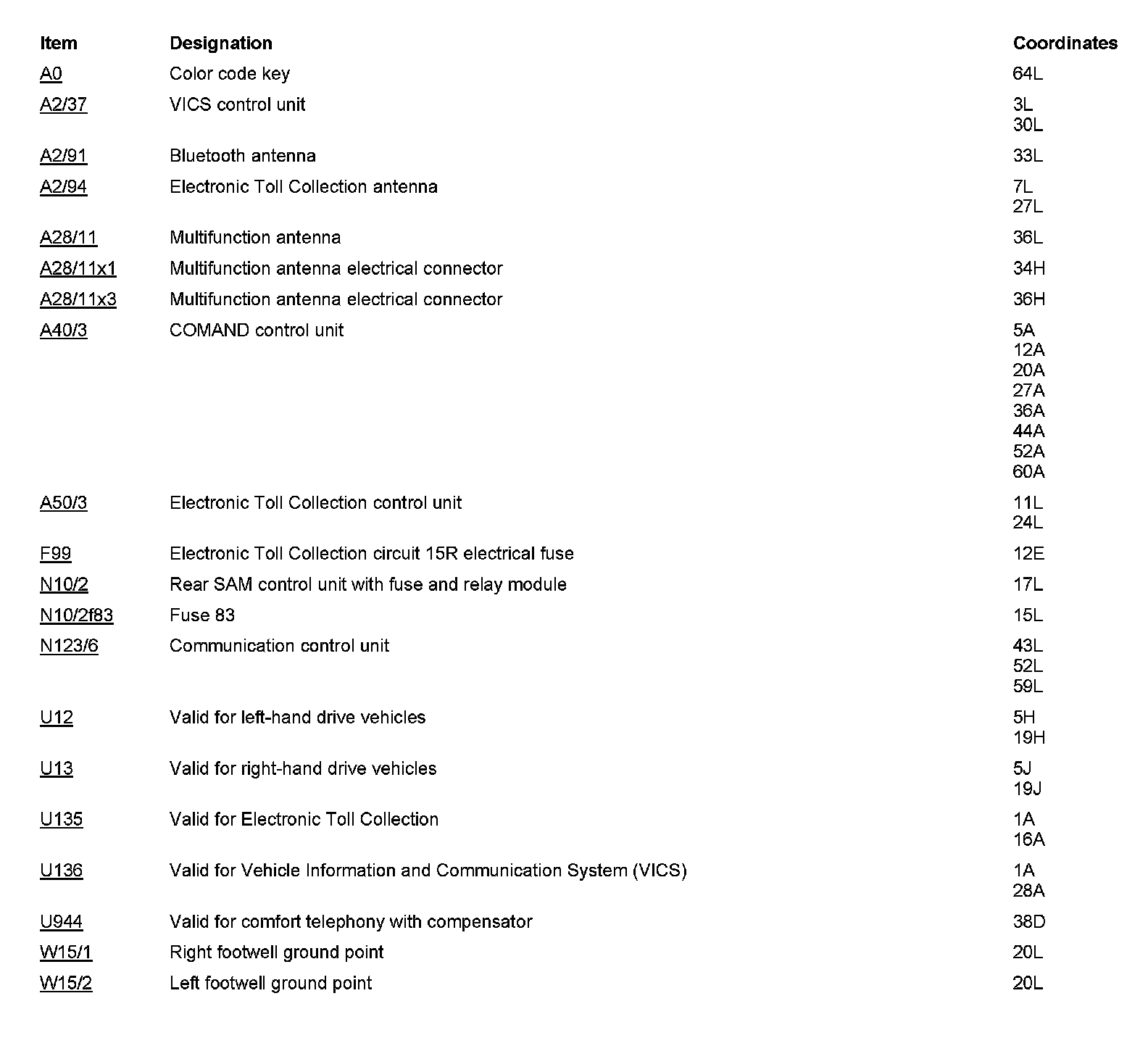

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
