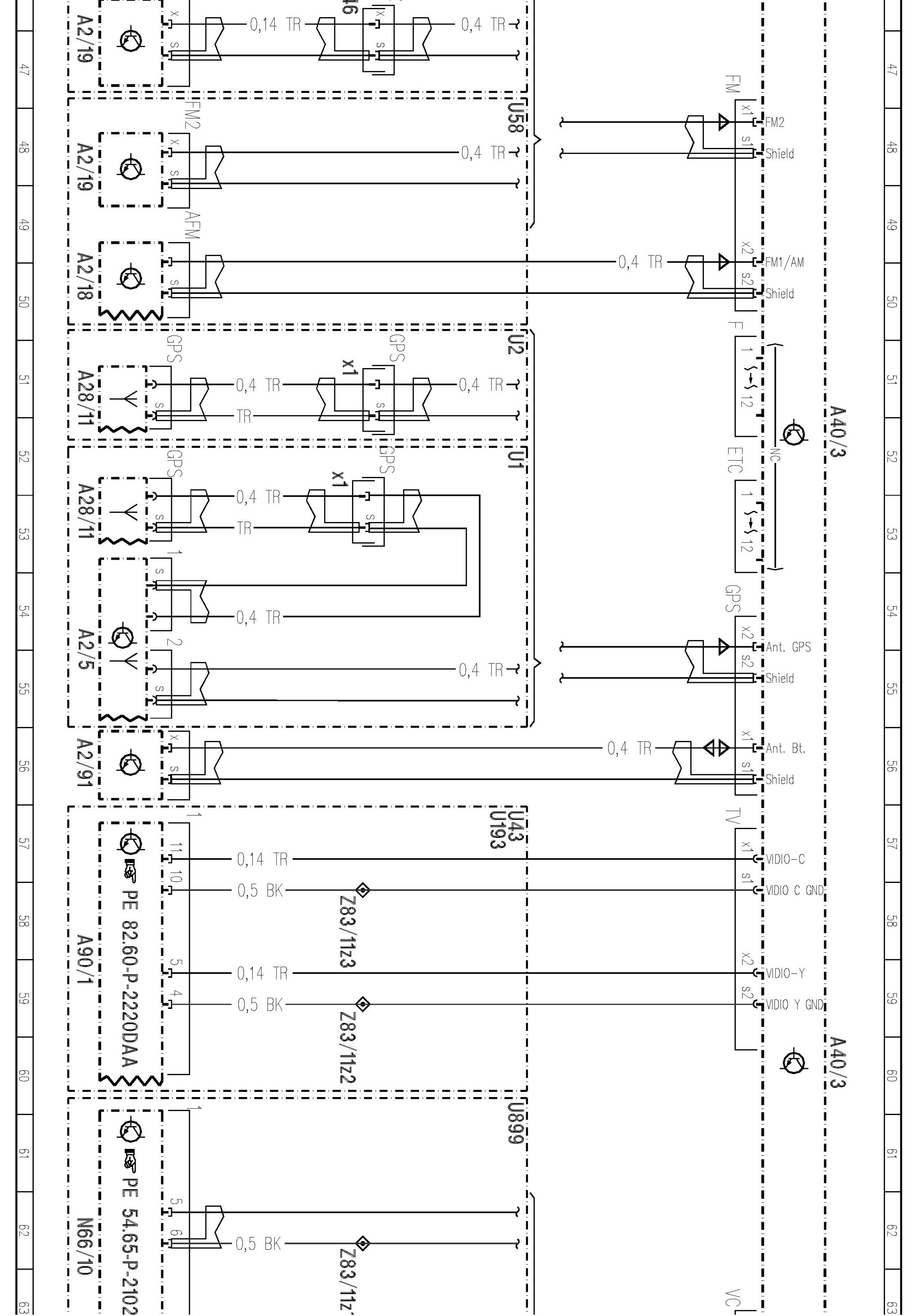

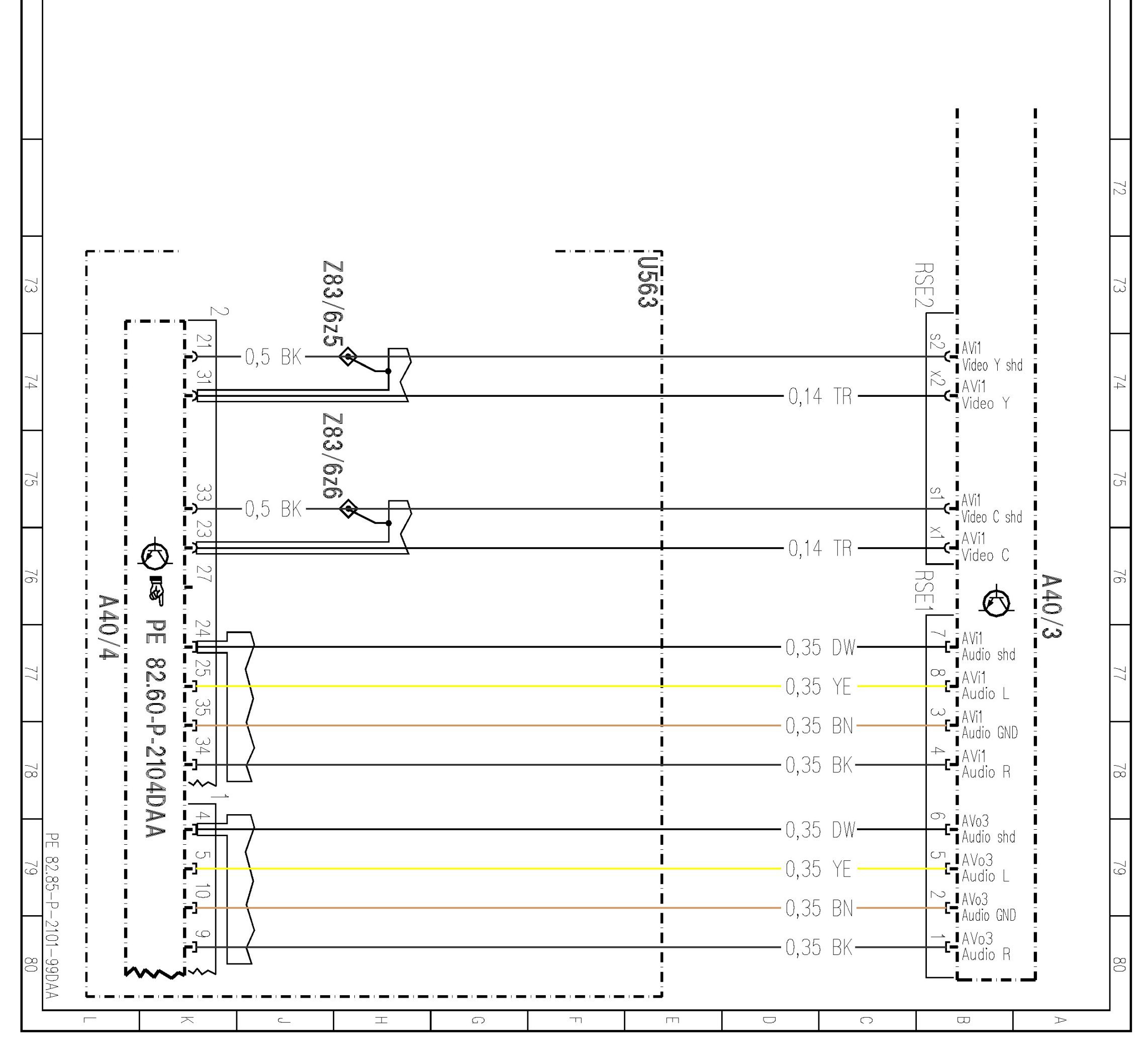

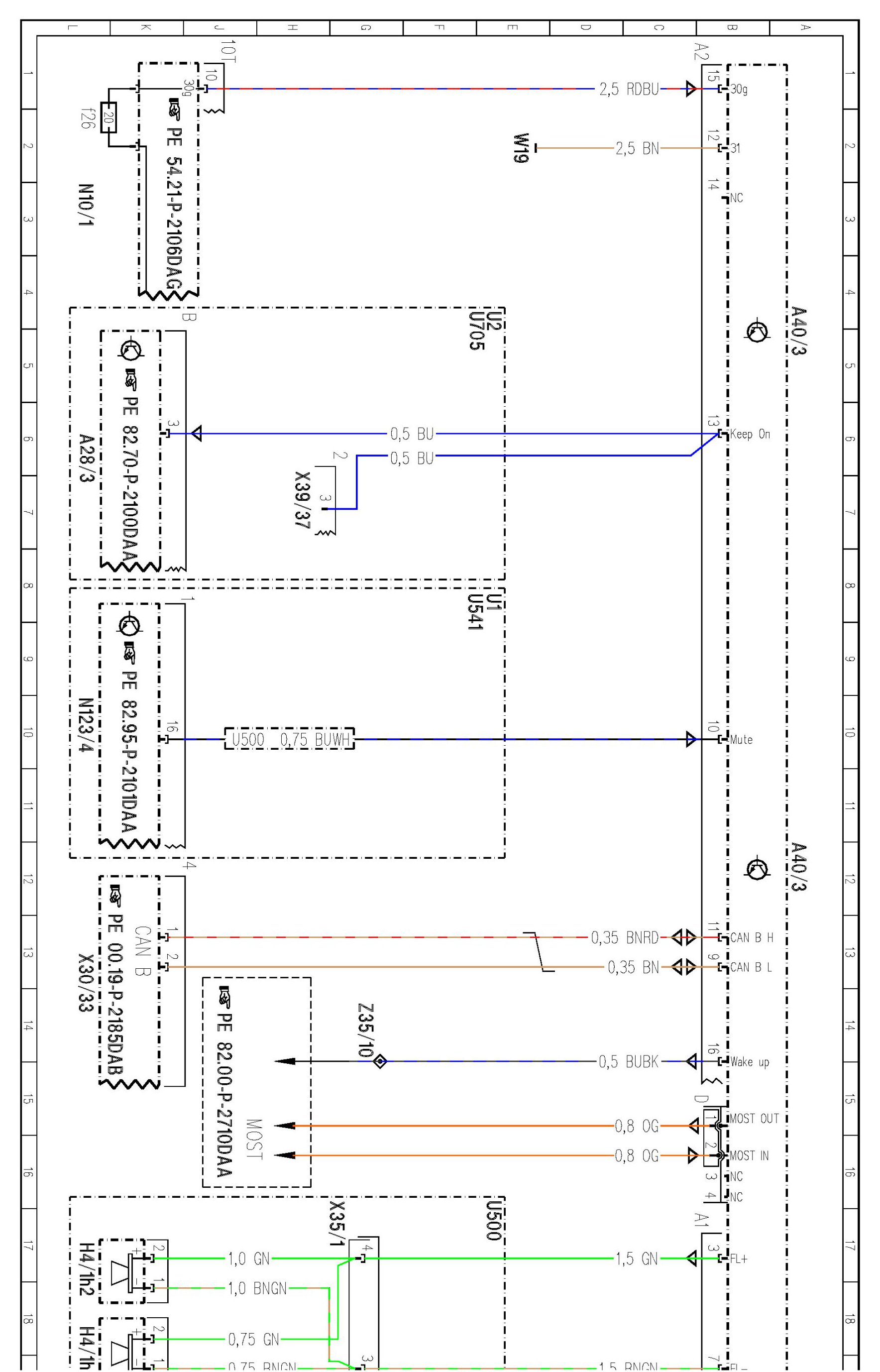

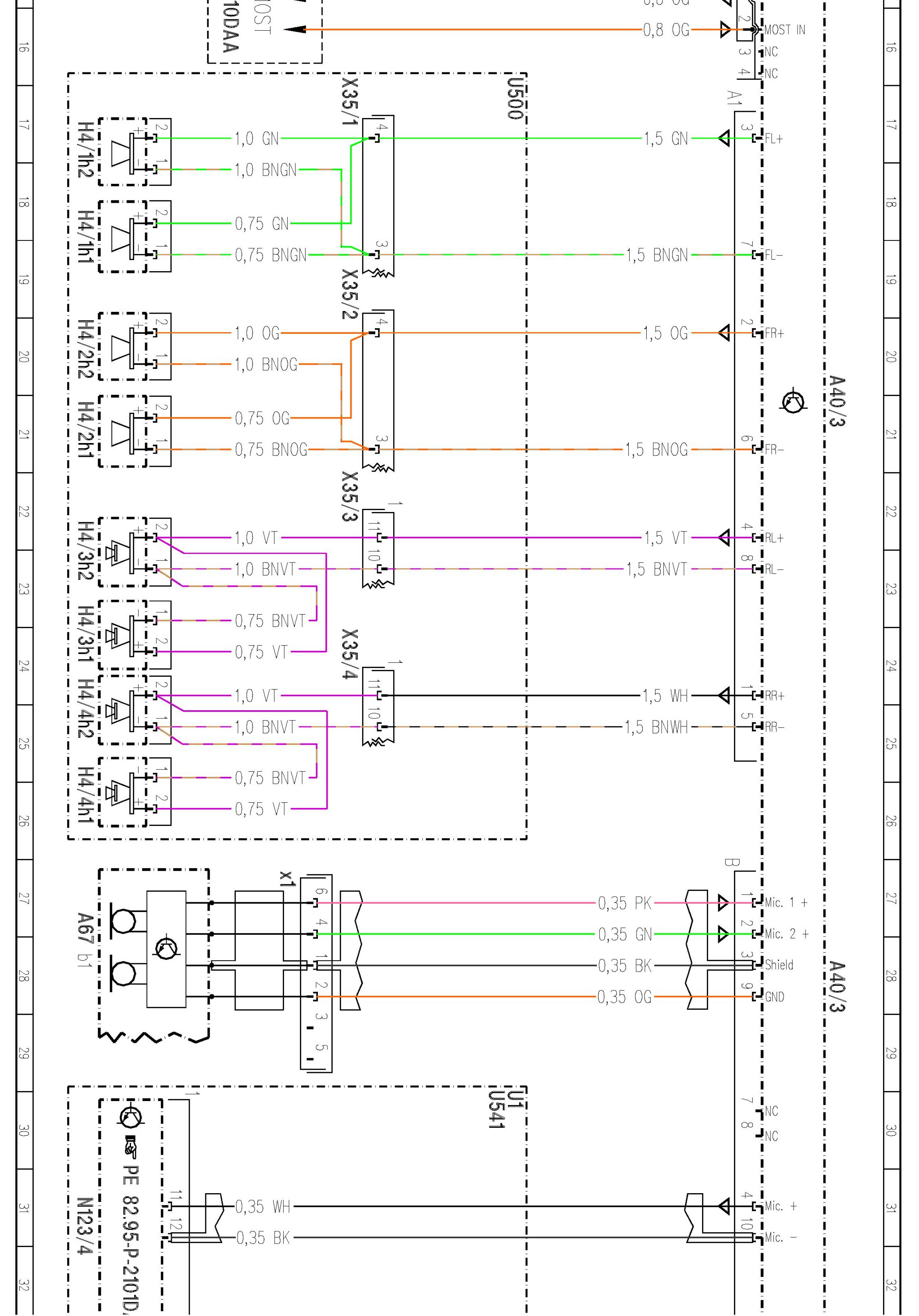

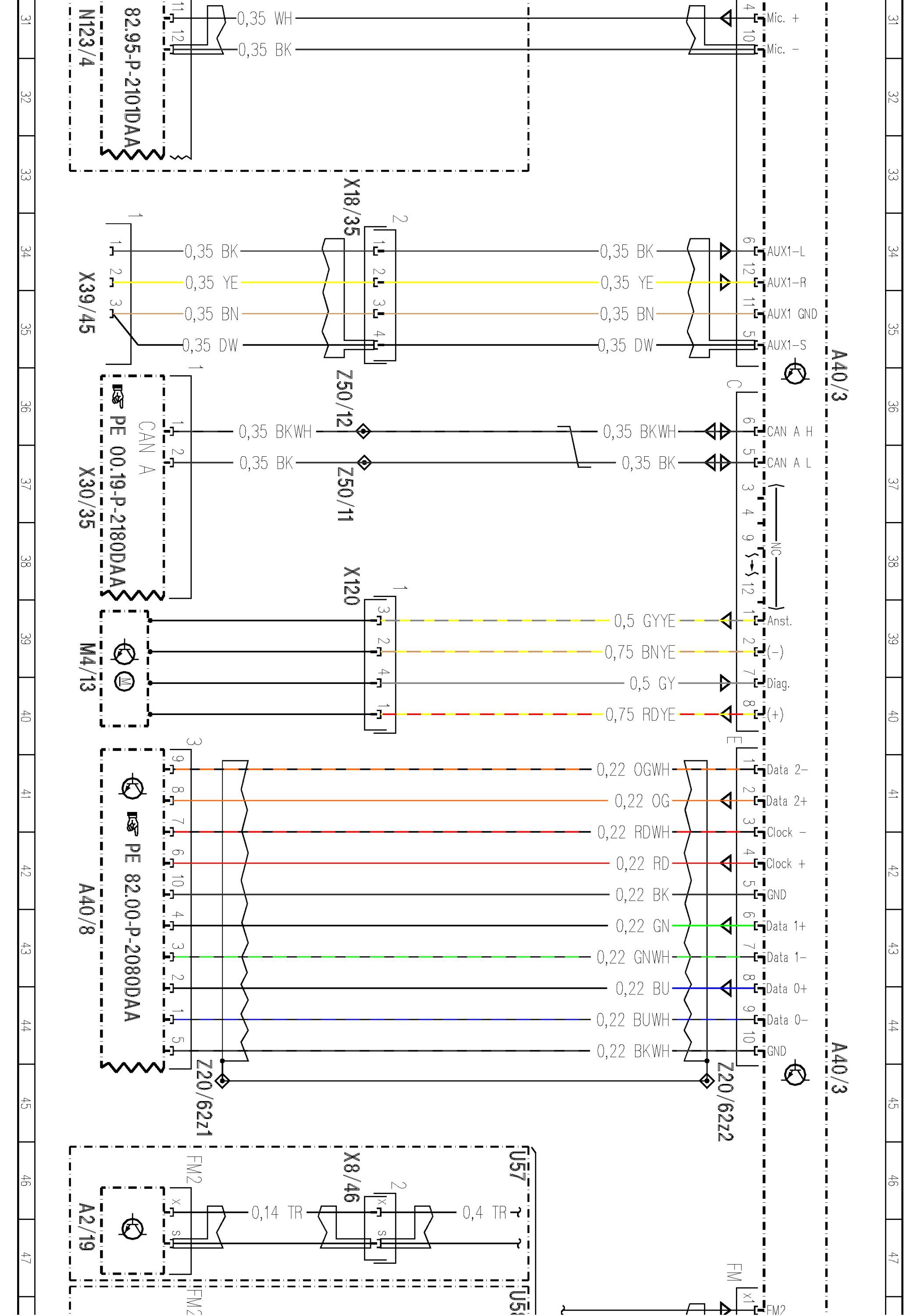

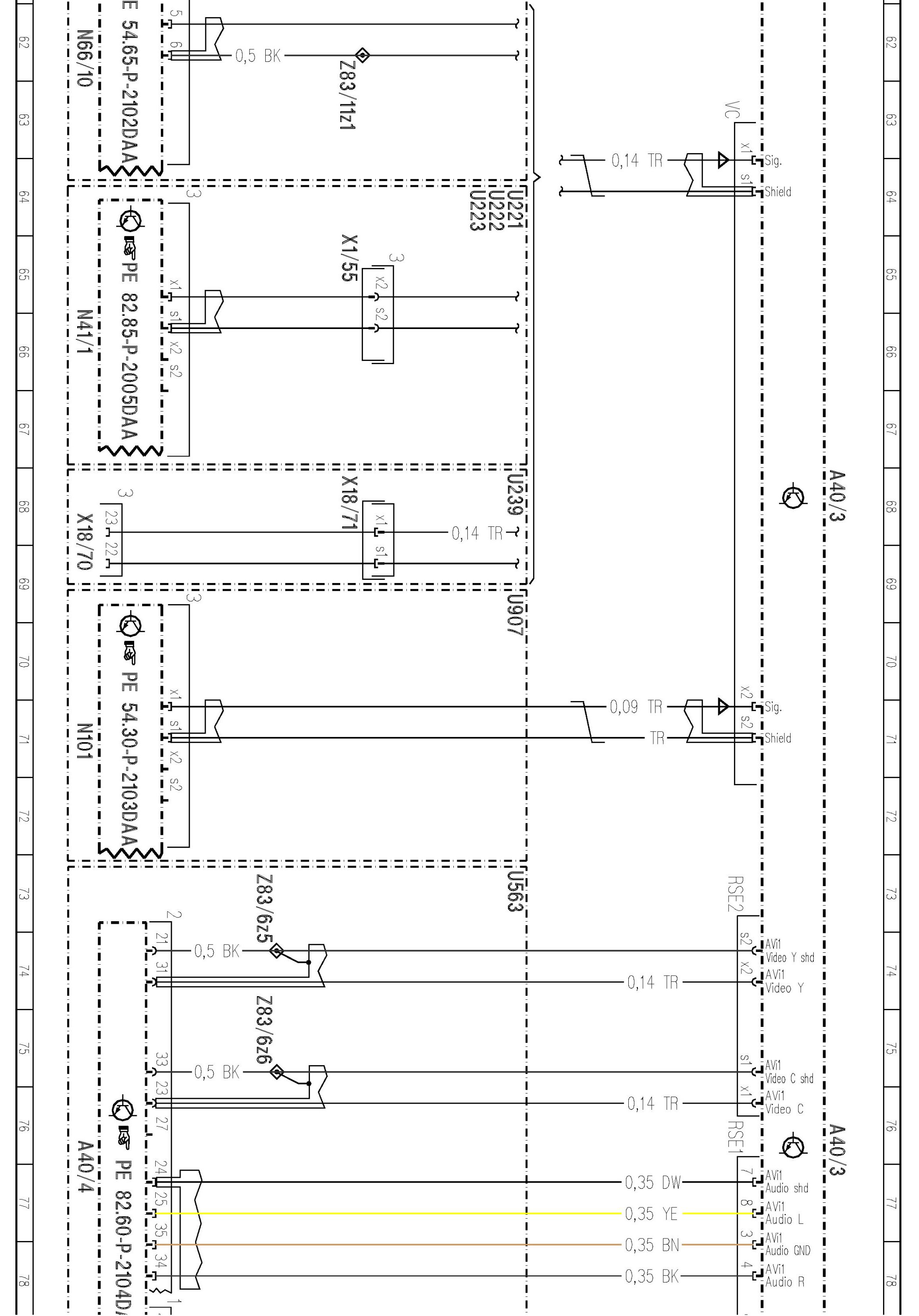

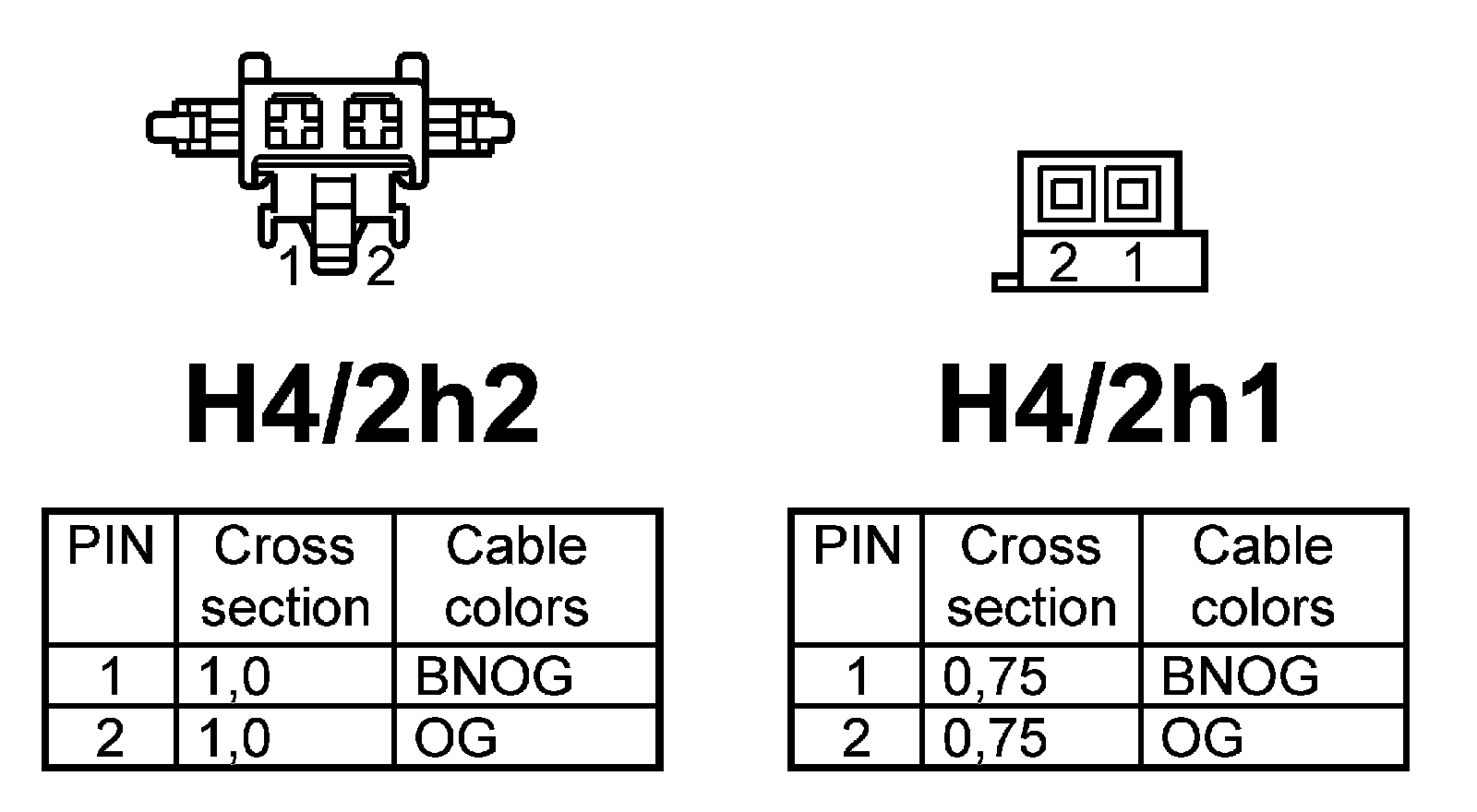

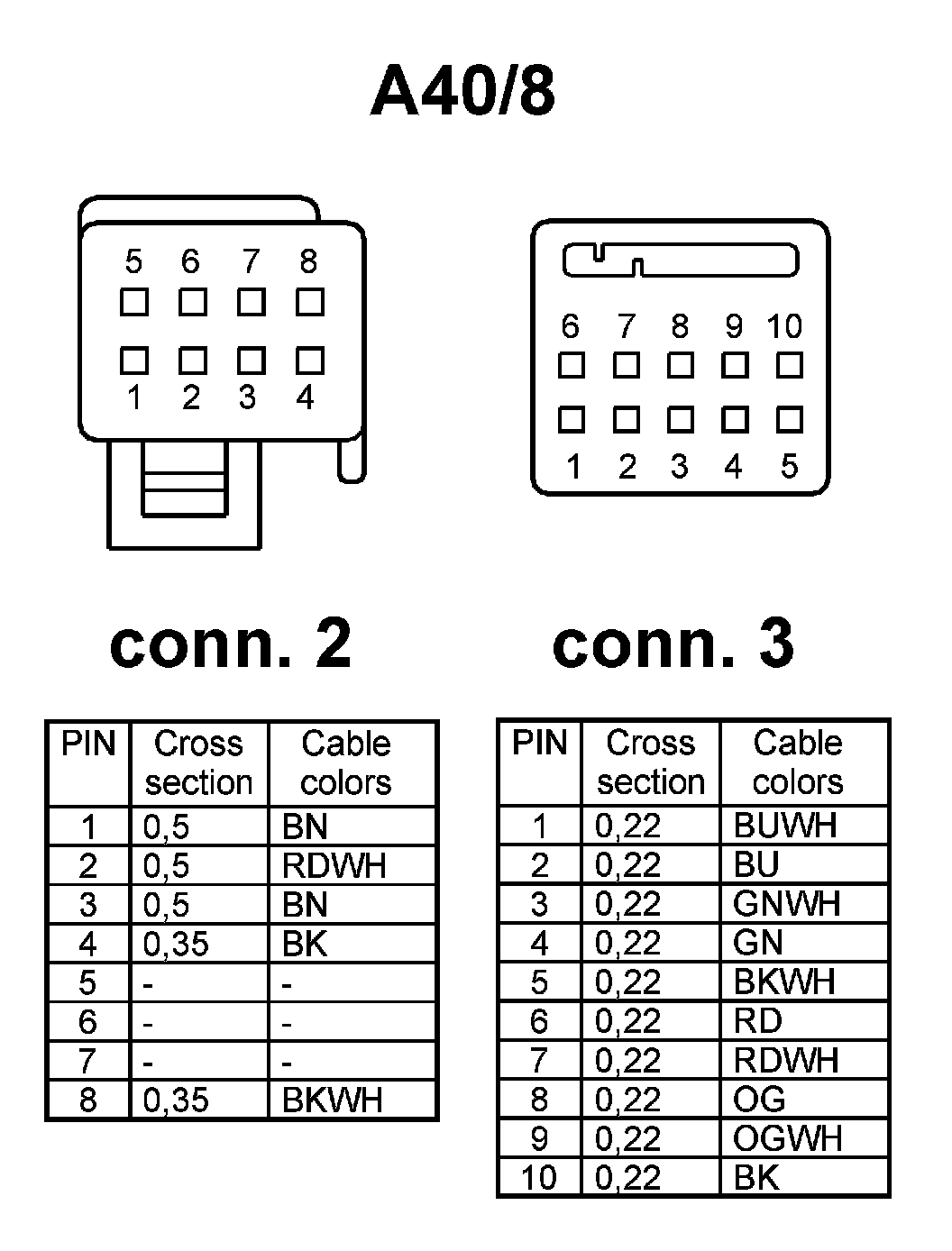

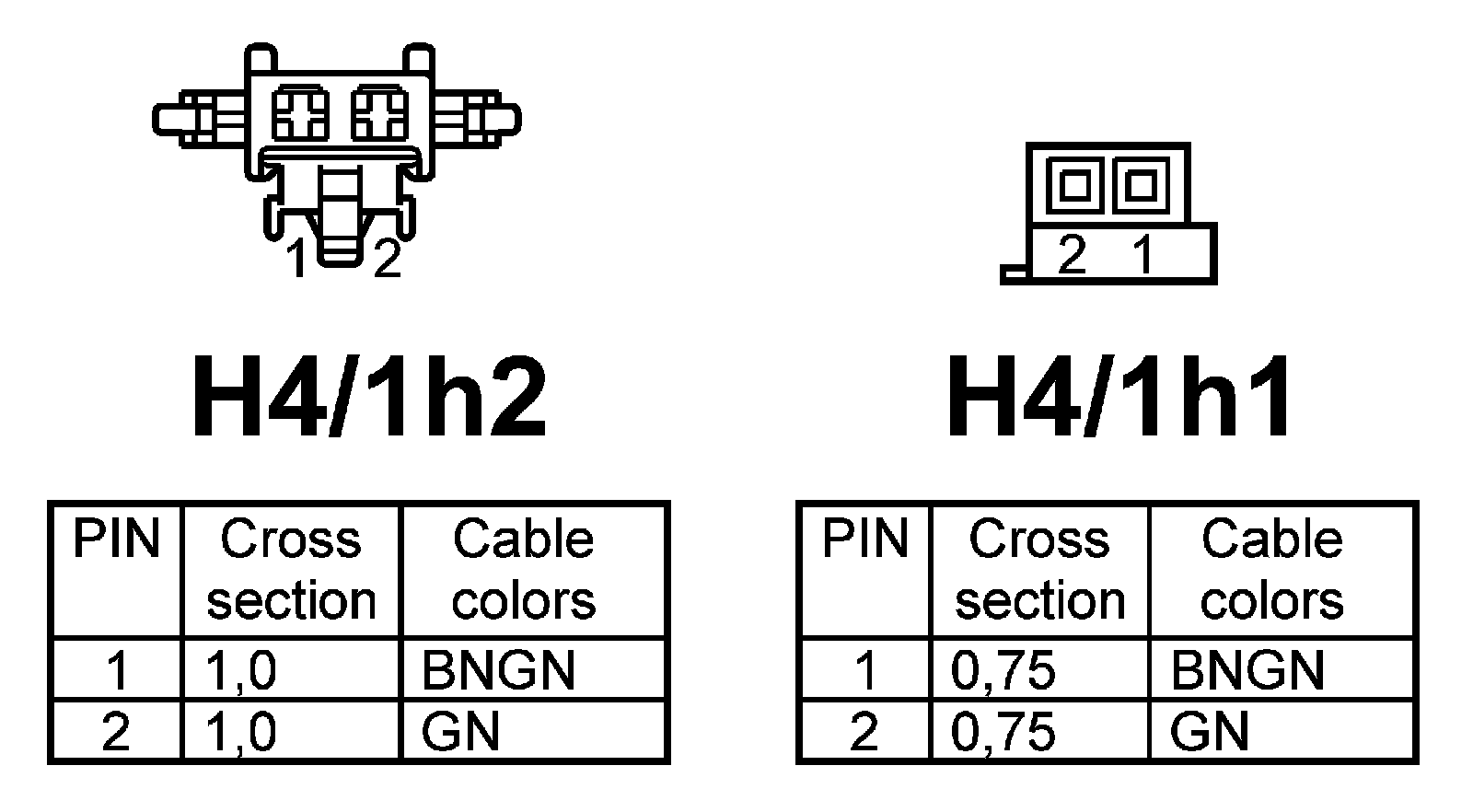

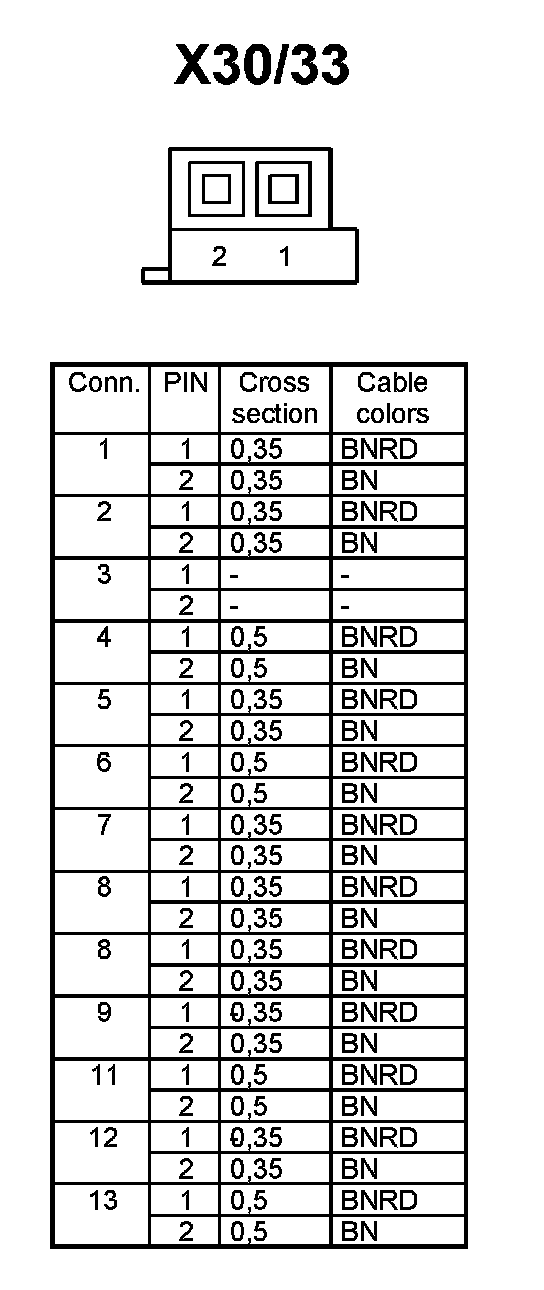

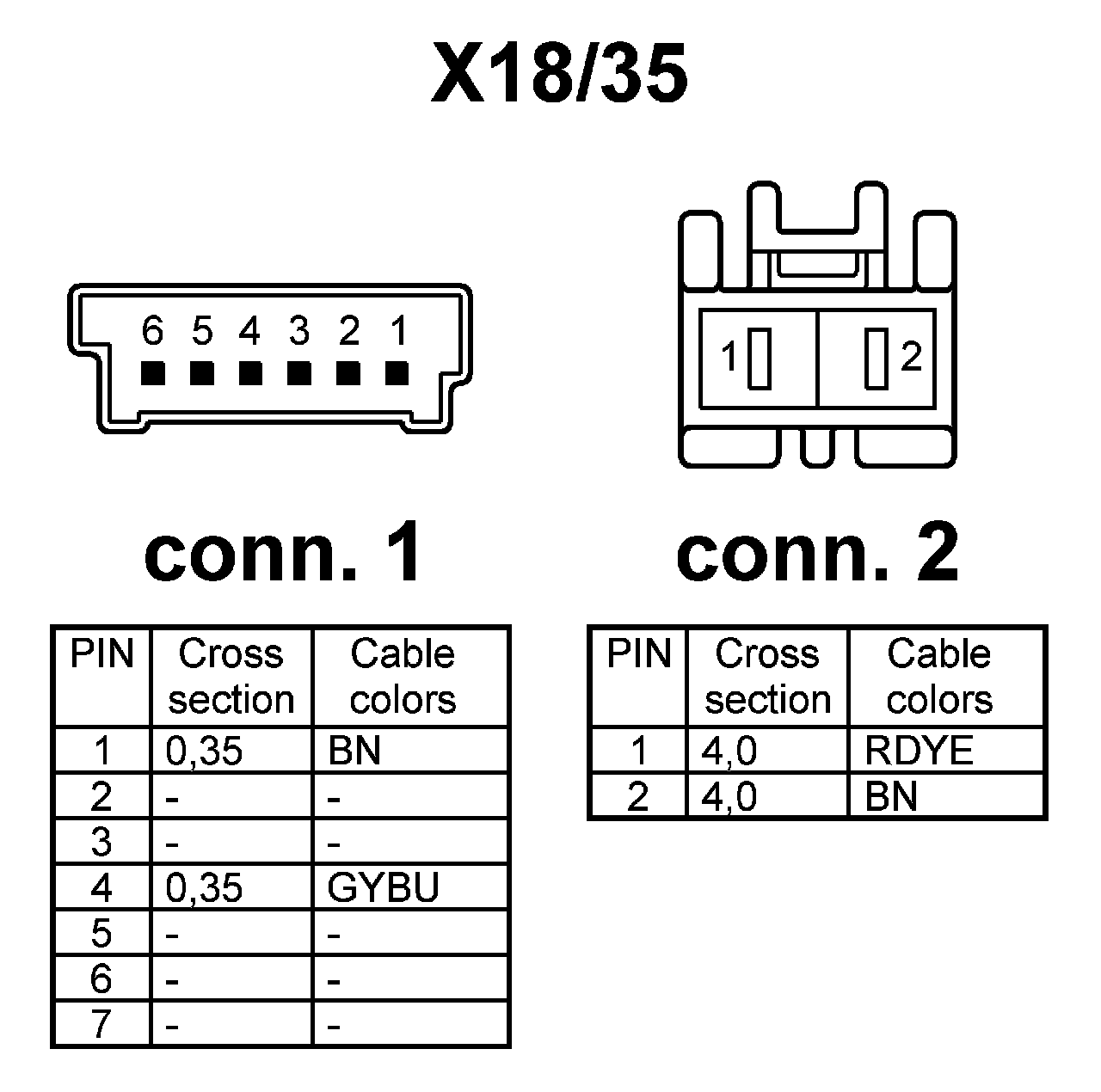

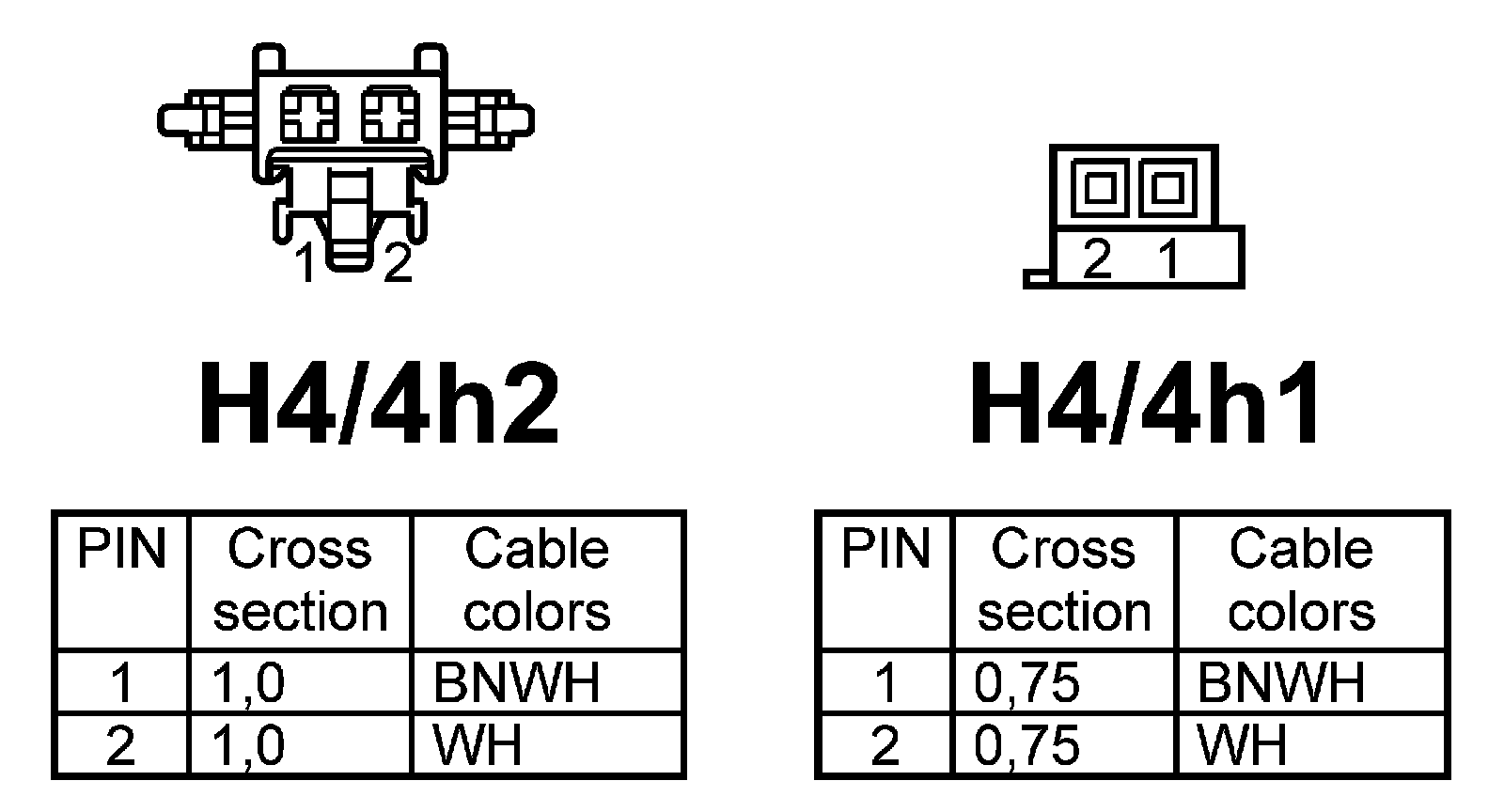

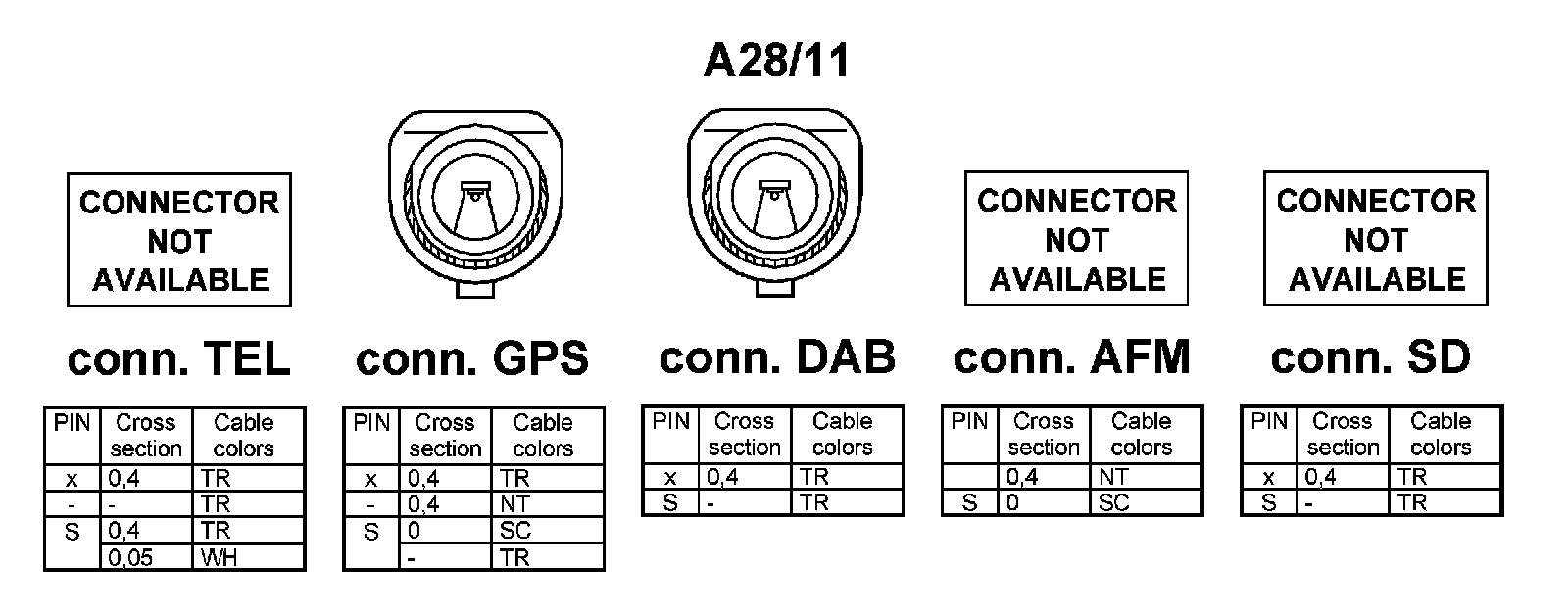

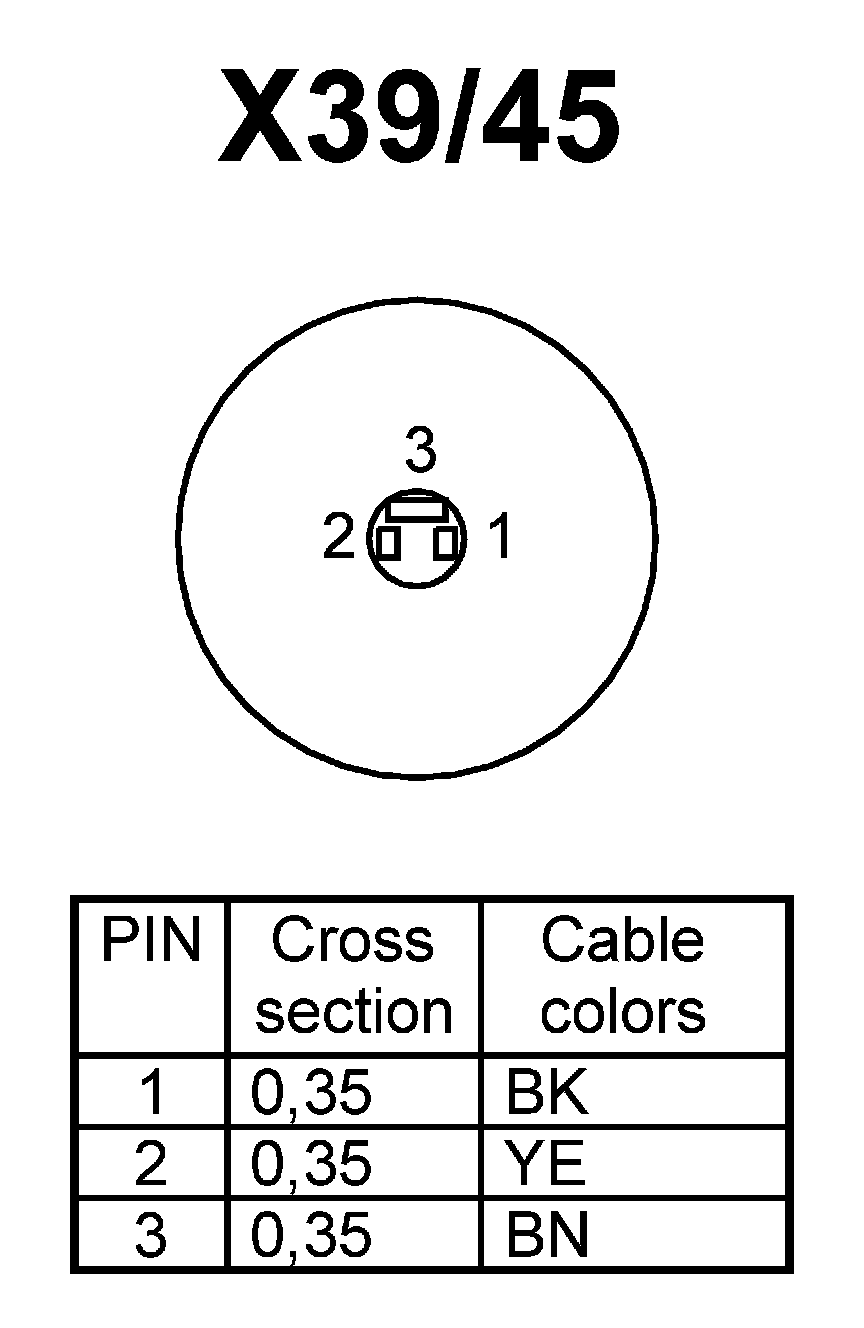

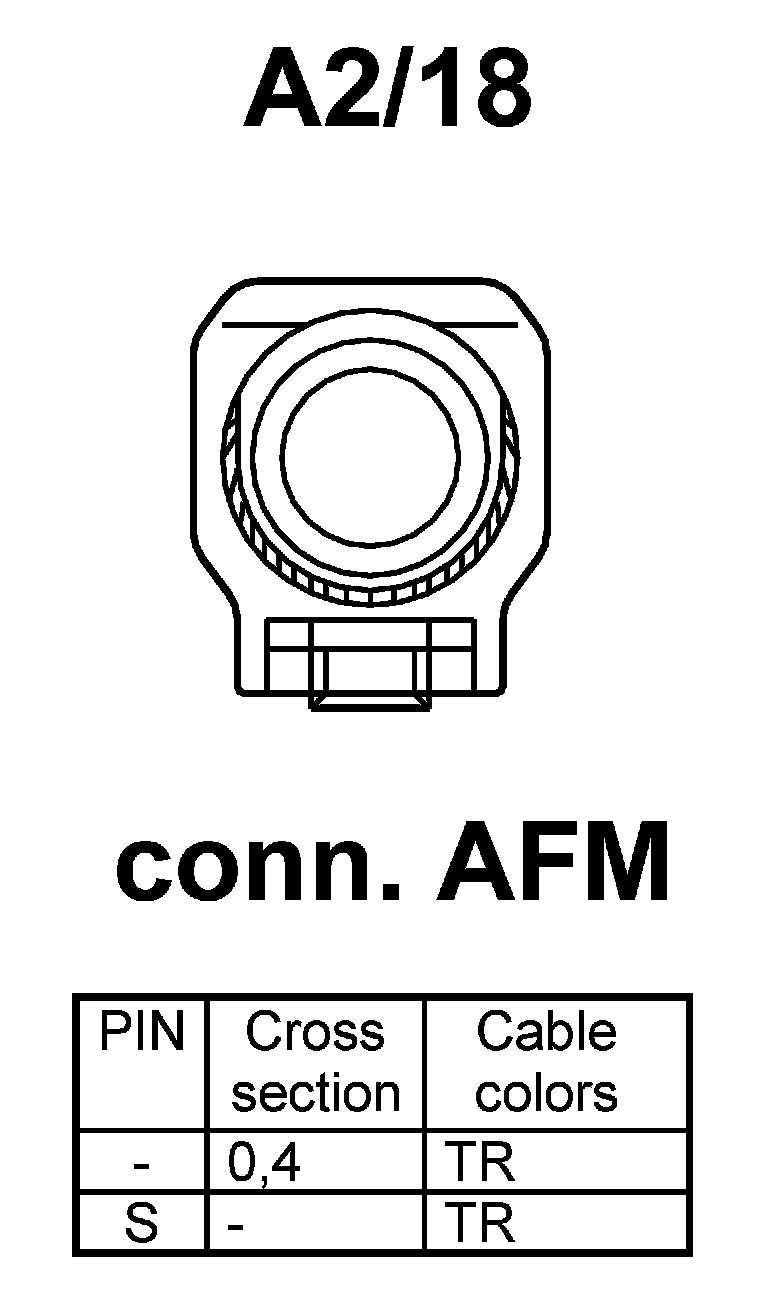

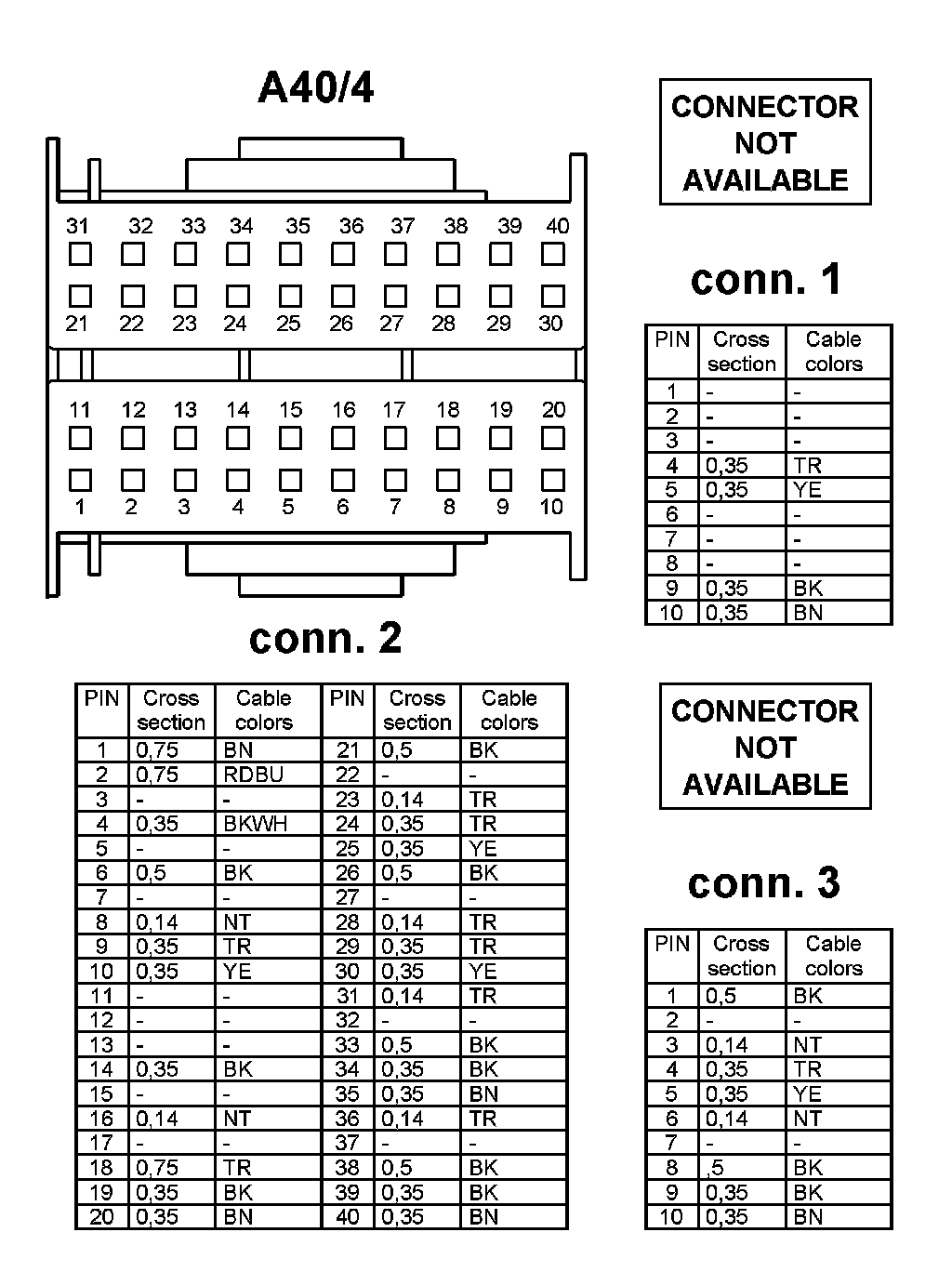

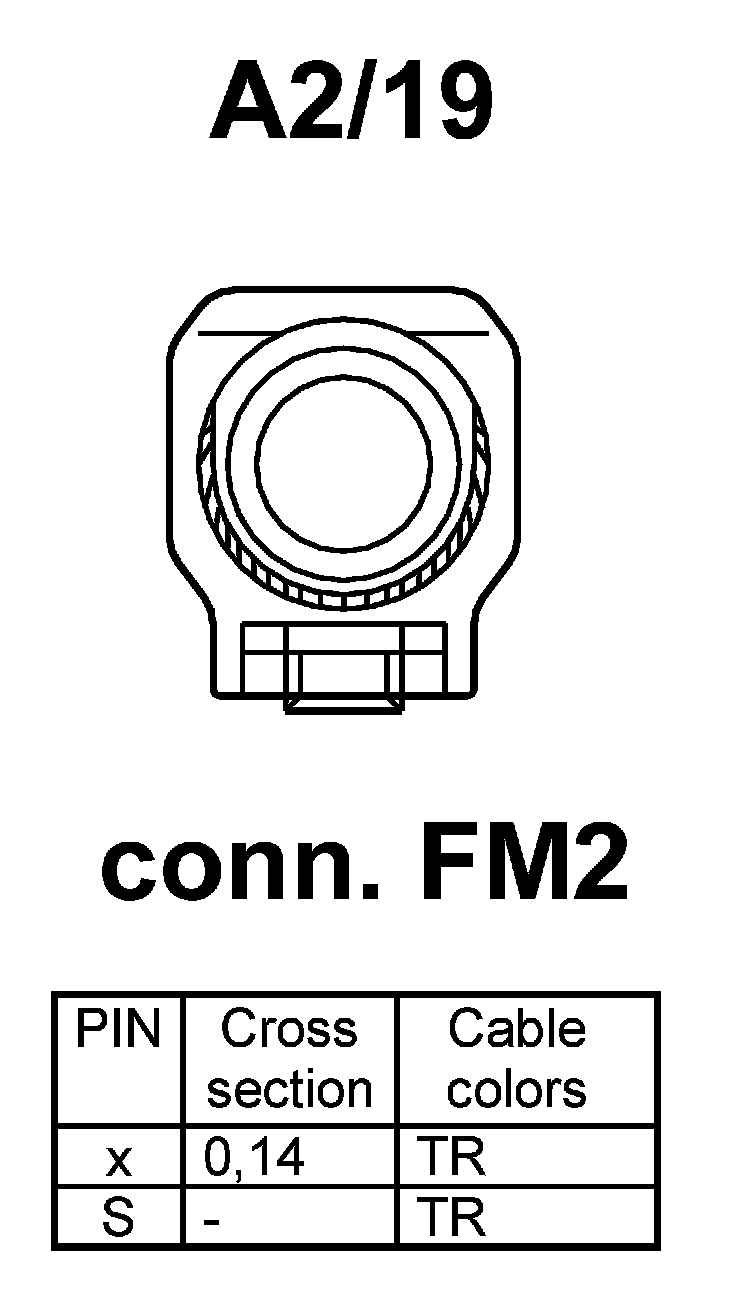

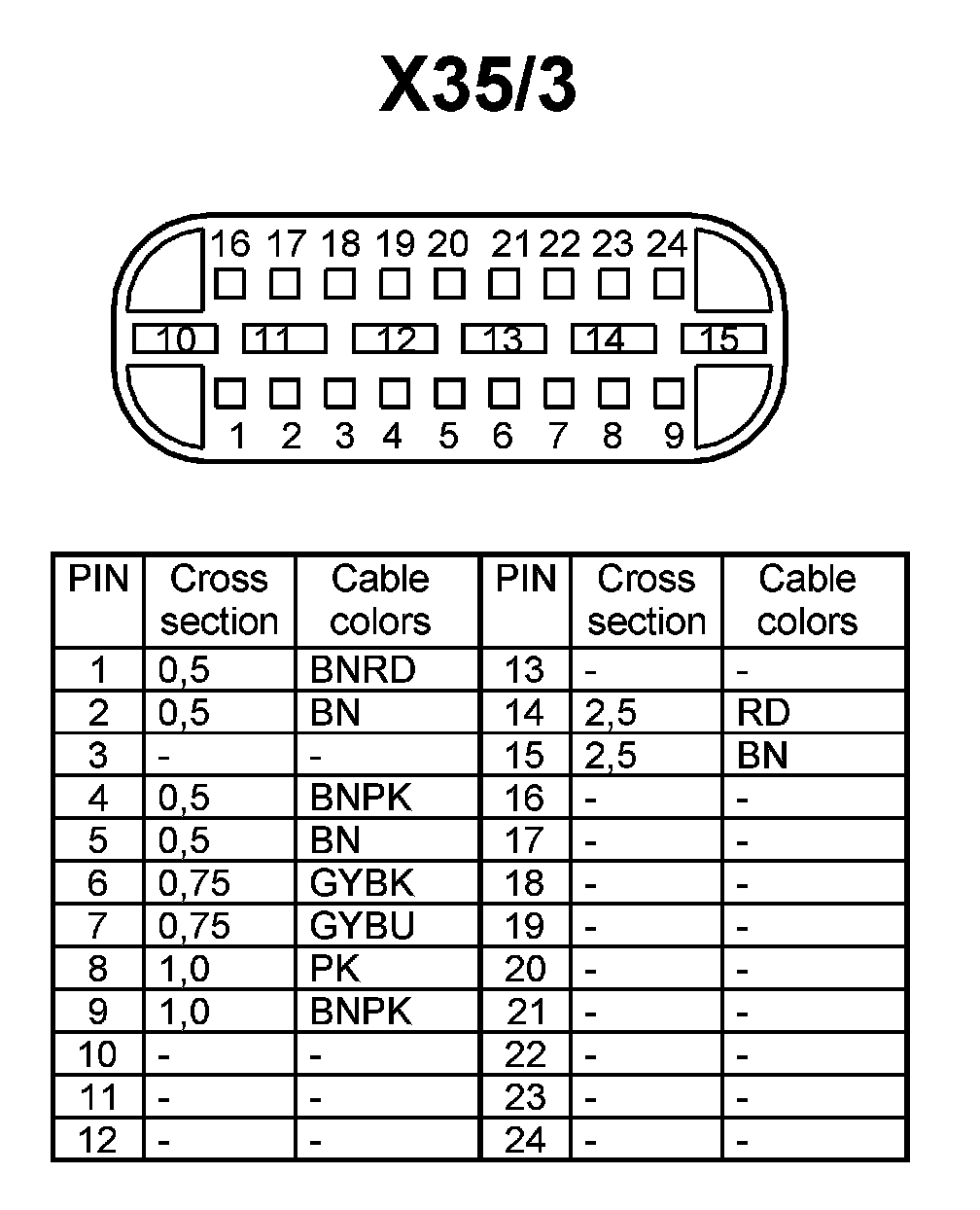

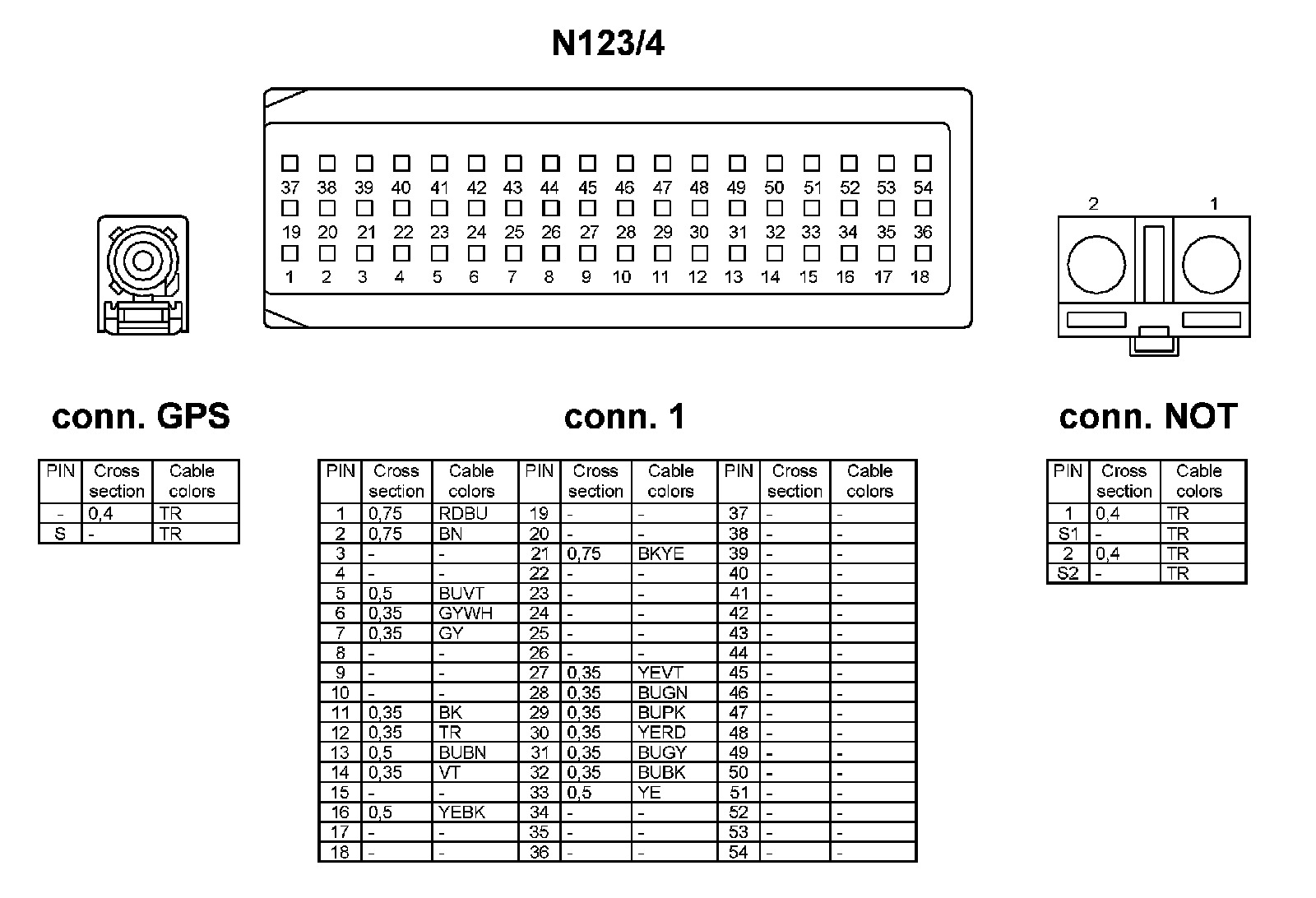

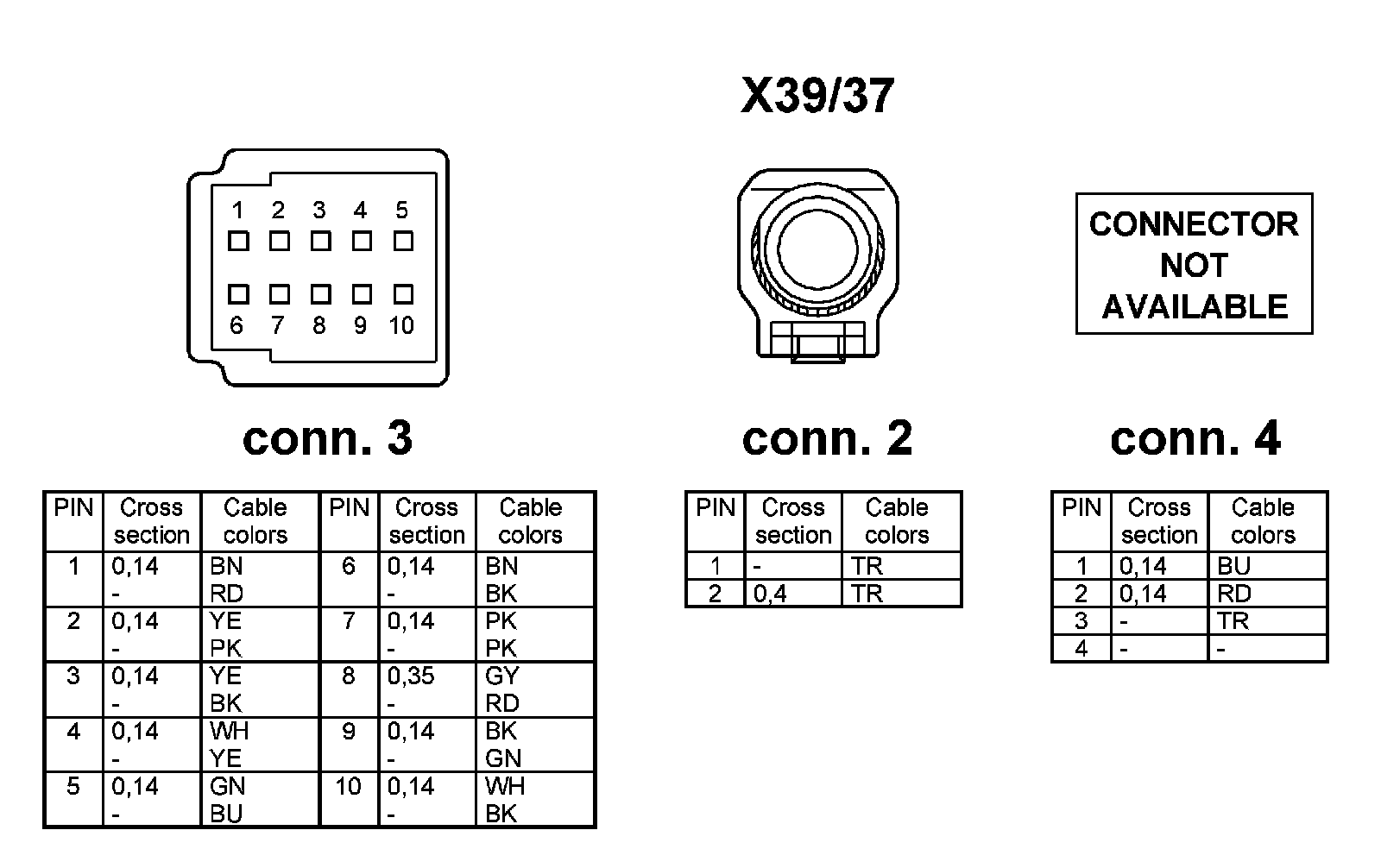

PE82.85-P-2101DAA Cockpit Management And Data System (COMAND) Control Unit Wiring Diagram

PE82.85-P-2101DAA Cockpit Management And Data System (COMAND) Control Unit Wiring Diagram
MODEL 212
- up to 06/30/11
- except CODE (498) Japan version
- with CODE (512) COMAND APS with DVD changer
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (528) COMAND incl. DVD changer

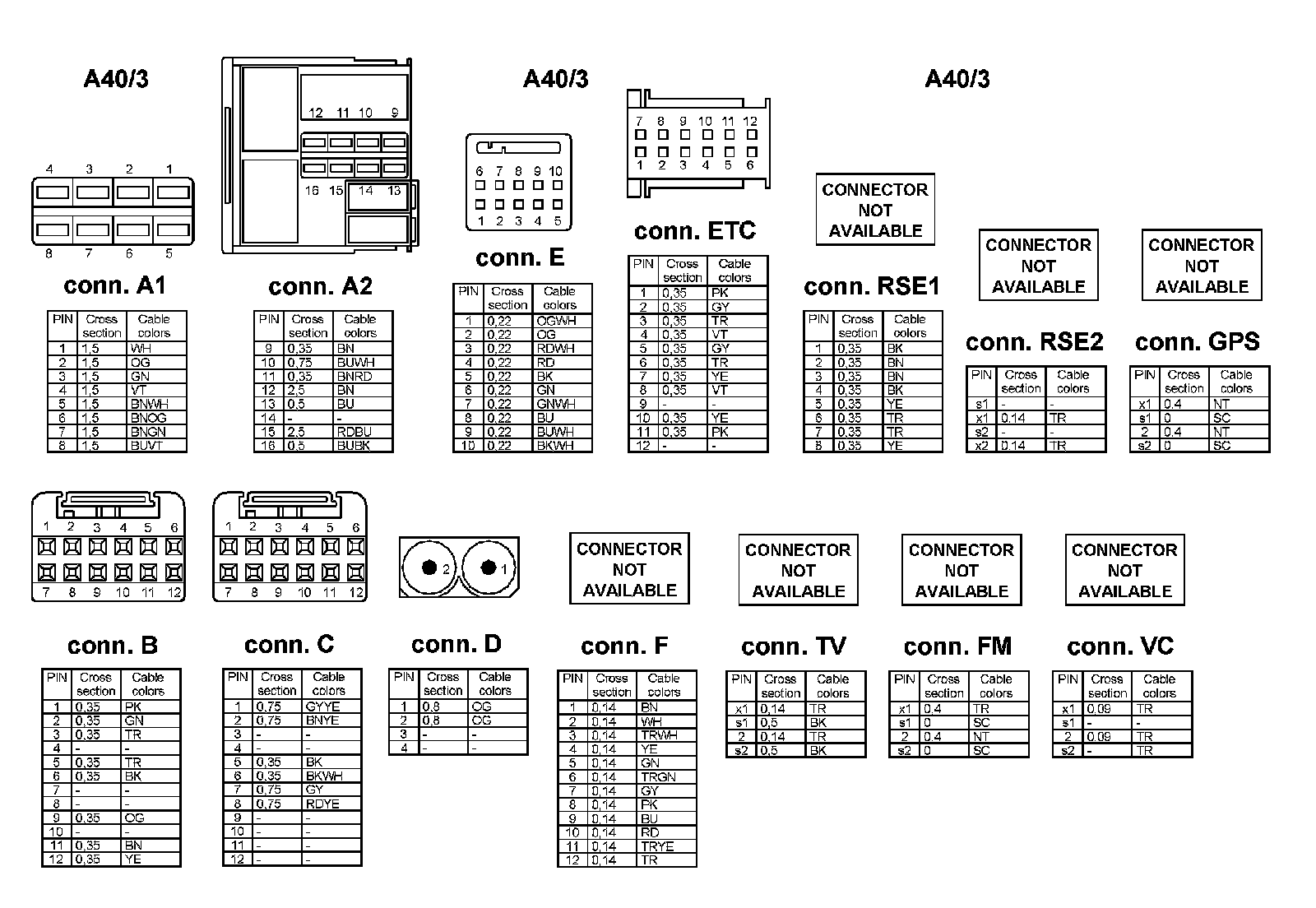

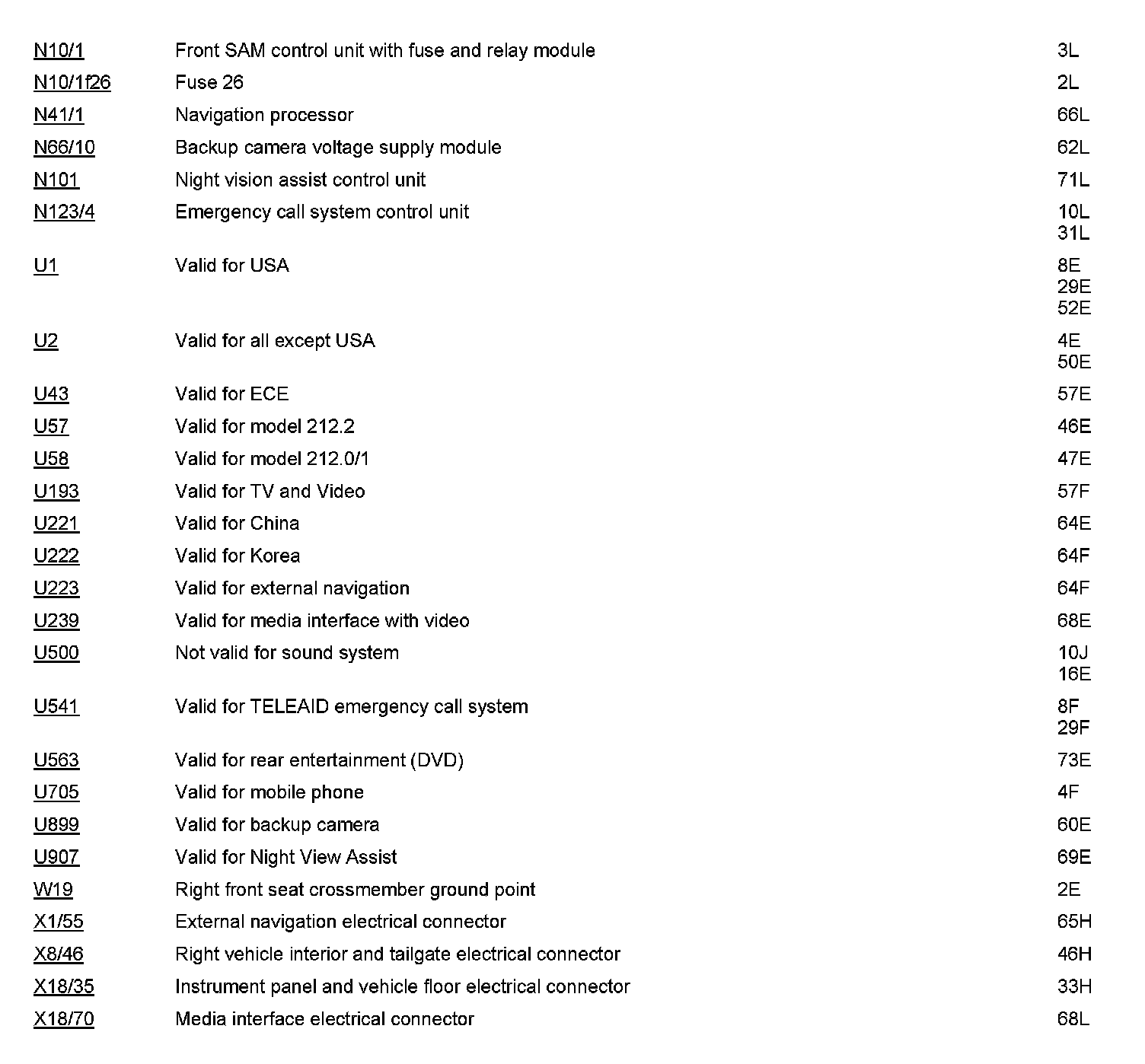

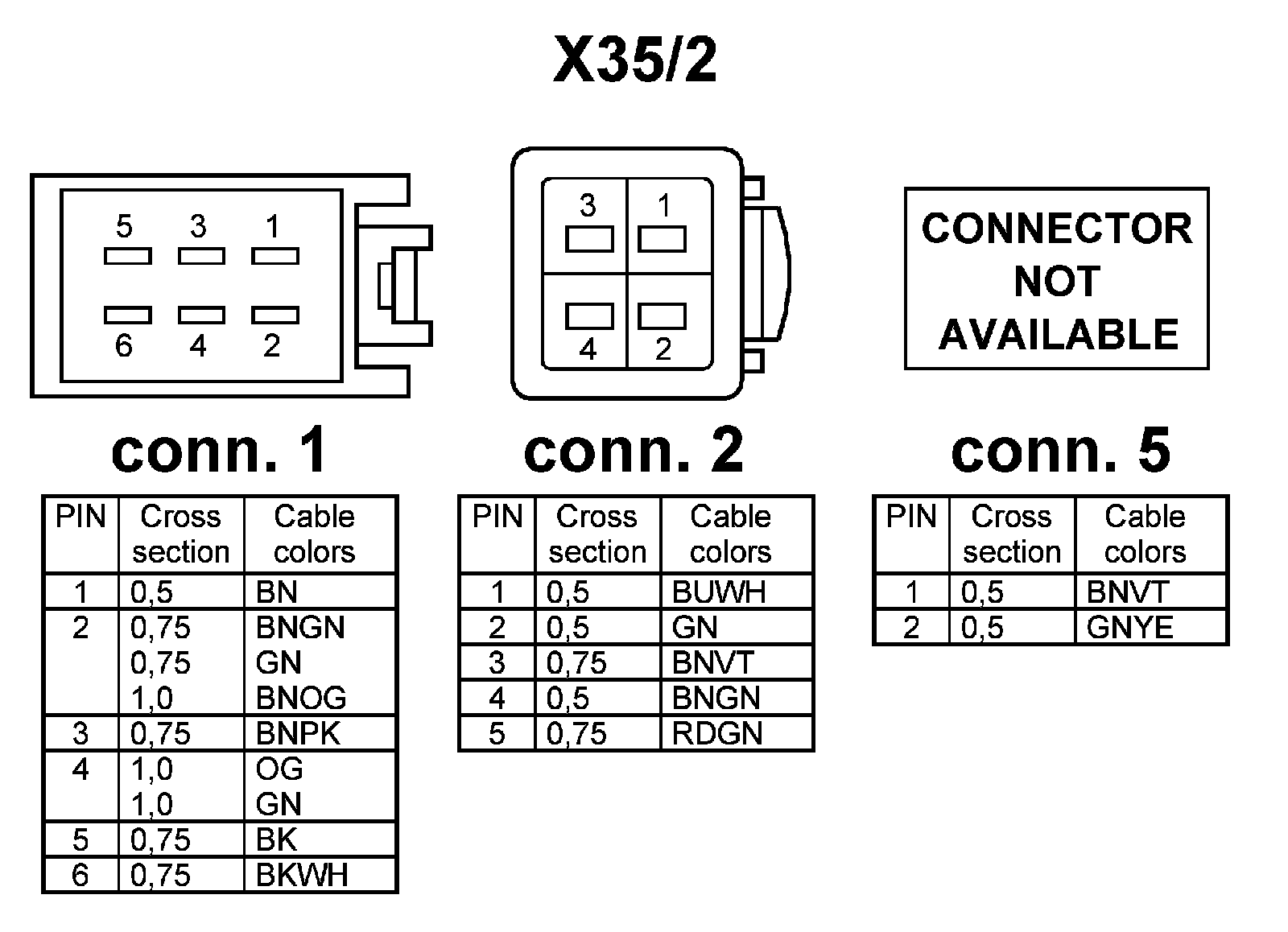

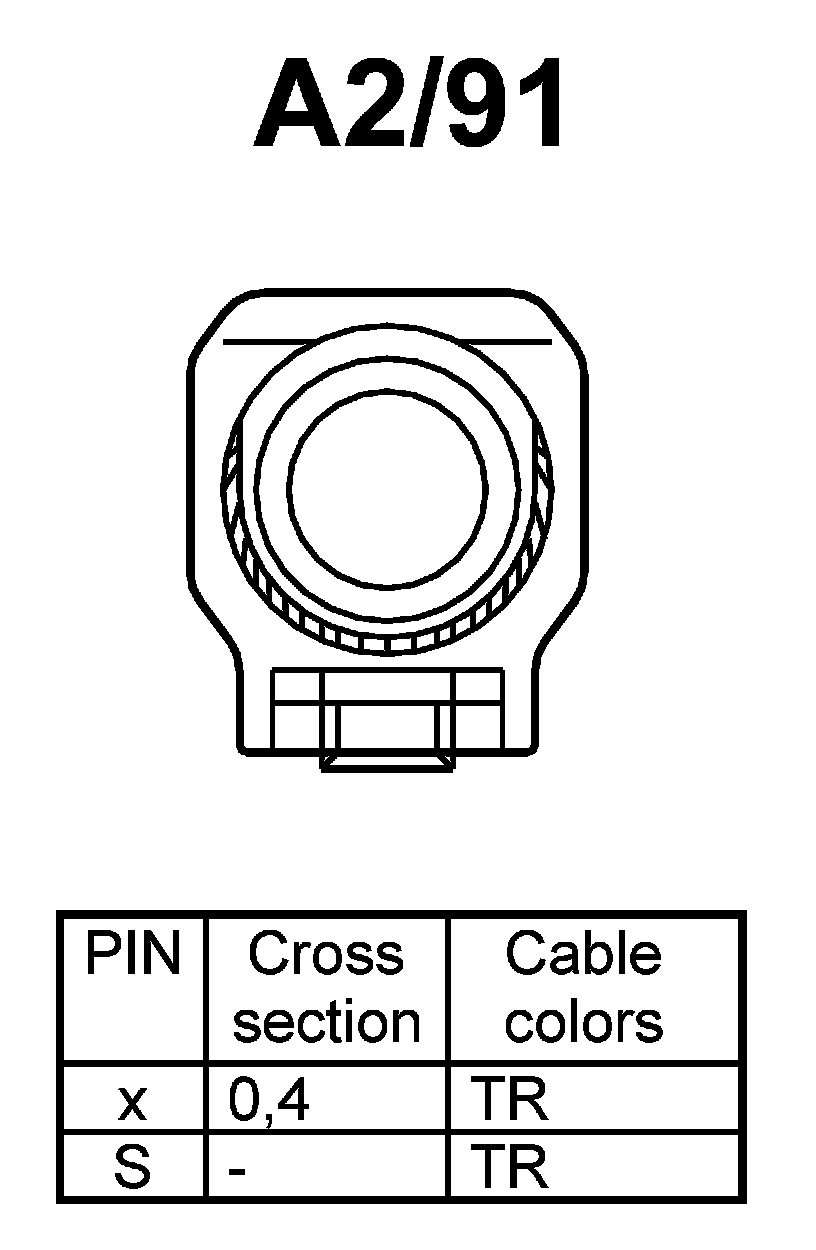

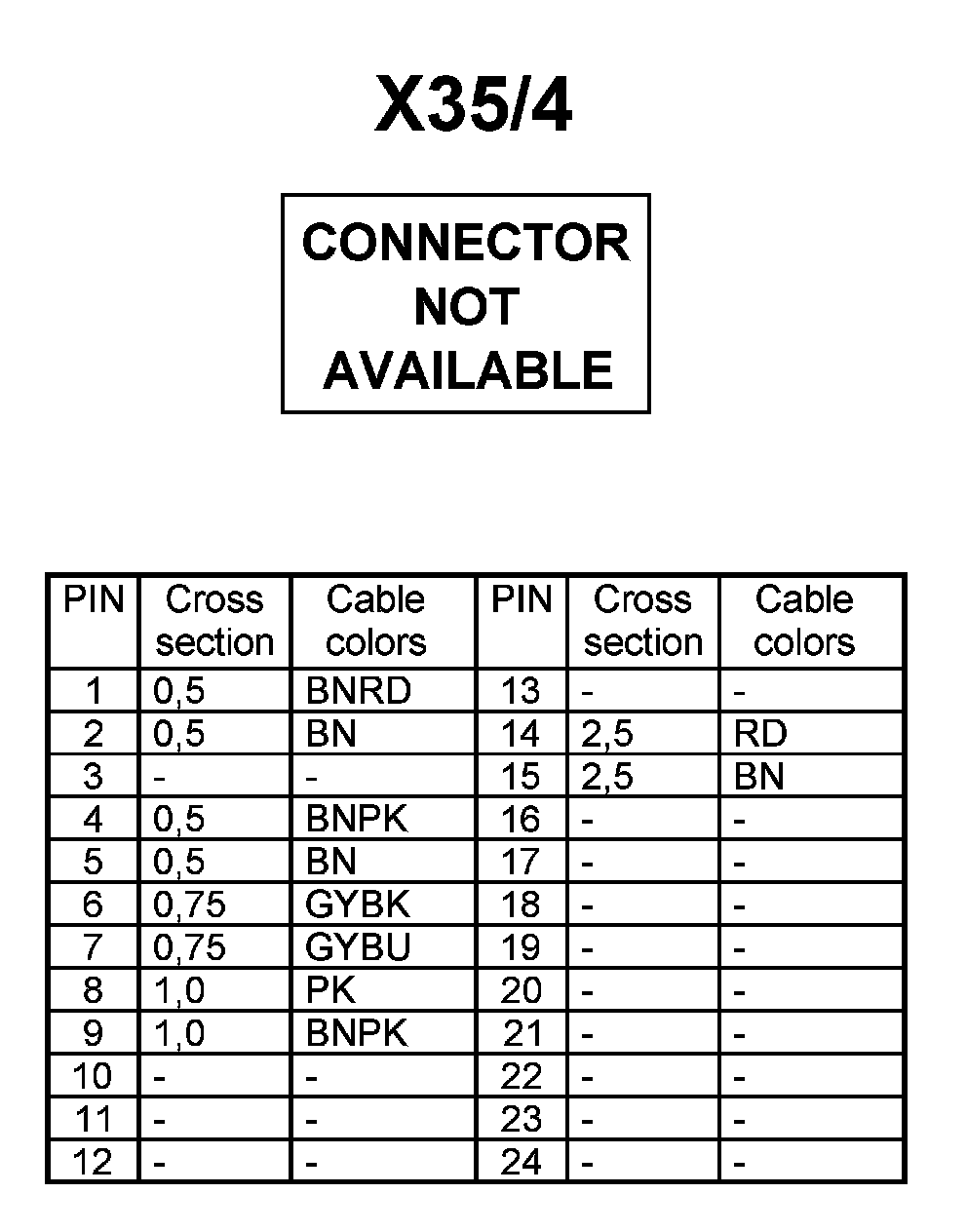

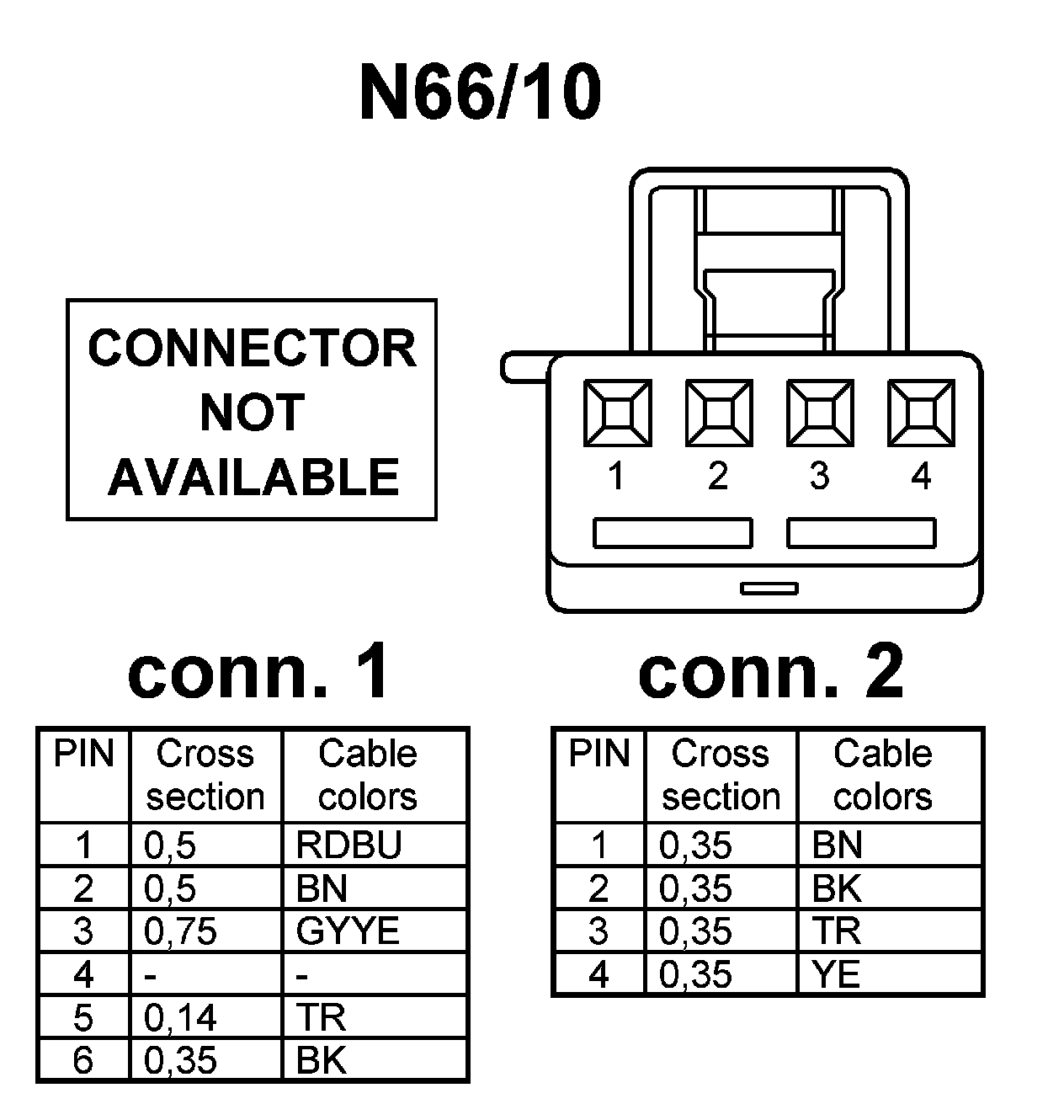

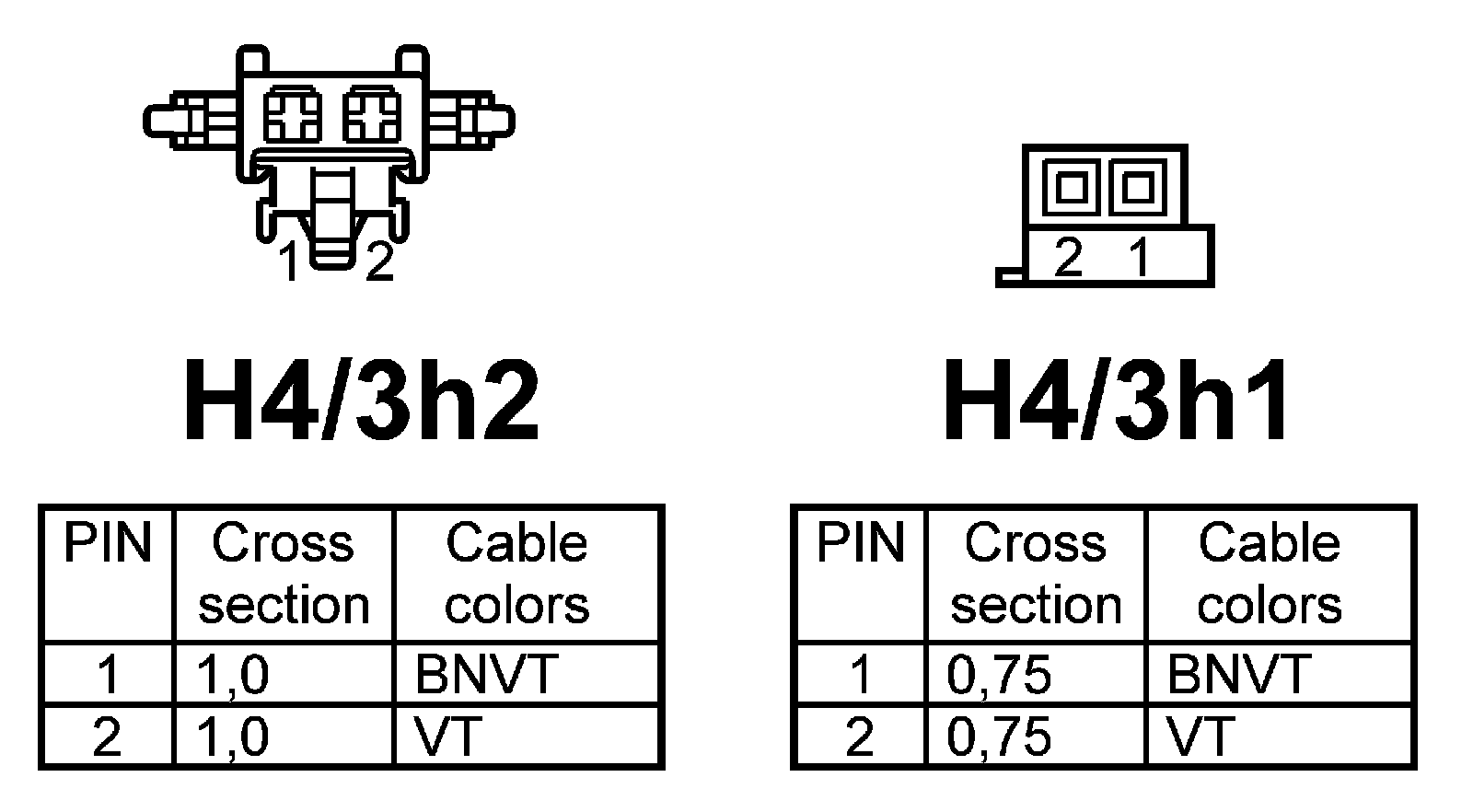

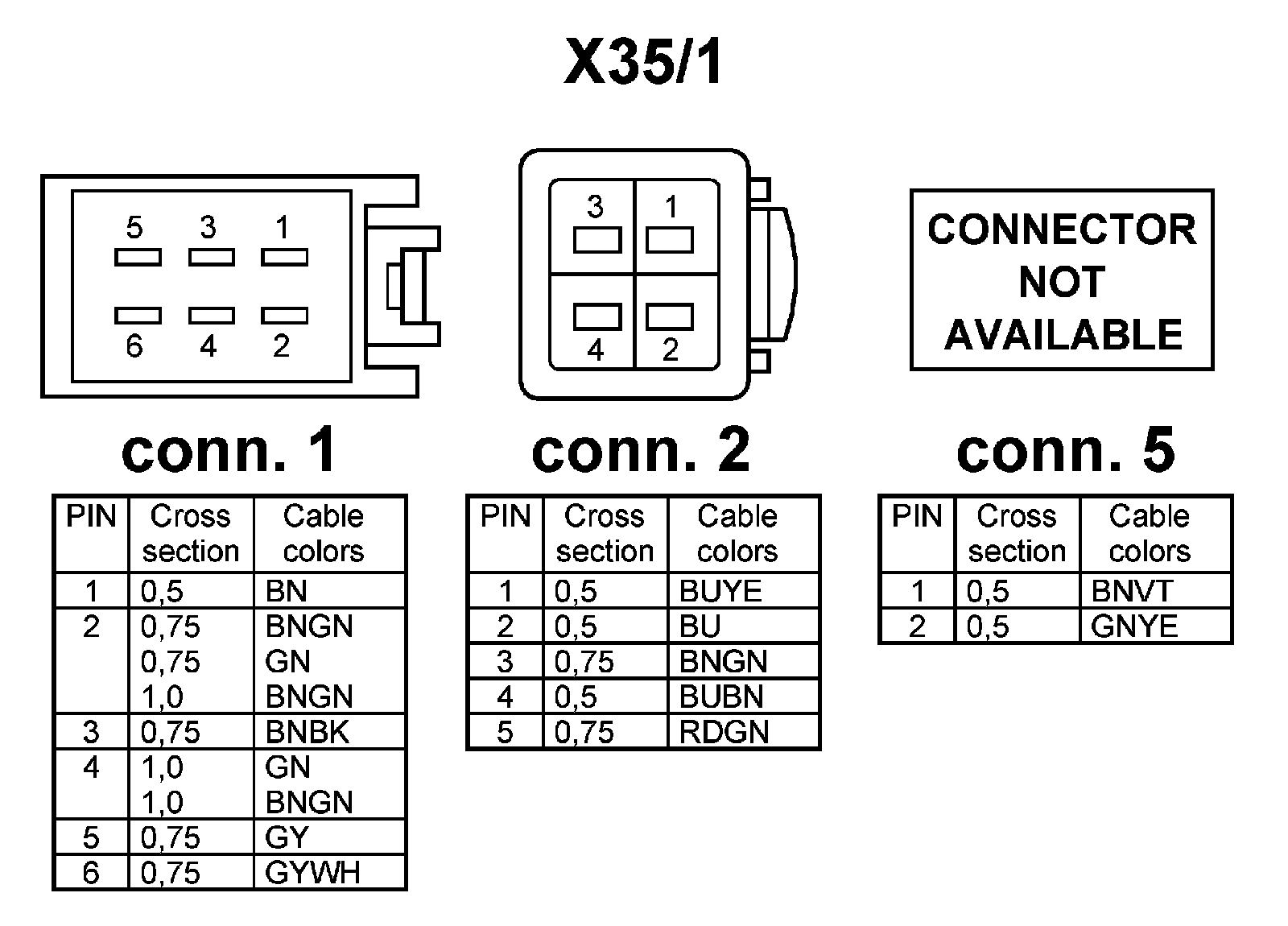

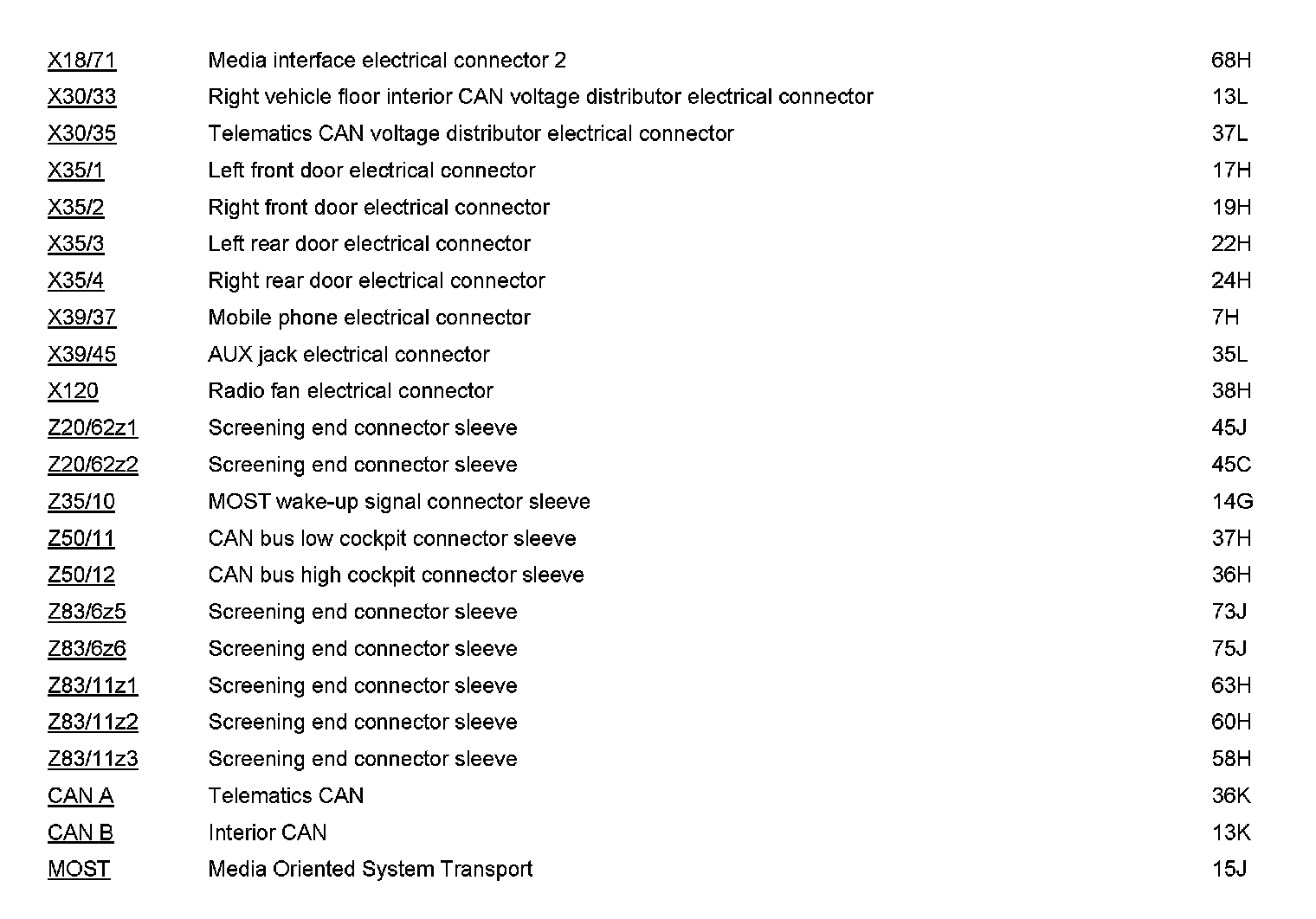

- Control unit A40/3






































































































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
