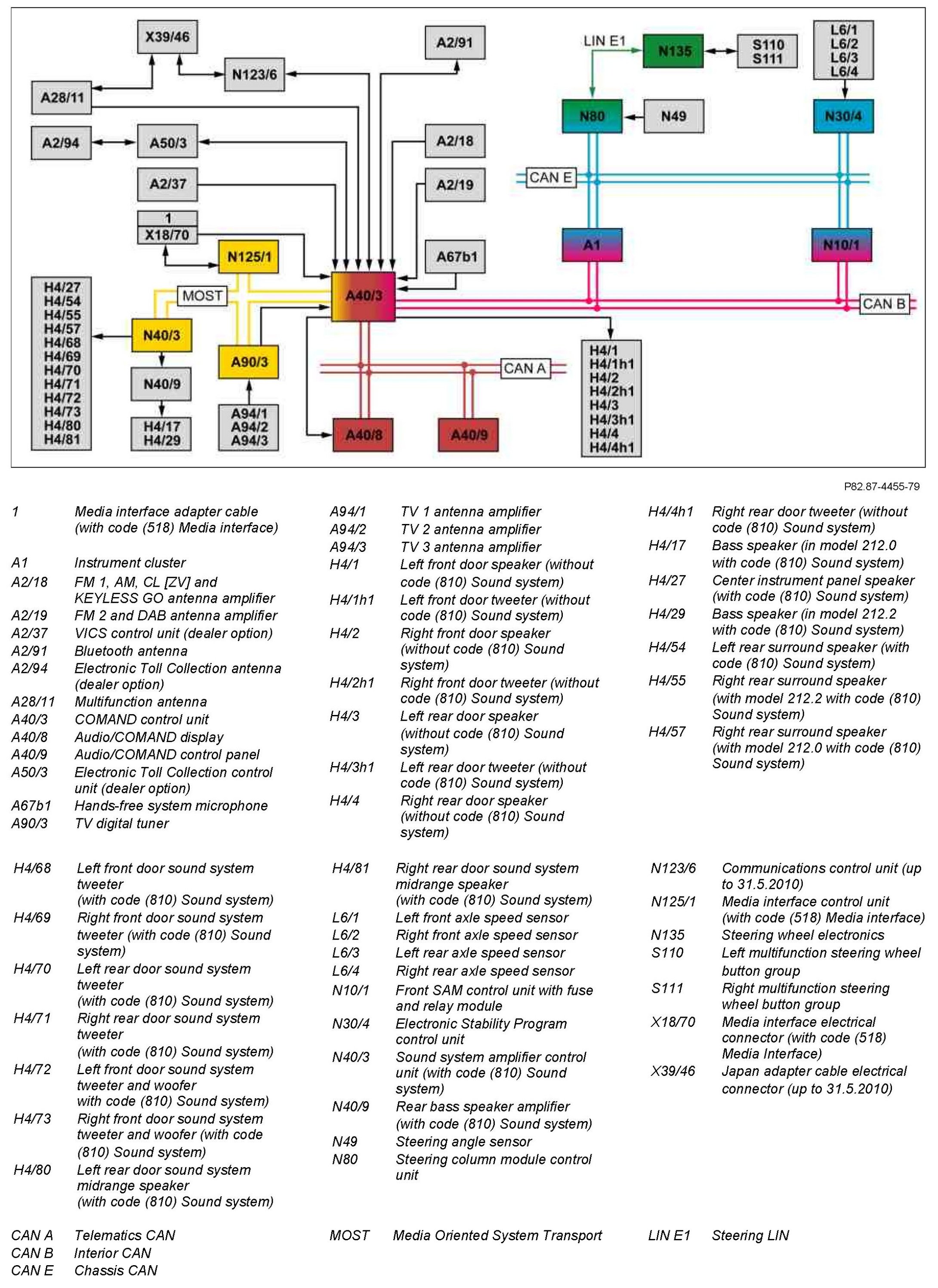

GF82.85-P-0003-11FLJ Cockpit Management and Data System (COMAND) Block Diagram



GF82.85-P-0003-11FLJ Cockpit Management And Data System (COMAND) Block Diagram
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (498) Japan version


Component Identification:
