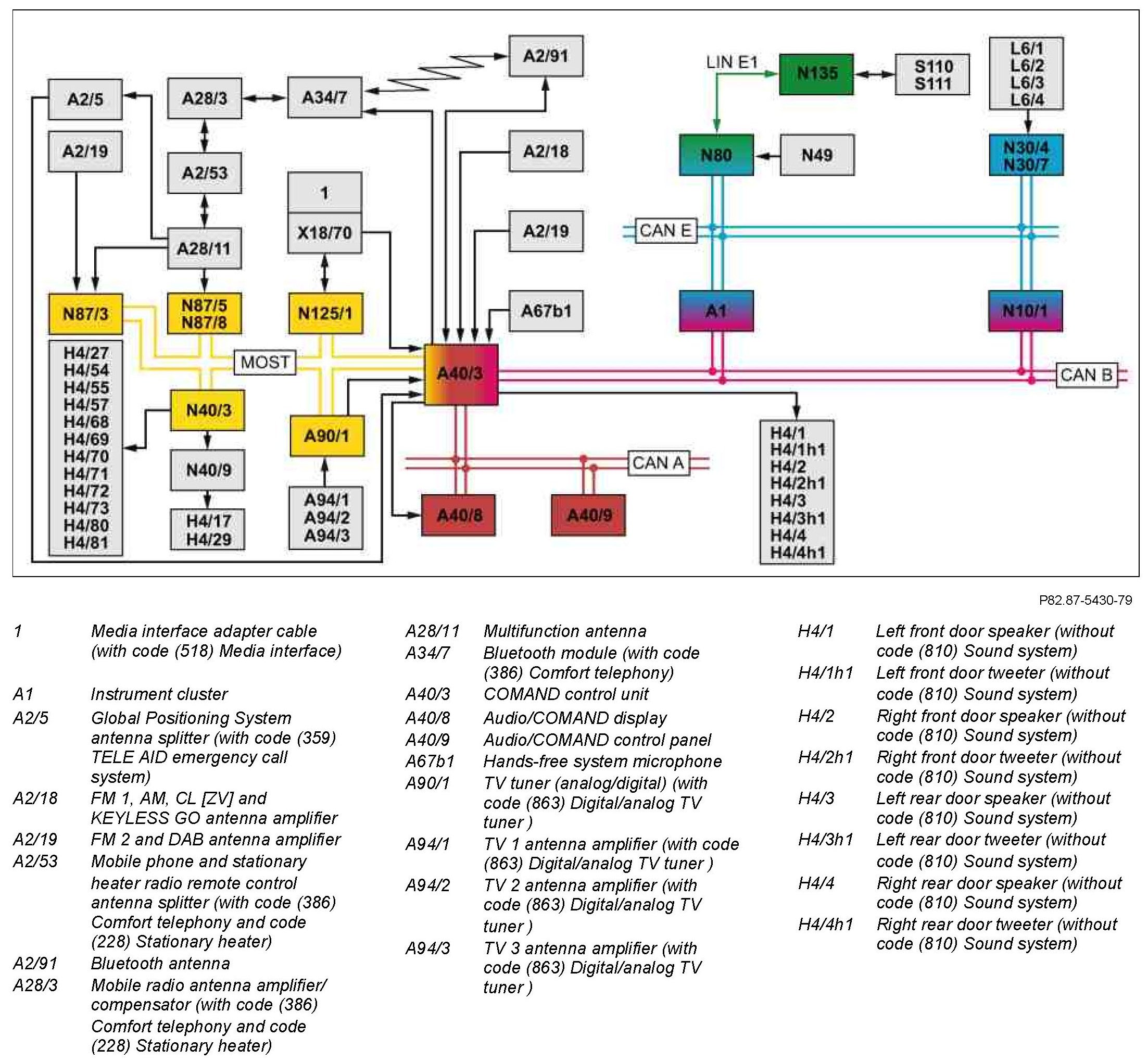

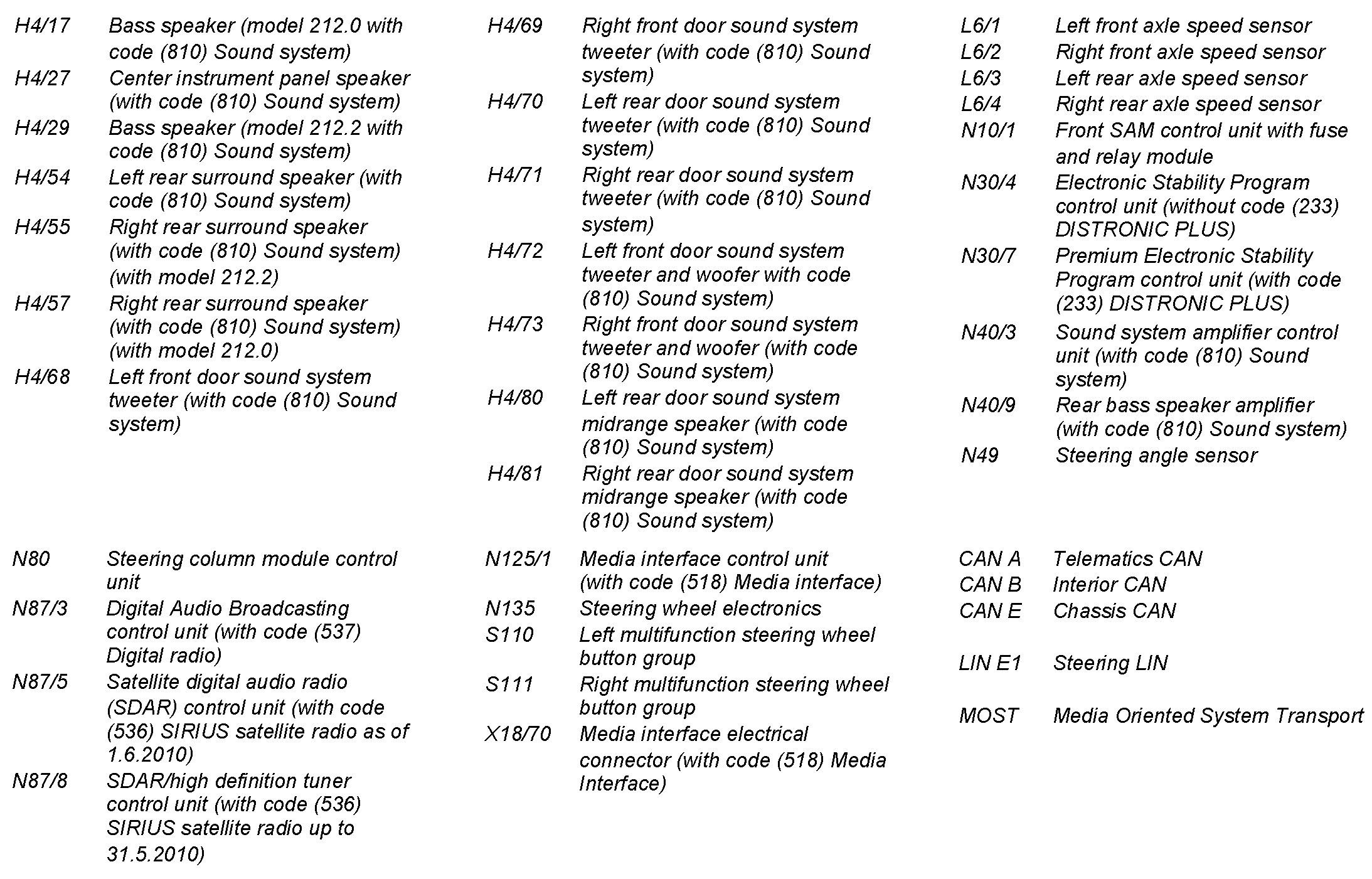

GF82.85-P-0003-11FL Cockpit Management and Data System (COMAND) Block Diagram

GF82.85-P-0003-11FL Cockpit Management And Data System (COMAND) Block Diagram
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- except CODE (498) Japan version
- with CODE (512) COMAND APS with DVD changer
