EP0010

Implausible data was received from the electronic ignition switch.

Test 1: Check line between component N118 (Fuel pump control module) and component Z3 (Circuit 15 connector sleeve).

Test 2: Possible cause:

- Cable fault
Affected functions:

- Engine diagnosis
- Fuel system

1. Check line between component N118 (Fuel pump control module) and component Z3 (Circuit 15 connector sleeve).
Test sequence

- Switch off ignition.
- Disconnect 4-pin plug from component N118 (Fuel pump control module).
- Disconnect 8-pin plug from component N118 (Fuel pump control module).
- Test input signal 'Terminal 15' of component N118 (Fuel pump control module).
- Measure direct voltage with multimeter between sockets (N118) 1.2 and (N118) 2.5
Measure voltage.

- Ignition OFF: 0 V
- Ignition ON: > 11 V
Is the measurement value OK?

YES
The measurement value is OK.Further possible causes of fault

- Inspect plug connections for corrosion, pinched insulation and loose contact.
- Check CAN link to control unit N3/10 (ME-SFI [ME] control unit).
End of test

NO
The measurement value is not OK.Possible cause and remedy

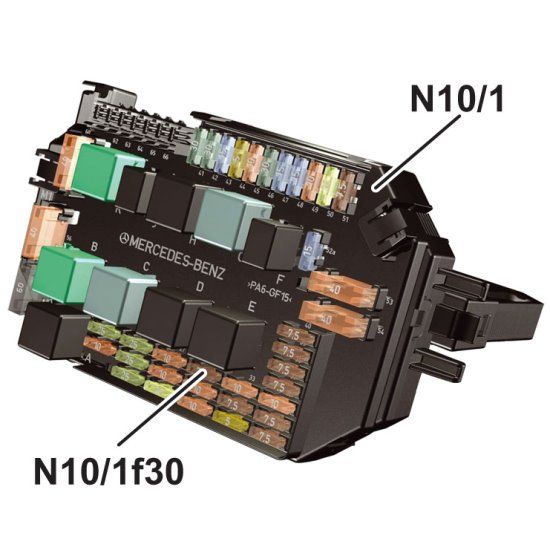

- Check fuse 30.(Installation point:N10/1 (Front SAM control unit with fuse and relay module))
- Repair / replace faulty wiring between N118 (Fuel pump control module) and N3/10 (ME-SFI [ME] control unit)
End of test







2. No further information available.
