Manufacturer Code Charts: 146800

Component M13/7 (Transmission oil cooler circulation pump) has a short circuit to positive.


Possible cause:

- M13/7 (Transmission oil cooler circulation pump)
Affected functions:

- Power generation

-------------------------------------------------

Test 1: Check component M13/7 (Transmission oil cooler circulation pump).

1. Check component M13/7 (Transmission oil cooler circulation pump).

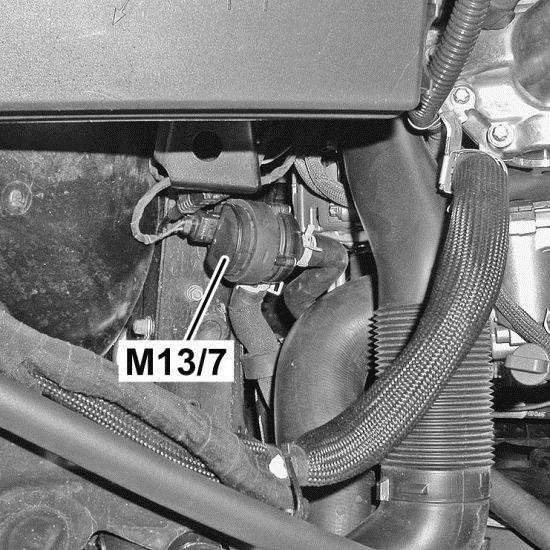

Figure legend

- M13/7 (Transmission oil cooler circulation pump)
Test prerequisite

- Ignition ON
- All electrical accessories must be switched off.
Move on to actuation with button F2







Warning!Communication with ECU required.
