11EA00

Starter control has open circuit.

Test 1: Test starter control.

Test 2: Possible cause:

- Starter control
Affected functions:

- Power generation

1. Test starter control.

Test 1.1: Arrangement of fuses F58 (Engine compartment fuse and relay box)

Test 1.2: Arrangement of relays F58 (Engine compartment fuse and relay box)

Test 1.3: Test relay F58kI (Starter relay).

1.1. Arrangement of fuses F58 (Engine compartment fuse and relay box)
Note

- WIS is not available on this system.
- It is not possible to display the requested WIS document [ gf5415p125603cw ].
- You can start WIS on another system and display the WIS document by entering the document number [ gf5415p125603cw ] in the 'Contents' field.


1.1. No further information available.


1.2. Arrangement of relays F58 (Engine compartment fuse and relay box)
Note

- WIS is not available on this system.
- It is not possible to display the requested WIS document [ gf5415p125703cw ].
- You can start WIS on another system and display the WIS document by entering the document number [ gf5415p125703cw ] in the 'Contents' field.


1.2. No further information available.


1.3. Test relay F58kI (Starter relay).
Test prerequisites

- Power supply (circuit 30) is OK.
Test sequence

- Measure resistance with multimeter between pins (F58kI)30 and (F58kI) 87
- Connect terminal 85 of relay F58kI (Starter relay) with ground.
- Connect terminal 86 of relay F58kI (Starter relay) with plus.
Specified value

- Resistor:< 3ohms

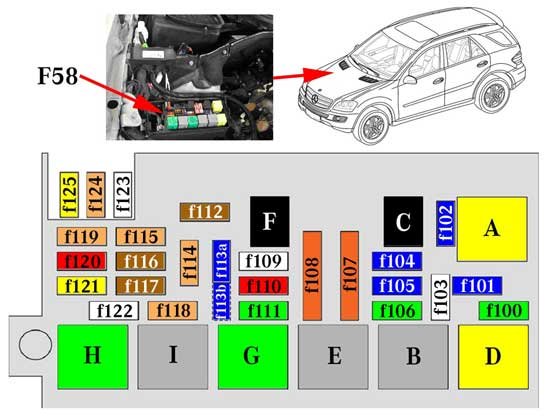

Figure legend

- F58:F58 (Engine compartment fuse and relay box)
- f100-f125:Fuses
- A-I:Relays
Note: Connector assignment with key F7Question

- Is the measurement value OK?













YES
The measurement value is OK.Possible cause and remedy in the case of complaint

- Check contacts at component F58kI (Starter relay) for loose contact.
- Check line between component F58 (Engine compartment fuse and relay box) and ground W2 (Ground (at front right headlamp unit)) as well as its attachment and contact.
- Replace component F58 (Engine compartment fuse and relay box).
End of test







NO
The measurement value is not OK.Possible cause and remedy

- Component F58kI (Starter relay) is defective.
Figure legend

- F58:F58 (Engine compartment fuse and relay box)
- f100-f125:Fuses
- A-I:Relays
End of test







2. No further information available.
