AR26.50-P-2002-01CW Remove/Install Reverse Idler Shaft With Reverse Gear

AR26.50-P-2002-01CW Remove/install reverse idler shaft with reverse gear
- TRANSMISSION 716.6

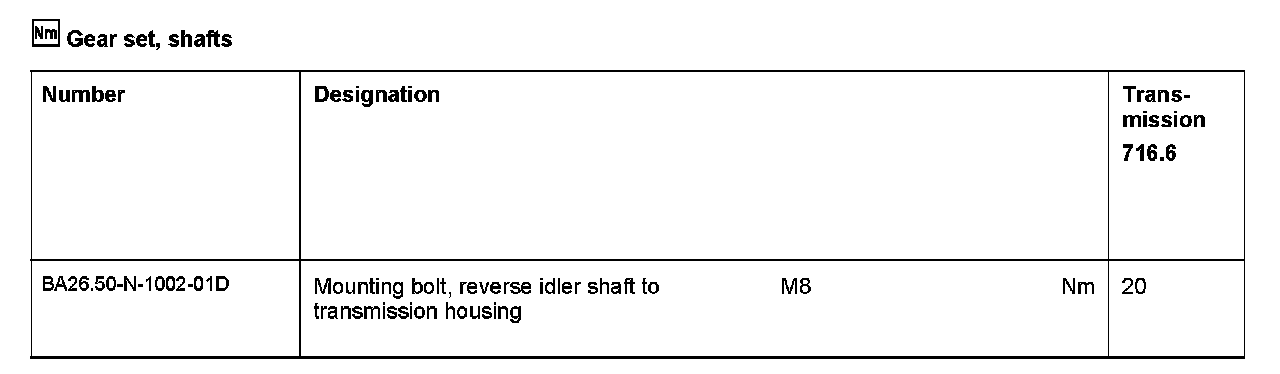

Gear set, shafts:

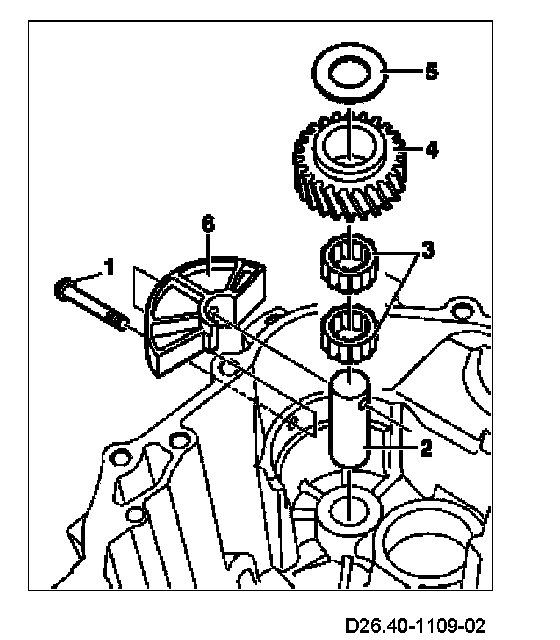

Component Identification:

Removing
1 Remove bolt (1) from bearing shell (6).
2 Heat rear section of transmission housing on outside at bearing shell (6) using heat gun.
3 Remove bearing shell (6).
4 Remove reverse idler shaft (2), cylindrical roller bearing (3), reverse gear (4) and washer (5).

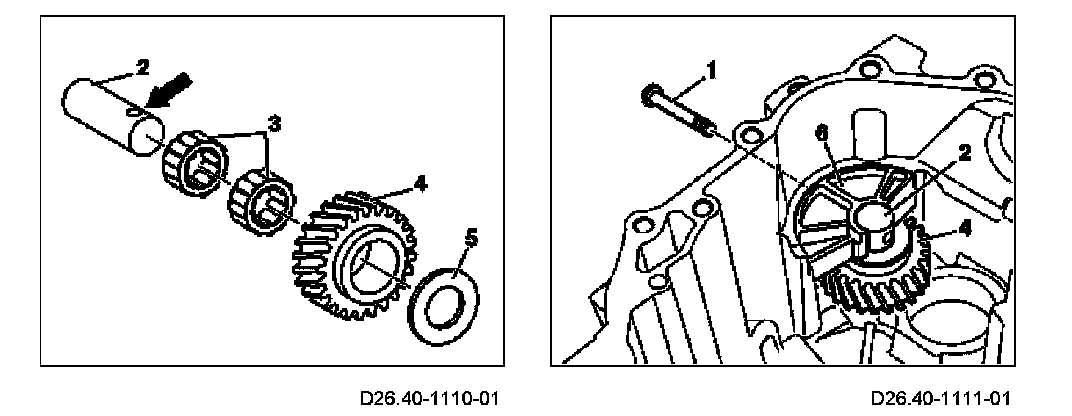

Component Identification:

Install
5 Lubricate cylindrical roller bearing (3), reverse idler shaft (2) and washer (5).
6 Place cylindrical roller bearing (3), reverse gear (4) and shim (5) on the reverse idler shaft (2).
Observe position of tapped hole at reverse idler shaft (2) (arrow).
7 Install bearing shell (6) with reverse idler shaft (2) and reverse gear (4).
8 Adjust bearing shell (6) with bolt (1).
9 Use plastic mallet to drive in reverse idler shaft (2).
10 Adjust reverse idler shaft (2) and tighten with bolt (1).
