AR26.50-P-0002EW Remove/Install Main Shaft and Countershaft With Shift Unit
AR26.50-P-0002EW Remove/install main shaft and countershaft with shift unit
- Transmission 711.670
Component Identification:
Shown on transmission 711.660
Component Identification:

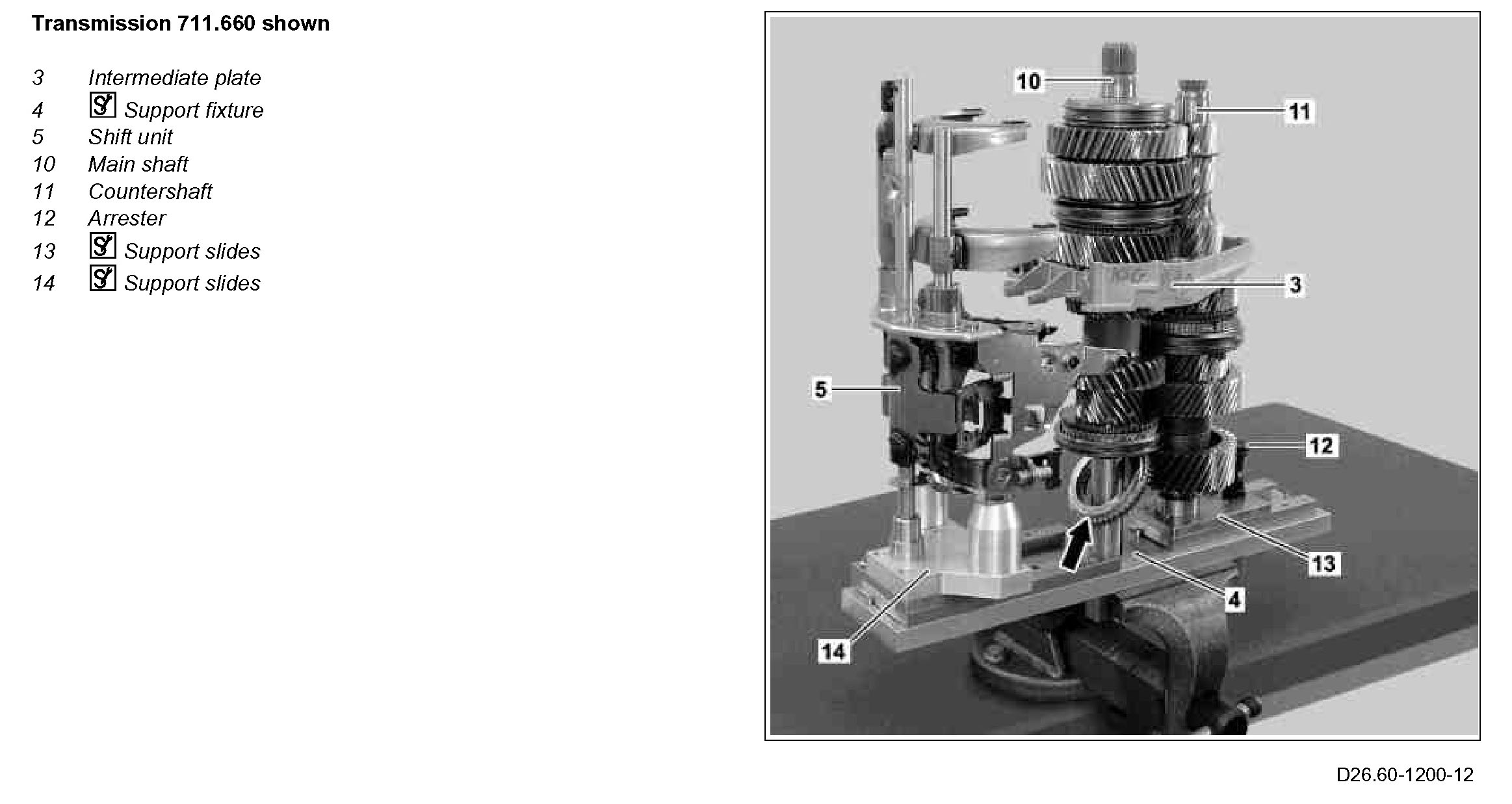

Transmission 711.660 shown

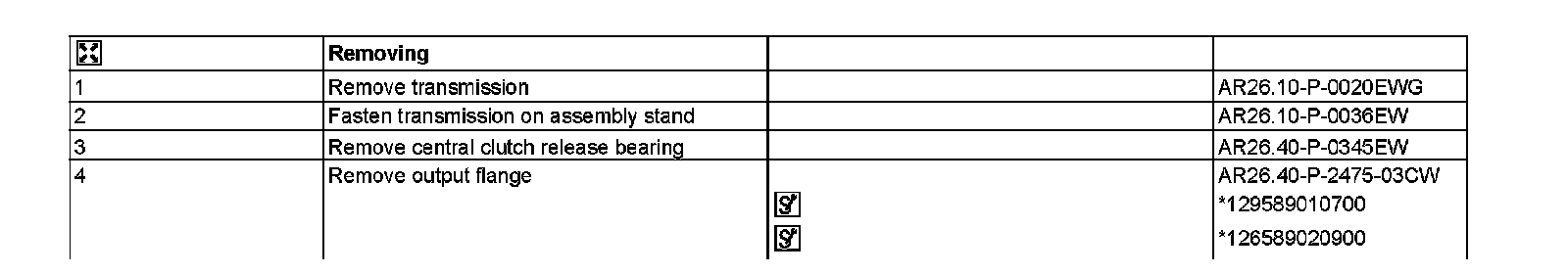

Steps 1-4:

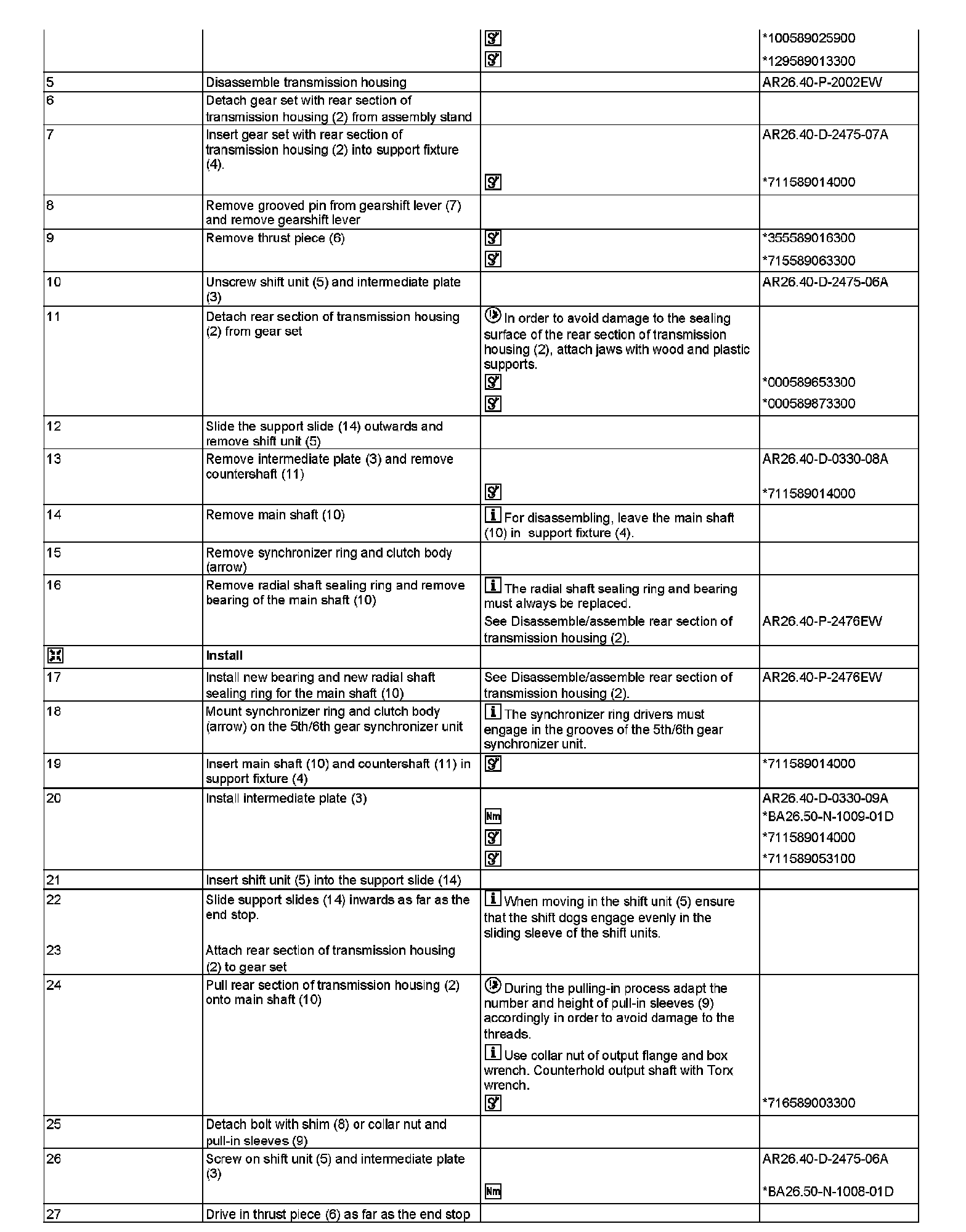

Steps 4 (Continued)-27:

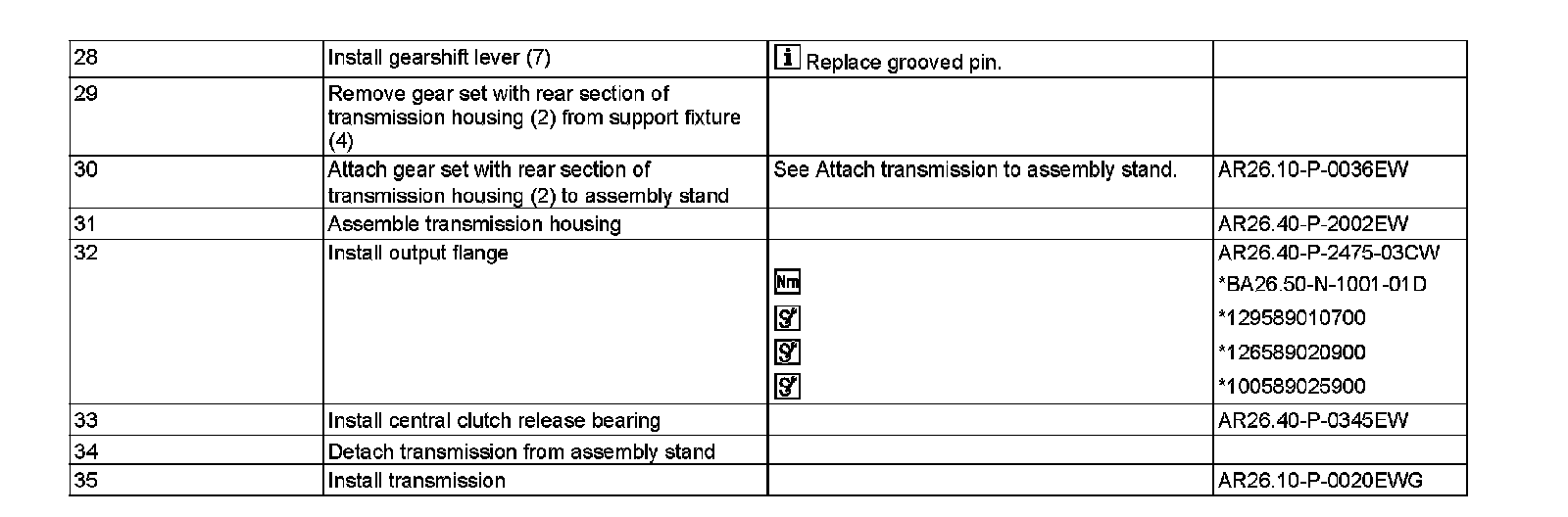

Steps 28-35:

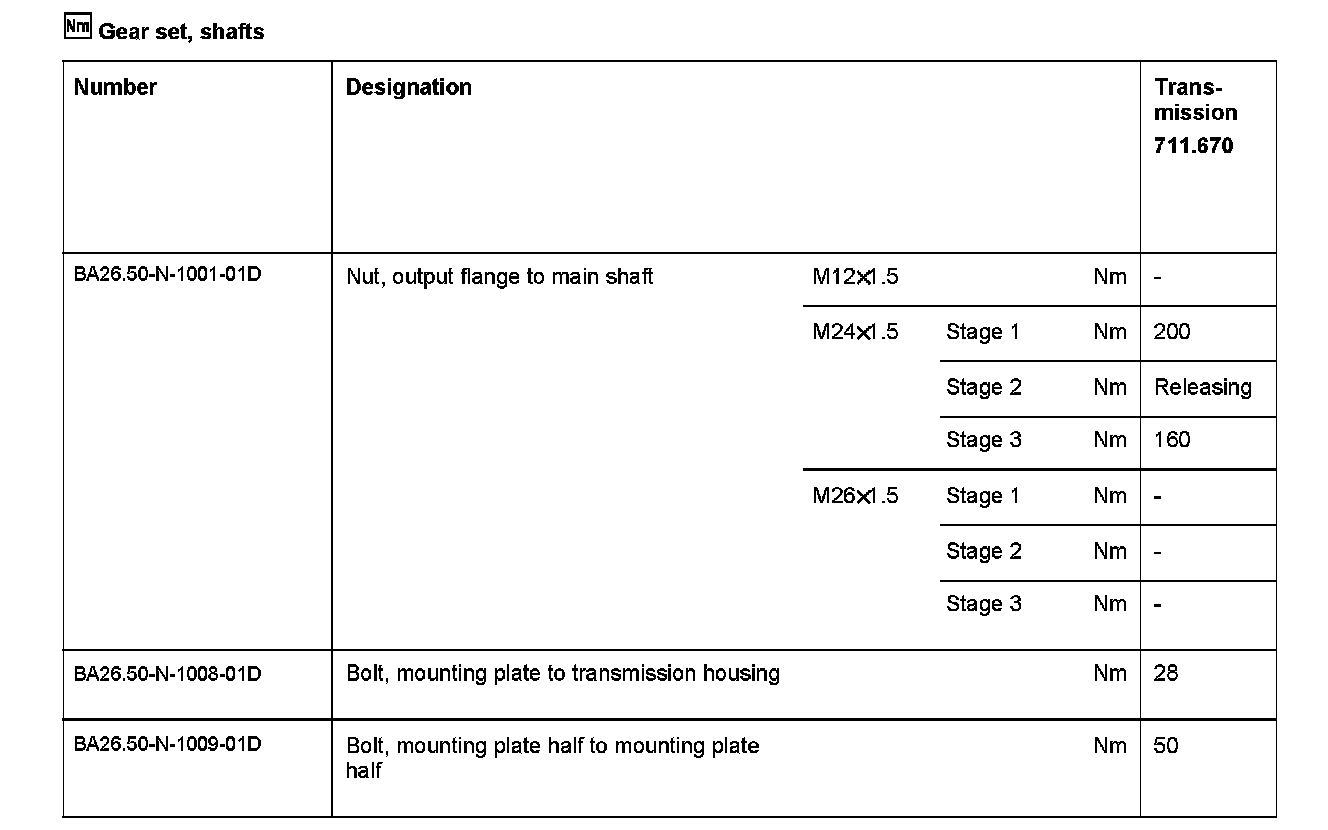

Gear set, shafts:

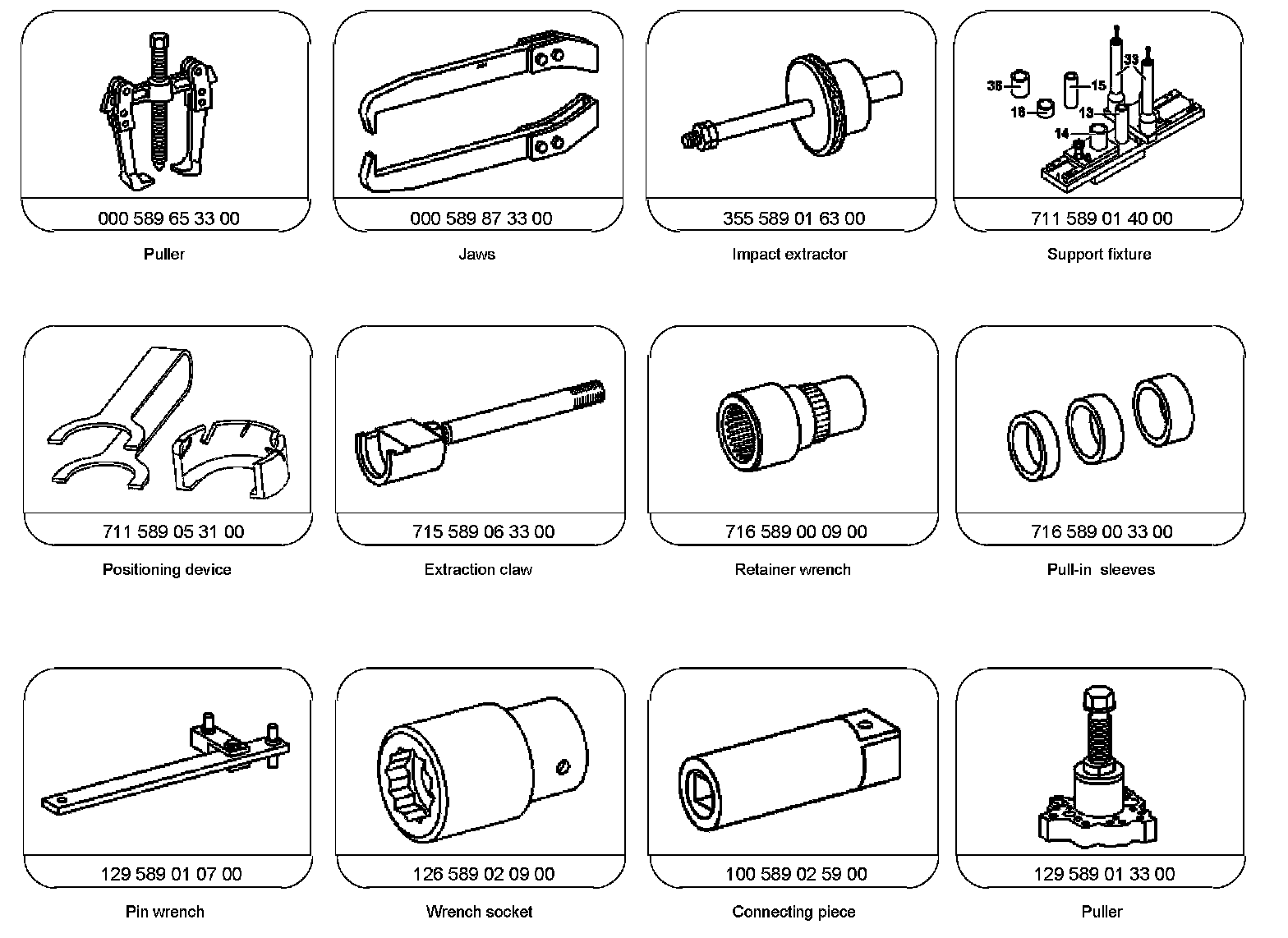

Special Tools:
