Home >> Mercedes Benz >> 2011 >> E 350 4MATIC Wagon (212.287) V6-3.5L (272.977) >> Repair and Diagnosis >> Transmission and Drivetrain >> Flywheel >> Service and Repair >> AR03.30-P-5000EWS Remove/Install Retaining Lock For Crankshaft Ring Gear

AR03.30-P-5000EWS Remove/Install Retaining Lock For Crankshaft Ring Gear



AR03.30-P-5000EWS Remove/install retaining lock for crankshaft ring gear

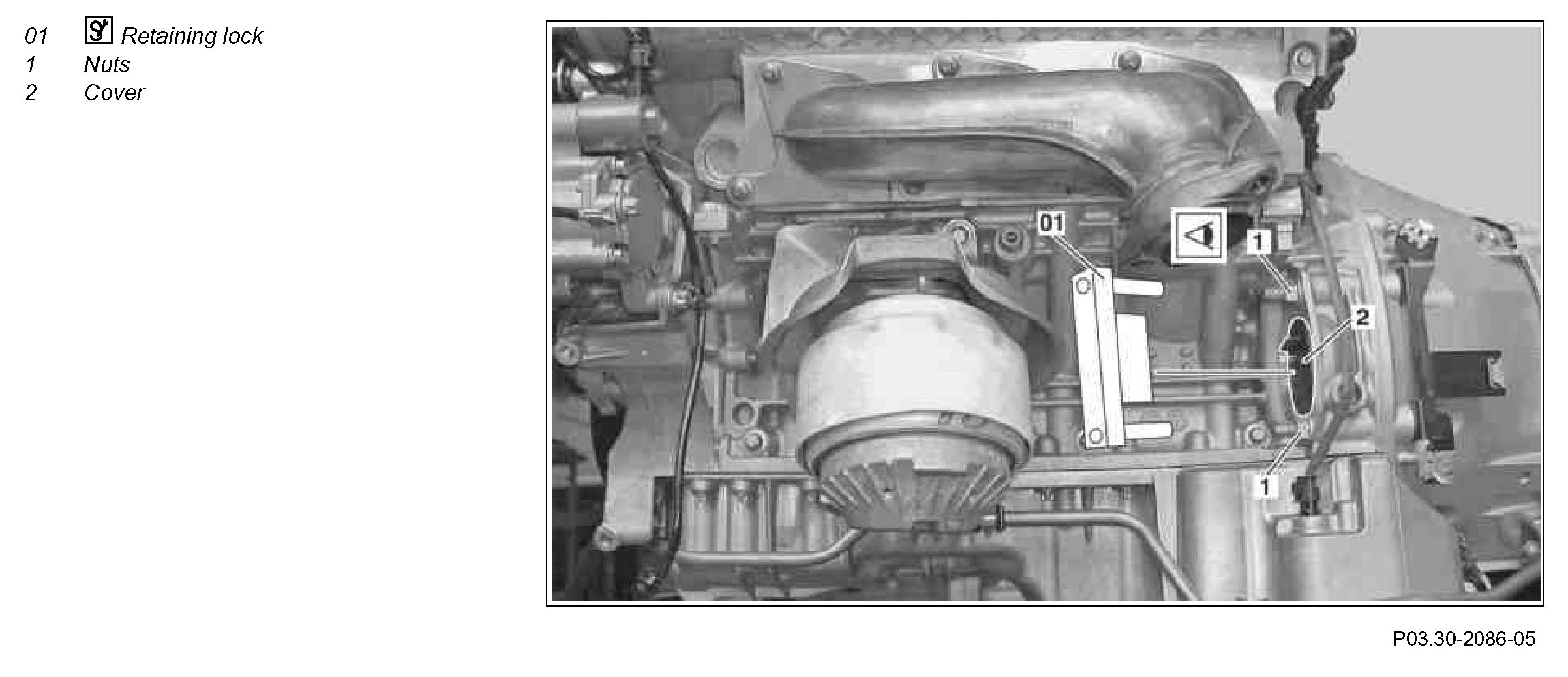

Component Identification:

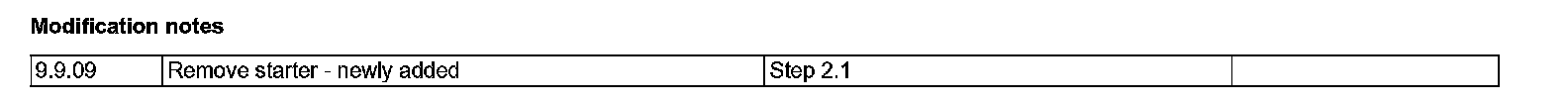

Modification notes:

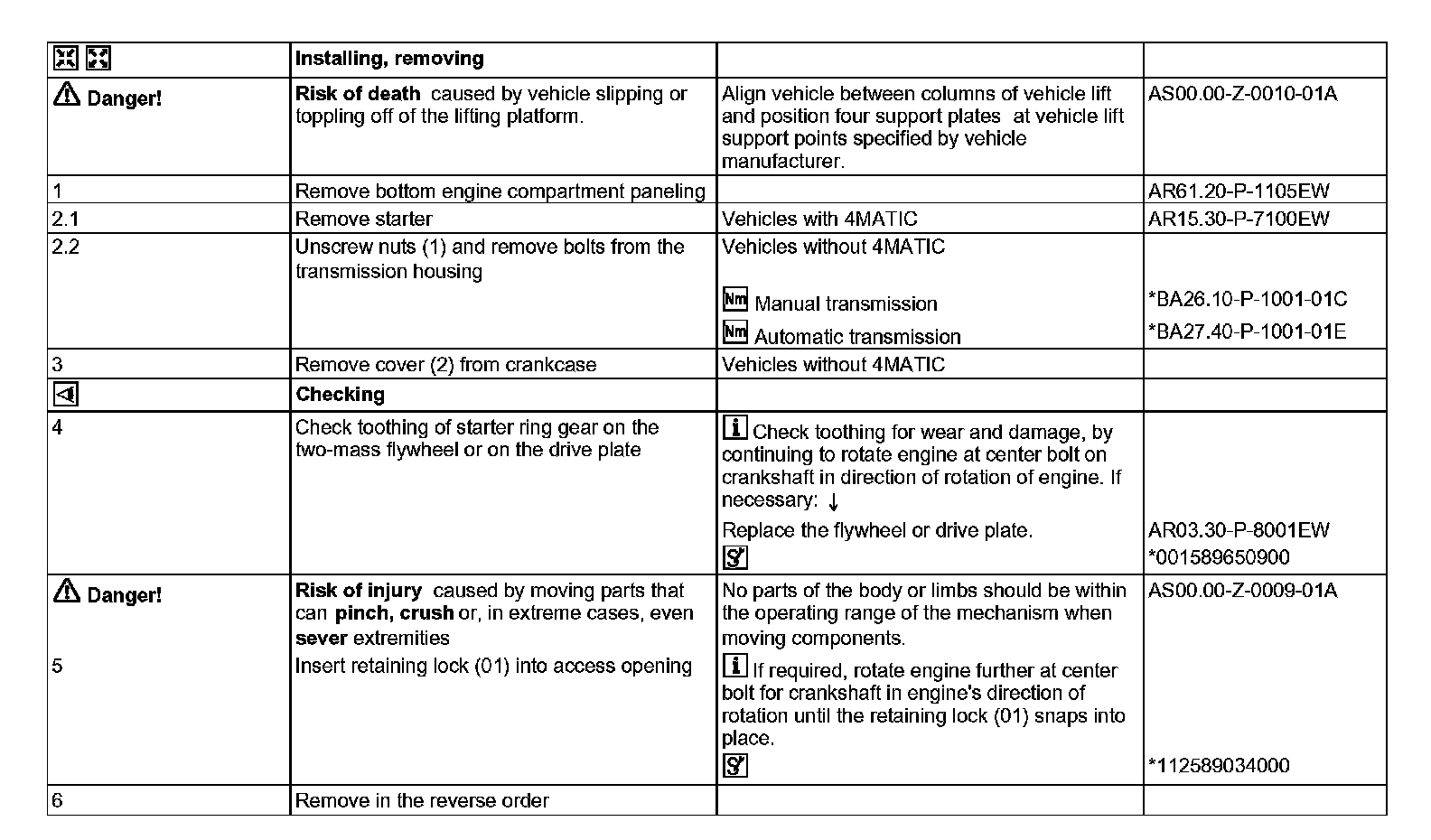

Steps 1-6:

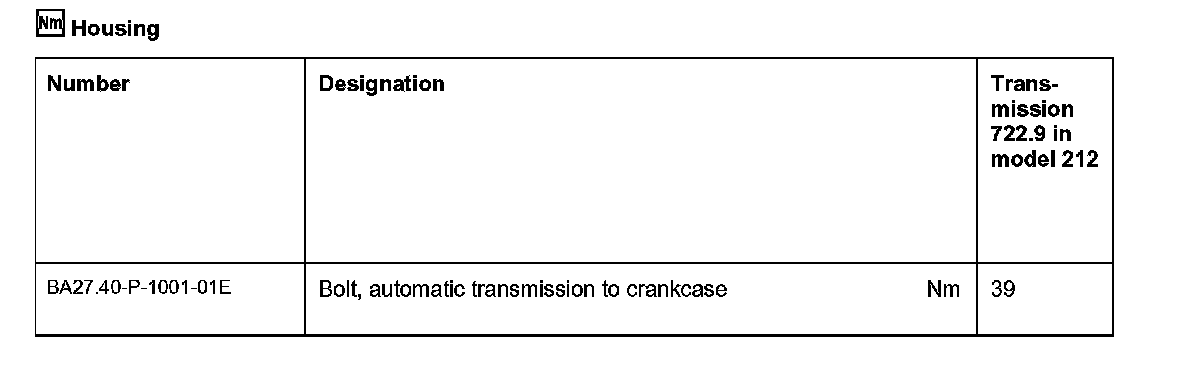

Housing:




Complete manual transmission:

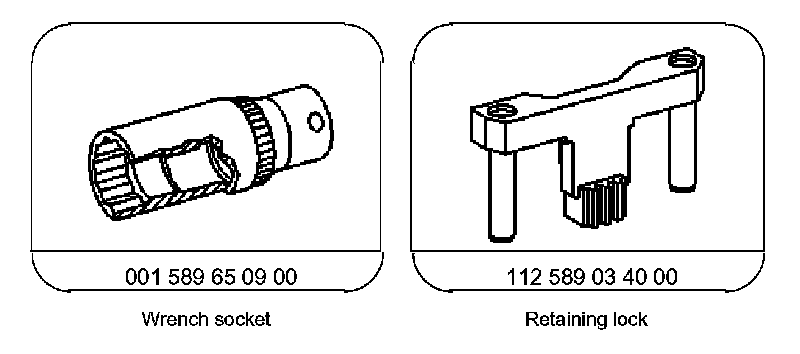

Special Tools:
