AR41.10-P-0070EWX Remove/Install Front Axle Transmission Propeller Shaft

AR41.10-P-0070EWX Remove/Install Front Axle Transmission Propeller Shaft
MODEL 212.08 /09 /28 /29, 218.39 with TRANSMISSION 722.96

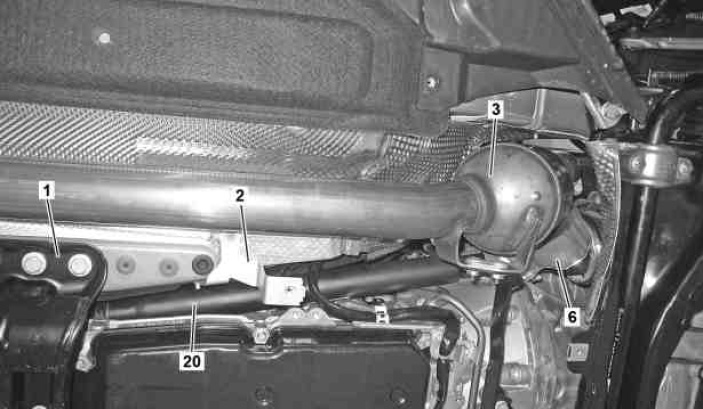

1 Rear engine crossmember
2 Bracket
3 Catalytic converter
6 Heat shield
20 Front axle transmission propeller shaft

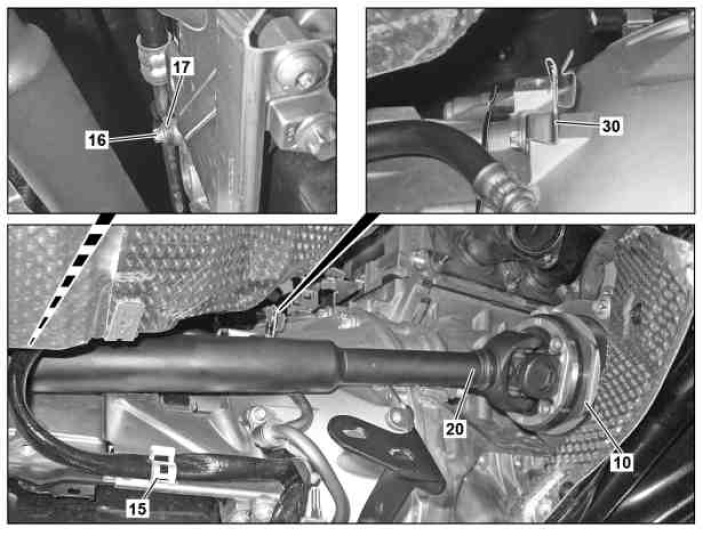

Shown on engine 273

10 Front axle transmission
15 Transmission electrical line bracket
16 Screw
17 Retaining clamp for supply line
20 Front axle transmission propeller shaft

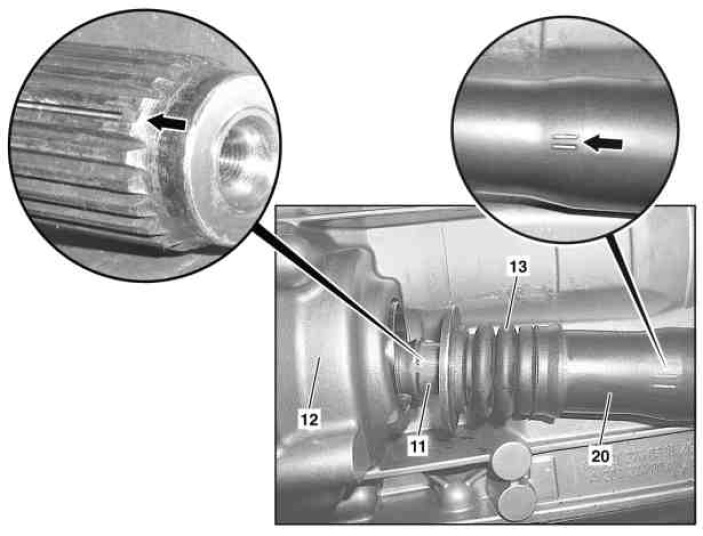

11 Splined profile for transfer case
12 Transfer case
13 Rubber boot
20 Front axle transmission propeller shaft

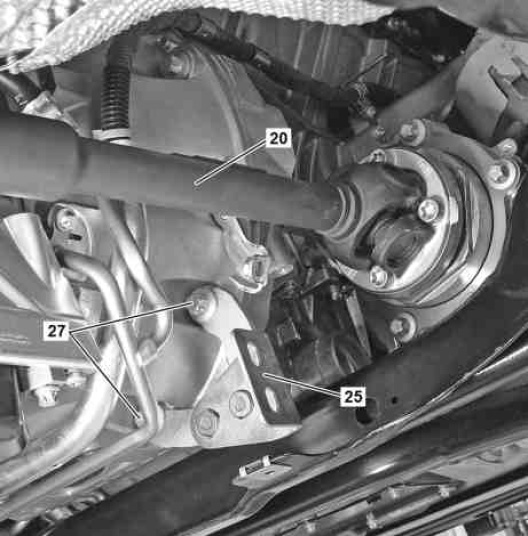

Engine 642

20 Front axle transmission propeller shaft
25 Exhaust system bracket
27 Bolts
