AR41.10-P-0070EWX Remove/Install Front Axle Differential Propeller Shaft



AR41.10-P-0070EWX Remove/install front axle differential propeller shaft

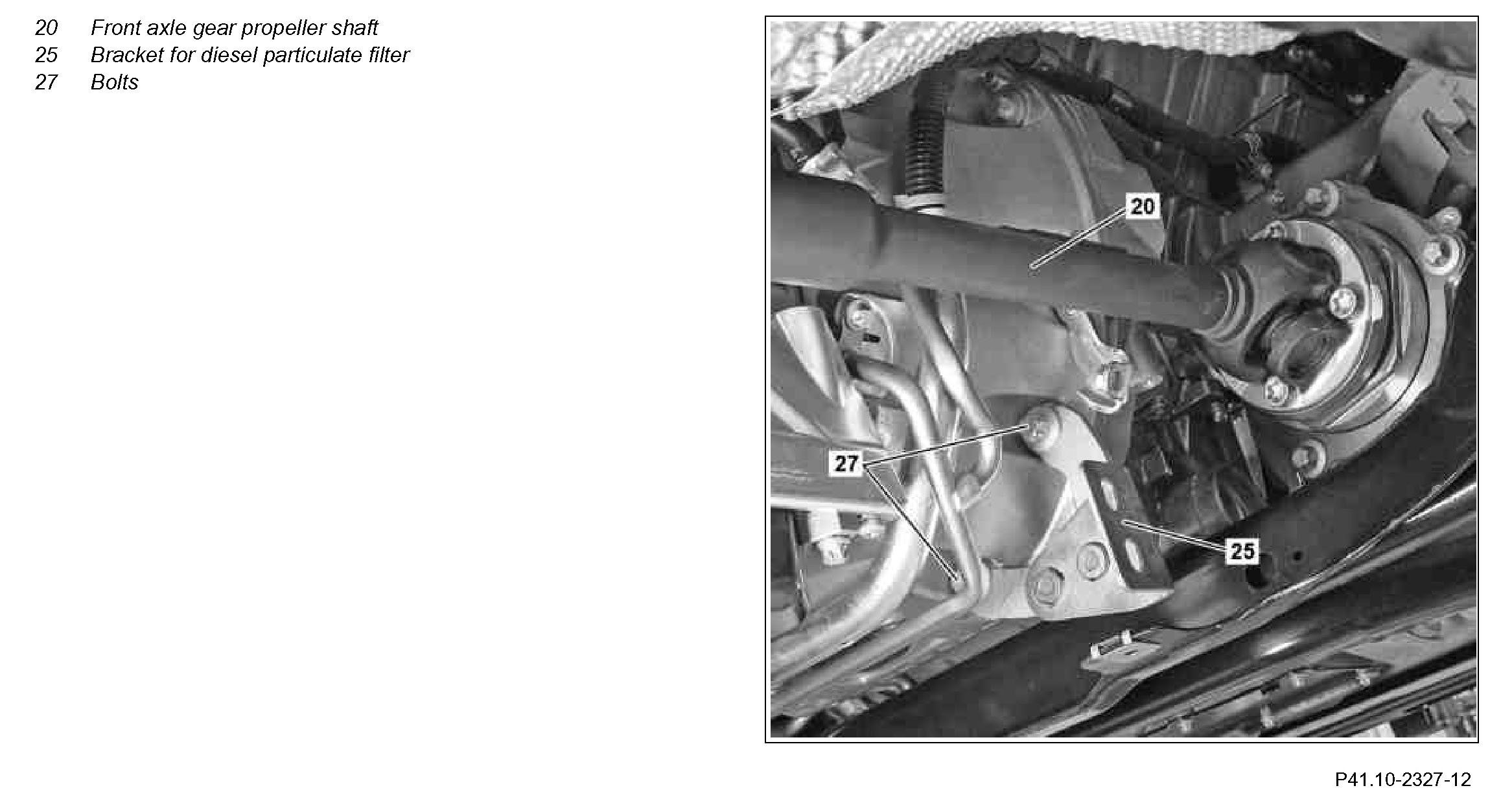

Component Identification:

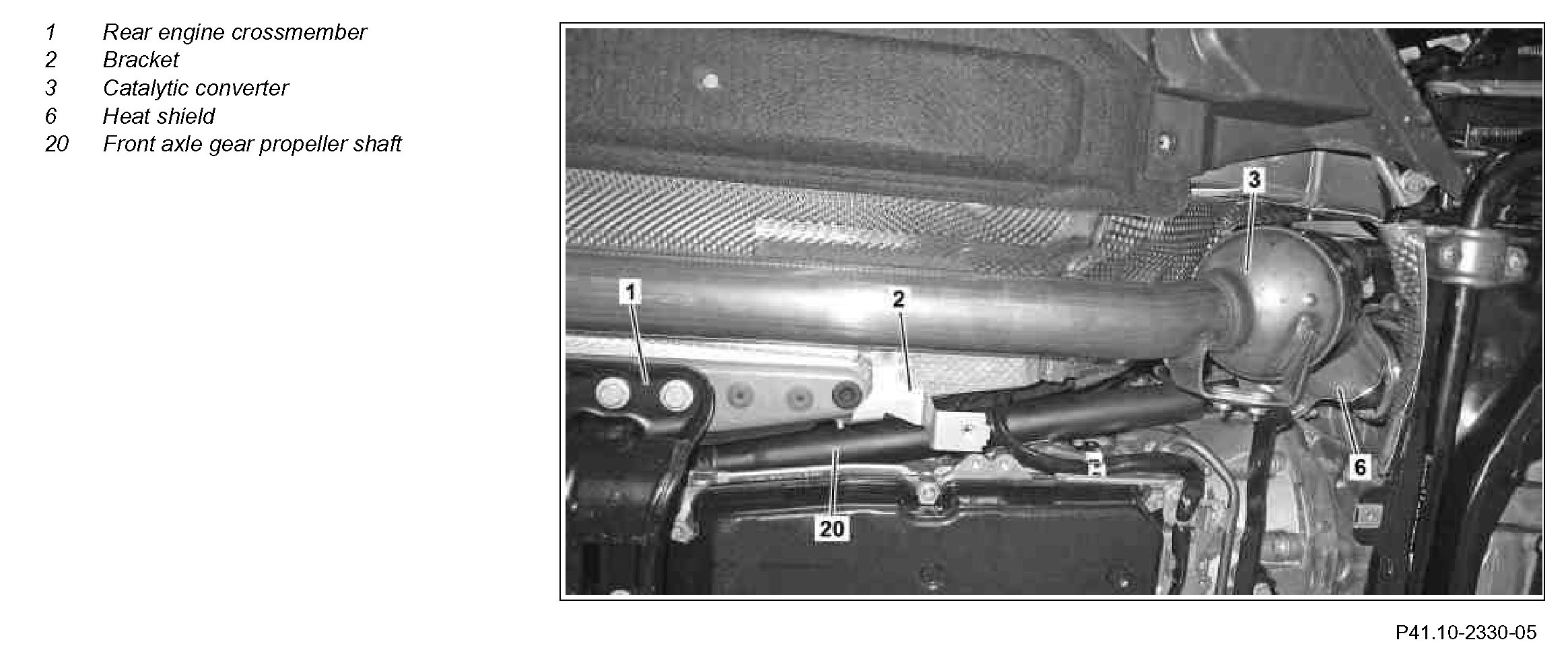

Component Identification:

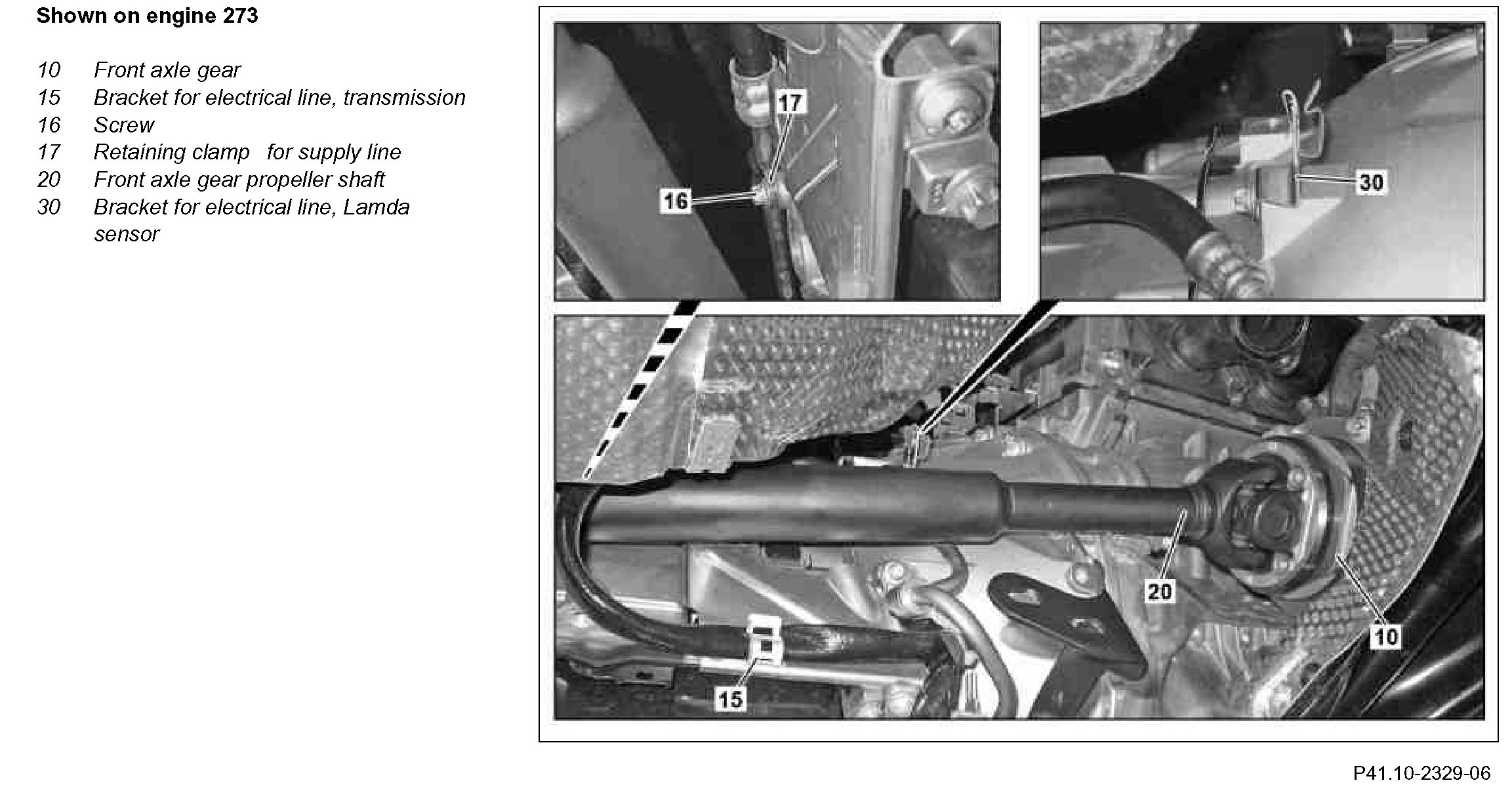

Shown on engine 273

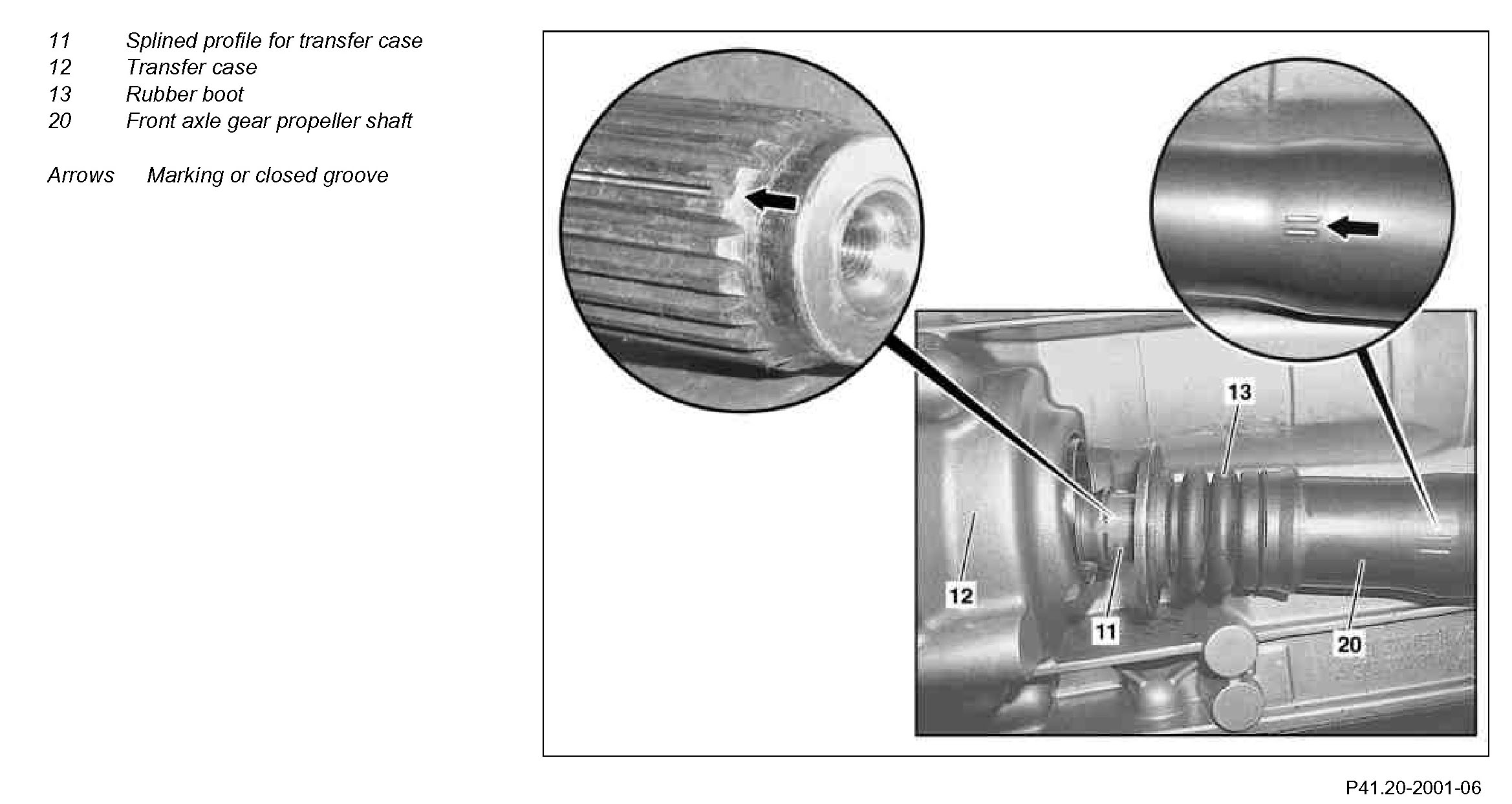

Component Identification:




Component Identification:

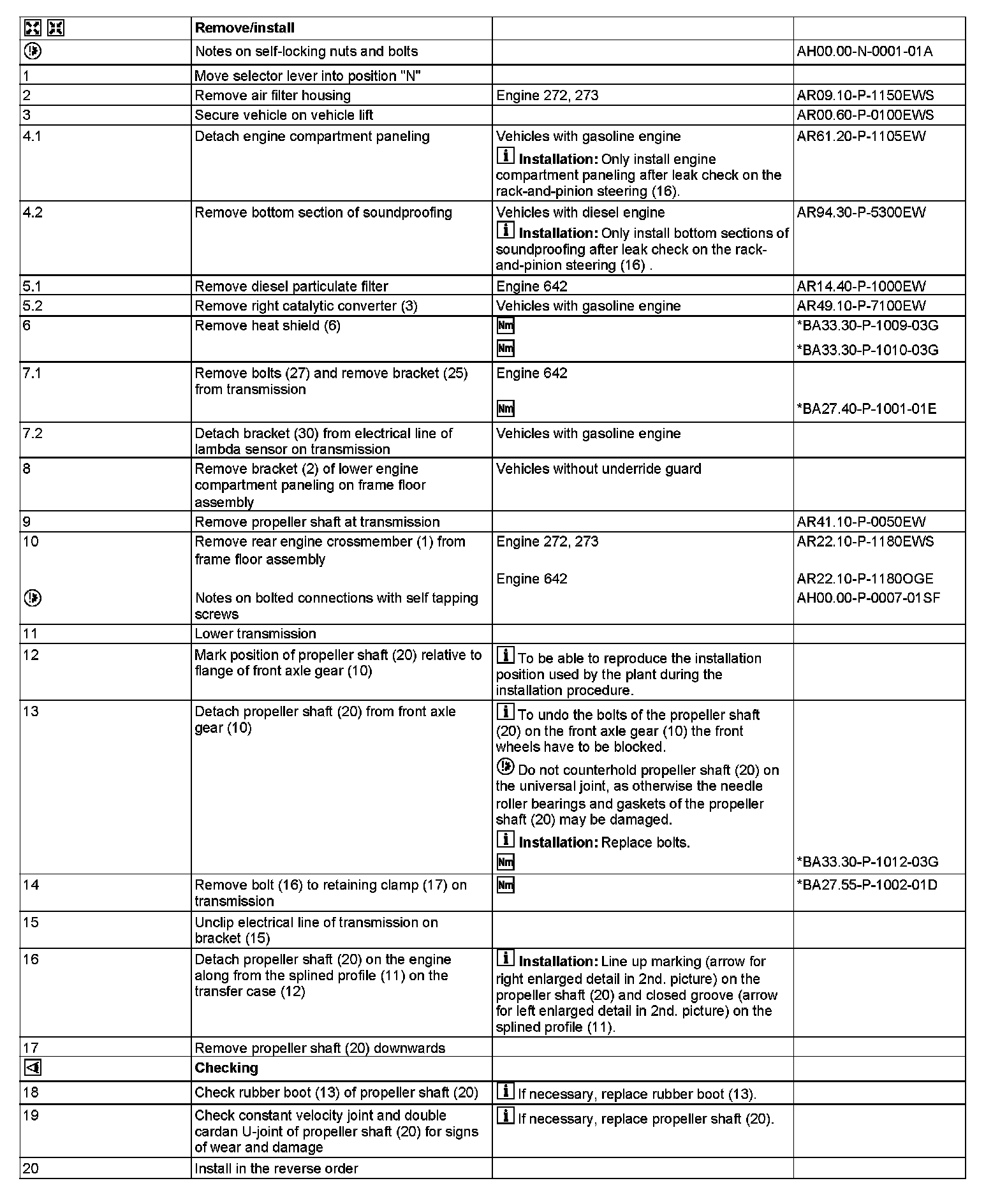

Steps 1-20:

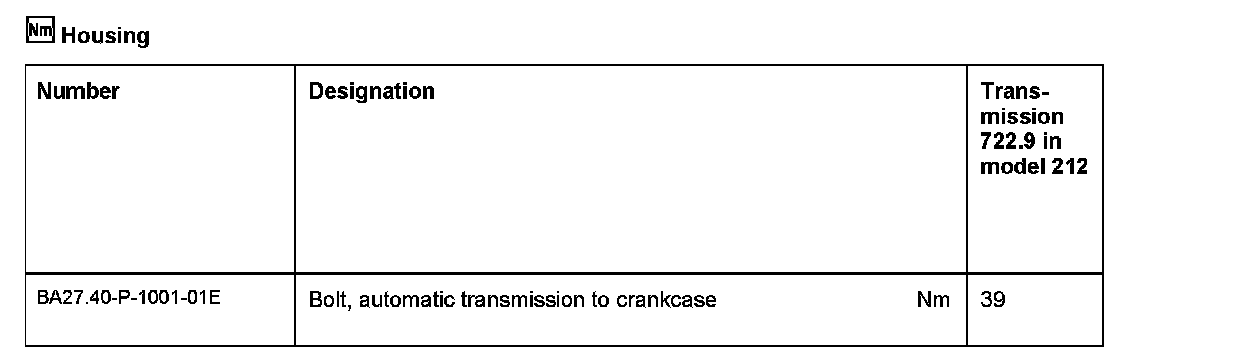

Housing:

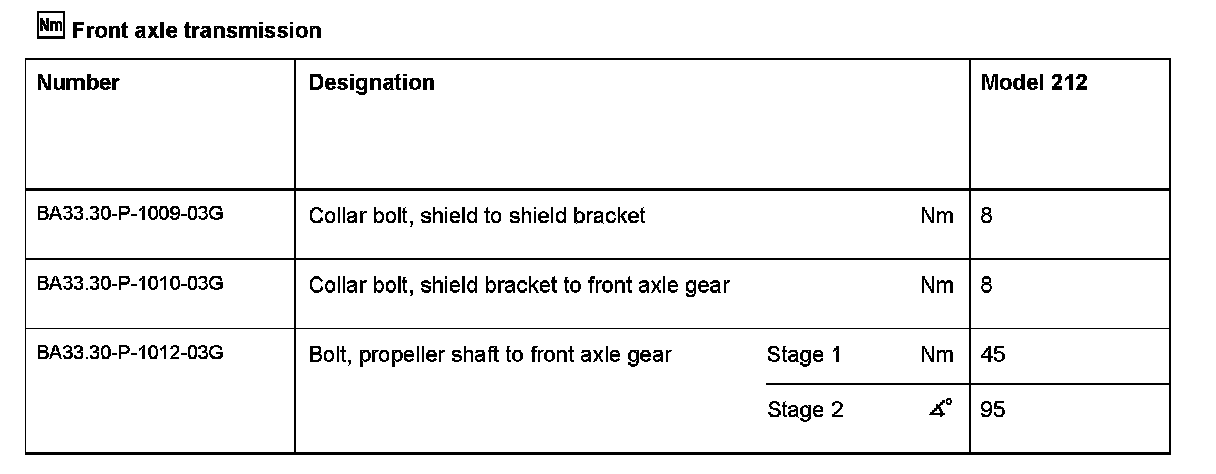

Front axle transmission:

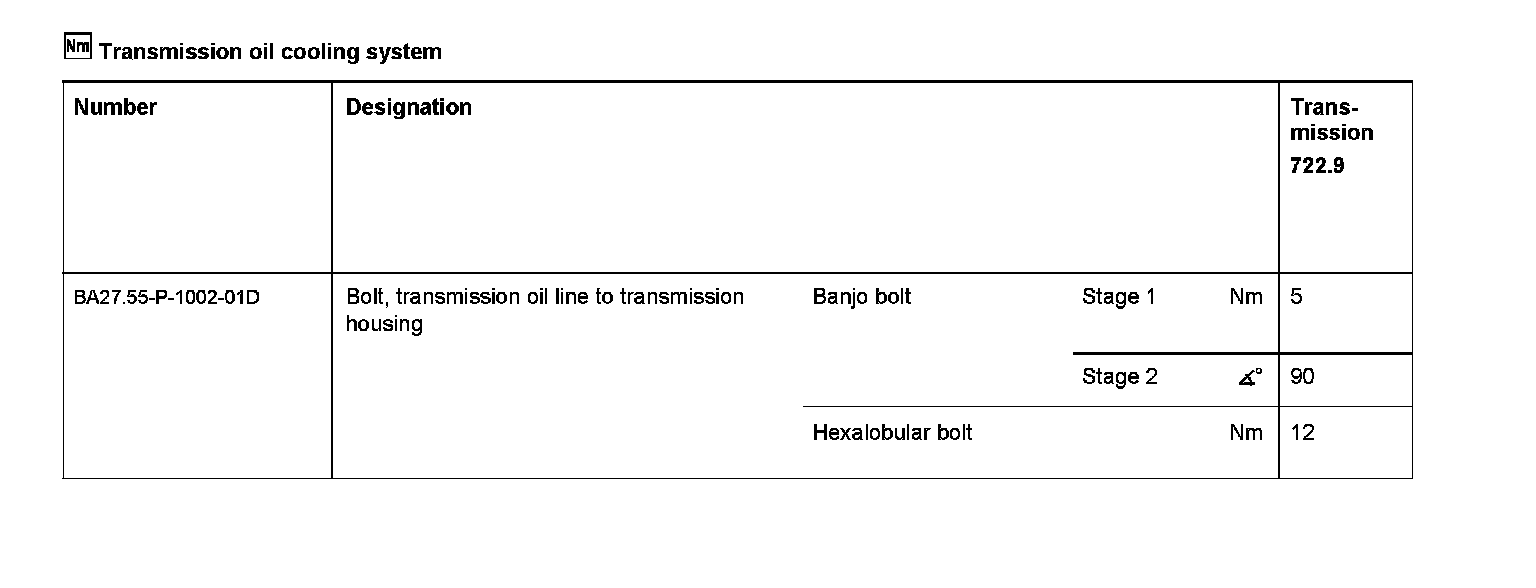

Transmission oil cooling system:
